ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)

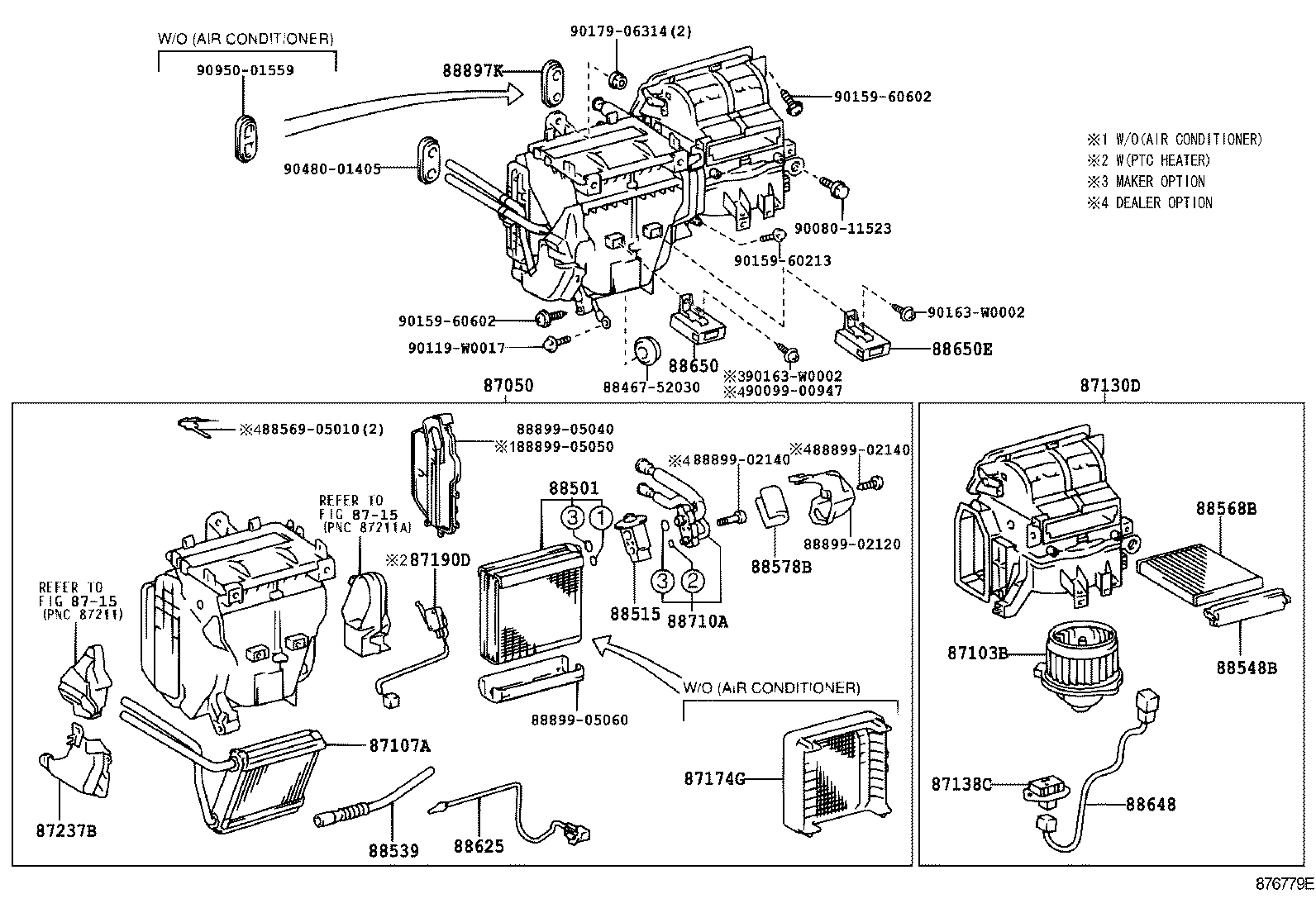

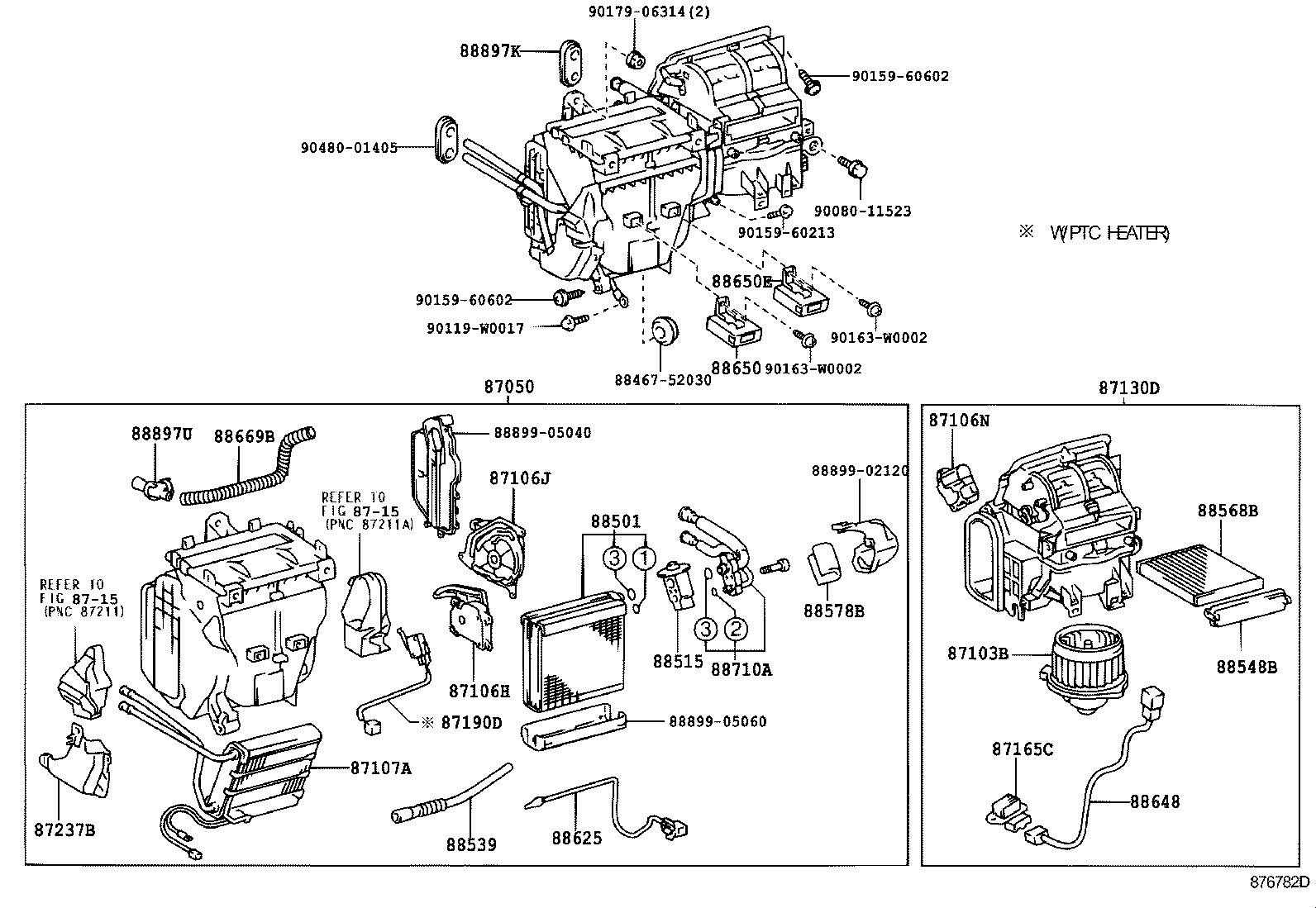

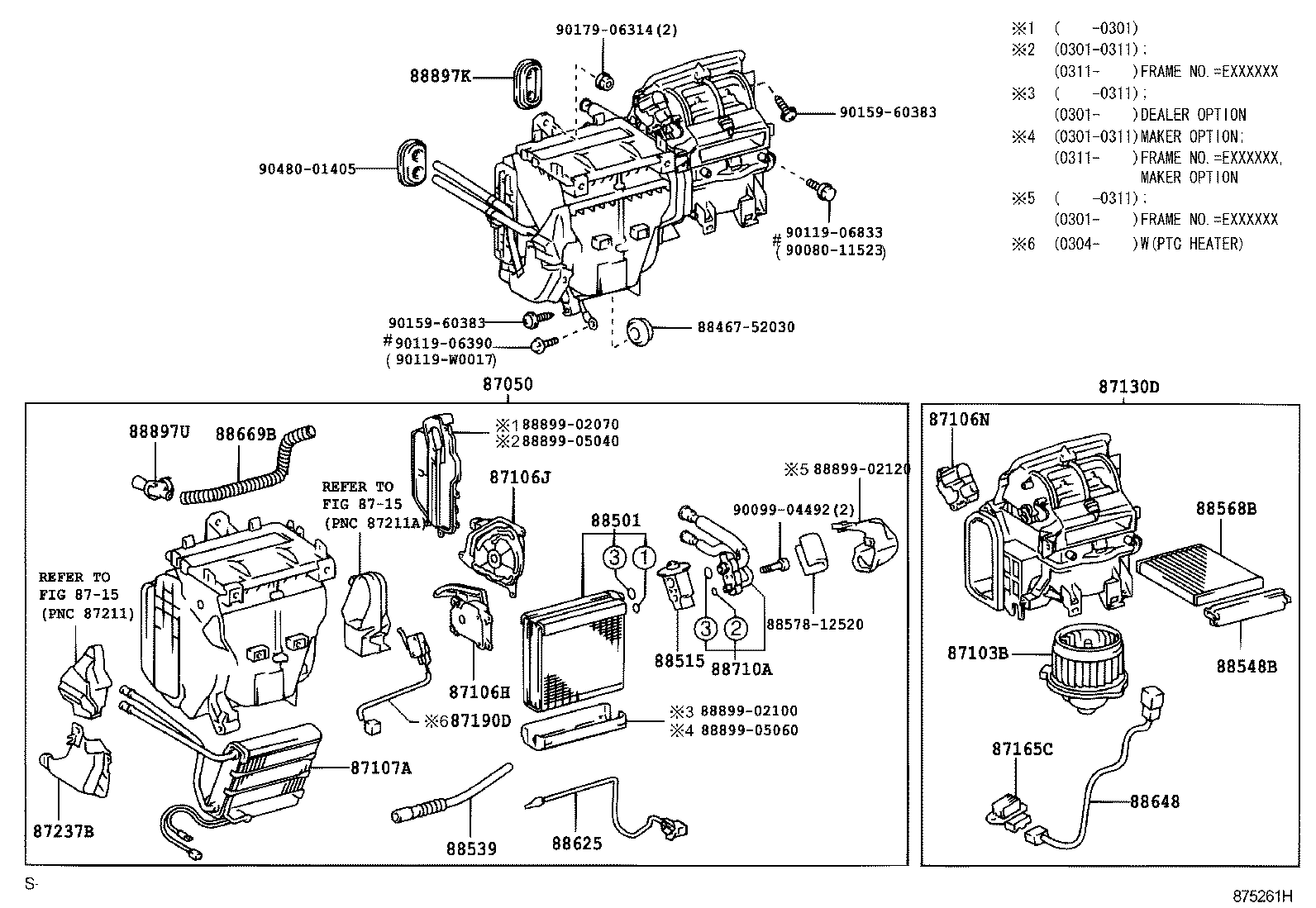

ILLUST NO. 1 OF 2(0111-0405)UKP..LHD
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02090 |
ZZE120,121..UKP..LHD W/O(AIR CONDITIONER) |
1 | ||
| 87050-02070 |
ZZE120,121..UKP..LHD..TERRA MANUAL AIR CONDITIONER |
1 | ||
| 87050-02130 |
CDE120,ZZE120,121..UKP..LHD..TERRA COLD SPEC & MANUAL AIR CONDITIONER |
1 | ||
| 87050-02140 |
CDE120,ZZE120,121..UKP..LHD COLD SPEC |
1 | ||
| 87050-02330 |
CDE120,ZZE120,121..UKP..LHD..TERRA COLD SPEC & MANUAL AIR CONDITIONER |
1 | ||
| 87050-02290 |
ZZE120,121..UKP..LHD W/O(AIR CONDITIONER) |
1 | ||
| 87050-02270 |
ZZE120,121..LHD..TERRA MANUAL AIR CONDITIONER |
1 | ||
| 87050-02270 |
ZZE120,121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA FRAME NO.=EXXXXXX & MANUAL AIR CONDITIONER |
1 | ||
| 87050-02340 |
CDE120,ZZE120,121..LHD COLD SPEC |
1 | ||
| 87050-02290 |
ZZE120..LHD;ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA FRAME NO.=EXXXXXX & W/O(AIR CONDITIONER) |
1 | ||
| 87050-02340 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) FRAME NO.=EXXXXXX & COLD SPEC |
1 | ||
| 87050-02330 |
ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,121..LHD..5F..TERRA..(DCRL,HTWC) FRAME NO.=EXXXXXX & COLD SPEC & MANUAL AIR CONDITIONER |
1 | ||
| 87050-02710 |
ZZE120..LHD;ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA FRAME NO.=RXXXXXX & W/O(AIR CONDITIONER) |
1 | ||
| 87050-02760 |
ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC) FRAME NO.=RXXXXXX & COLD SPEC |
1 | ||
| 87050-02690 |
ZZE120,121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA FRAME NO.=RXXXXXX & MANUAL AIR CONDITIONER |
1 | ||
| 87050-02750 |
ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120,121..LHD..5F..TERRA..(DCRL,HTWC) FRAME NO.=RXXXXXX & COLD SPEC & MANUAL AIR CONDITIONER |
1 | ||
| 87050-02580 |
ZZE120,121..UKP..LHD..TERRA MANUAL AIR CONDITIONER |
1 | ||
| 87050-02600 |
ZZE120,121..UKP..LHD..TERRA W/O(AIR CONDITIONER) |
1 | ||
| 87050-02650 |
CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F)..TERRA COLD SPEC & W/O(AIR CONDITIONER) |
1 | ||
| 87050-02640 |
CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F)..TERRA COLD SPEC & MANUAL AIR CONDITIONER |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02080 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87103-02080 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-05100 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=EXXXXXX & COLD SPEC |
1 | ||
| 87107-0F020 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=RXXXXXX & COLD SPEC |
1 | ||
| 87107-02130 |
ZZE12#..UKP..LHD |
1 | ||
| 87107-05100 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02090 |
CDE120,ZZE120,121..UKP..LHD |
1 | ||
| 87130-02090 |
CDE120,ZZE120,121..UKP..LHD FRAME NO.=EXXXXXX |
1 | ||
| 87130-02230 |
CDE120,ZZE120,121..UKP..LHD FRAME NO.=RXXXXXX |
1 | ||
| 87130-02200 |
CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F)..TERRA MANUAL AIR CONDITIONER |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-02040 |
CDE120,ZZE120,121..UKP |
1 | ||
| 87138-02040 |
ZZE120,121..UKP..TERRA;CDE120,NDE120..UKP..LHD..5F..TERRA |
1 | ||
| 87174G - GUIDE, AIR HEATER | ||||
| 87174-02020 |
CDE120,ZZE120,121..UKP..LHD |
1 | ||
| 87174-02020 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 87174-02020 |
CDE120,ZZE120,121..UKP..LHD FRAME NO.=EXXXXXX |
1 | ||
| 87174-05010 |
CDE120,ZZE120,121..UKP..LHD FRAME NO.=RXXXXXX |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-0F020 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=RXXXXXX |
1 | ||
| 87237-02020 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=EXXXXXX |
1 | ||
| 87237-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87237-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-05080 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=EXXXXXX |
1 | ||
| 88501-05080 |
ZZE120,121..UKP..LHD..TERRA FRAME NO.=RXXXXXX |
1 | ||
| 88501-05080 |
ZZE120,121..UKP..LHD |
1 | ||
| 88501-02060 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88501-05080 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02070 |
CDE120,ZZE12#..UKP |
1 | ||
| 88515-02070 |
ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION |
1 | ||
| 88515-02090 |
CDE120,ZZE12#..UKP MAKER OPTION |
1 | ||
| 88515-02091 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 88515-02091 |
ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 88539-02070 |
CDE120,ZZE12#..UKP |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02040 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=EXXXXXX |
1 | ||
| 88548-02040 |
CDE120,ZZE12#..UKP..LHD..(DCR,HTWC,TWC) |
1 | ||
| 88548-02040 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=RXXXXXX |
1 | ||
| 88548-02040 |
ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 88568-02030 |
ZZE12#..UKP;CDE120,NDE120..UKP..LHD..5F |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60140 |
CDE120,ZZE12#..UKP MAKER OPTION |
1 | ||
| 88625-02060 |
ZZE12#..UKP;CDE120..UKP..SOL;CDE120,NDE120..UKP..LHD..(TERRA,TSP) MAKER OPTION |
1 | ||
| 88625-52090 |
NDE120..UKP..RHD;CDE120,ZZE120,121..UKP..TERRA DEALER OPTION |
1 | ||
| 88625-52020 |
ZZE120;ZZE121..5D..SOL;CDE120..LHD..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA DEALER OPTION |
1 | ||
| 88625-02060 |
ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) MAKER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-02150 |
CDE120,ZZE120,121..UKP |
1 | ||
| 88648-02240 |
CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F)..TERRA |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-02351 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 88650-02351 |
CDE120,ZZE120,121..UKP..TERRA MAKER OPTION |
1 | ||
| 88650-02350 |
CDE120,ZZE120,121..UKP..(DCR,HTWC) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-02270 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88710-05380 |
CDE120,ZZE12#..UKP..LHD FRAME NO.=EXXXXXX |
1 | ||
| 88710-05380 |
CDE120,ZZE120,121..UKP..LHD..TERRA |
1 | ||
| 88710-05380 |
CDE120,ZZE120,121..UKP..LHD..TERRA FRAME NO.=RXXXXXX |
1 | ||
| 88710-05380 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90480-01434 |
ZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD..5F..TERRA;ZZE121,123..UKP..LHD..5D..(4FC,6F)..(TERRA,TSP) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88578-12520 | ||||
| 88891-02020 | ||||
| 88899-02070 | ||||
| 88899-02100 | ||||
| 88899-02120 | ||||
| 88899-05040 | ||||
| 88899-05050 | ||||
| 88899-05060 | ||||
| 90080-11523 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90119-06390 | ||||
| 90119-06833 | ||||
| 90119-W0017 | ||||
| 90159-60383 | ||||
| 90163-W0002 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
| 90950-01559 | ||||
| Linked diagrams | ||||
| 8715 | ||||

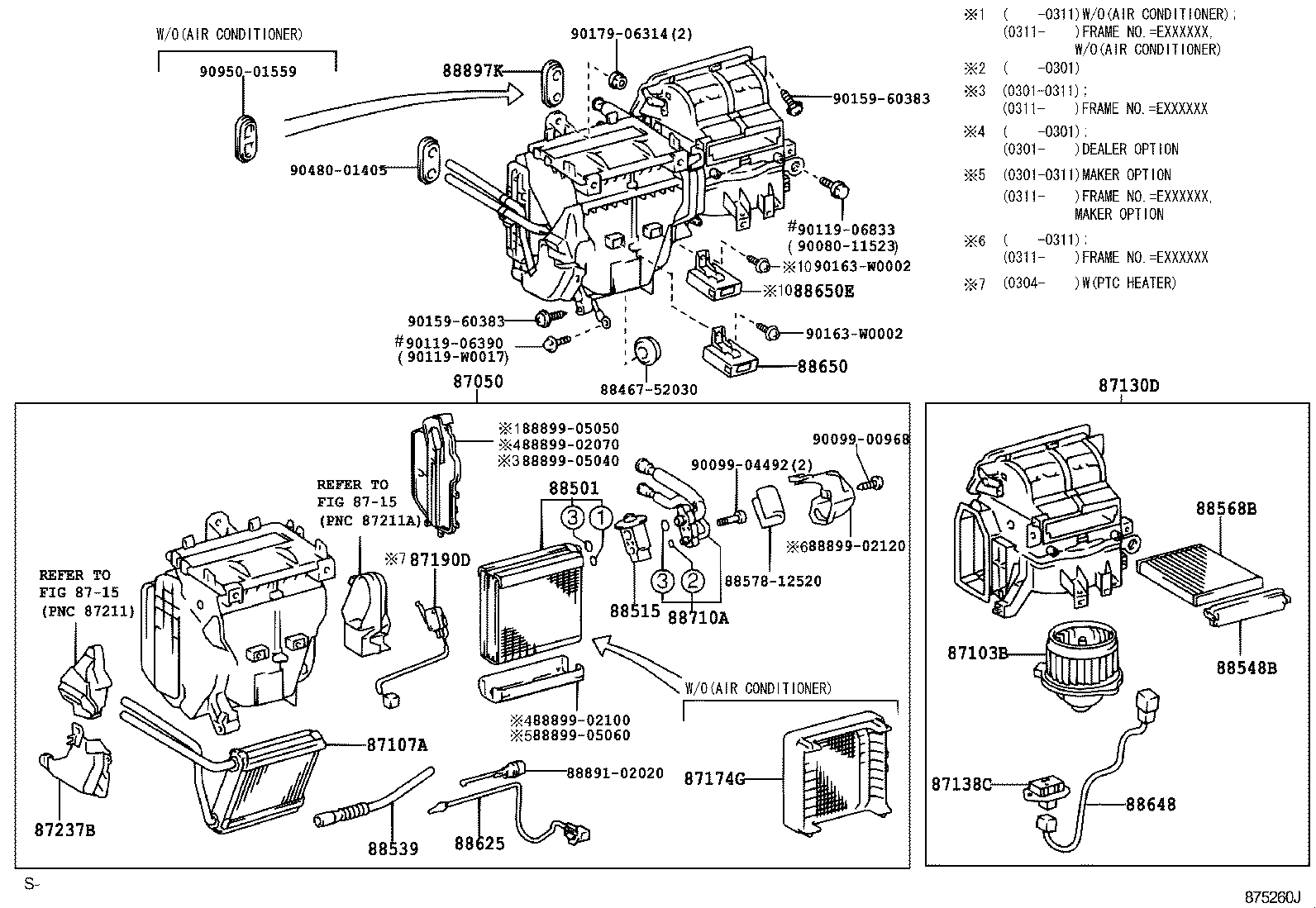

ILLUST NO. 1 OF 2(0111-0405)UKP..LHD
AUTO AIR CONDITIONER
