Toyota Corolla hb (ukp) ZZE120 HEADLAMP CLEANER

ZZE120L-DGMDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007

Engine 4ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0111-0405)UKP..LHD

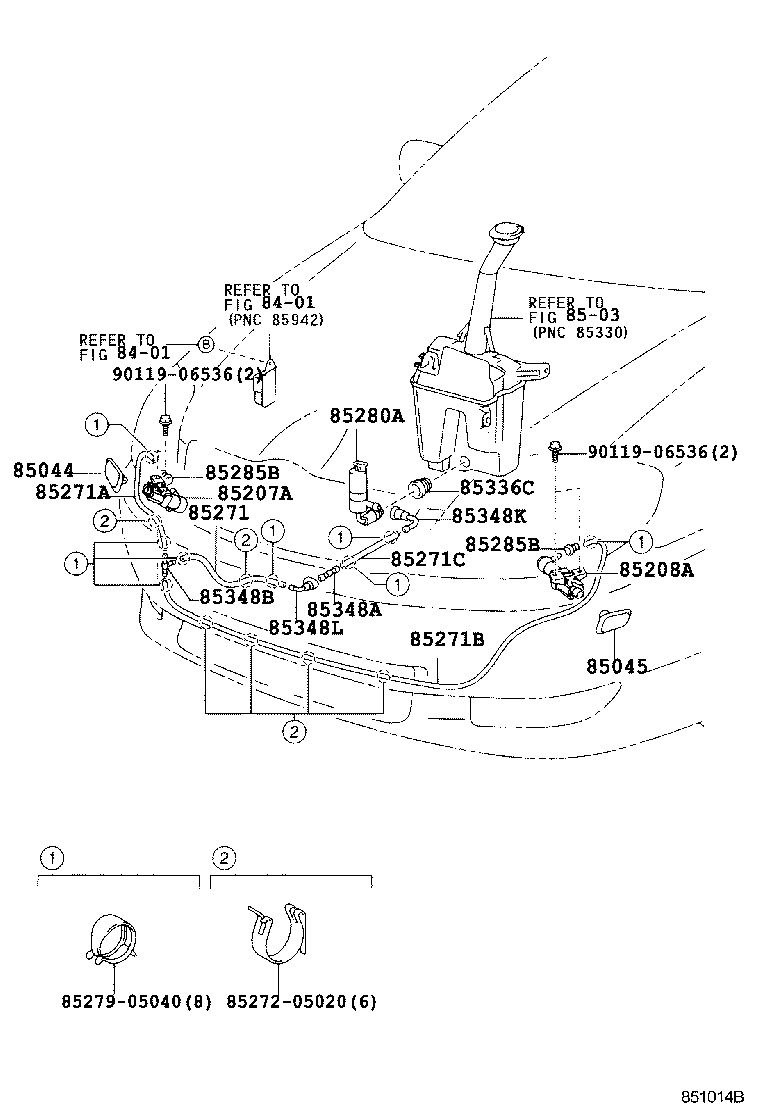

Click highlighted areas on diagram

Part #	Description	Period	Qty
85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85044-02901	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85044-02900	CDE120,ZZE12#..UKP..LHD LESS COLOR	11/2001 - 05/2004	1
85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85045-02901	CDE120,ZZE12#..UKP..LHD LESS COLOR	11/2001 - 05/2004	1
85045-02903	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-02010	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85207-02020	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-02010	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85208-02020	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85271 - HOSE, HEADLAMP CLEANER, NO.1
90069-16012	CDE120,ZZE12#..UKP..LHD *H,L=420	11/2001 - 05/2004	1
85277-05040	CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) L=90	05/2004 - 12/2999	1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90069-16012	CDE120,ZZE12#..UKP..LHD *H,L=550	11/2001 - 05/2004	1
85276-02040	CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) L=1950	05/2004 - 12/2999	1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90069-16012	CDE120,ZZE12#..UKP..LHD *H,L=1275	11/2001 - 05/2004	1
85277-05050	CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) *H,L=440	05/2004 - 12/2999	1
85271C - HOSE, HEADLAMP CLEANER, NO.4
85277-05040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-02020	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85280-02021	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2005 - 12/2999	1
85280-02020	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 04/2005	1
85285B - JOINT, HEADLAMP CLEANER NOZZLE NO.1
85285-05040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	2
85285-05040	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	2
85285B - JOINT, HEADLAMP CLEANER NOZZLE NO.1
85285-05040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	2
85285-05040	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	2
85336C - PACKING, HEADLAMP CLEANER MOTOR
85336-05070	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
90069-20005	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2005 - 12/2999	1
90069-20005	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 04/2005	1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
90069-44002	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85288-02030	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85288-02030	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
90069-44001	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85286-05040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85286-05040	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
Common parts
85272-05020
85279-05040
90119-06536
Linked diagrams
8401
8503

(0405- )CDE120,NDE120,ZZE120,121..UKP..LHD

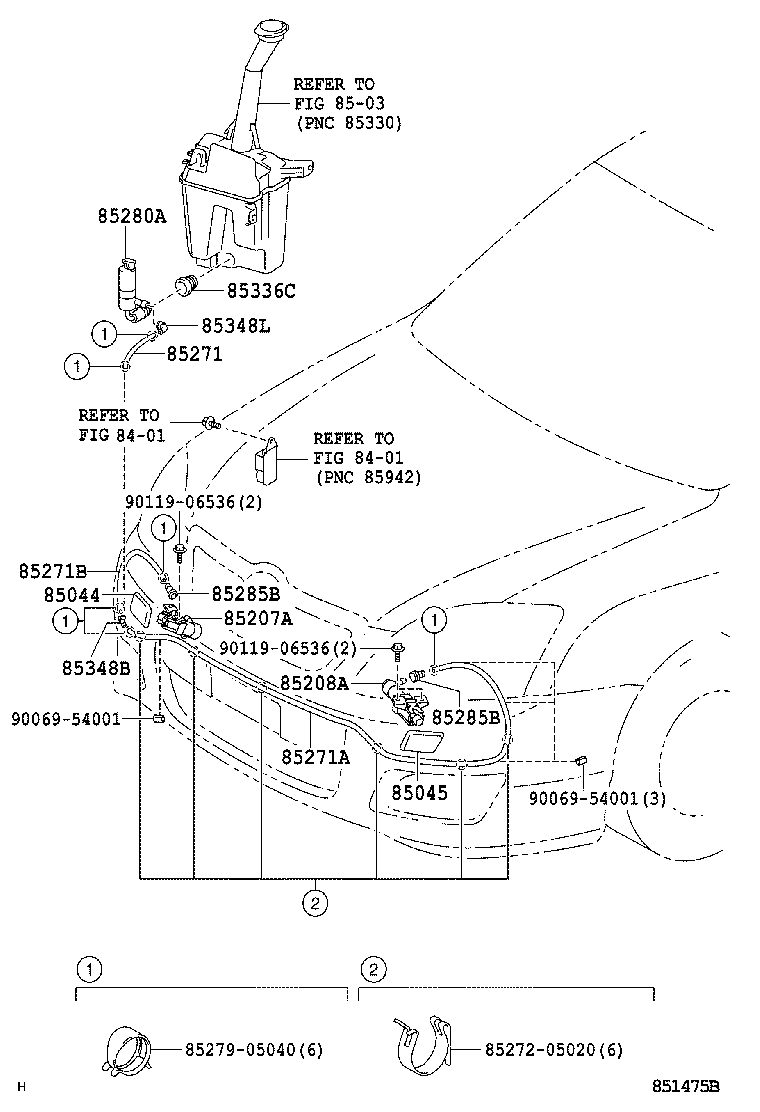

Click highlighted areas on diagram

Part #	Description	Period	Qty
85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85044-02901	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85044-02900	CDE120,ZZE12#..UKP..LHD LESS COLOR	11/2001 - 05/2004	1
85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85045-02901	CDE120,ZZE12#..UKP..LHD LESS COLOR	11/2001 - 05/2004	1
85045-02903	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-02010	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85207-02020	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-02010	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85208-02020	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85271 - HOSE, HEADLAMP CLEANER, NO.1
90069-16012	CDE120,ZZE12#..UKP..LHD *H,L=420	11/2001 - 05/2004	1
85277-05040	CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) L=90	05/2004 - 12/2999	1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90069-16012	CDE120,ZZE12#..UKP..LHD *H,L=550	11/2001 - 05/2004	1
85276-02040	CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) L=1950	05/2004 - 12/2999	1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90069-16012	CDE120,ZZE12#..UKP..LHD *H,L=1275	11/2001 - 05/2004	1
85277-05050	CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) *H,L=440	05/2004 - 12/2999	1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-02020	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85280-02021	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2005 - 12/2999	1
85280-02020	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 04/2005	1
85285B - JOINT, HEADLAMP CLEANER NOZZLE NO.1
85285-05040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	2
85285-05040	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	2
85285B - JOINT, HEADLAMP CLEANER NOZZLE NO.1
85285-05040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	2
85285-05040	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	2
85336C - PACKING, HEADLAMP CLEANER MOTOR
85336-05070	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
90069-20005	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2005 - 12/2999	1
90069-20005	CDE120,NDE120,ZZE12#..UKP..LHD	05/2004 - 04/2005	1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85288-02030	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85288-02030	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85286-05040	CDE120,ZZE12#..UKP..LHD	11/2001 - 05/2004	1
85286-05040	CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F)	05/2004 - 12/2999	1
Common parts
85272-05020
85279-05040
90069-54001
90119-06536
Linked diagrams
8401
8503
