ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)
ILLUST NO. 1 OF 6(0111-0405)ZZE120,121..UKP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ZZE12#..UKP YAZAKI |
1 | ||
| 83530-28020 |
ZZE12#..UKP DENSO |
1 | ||
| 83530-05010 |
ZZE12#..UKP VALEO |
1 | ||
| 83530-05010 |
ZZE12#..UKP VALEO |
1 | ||
| 83530-60020 |
ZZE12#..UKP YAZAKI |
1 | ||
| 83530-28020 |
ZZE12#..UKP DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CDE120,NDE120,ZZE12#..UKP..MTM |
1 | ||
| 84210-12040 |
CDE120,ZZE12#..UKP..MTM..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02060 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02140 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02070 |
ZZE120..UKP REAR |
1 | ||
| 89465-02180 |
ZZE120..UKP REAR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02060 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02140 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02070 |
ZZE120..UKP REAR |
1 | ||
| 89465-02180 |
ZZE120..UKP REAR |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| Common parts | ||||
| 90126-08046 | ||||
| 90178-W0029 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
ILLUST NO. 2 OF 6(0111-0405)UKP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08246 |
ZZE12#..UKP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08283 |
CDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
CDE120..UKP;ZZE12#..UKP..LHD 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
ZZE120,121..UKP..LHD;CDE120,NDE120,ZZE123..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
ZZE12#..UKP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08285 |
CDE120,NDE120,ZZE12#..UKP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08285 |
ZZE12#..UKP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
CDE120,NDE120,ZZE12#..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82020 |
CDE120,NDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82021 |
CDE120,NDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 90080-82023 |
CDE120,NDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
CDE120,NDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,NDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82031 |
CDE120,NDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82022 |
CDE120,NDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82020 |
CDE120,NDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82021 |
CDE120,NDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 90080-82023 |
CDE120,NDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
CDE120,NDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,NDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82031 |
CDE120,NDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82022 |
CDE120,NDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82616-20010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82643 - RELAY, DIM-DIP LAMP | ||||
| 90987-04010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90080-87031 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02010 |
ZZE12#..UKP |
1 | ||
| 82662-02100 |
ZZE12#..UKP |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-12020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82662-12020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02010 |
ZZE12#..UKP |
1 | ||
| 82663-02010 |
ZZE12#..UKP |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12040 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82663-12040 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12040 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82663-12040 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02030 |
ZZE12#..UKP |
1 | ||
| 82741-02030 |
ZZE12#..UKP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82741-12050 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82741-12050 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 88790-22131 |
CDE120,ZZE120,121..UKP |
1 | ||
| 88790-22131 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90080-87030 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87013 |
CDE120,ZZE12#..UKP P/N LABEL=9008087013 |
1 | ||
| 90080-87013 |
CDE120,NDE120,ZZE12#..UKP P/N LABEL=9008087013 |
1 | ||
| 90080-87019 |
CDE120,ZZE12#..UKP P/N LABEL=9008087019 |
1 | ||
| 90080-87019 |
CDE120,NDE120,ZZE12#..UKP P/N LABEL=9008087019 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87012 |
CDE120,ZZE12#..UKP |
1 | ||
| 90080-87012 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-12010 |
ZZE12#..UKP |
1 | ||
| 85928-12010 |
ZZE12#..UKP |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 90987-02028 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 85942-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP |
1 | ||
| 90080-87019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 89654 - RELAY, POWER STEERING | ||||
| 90987-02025 |
CDE120,ZZE12#..UKP |
1 | ||
| 90987-02025 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90119-W0059 | ||||
| 90179-06214 | ||||
| 90182-W0004 | ||||
| 91621-B0616 | ||||
| 91626-40620 | ||||
| 91631-J0612 | ||||
| 91651-G0618 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||

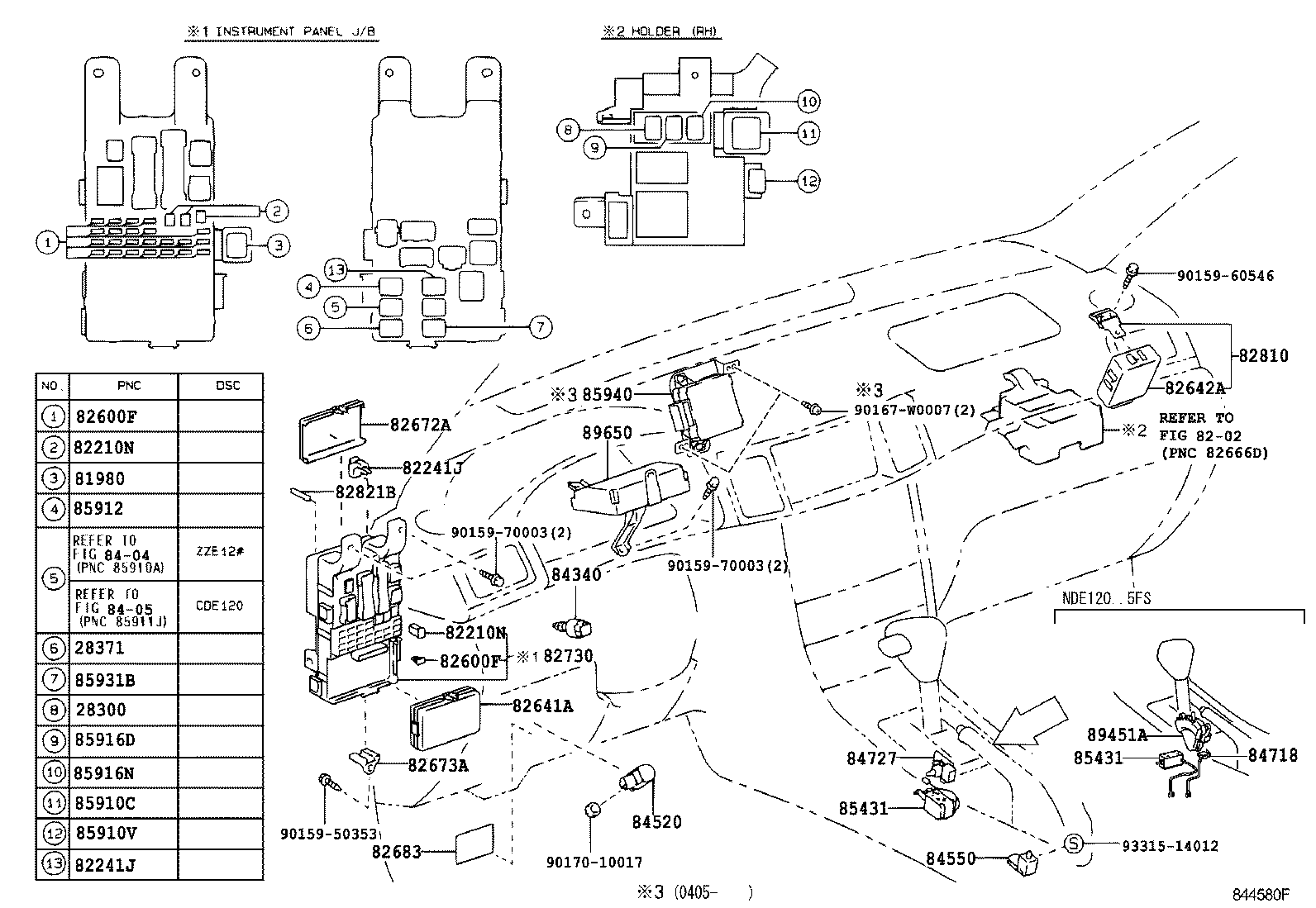

ILLUST NO. 3 OF 6(0111- )UKP..LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1CDFTV,1NDTV,2ZZGE,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 28300-28010 |
1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90080-87019 |
1CDFTV,1NDTV,2ZZGE,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90080-87019 |
1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-05040 |
CDE120,ZZE12#..UKP |
1 | ||
| 81980-05040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 81980-50030 |
CDE120,ZZE12#..UKP |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08280 |
CDE120,NDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
CDE120,ZZE12#..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08281 |
CDE120,NDE120,ZZE12#..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
CDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08280 |
CDE120,NDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
CDE120,ZZE12#..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08281 |
CDE120,NDE120,ZZE12#..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
CDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82241-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82241-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82020 |
CDE120,NDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82021 |
CDE120,NDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 90080-82023 |
CDE120,NDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
CDE120,NDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,NDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82031 |
CDE120,NDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82022 |
CDE120,NDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82020 |
CDE120,NDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82021 |
CDE120,NDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 90080-82023 |
CDE120,NDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
CDE120,NDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,NDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82031 |
CDE120,NDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82022 |
CDE120,NDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82641A - RELAY, INTEGRATION W/DOOR CONTROL | ||||
| 82641-02050 |
ZZE121..UKP..LHD..5D..SOL;CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 82641-02050 |
ZZE123..UKP..LHD;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 82641-02040 |
CDE120,NDE120,ZZE12#..UKP W(KEY LESS ENTRY) |
1 | ||
| 82641-02040 |
CDE120,ZZE12#..UKP W(KEY LESS ENTRY) |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-05010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82642-05010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-02070 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82672-02070 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82673-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-02080 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82683-02110 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-02060 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82730-02040 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 82810-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82821-52020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
ZZE12#..UKP |
1 | ||
| 84340-32050 |
ZZE120,123..UKP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-64010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84550-33010 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 84550-33010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90987-04010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90080-87019 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 90080-87019 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90080-87019 |
CDE120,ZZE12#..UKP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP..(DCR,HTWC,TWC) |
1 | ||
| 90080-87019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90080-87019 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02030 |
ZZE120,121..UKP..LHD |
1 | ||
| 89650-02170 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60546 | ||||
| 90159-70003 | ||||
| 90167-W0007 | ||||
| 90170-10017 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

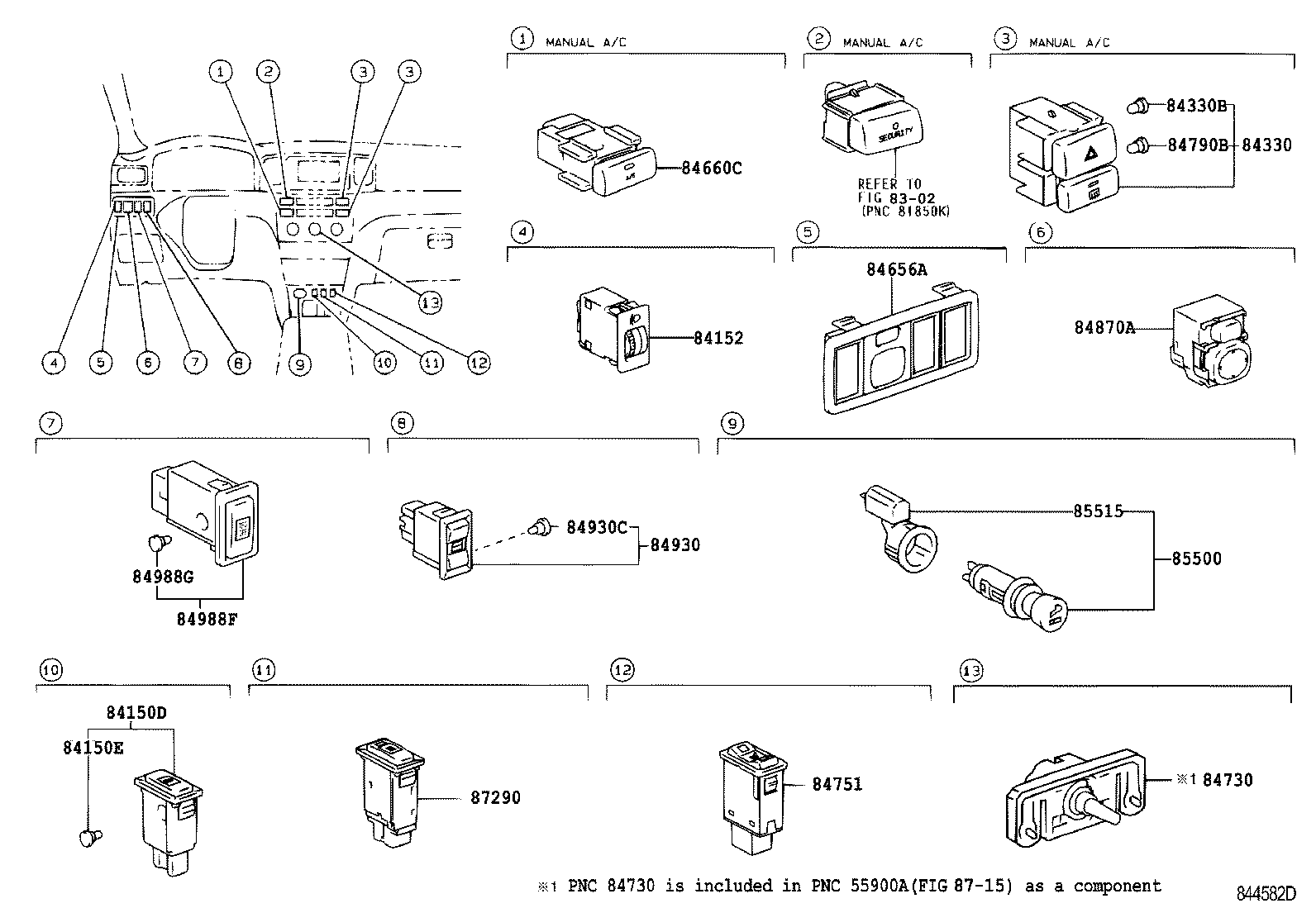

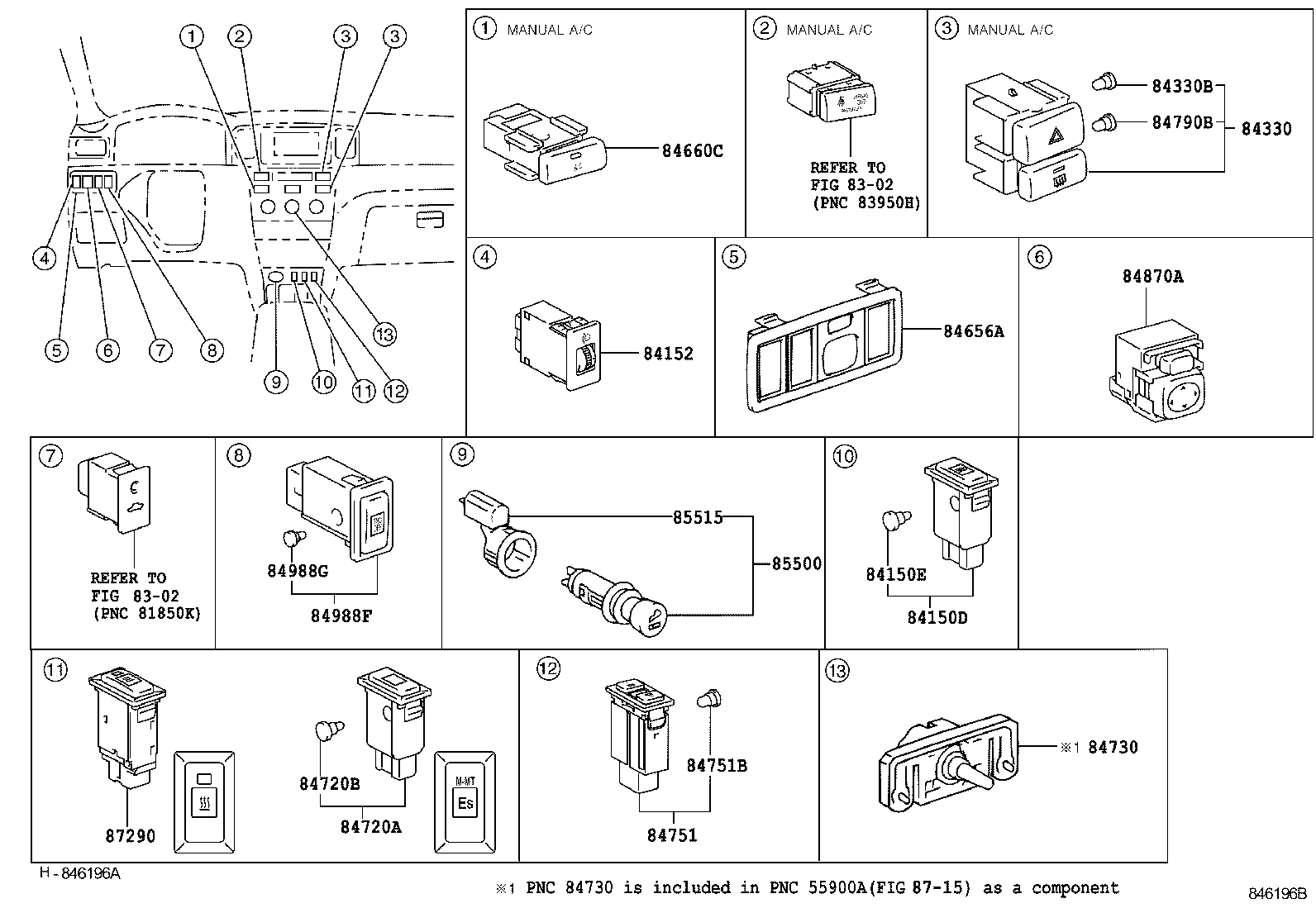

ILLUST NO. 4 OF 6(0111-0405)UKP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-02020 |
CDE120,ZZE120,121..UKP..LHD |
1 | ||
| 84150-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84150-02021 |
CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90011-11014 |
CDE120,ZZE120,121..UKP..LHD |
1 | ||
| 90011-11014 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90011-11042 |
CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84152-02020 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84152-02021 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02080 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84332-02091 |
CDE120,NDE120,ZZE120,121..UKP..TERRA COLD SPEC |
1 | ||
| 84332-02081 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84332-02090 |
CDE120,ZZE120,121..UKP COLD SPEC |
1 | ||
| 84332-02090 |
CDE120,ZZE120,121..UKP..TERRA COLD SPEC |
1 | ||
| 84332-02080 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84332-12490 |
CDE120,NDE120,ZZE120,121..UKP..TERRA COLD SPEC,TOKAI RIKA |
1 | ||
| 84332-02092 |
CDE120,NDE120,ZZE120,121..UKP..TERRA COLD SPEC,TRW |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90011-11023 |
CDE120,ZZE120,121..UKP 14V 0.84W |
1 | ||
| 90011-11023 |
CDE120,ZZE120,121..UKP..TERRA 14V 0.84W |
1 | ||
| 90011-11044 |
CDE120,NDE120,ZZE120,121..UKP..TERRA 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02090J0 |
CDE120,ZZE120,121..UKP..LHD..TERRA W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.BLUE,TRIM8# |
1 | ||
| 84656-02110J0 |
CDE120,ZZE120,121..UKP..LHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 84656-02090B0 |
CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02090B0 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02110B0 |
CDE120,ZZE120,121..UKP..LHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84656-02110B0 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-02040 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84660-02040 |
CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-02040 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84732-02040 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0F010 |
CDE120,NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 84751-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90011-11045 |
CDE120,NDE120,ZZE120,121..UKP..TERRA 14V 0.56W |
1 | ||
| 90011-11024 |
CDE120,ZZE120,121..UKP..TERRA 14V 0.56W |
1 | ||
| 90011-11024 |
CDE120,ZZE120,121..UKP 14V 0.56W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 84872-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-02030 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90011-11017 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-02010 |
CDE120,NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 84999-10320 |
CDE120,NDE120,ZZE120,121..UKP..LHD 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09010 |
CDE120,ZZE120,121..UKP |
1 | ||
| 85500-09010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85500-09040 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-05010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515-05010 |
CDE120,ZZE120,121..UKP |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8715 | ||||
ILLUST NO. 5 OF 6(0111-0405)UKP
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 84052-05020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02180 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84140-02190 |
CDE120,ZZE12#..UKP..(DCR,HTWC,TWC) W(FRONT FOG LAMP SW) |
1 | ||
| 84140-02180 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 84140-02190 |
CDE120,NDE120,ZZE12#..UKP W(FRONT FOG LAMP SW) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02060 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84306-02070 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84306-02061 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84306-02140 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84306-0D012 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84306-0D050 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0D010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84450-0D010 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02290 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84652-02290 |
CDE120,ZZE12#..UKP |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-02020 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..LHD |
1 | ||
| Common parts | ||||
| 90159-W0018 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8601 | ||||
ILLUST NO. 6 OF 6(0111- )UKP
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02040 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 83320-02040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0D010 |
CDE120,ZZE12#..UKP |
2 | ||
| 84231-0D010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0D010 |
CDE120,ZZE12#..UKP |
2 | ||
| 84231-0D010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02041 |
CDE120,ZZE12#..UKP |
1 | ||
| 84810-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 84810-02041 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02110 |
CDE120,ZZE12#..UKP..LHD..3D;CDE120,ZZE120,121..UKP..LHD..5D..TERRA |
1 | ||
| 84820-02111 |
CDE120,ZZE12#..UKP..LHD..3D;CDE120,ZZE120,121..UKP..LHD..5D..TERRA |
1 | ||
| 84820-0F040 |
CDE120,NDE120,ZZE120,121..UKP..LHD..3D W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 84820-0F040 |
CDE120,ZZE12#..UKP..LHD..3D;CDE120,ZZE120,121..UKP..LHD..5D..TERRA |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-05020B2 |
CDE120,ZZE120,121..UKP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 84860-05020B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90901-48003 | ||||
ILLUST NO. 1 OF 6(0405- )ZZE120,121..UKP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ZZE12#..UKP YAZAKI |
1 | ||
| 83530-28020 |
ZZE12#..UKP DENSO |
1 | ||
| 83530-05010 |
ZZE12#..UKP VALEO |
1 | ||
| 83530-05010 |
ZZE12#..UKP VALEO |
1 | ||
| 83530-60020 |
ZZE12#..UKP YAZAKI |
1 | ||
| 83530-28020 |
ZZE12#..UKP DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CDE120,NDE120,ZZE12#..UKP..MTM |
1 | ||
| 84210-12040 |
CDE120,ZZE12#..UKP..MTM..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02060 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02140 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02070 |
ZZE120..UKP REAR |
1 | ||
| 89465-02180 |
ZZE120..UKP REAR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02060 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02140 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02070 |
ZZE120..UKP REAR |
1 | ||
| 89465-02180 |
ZZE120..UKP REAR |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| Common parts | ||||
| 82715-2B340 | ||||
| 90119-06922 | ||||
| 90126-08046 | ||||
| 90178-W0029 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
ILLUST NO. 2 OF 6(0405- )UKP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08246 |
ZZE12#..UKP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08283 |
CDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
CDE120..UKP;ZZE12#..UKP..LHD 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
ZZE120,121..UKP..LHD;CDE120,NDE120,ZZE123..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
ZZE12#..UKP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08285 |
CDE120,NDE120,ZZE12#..UKP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08285 |
ZZE12#..UKP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
CDE120,NDE120,ZZE12#..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82020 |
CDE120,NDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82021 |
CDE120,NDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 90080-82023 |
CDE120,NDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
CDE120,NDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,NDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82031 |
CDE120,NDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82022 |
CDE120,NDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82020 |
CDE120,NDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82021 |
CDE120,NDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 90080-82023 |
CDE120,NDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82033 |
CDE120,NDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,NDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82031 |
CDE120,NDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82022 |
CDE120,NDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82616-20010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82643 - RELAY, DIM-DIP LAMP | ||||
| 90987-04010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90080-87031 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02100 |
ZZE12#..UKP |
1 | ||
| 82662-02010 |
ZZE12#..UKP |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-12020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82662-12020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02010 |
ZZE12#..UKP |
1 | ||
| 82663-02010 |
ZZE12#..UKP |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12040 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82663-12040 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12040 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82663-12040 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02030 |
ZZE12#..UKP |
1 | ||
| 82741-02030 |
ZZE12#..UKP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82741-12050 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82741-12050 |
ZZE12#..UKP..LHD NO.2 |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 88790-22131 |
CDE120,ZZE120,121..UKP |
1 | ||
| 88790-22131 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90080-87030 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87013 |
CDE120,ZZE12#..UKP P/N LABEL=9008087013 |
1 | ||
| 90080-87013 |
CDE120,NDE120,ZZE12#..UKP P/N LABEL=9008087013 |
1 | ||
| 90080-87019 |
CDE120,ZZE12#..UKP P/N LABEL=9008087019 |
1 | ||
| 90080-87019 |
CDE120,NDE120,ZZE12#..UKP P/N LABEL=9008087019 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87012 |
CDE120,ZZE12#..UKP |
1 | ||
| 90080-87012 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-12010 |
ZZE12#..UKP |
1 | ||
| 85928-12010 |
ZZE12#..UKP |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 90987-02028 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 85942-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F,6F) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP |
1 | ||
| 90080-87019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 89654 - RELAY, POWER STEERING | ||||
| 90987-02025 |
CDE120,ZZE12#..UKP |
1 | ||
| 90987-02025 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90119-W0059 | ||||
| 90177-W0006 | ||||
| 90179-06214 | ||||
| 90182-W0004 | ||||
| 91626-40620 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8410 | ||||
ILLUST NO. 4 OF 6(0405- )UKP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-02020 |
CDE120,ZZE120,121..UKP..LHD |
1 | ||
| 84150-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84150-02021 |
CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90011-11014 |
CDE120,ZZE120,121..UKP..LHD |
1 | ||
| 90011-11014 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90011-11042 |
CDE120,NDE120,ZZE120,121..UKP..LHD..(4FC,5F) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84152-02020 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84152-02021 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02080 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84332-02091 |
CDE120,NDE120,ZZE120,121..UKP..TERRA COLD SPEC |
1 | ||
| 84332-02081 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84332-02090 |
CDE120,ZZE120,121..UKP COLD SPEC |
1 | ||
| 84332-02090 |
CDE120,ZZE120,121..UKP..TERRA COLD SPEC |
1 | ||
| 84332-02080 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84332-12490 |
CDE120,NDE120,ZZE120,121..UKP..TERRA COLD SPEC,TOKAI RIKA |
1 | ||
| 84332-02092 |
CDE120,NDE120,ZZE120,121..UKP..TERRA COLD SPEC,TRW |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90011-11023 |
CDE120,ZZE120,121..UKP 14V 0.84W |
1 | ||
| 90011-11023 |
CDE120,ZZE120,121..UKP..TERRA 14V 0.84W |
1 | ||
| 90011-11044 |
CDE120,NDE120,ZZE120,121..UKP..TERRA 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02090J0 |
CDE120,ZZE120,121..UKP..LHD..TERRA W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.BLUE,TRIM8# |
1 | ||
| 84656-02110J0 |
CDE120,ZZE120,121..UKP..LHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 84656-02090B0 |
CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02090B0 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02110B0 |
CDE120,ZZE120,121..UKP..LHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84656-02110B0 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-02040 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84660-02040 |
CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-02040 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84732-02040 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0F010 |
CDE120,NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 84751-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90011-01002 |
CDE120,NDE120,ZZE12#..UKP..LHD 14V 0.91W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90011-11045 |
CDE120,NDE120,ZZE120,121..UKP..TERRA 14V 0.56W |
1 | ||
| 90011-11024 |
CDE120,ZZE120,121..UKP..TERRA 14V 0.56W |
1 | ||
| 90011-11024 |
CDE120,ZZE120,121..UKP 14V 0.56W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 84872-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-02010 |
CDE120,NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 84999-10320 |
CDE120,NDE120,ZZE120,121..UKP..LHD 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09010 |
CDE120,ZZE120,121..UKP |
1 | ||
| 85500-09010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85500-09040 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-05010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515-05010 |
CDE120,ZZE120,121..UKP |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8715 | ||||
ILLUST NO. 5 OF 6(0405- )UKP
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 84052-05020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02180 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84140-02190 |
CDE120,ZZE12#..UKP..(DCR,HTWC,TWC) W(FRONT FOG LAMP SW) |
1 | ||
| 84140-02180 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 84140-02190 |
CDE120,NDE120,ZZE12#..UKP W(FRONT FOG LAMP SW) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-12010B0 |
CDE120..UKP..TERRA;NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84258A - COVER, STEERING PAD, RH | ||||
| 84258-68020B2 |
CDE120..UKP..TERRA;NDE120..UKP..LHD..TERRA;ZZE120,121..UKP..5D..TERRA;ZZE120,121..UKP..LHD..3D..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02060 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84306-02070 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84306-02061 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84306-02140 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84306-0D012 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84306-0D050 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0D010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84450-0D010 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02290 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 84652-02290 |
CDE120,ZZE12#..UKP |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-02020 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..LHD |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-W0018 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
