ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)
ILLUST NO. 1 OF 7(0111- )ZZE12#..UKP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-02890 |
ZZE120..UKP..LHD |
1 | ||
| 82116-02120 |
ZZE120..UKP..LHD W(FRONT FOG LAMP) |
1 | ||
| 82116-02140 |
ZZE120..UKP..LHD W(DAY TIME RUNNING LIGHT SYSTEM);W(DAY TIME RUNNING LIGHT SYSTEM & FRONT FOG LAMP) |
1 | ||
| 82116-02141 |
ZZE120,121..UKP..LHD W(DAY TIME RUNNING LIGHT SYSTEM);W(DAY TIME RUNNING LIGHT SYSTEM & FRONT FOG LAMP) |
1 | ||
| 82116-02121 |
ZZE120..UKP..LHD W(FRONT FOG LAMP) |
1 | ||
| 82115-02891 |
ZZE120..UKP..LHD |
1 | ||
| 82111-02J40 |
ZZE120..UKP..LHD W(DAY TIME RUNNING LIGHT SYSTEM);W(DAY TIME RUNNING LIGHT SYSTEM & FRONT FOG LAMP) |
1 | ||
| 82111-02J50 |
ZZE120..UKP..LHD W(DAY TIME RUNNING LIGHT SYSTEM & FRONT FOG LAMP & VSC);W(DAY TIME RUNNING LIGHT SYSTEM & VSC) |
1 | ||
| 82111-02G90 |
ZZE120..UKP..LHD |
1 | ||
| 82111-02J20 |
ZZE120..UKP..LHD W(FRONT FOG LAMP) |
1 | ||
| 82111-02J30 |
ZZE120..UKP..LHD W(VSC) OR W(FRONT FOG LAMP & VSC) |
1 | ||
| 82111-02J51 |
ZZE120..UKP..LHD W(DAY TIME RUNNING LIGHT SYSTEM & FRONT FOG LAMP & VSC);W(DAY TIME RUNNING LIGHT SYSTEM & VSC) |
1 | ||
| 82111-02J41 |
ZZE120..UKP..LHD W(DAY TIME RUNNING LIGHT SYSTEM);W(DAY TIME RUNNING LIGHT SYSTEM & FRONT FOG LAMP) |
1 | ||
| Common parts | ||||
| 90080-98274 | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90182-W0004 | ||||
| Linked diagrams | ||||
| 8401 | ||||

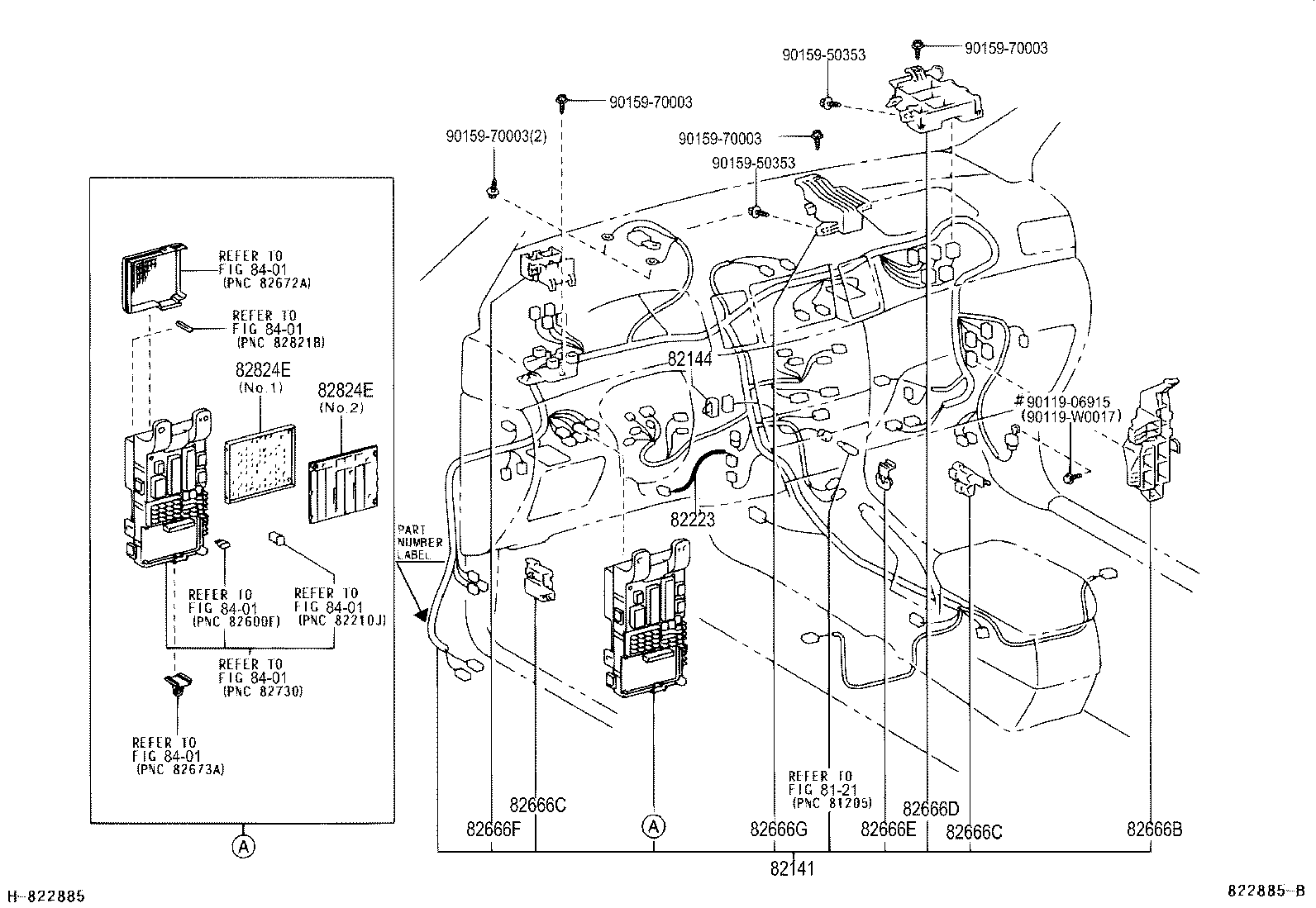

ILLUST NO. 3 OF 7(0111- )UKP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82118-02790 |
ZZE120..UKP..LHD PART NUMBER LABEL=82118-02790 |
1 | ||
| 82201-02220 |
ZZE120..UKP..LHD PART NUMBER LABEL=82201-02220 |
1 | ||
| 82201-02240 |
ZZE120..UKP..LHD PART NUMBER LABEL=82201-02240 |
1 | ||
| 82118-02740 |
ZZE120..UKP..LHD..TERRA PART NUMBER LABEL=82118-02740 |
1 | ||
| 82118-02750 |
ZZE120..UKP..LHD PART NUMBER LABEL=82118-02750 |
1 | ||
| 82118-02791 |
ZZE120..UKP..LHD PART NUMBER LABEL=82118-02791 |
1 | ||
| 82201-02241 |
ZZE120..UKP..LHD PART NUMBER LABEL=82201-02241 |
1 | ||
| 82201-02221 |
ZZE120..UKP..LHD PART NUMBER LABEL=82201-02221 |
1 | ||
| 82118-02792 |
ZZE120..UKP..LHD PART NUMBER LABEL=82118-02792 |
1 | ||
| 82118-02751 |
ZZE120..UKP..LHD PART NUMBER LABEL=82118-02751 |
1 | ||
| 82118-02741 |
ZZE120..UKP..LHD..TERRA PART NUMBER LABEL=82118-02741 |
1 | ||
| 82201-02222 |
ZZE120..UKP..LHD PART NUMBER LABEL=82201-02222 |
1 | ||
| 82201-02242 |
ZZE120..UKP..LHD PART NUMBER LABEL=82201-02242 |
1 | ||
| 82141-02M50 |
ZZE120..UKP..LHD..TERRA PART NUMBER LABEL=82141-02M50 |
1 | ||
| 82141-02M90 |
ZZE120..UKP..LHD..TERRA PART NUMBER LABEL=82141-02M90 |
1 | ||
| 82141-02V60 |
ZZE120..UKP..LHD..TERRA PART NUMBER LABEL=82141-02V60 |
1 | ||
| 82141-02V80 |
ZZE120..UKP..LHD..TERRA PART NUMBER LABEL=82141-02V80 |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-02060 |
CDE120,ZZE120,121..UKP |
1 | ||
| 82144-02060 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02090 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82666-02090 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
CDE120,ZZE12#..UKP |
2 | ||
| 82666-02070 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
CDE120,ZZE12#..UKP |
2 | ||
| 82666-02070 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02100 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82666-02100 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82666-02110 |
CDE120,ZZE12#..UKP |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02190 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82666-02080 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-02060 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82666-02060 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-02010 |
CDE120,ZZE12#..UKP..LHD NO.1 |
1 | ||
| 82824-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD NO.1 |
1 | ||
| 82824-02020 |
CDE120,ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82824-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-02010 |
CDE120,ZZE12#..UKP..LHD NO.1 |
1 | ||
| 82824-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD NO.1 |
1 | ||
| 82824-02020 |
CDE120,ZZE12#..UKP..LHD NO.2 |
1 | ||
| 82824-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90159-50353 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 7(0111- )UKP
DOOR,FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-02860 |
CDE120,ZZE12#..UKP..LHD..3D W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-02840 |
CDE120,ZZE120,121..UKP..LHD..3D..TERRA |
1 | ||
| 82151-02850 |
CDE120,ZZE120,121..UKP..LHD..3D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82151-02851 |
CDE120,ZZE120,121..UKP..LHD..3D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82151-02841 |
CDE120,ZZE120,121..UKP..LHD..3D..TERRA |
1 | ||
| 82151-02860 |
CDE120,NDE120,ZZE12#..UKP..LHD..3D W(POWER WINDOW) |
1 | ||
| 82151-02841 |
CDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-02760 |
CDE120,ZZE120,121..UKP..LHD..3D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82152-02750 |
CDE120,ZZE120,121..UKP..LHD..3D..TERRA |
1 | ||
| 82152-02770 |
CDE120,ZZE12#..UKP..LHD..3D W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-02770 |
CDE120,NDE120,ZZE12#..UKP..LHD..3D W(POWER WINDOW) |
1 | ||
| 82152-02751 |
CDE120,ZZE120,121..UKP..LHD..3D..TERRA |
1 | ||
| 82152-02761 |
CDE120,ZZE120,121..UKP..LHD..3D..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82152-02751 |
CDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-02730 |
CDE120,ZZE12#..UKP..LHD..3D W(*80,SIDE) |
1 | ||
| 82161-02720 |
CDE120,ZZE12#..UKP..LHD..3D |
1 | ||
| 82161-02731 |
CDE120,ZZE12#..UKP..LHD..3D W(*80,SIDE) |
1 | ||
| 82161-02721 |
CDE120,ZZE12#..UKP..LHD..3D |
1 | ||
| 82161-02732 |
CDE120,ZZE12#..UKP..LHD..3D W(*80,SIDE) |
1 | ||
| 82161-0Z250 |
CDE120,ZZE12#..UKP..LHD..3D W(*80,CURTAIN SHIELD & SIDE) |
1 | ||
| 82161-02E80 |
CDE120,NDE120,ZZE12#..UKP..LHD..3D..(4FC,5F,6F) |
1 | ||
| 82161-02F20 |
CDE120,NDE120,ZZE12#..UKP..LHD..3D..(4FC,5F,6F) W(*80,CURTAIN SHIELD & SIDE) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02340 |
ZZE121..UKP..LHD..5D..SOL;CDE120,ZZE120,121..UKP..LHD..TERRA PART NUMBER LABEL=82171-02340 |
1 | ||
| 82171-02370 |
CDE120,ZZE12#..UKP..LHD PART NUMBER LABEL=82171-02370 |
1 | ||
| 82171-02360 |
ZZE121..UKP..LHD..5D..SOL;CDE120,ZZE120,121..UKP..LHD..TERRA PART NUMBER LABEL=82171-02360 |
1 | ||
| 82171-02350 |
CDE120,ZZE12#..UKP..LHD PART NUMBER LABEL=82171-02350 |
1 | ||
| 82171-02820 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA PART NUMBER LABEL=82171-02820 |
1 | ||
| 82171-02850 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA PART NUMBER LABEL=82171-02850 |
1 | ||
| 82171-02840 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA PART NUMBER LABEL=82171-02840 |
1 | ||
| 82171-02830 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA PART NUMBER LABEL=82171-02830 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82172-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02040 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82184-02120 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-02120 |
CDE120,NDE120,ZZE120,121..UKP..LHD..TERRA |
1 | ||
| 82185-02100 |
CDE120,NDE120,ZZE12#..UKP W(POWER DOOR LOCK) |
1 | ||
| 82185-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CDE120,ZZE12#..UKP |
1 | ||
| 82345-12050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 82666-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO. 5 OF 7(0111- )UKP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-12010 | ||||
| 82711-14110 | ||||
| 82711-20870 | ||||
| 82711-30370 | ||||
| 82711-35470 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82715-02290 | ||||
| 82715-02300 | ||||
| 82715-02310 | ||||
| 82715-02340 | ||||
| 82715-02350 | ||||
| 82715-02360 | ||||
| 82715-02370 | ||||
| 82715-02380 | ||||
| 82715-02390 | ||||
| 82715-02400 | ||||
| 82715-12540 | ||||
| 90119-06539 | ||||
| 90119-W0027 | ||||
| 90119-W0041 | ||||
| 90119-W0064 | ||||
| 91512-B1016 | ||||
| 91551-80816 | ||||
| 91641-80610 | ||||
| 91651-B0614 | ||||
| 91671-80610 | ||||
| 91671-80614 | ||||
ILLUST NO. 6 OF 7(0111- )ZZE12#..UKP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82046-12190 |
ZZE12#..UKP..MTM |
1 | ||
| 82046-12190 |
ZZE12#..UKP..MTM |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 87616-22010 | ||||
| 90119-W0017 | ||||
| 91512-B1016 | ||||
ILLUST NO. 2 OF 7(0111- )ZZE120,121..UKP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02670 |
ZZE120..UKP..LHD |
1 | ||
| 82121-02D20 |
ZZE120..UKP..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02200 |
ZZE12#..UKP |
1 | ||
| 82123-02200 |
ZZE12#..UKP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82823-22050 |
CDE120,ZZE12#..UKP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12070 |
ZZE12#..UKP |
1 | ||
| 82991-12070 |
ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90116-06127 | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90178-W0022 | ||||
| 91643-80614 | ||||
ILLUST NO. 5 OF 7(0111- )UKP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-34310 | ||||
| 82715-05200 | ||||
| 82715-12420 | ||||
| 82715-12610 | ||||
| 82715-12660 | ||||
| 82715-12680 | ||||
| 82715-12710 | ||||
| 82715-12720 | ||||
| 82715-12780 | ||||
| 82715-13050 | ||||
| 82715-13100 | ||||
| 82715-13120 | ||||
| 82715-13140 | ||||
| 82715-13150 | ||||
| 82715-13160 | ||||
| 82715-13170 | ||||
| 82715-13180 | ||||
| 82715-13190 | ||||
| 82715-2B200 | ||||
| 82715-32470 | ||||
| 82715-34430 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82715-42580 | ||||
| 82729-20010 | ||||
| 82729-20120 | ||||
| 82729-20140 | ||||
| 82729-20150 | ||||
| 82729-20160 | ||||
| 82729-20220 | ||||
| 82729-20230 | ||||
| 82729-20250 | ||||
| 82729-28120 | ||||
| 87616-22010 | ||||
| 90119-06918 | ||||
| 90119-W0027 | ||||
| 90119-W0041 | ||||
| 90119-W0050 | ||||
| 90179-06274 | ||||
| 90464-00763 | ||||
| 91512-B1016 | ||||
| 91611-B0816 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 91651-B0610 | ||||
| 91651-B0614 | ||||
| 91651-B0618 | ||||
| 91651-G0614 | ||||
ILLUST NO. 7 OF 7(0111- )UKP
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98001 | ||||
| 90080-98228 | ||||
| 90080-98274 | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10957 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
