ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)

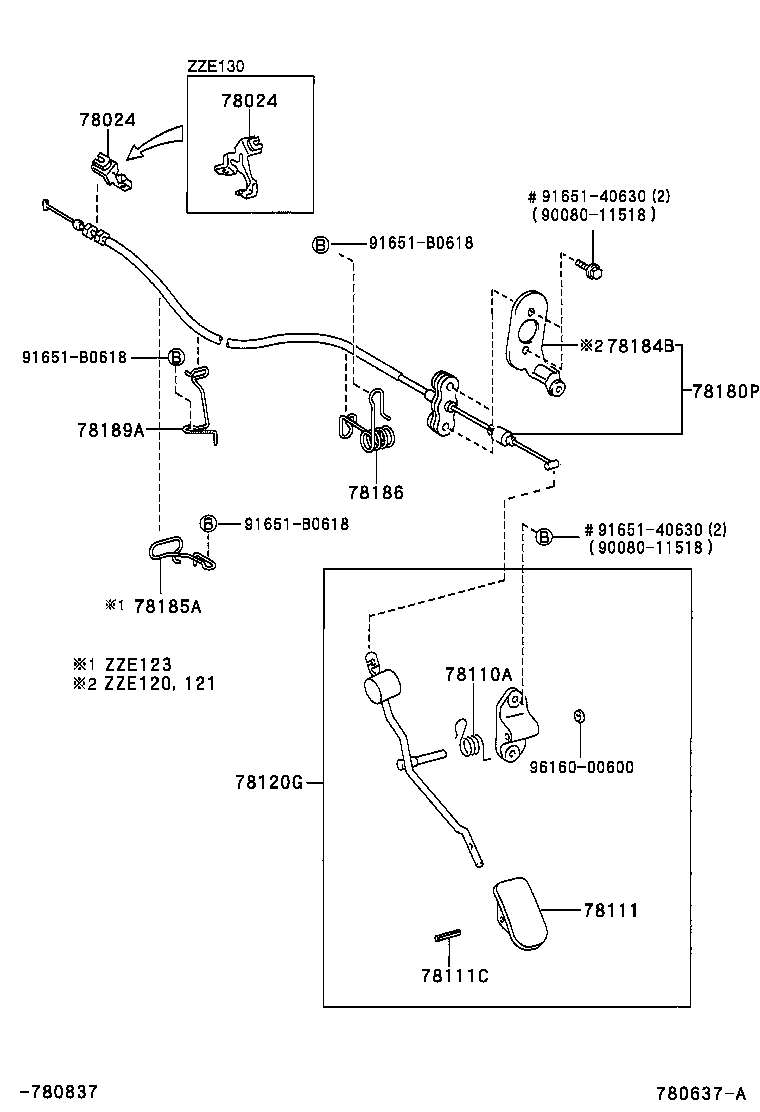

(0111-0405)ZZE12#..UKP..LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-12090 |
ZZE120,121..UKP |
1 | ||
| 78024-12090 |
ZZE120..UKP |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-12090 |
ZZE120,121..UKP |
1 | ||
| 78024-12090 |
ZZE120..UKP |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
ZZE12#..UKP..LHD |
1 | ||
| 90508-26036 |
ZZE120,123..UKP..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-05050 |
ZZE12#..UKP..LHD..MTM (L) |
1 | ||
| 78111-20060 |
ZZE12#..UKP..LHD..MTM (J) |
1 | ||
| 78111-05050 |
ZZE120..UKP..LHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90254-04019 |
ZZE120,123..UKP;ZZE121..UKP..RHD;ZZE121..UKP..LHD..5F |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12310 |
ZZE12#..UKP..LHD..MTM |
1 | ||
| 78120-05200 |
ZZE120..UKP..LHD |
1 | ||
| 78120-12310 |
ZZE12#..UKP..LHD..MTM (J) |
1 | ||
| 78120-05200 |
ZZE12#..UKP..LHD..MTM (L) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-02250 |
ZZE120..UKP..LHD |
1 | ||
| 78180-02250 |
ZZE120,121..UKP..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-02080 |
ZZE120,121..UKP..LHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-13040 |
ZZE12#..UKP..LHD |
1 | ||
| 78186-13040 |
ZZE120,123..UKP..LHD |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-12100 |
ZZE12#..UKP |
1 | ||
| 78189-12100 |
ZZE120,123..UKP |
1 | ||
| Common parts | ||||
| 90080-11518 | ||||
| 91651-40630 | ||||
| 91651-B0618 | ||||
| 96160-00600 | ||||

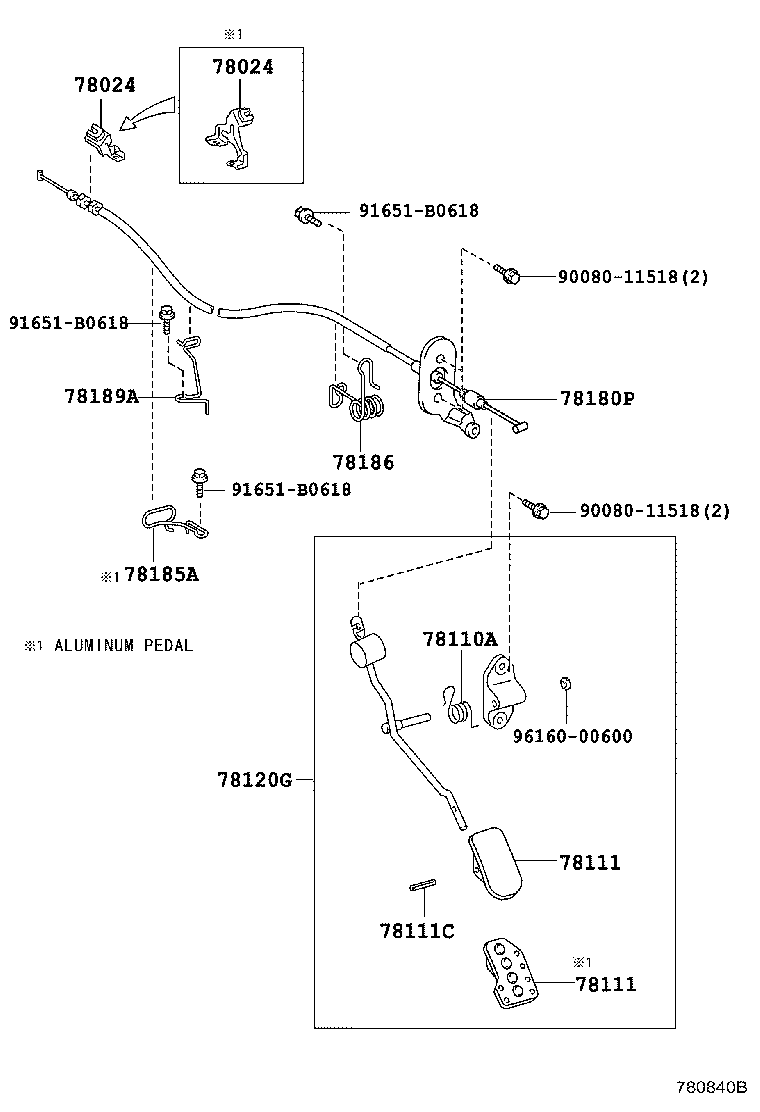

(0405- )ZZE120,123..UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-12090 |
ZZE120,121..UKP |
1 | ||
| 78024-12090 |
ZZE120..UKP |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-12090 |
ZZE120,121..UKP |
1 | ||
| 78024-12090 |
ZZE120..UKP |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
ZZE12#..UKP..LHD |
1 | ||
| 90508-26036 |
ZZE120,123..UKP..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-05050 |
ZZE12#..UKP..LHD..MTM (L) |
1 | ||
| 78111-20060 |
ZZE12#..UKP..LHD..MTM (J) |
1 | ||
| 78111-05050 |
ZZE120..UKP..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-05050 |
ZZE12#..UKP..LHD..MTM (L) |
1 | ||
| 78111-20060 |
ZZE12#..UKP..LHD..MTM (J) |
1 | ||
| 78111-05050 |
ZZE120..UKP..LHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90254-04019 |
ZZE120,123..UKP;ZZE121..UKP..RHD;ZZE121..UKP..LHD..5F |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12310 |
ZZE12#..UKP..LHD..MTM |
1 | ||
| 78120-05200 |
ZZE120..UKP..LHD |
1 | ||
| 78120-12310 |
ZZE12#..UKP..LHD..MTM (J) |
1 | ||
| 78120-05200 |
ZZE12#..UKP..LHD..MTM (L) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-02250 |
ZZE120..UKP..LHD |
1 | ||
| 78180-02250 |
ZZE120,121..UKP..LHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-13040 |
ZZE12#..UKP..LHD |
1 | ||
| 78186-13040 |
ZZE120,123..UKP..LHD |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-12100 |
ZZE12#..UKP |
1 | ||
| 78189-12100 |
ZZE120,123..UKP |
1 | ||
| Common parts | ||||
| 90080-11518 | ||||
| 91651-B0618 | ||||
| 96160-00600 | ||||
