ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)
ILLUST NO. 3 OF 3(0111-0405)UKP
| Part # | Description | Qty | Price |
|---|

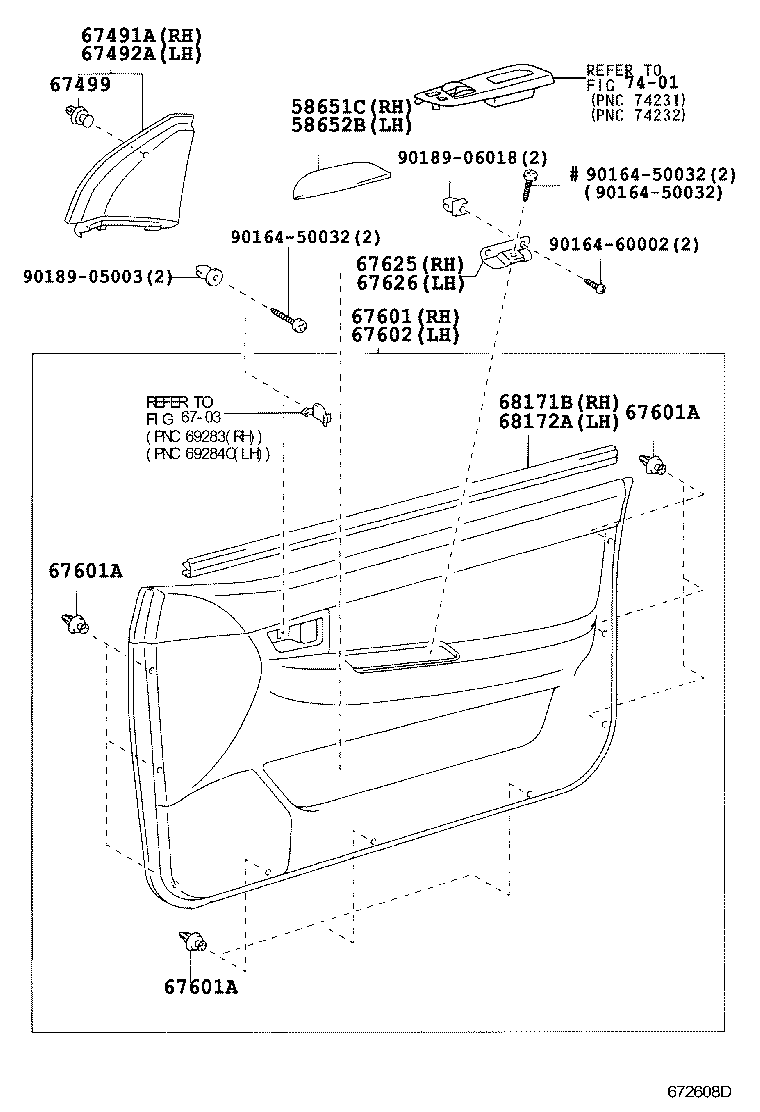

ILLUST NO. 1 OF 3(0111- )UKP..3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58651C - PLATE, FRONT DOOR MAT, RH | ||||
| 58651-02060B0 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 58651-02060B0 |
CDE120,NDE120,ZZE12#..UKP..3D DK.GRAY,TRIM1# |
1 | ||
| 58651-02060J0 |
CDE120,ZZE120,121..UKP..3D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 58652B - PLATE, FRONT DOOR MAT, LH | ||||
| 58652-02040J0 |
CDE120,ZZE120,121..UKP..3D..TERRA DK.BLUE,TRIM8# |
1 | ||
| 58652-02040B0 |
CDE120,NDE120,ZZE12#..UKP..3D DK.GRAY,TRIM1# |
1 | ||
| 58652-02040B0 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12470 |
CDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12460 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 67491-12460 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 67491-12470 |
CDE120,NDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12460 |
CDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 67492-12470 |
CDE120,NDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12460 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 67492-12470 |
CDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-12060 |
CDE120,ZZE12#..UKP |
2 | ||
| 67771-12060 |
CDE120,NDE120,ZZE120,121..UKP |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-02210B1 |
CDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67650-02200B1 |
CDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67650-02210J1 |
CDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 67610-0Z060B0 |
CDE120,NDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67650-02200J1 |
CDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67610-0Z050B0 |
CDE120,NDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-02B90B0 |
CDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67610-02B91B0 |
CDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67610-0Z050B0 |
CDE120,NDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A OR TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-10161 |
CDE120,ZZE12#..UKP..3D (J) |
9 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
18 | ||
| 90467-W0005 |
CDE120,NDE120,ZZE12#..UKP..3D (L) |
9 | ||
| 90467-10161 |
CDE120,NDE120,ZZE12#..UKP..3D (J) |
9 | ||
| 90467-W0005 |
CDE120,ZZE12#..UKP..3D (L) |
9 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-10161 |
CDE120,ZZE12#..UKP..3D (J) |
9 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
18 | ||
| 90467-W0005 |
CDE120,NDE120,ZZE12#..UKP..3D (L) |
9 | ||
| 90467-10161 |
CDE120,NDE120,ZZE12#..UKP..3D (J) |
9 | ||
| 90467-W0005 |
CDE120,ZZE12#..UKP..3D (L) |
9 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-10161 |
CDE120,ZZE12#..UKP..3D (J) |
9 | ||
| 90467-10161 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
18 | ||
| 90467-W0005 |
CDE120,NDE120,ZZE12#..UKP..3D (L) |
9 | ||
| 90467-10161 |
CDE120,NDE120,ZZE12#..UKP..3D (J) |
9 | ||
| 90467-W0005 |
CDE120,ZZE12#..UKP..3D (L) |
9 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67660-02210J1 |
CDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67660-02220B1 |
CDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67620-0Z060B0 |
CDE120,NDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67660-02210B1 |
CDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67620-02B90B0 |
CDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67620-0Z050B0 |
CDE120,NDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 67660-02220J1 |
CDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
1 | ||
| 67620-02B91B0 |
CDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67620-0Z050B0 |
CDE120,NDE120,ZZE120,121..UKP..3D..TERRA DOOR TRIM=TYPE A OR TYPE B OR TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-12150 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67625-12150 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-12150 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67625-12150 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-12311 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68171-12311 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68171-12310 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12231 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68172-12231 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68172-12230 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| Common parts | ||||
| 90164-50032 | ||||
| 90164-60002 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||

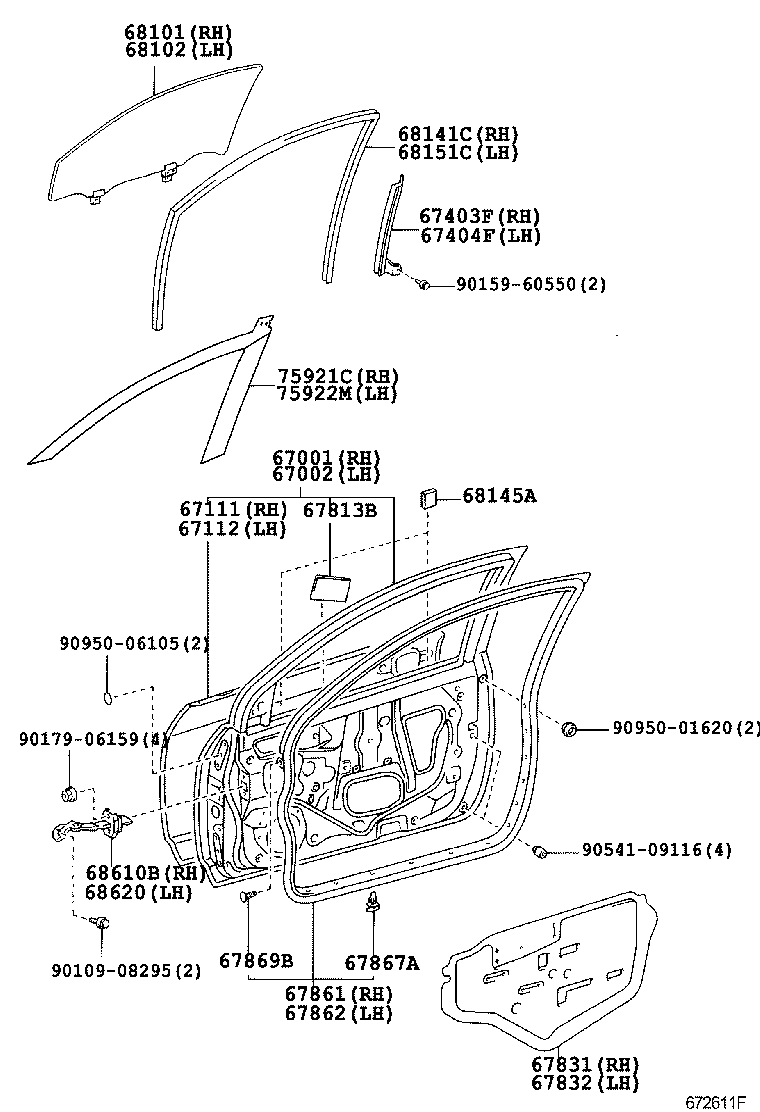

ILLUST NO. 2 OF 3(0111- )UKP..3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-02151 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67001-02150 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67001-02151 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-02150 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67002-02151 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67002-02151 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-02090 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67111-02090 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-02090 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67112-02090 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-13030 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67403-13030 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-13030 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67404-13030 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67813B - PACKING, DOOR PROTECTOR | ||||
| 67817-47010 |
CDE120,ZZE12#..UKP..3D..(DCR,HDCR,HTWC,TWC) |
2 | ||
| 67817-47010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-02110 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67831-02110 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-02110 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67832-02110 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-02120 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67861-02120 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67861-02121 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-02120 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 67862-02120 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67862-02121 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-12150 |
CDE120,NDE120,ZZE12#..UKP..3D |
34 | ||
| 67867-12150 |
CDE120,NDE120,ZZE12#..UKP..3D |
34 | ||
| 67867-12150 |
CDE120,ZZE12#..UKP..3D |
34 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 67869-20030 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 67869-20030 |
CDE120,ZZE12#..UKP |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-02110 |
CDE120,NDE120,ZZE12#..UKP..3D *TT,T=3.5,GREEN |
1 | ||
| 68101-02110 |
CDE120,ZZE12#..UKP..3D *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-02110 |
CDE120,NDE120,ZZE12#..UKP..3D *TT,T=3.5,GREEN |
1 | ||
| 68102-02110 |
CDE120,ZZE12#..UKP..3D *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-02081 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68141-02080 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68141-02081 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68141-02082 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68141-02081 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68145A - CUSHION, FRONT DOOR WINDOW | ||||
| 69759-12110 |
CDE120,NDE120,ZZE12#..UKP |
4 | ||
| 69759-12110 |
CDE120,ZZE12#..UKP |
4 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-02071 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68151-02071 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68151-02070 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68151-02072 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-13040 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 68610-13040 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-13040 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 68620-13040 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-02070 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-02070 |
CDE120,NDE120,ZZE12#..UKP..3D |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90159-60550 | ||||
| 90179-06159 | ||||
| 90541-09116 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
ILLUST NO. 3 OF 3(0405- )UKP
