ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)

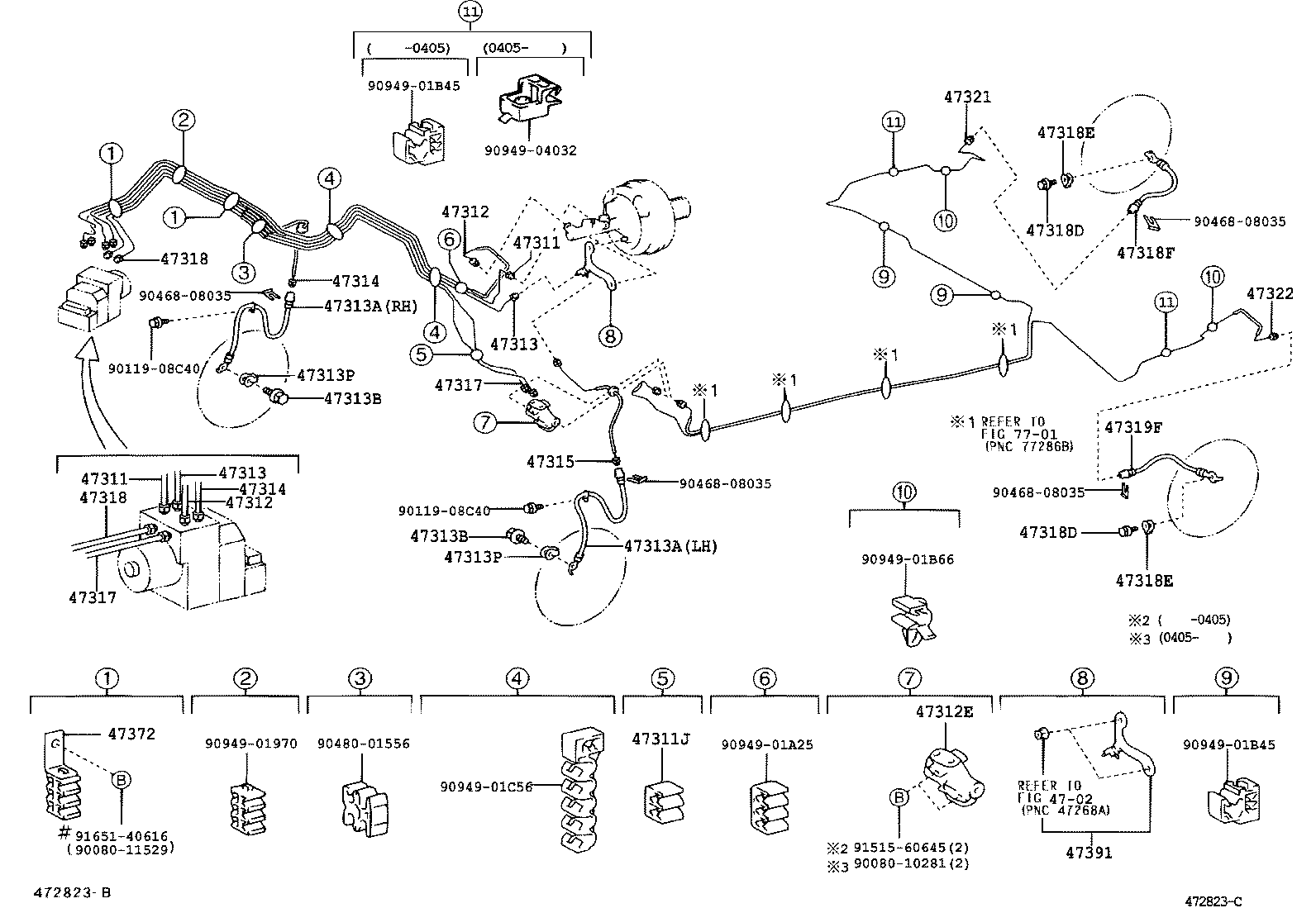

ILLUST NO. 1 OF 2(0111- )UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02220 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47311-02440 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47311-02220 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02220 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47311-02440 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47311-02220 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90480-01620 |
CDE120,ZZE12#..UKP |
1 | ||
| 90480-01620 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02310 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47312-02100 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47312-02320 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02310 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47312-02100 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47312-02320 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12082 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90904-12082 |
CDE120,ZZE12#..UKP |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02190 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47313-02390 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47313-02190 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02190 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47313-02390 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47313-02190 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94131 |
CDE120,ZZE12#..UKP RH,(L) |
1 | ||
| 90947-02D23 |
CDE120,ZZE12#..UKP LH,(J) |
1 | ||
| 90080-94199 |
CDE120,ZZE12#..UKP RH,(L) |
1 | ||
| 90080-94199 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 90080-94200 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| 90947-02D22 |
CDE120,NDE120,ZZE12#..UKP (J),RH |
1 | ||
| 90080-94200 |
CDE120,NDE120,ZZE12#..UKP (L),LH |
1 | ||
| 90080-94200 |
CDE120,ZZE12#..UKP LH,(L) |
1 | ||
| 90080-94199 |
CDE120,NDE120,ZZE12#..UKP (L),RH |
1 | ||
| 90947-02D23 |
CDE120,NDE120,ZZE12#..UKP (J),LH |
1 | ||
| 90080-94132 |
CDE120,ZZE12#..UKP LH,(L) |
1 | ||
| 90947-02D22 |
CDE120,ZZE12#..UKP RH,(J) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94131 |
CDE120,ZZE12#..UKP RH,(L) |
1 | ||
| 90947-02D23 |
CDE120,ZZE12#..UKP LH,(J) |
1 | ||
| 90080-94199 |
CDE120,ZZE12#..UKP RH,(L) |
1 | ||
| 90080-94199 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 90080-94200 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| 90947-02D22 |
CDE120,NDE120,ZZE12#..UKP (J),RH |
1 | ||
| 90080-94200 |
CDE120,NDE120,ZZE12#..UKP (L),LH |
1 | ||
| 90080-94200 |
CDE120,ZZE12#..UKP LH,(L) |
1 | ||
| 90080-94199 |
CDE120,NDE120,ZZE12#..UKP (L),RH |
1 | ||
| 90947-02D23 |
CDE120,NDE120,ZZE12#..UKP (J),LH |
1 | ||
| 90080-94132 |
CDE120,ZZE12#..UKP LH,(L) |
1 | ||
| 90947-02D22 |
CDE120,ZZE12#..UKP RH,(J) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CDE120,ZZE12#..UKP |
2 | ||
| 90401-10058 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CDE120,ZZE12#..UKP |
2 | ||
| 90401-10058 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 47389-50020 |
CDE120,ZZE12#..UKP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 47389-50020 |
CDE120,ZZE12#..UKP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02190 |
CDE120,ZZE120,121..UKP |
1 | ||
| 47314-02230 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47314-02190 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02190 |
CDE120,ZZE120,121..UKP |
1 | ||
| 47314-02230 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47314-02190 |
CDE120,NDE120,ZZE120,121..UKP |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02340 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 47315-02170 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02140 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47317-02300 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47317-02140 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02140 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47317-02300 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47317-02140 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02140 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47318-02140 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47318-02320 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02140 |
CDE120,ZZE120,121..UKP..LHD..(DCR,HDCR,HTWC) |
1 | ||
| 47318-02140 |
NDE120,ZZE120,121..UKP..LHD |
1 | ||
| 47318-02320 |
CDE120,NDE120,ZZE12#..UKP..LHD W(VSC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
CDE120,ZZE12#..UKP |
2 | ||
| 90401-10045 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
CDE120,ZZE12#..UKP |
2 | ||
| 90401-10045 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
CDE120,ZZE12#..UKP |
2 | ||
| 47389-50020 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
CDE120,ZZE12#..UKP |
2 | ||
| 47389-50020 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E88 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90947-02E88 |
CDE120,ZZE12#..UKP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E88 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90947-02E88 |
CDE120,ZZE12#..UKP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47321-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02120 |
CDE120,ZZE12#..UKP |
1 | ||
| 47322-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
CDE120,ZZE120,121..UKP |
2 | ||
| 47374-12050 |
CDE120,NDE120,ZZE120,121..UKP..LHD |
2 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-09010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 47391-09020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 47391-09010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| Common parts | ||||
| 90080-10281 | ||||
| 90080-11529 | ||||
| 90119-08C40 | ||||
| 90468-08035 | ||||
| 90480-01556 | ||||
| 90949-01970 | ||||
| 90949-01A25 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C56 | ||||
| 90949-04032 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

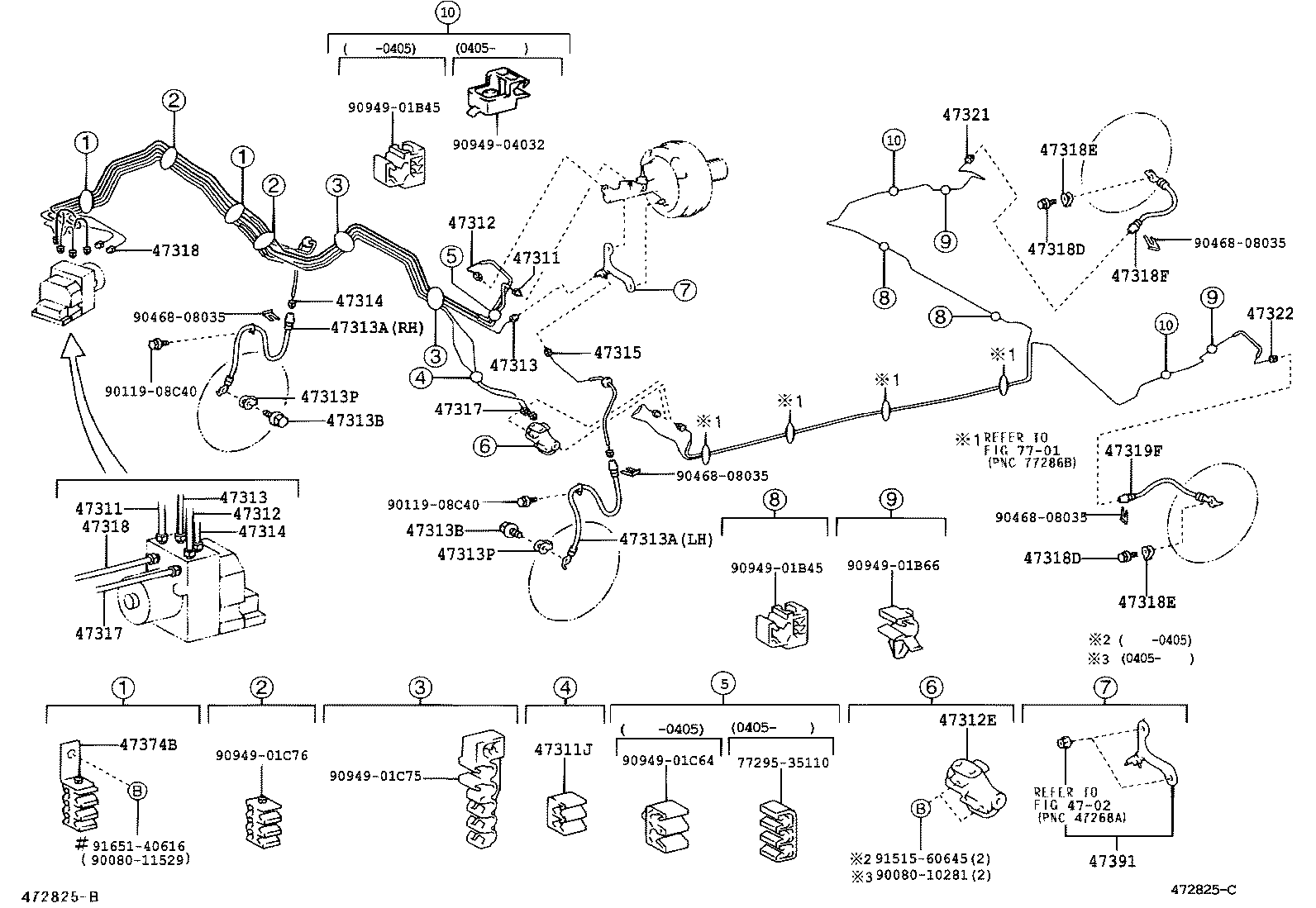

ILLUST NO. 1 OF 2(0111-0405)ZZE121,123..UKP..LHD ; (0405- )CDE120,ZZE12#..UKP..LHD ; (0408- )N
