ZZE120L-DGMDKW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Feb 2007
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP..LHD

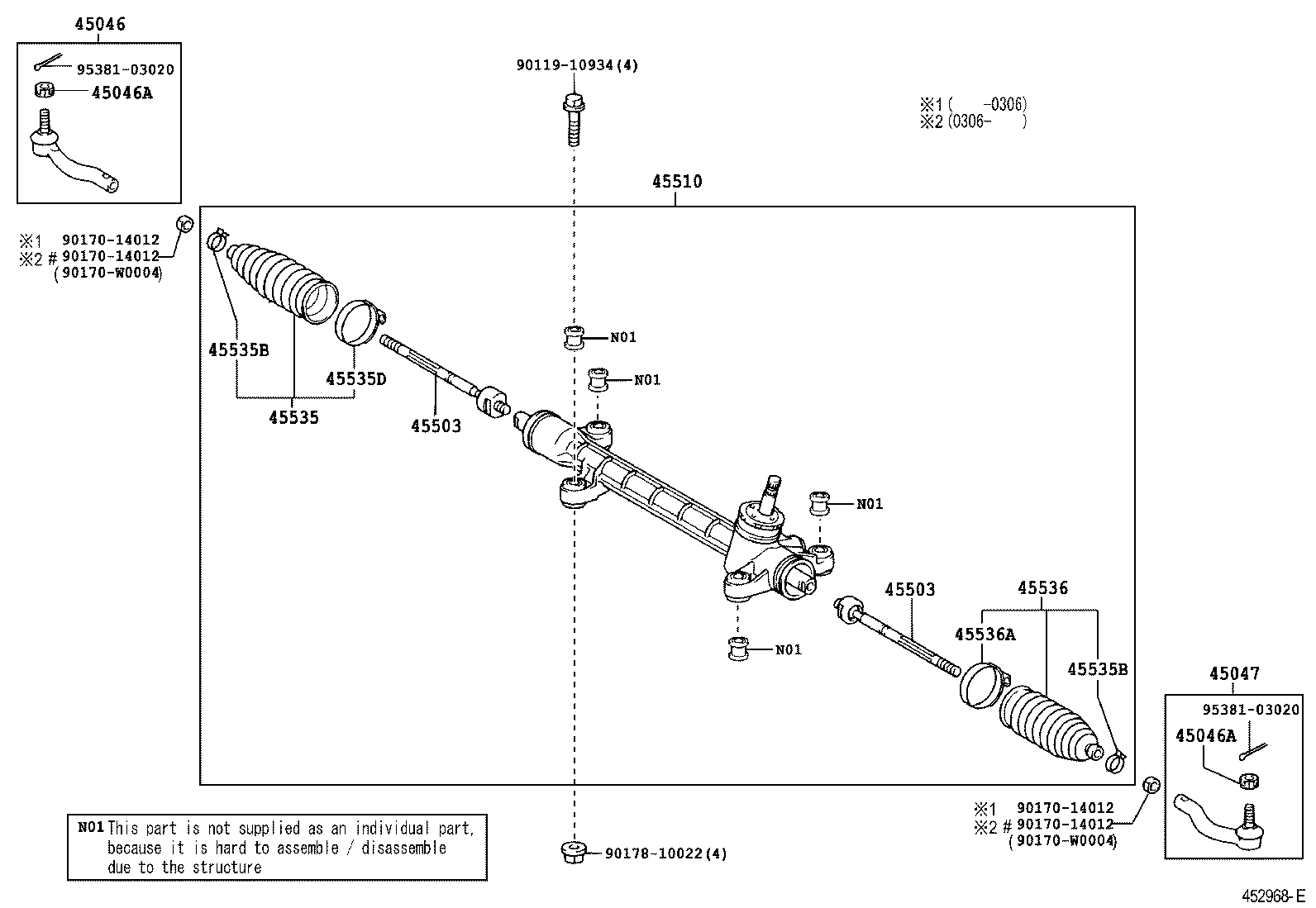

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45503 45503 45510 45535 45535B 45535B 45535D 45536 45536A 9011910934 9017014012 9017014012 9017014012 9017014012 90170W0004 90170W0004 9017810022 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-19265

CDE120,ZZE12#..UKP

 1
45046-09360

CDE120,ZZE12#..UKP

 1
45046-09360

CDE120,NDE120,ZZE12#..UKP

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

CDE120,NDE120,ZZE12#..UKP

 2
90171-12028

CDE120,ZZE12#..UKP

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

CDE120,NDE120,ZZE12#..UKP

 2
90171-12028

CDE120,ZZE12#..UKP

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-19115

CDE120,ZZE12#..UKP

 1
45047-09150

CDE120,NDE120,ZZE12#..UKP

 1
45047-09150

CDE120,ZZE12#..UKP

 1
45503 - END SUB-ASSY, STEERING RACK
45503-12130

CDE120,ZZE12#..UKP

 2
45503-02080

CDE120,NDE120,ZZE12#..UKP

 2
45503-02080

CDE120,ZZE12#..UKP

 2
45503 - END SUB-ASSY, STEERING RACK
45503-12130

CDE120,ZZE12#..UKP

 2
45503-02080

CDE120,NDE120,ZZE12#..UKP

 2
45503-02080

CDE120,ZZE12#..UKP

 2
45510 - GEAR ASSY, STEERING
45510-02050

CDE120,ZZE12#..UKP..LHD

 1
45510-02050

CDE120,NDE120,ZZE120,121..UKP..LHD

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09040

CDE120,ZZE12#..UKP

 1
45535-09040

CDE120,NDE120,ZZE12#..UKP

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003

CDE120,ZZE12#..UKP

 2
90466-22003

CDE120,NDE120,ZZE12#..UKP

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003

CDE120,NDE120,ZZE12#..UKP

 2
90466-22003

CDE120,ZZE12#..UKP

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-57006

CDE120,ZZE12#..UKP

 1
90460-57006

CDE120,NDE120,ZZE12#..UKP

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09040

CDE120,ZZE12#..UKP

 1
45535-09040

CDE120,NDE120,ZZE12#..UKP

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-57006

CDE120,NDE120,ZZE12#..UKP

 1
90460-57006

CDE120,ZZE12#..UKP

 1
Common parts
90119-10934
90170-14012
90170-W0004
90178-10022
95381-03020
