ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)
(0111- )ZZE12#..UKP..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-02030B0 |
CDE120,ZZE120,121..UKP..5F..TERRA DK.GRAY,TRIM1#,8#,(L) |
1 | ||
| 33504-02090B0 |
CDE120,NDE120,ZZE120,121..UKP..5F..TERRA CHROME PLATED & LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 33504-13010B0 |
CDE120,ZZE120,121..UKP..5F..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 33504-02030B0 |
CDE120,NDE120,ZZE120,121..UKP..5F..TERRA DK.GRAY,TRIM1# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-42020 |
ZZE12#..UKP..MTM |
1 | ||
| 33524-20040 |
ZZE120,121..UKP..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 33557-33010 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-02160 |
CDE120,NDE120,ZZE120,121..UKP..LHD..5F |
1 | ||
| 33530-02060 |
CDE120,ZZE120,121..UKP..LHD..5F |
1 | ||
| 33530H - RING, SNAP (FOR SHIFT LEVER) | ||||
| 3352A-05010 |
CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-42010 |
ZZE12#..UKP..MTM |
1 | ||
| 33534-42010 |
ZZE12#..UKP..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CDE120,ZZE12#..UKP..MTM |
2 | ||
| 90386-12022 |
CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CDE120,ZZE12#..UKP..MTM |
2 | ||
| 90386-12022 |
CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 90201-08028 |
CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 33557-32010 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 33558-10030 |
CDE120,NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-12050 |
ZZE120..UKP |
1 | ||
| 33608-12050 |
ZZE120..UKP |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-02320 |
ZZE120,121..UKP..5F TYPE A:REFER ILLUST. |
1 | ||
| 33820-02322 |
ZZE120,121..UKP..5F FRAME NO.=EXXXXXX,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33820-02222 |
ZZE120,121..UKP..5F FRAME NO.=RXXXXXX,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33820-02430 |
ZZE120,121..UKP..5F |
1 | ||
| 33820-1A190 |
ZZE120,121..UKP..5F TYPE B:REFER ILLUST. |
1 | ||
| 33820-02223 |
ZZE120,121..UKP..5F FRAME NO.=RXXXXXX,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33820-02323 |
ZZE120,121..UKP..5F FRAME NO.=EXXXXXX,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
CDE120,ZZE12#..UKP..MTM OD=30 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
CDE120,ZZE12#..UKP..MTM OD=30 |
2 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-W0035 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14029 | ||||
| 90468-14032 | ||||
| 91611-60822 | ||||
| 91612-B1020 | ||||
| 91626-40618 | ||||
| 91631-60825 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||

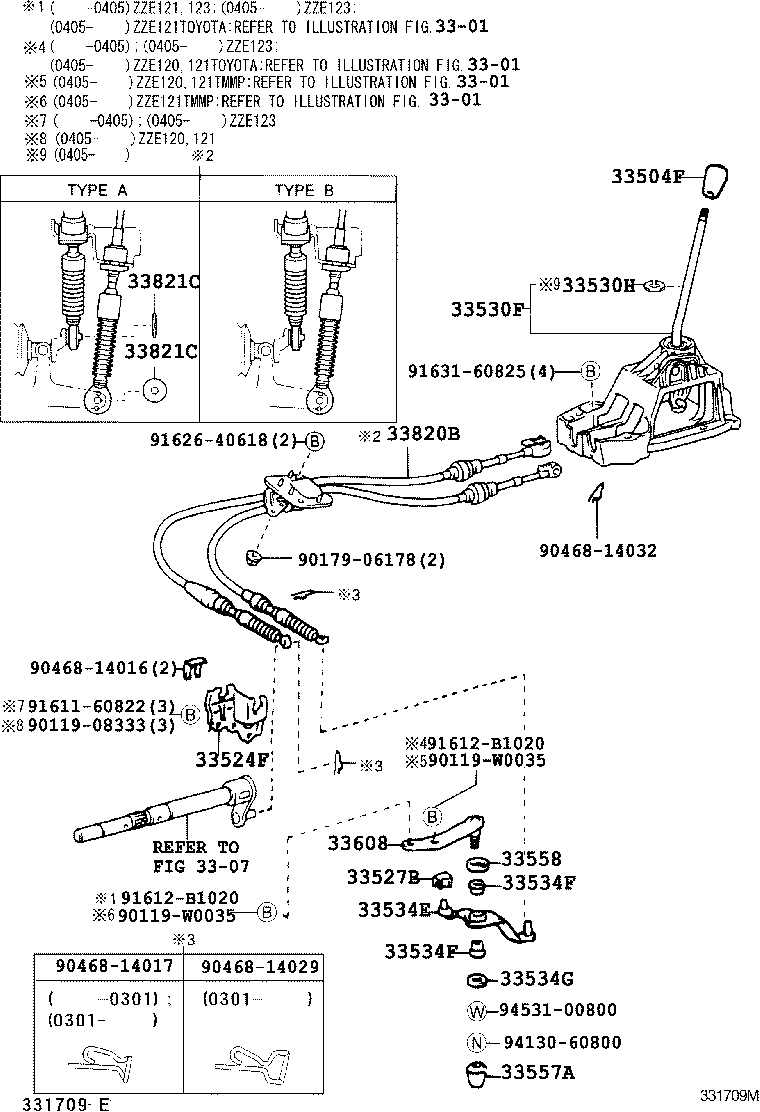

| Linked diagrams | ||||
| 3301 | ||||
| 3307 | ||||
