ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)
(0111-0405)ZZE120,121..UKP..5F ; (0405- )ZZE120..UKP
C50,C150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 90930-03133 |
ZZE12#..UKP..MTM |
1 | ||
| 33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33205-12060 |
ZZE120..UKP |
1 | ||
| 33205-12060 |
ZZE120..UKP |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12021 |

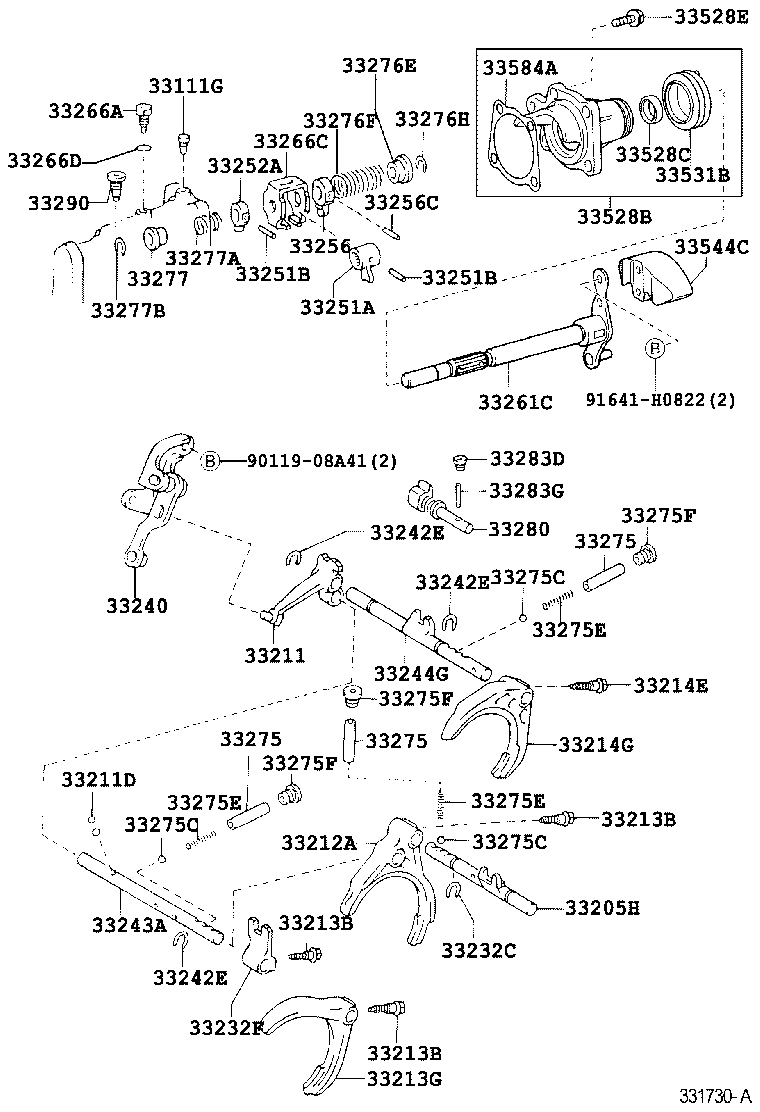

ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33211-05010 |
ZZE120,121..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33211-12021 |
ZZE120,121..UKP..5F |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-06004 |
ZZE120,121..UKP..5F OD=6.35 |
2 | ||
| 90360-06004 |
ZZE120,121..UKP..5F OD=6.35,TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
2 | ||
| 90080-36171 |
ZZE120,121..UKP..5F OD=6.35,TMMP:REFER TO ILLUSTRATION FIG.33-01 |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-05010 |
ZZE120,121..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33212-10013 |
ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33212-10013 |
ZZE12#..UKP..MTM |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
ZZE120,121..UKP..5F |
3 | ||
| 90105-06115 |
ZZE120..UKP |
4 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
ZZE120,121..UKP..5F |
3 | ||
| 90105-06115 |
ZZE120..UKP |
4 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
ZZE120,121..UKP..5F |
3 | ||
| 90105-06115 |
ZZE120..UKP |
4 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-20050 |
ZZE12#..UKP..MTM |
1 | ||
| 33213-20050 |
ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33213-05010 |
ZZE120,121..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33214E - BOLT(FOR GEAR SHIFT FORK LOCK) | ||||
| 90105-06115 |
ZZE12#..UKP..MTM |
1 | ||
| 90105-06115 |
NDE120,ZZE12#..UKP..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-20050 |
ZZE120,121..UKP..5F |
1 | ||
| 33214-05010 |
ZZE120,121..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33214-20050 |
ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33232C - RING, SNAP (FOR 1ST & 2ND SHIFT HEAD) | ||||
| 90520-12003 |
ZZE120..UKP |
4 | ||
| 90520-12003 |
ZZE12#..UKP..MTM |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-10021 |
ZZE120..UKP |
1 | ||
| 33232-10021 |
ZZE120..UKP |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-16020 |
NDE120,ZZE120,121..UKP..MTM |
1 | ||
| 33240-16020 |
ZZE120,121..UKP..5F |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
ZZE120,121..UKP..5F |
3 | ||
| 90520-12003 |
NDE120,ZZE120,121..UKP..MTM |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
ZZE120,121..UKP..5F |
3 | ||
| 90520-12003 |
NDE120,ZZE120,121..UKP..MTM |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
ZZE120,121..UKP..5F |
3 | ||
| 90520-12003 |
NDE120,ZZE120,121..UKP..MTM |
3 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-12130 |
ZZE120..UKP |
1 | ||
| 33243-12130 |
ZZE120..UKP |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-12110 |
ZZE120..UKP |
1 | ||
| 33244-12110 |
ZZE120..UKP |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-12080 |
ZZE120,121..UKP..5F |
1 | ||
| 33251-12080 |
ZZE120..UKP |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
ZZE12#..UKP..MTM L=25.5 |
2 | ||
| 90254-05016 |
ZZE120..UKP L=25.5 |
3 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
ZZE12#..UKP..MTM L=25.5 |
2 | ||
| 90254-05016 |
ZZE120..UKP L=25.5 |
3 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-12011 |
ZZE120,121..UKP..5F |
1 | ||
| 33252-12011 |
NDE120,ZZE120..UKP..5F |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-12022 |
NDE120,ZZE120,121..UKP..5F |
1 | ||
| 33256-12022 |
ZZE120,121..UKP..5F |
1 | ||
| 33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) | ||||
| 90254-05016 |
ZZE120,121..UKP..5F |
1 | ||
| 90254-05016 |
NDE120,ZZE120,121..UKP..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-12120 |
ZZE120,121..UKP..5F |
1 | ||
| 33261-12120 |
ZZE120..UKP |
1 | ||
| 33266A - BOLT (FOR SHIFT INTER LOCK PLATE) | ||||
| 90109-18005 |
ZZE120,121..UKP..5F |
1 | ||
| 90109-18005 |
ZZE120..UKP |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-12021 |
ZZE120,121..UKP..5F |
1 | ||
| 33266-12021 |
ZZE120..UKP |
1 | ||
| 33266D - GASKET (FOR SHIFT INTER LOCK PLATE) | ||||
| 90430-18008 |
ZZE120..UKP |
1 | ||
| 90430-18008 |
ZZE120,121..UKP..5F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NDE120,ZZE12#..UKP..(5F,6F) OD=10.7 |
3 | ||
| 33275-12041 |
ZZE12#..UKP..MTM OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NDE120,ZZE12#..UKP..(5F,6F) OD=10.7 |
3 | ||
| 33275-12041 |
ZZE12#..UKP..MTM OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NDE120,ZZE12#..UKP..(5F,6F) OD=10.7 |
3 | ||
| 33275-12041 |
ZZE12#..UKP..MTM OD=10.7 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZZE12#..UKP..MTM |
3 | ||
| 90080-36169 |
NDE120,ZZE120,121..UKP..5F |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZZE12#..UKP..MTM |
3 | ||
| 90080-36169 |
NDE120,ZZE120,121..UKP..5F |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
ZZE12#..UKP..MTM |
3 | ||
| 90080-36169 |
NDE120,ZZE120,121..UKP..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12168 |
ZZE120..UKP |
3 | ||
| 90501-12168 |
ZZE120,121..UKP..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12168 |
ZZE120..UKP |
3 | ||
| 90501-12168 |
ZZE120,121..UKP..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12168 |
ZZE120..UKP |
3 | ||
| 90501-12168 |
ZZE120,121..UKP..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZZE12#..UKP..MTM |
3 | ||
| 90341-12004 |
NDE120,ZZE12#..UKP..(5F,6F) |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZZE12#..UKP..MTM |
3 | ||
| 90341-12004 |
NDE120,ZZE12#..UKP..(5F,6F) |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
ZZE12#..UKP..MTM |
3 | ||
| 90341-12004 |
NDE120,ZZE12#..UKP..(5F,6F) |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-12022 |
ZZE120,121..UKP..5F |
1 | ||
| 33276-12022 |
NDE120,ZZE120,121..UKP..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-18125 |
ZZE120,121..UKP..5F |
1 | ||
| 90501-18125 |
ZZE120..UKP |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
CDE120,NDE120,ZZE120,121..UKP..5F |
1 | ||
| 90520-15003 |
ZZE120,121..UKP..5F;CDE120..UKP..LHD..HDCR |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-12011 |
NDE120,ZZE120,121..UKP..5F |
1 | ||
| 33277-12011 |
ZZE120,121..UKP..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-16136 |
ZZE120,121..UKP..5F |
1 | ||
| 90501-16136 |
ZZE120..UKP |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
ZZE12#..UKP..MTM |
1 | ||
| 90523-12003 |
NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-10021 |
ZZE120..UKP |
1 | ||
| 33280-10021 |
ZZE120..UKP |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
CDE120,ZZE120,121..UKP..5F |
1 | ||
| 90341-10065 |
CDE120,NDE120,ZZE120,121..UKP..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
CDE120,NDE120,ZZE120,121..UKP..MTM |
1 | ||
| 90254-05003 |
CDE120,ZZE120,121..UKP..5F |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-12011 |
ZZE120,121..UKP..5F |
1 | ||
| 33290-12011 |
ZZE120..UKP |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-12131 |
ZZE120..UKP TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33506-12150 |
ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33506-12131 |
ZZE120,121..UKP..5F |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
ZZE120,121..UKP..5F |
1 | ||
| 90311-18013 |
CDE120,NDE120,ZZE120,123..UKP..(5F,6F) |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-10288 |
ZZE12#..UKP..MTM *10-1.25PX25-19.8 |
2 | ||
| 91612-61025 |
ZZE12#..UKP..MTM *10-1.25PX25-25 |
2 | ||
| 90119-W0036 |
NDE120,ZZE120,121..UKP..5F *10-1.25PX25-19.8,MARK 6.8 |
2 | ||
| 91612-61025 |
ZZE12#..UKP..MTM *10-1.25PX25-25 |
2 | ||
| 90119-10288 |
NDE120,ZZE12#..UKP..(5F,6F) *10-1.25PX25-19.8 |
2 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12030 |
ZZE120,121..UKP..5F |
1 | ||
| 33531-0D010 |
ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33531-12030 |
ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33544C - DAMPER, SHIFT LEVER | ||||
| 33544-12040 |
ZZE120,121..UKP..5F |
1 | ||
| 33544-12040 |
ZZE120,121..UKP..5F |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-12050 |
ZZE120,121..UKP..5F |
1 | ||
| 33584-12050 |
ZZE120..UKP |
1 | ||
| Common parts | ||||
| 90119-08A41 | ||||
| 91641-H0822 | ||||
