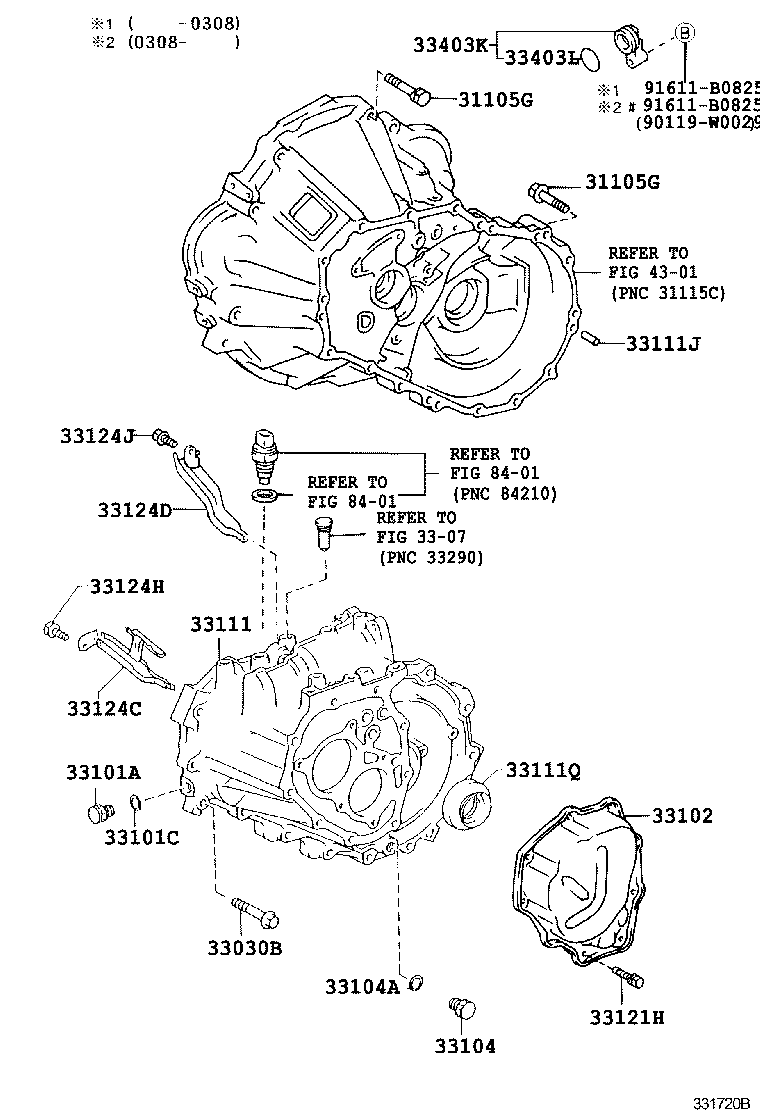

Toyota Corolla hb (ukp) ZZE120 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0040	ZZE120..UKP *12-1.25PX55-30,(L)	08/2003 - 01/2004	2
91619-61255	ZZE12#..UKP..MTM *12-1.25PX55-30,(J)	11/2001 - 05/2004	2
91642-81055	ZZE12#..UKP..MTM *10-1.25PX55-30,(J)	11/2001 - 05/2004	2
90119-W0049	ZZE120..UKP *10-1.25PX55-30,(L)	08/2003 - 05/2004	2
90119-W0049	ZZE12#..UKP..MTM *10-1.25PX55-30	05/2004 - 12/2999	2
90119-W0080	ZZE12#..UKP..MTM *12-1.25PX55-30,(L)	01/2004 - 05/2004	2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0040	ZZE120..UKP *12-1.25PX55-30,(L)	08/2003 - 01/2004	2
91619-61255	ZZE12#..UKP..MTM *12-1.25PX55-30,(J)	11/2001 - 05/2004	2
91642-81055	ZZE12#..UKP..MTM *10-1.25PX55-30,(J)	11/2001 - 05/2004	2
90119-W0049	ZZE120..UKP *10-1.25PX55-30,(L)	08/2003 - 05/2004	2
90119-W0049	ZZE12#..UKP..MTM *10-1.25PX55-30	05/2004 - 12/2999	2
90119-W0080	ZZE12#..UKP..MTM *12-1.25PX55-30,(L)	01/2004 - 05/2004	2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086	ZZE120..UKP *8-1.25PX45-27.5	11/2001 - 05/2004	16
90105-08430	ZZE120..UKP *8-1.25PX45-27.5	08/2004 - 02/2007	16
90105-08086	ZZE120..UKP *8-1.25PX45-27.5	05/2004 - 08/2004	16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	ZZE120,121..UKP..5F	11/2001 - 05/2004	1
90341-18006	ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 08/2005	1
90341-18033	ZZE120..UKP TOYOTA:REFER TO ILLUSTRATION FIG.33-01	06/2005 - 02/2007	1
90341-18033	ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01	08/2005 - 02/2007	1
90341-18006	ZZE120..UKP TOYOTA:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 06/2005	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	CDE120,ZZE12#..UKP..MTM	11/2001 - 05/2004	1
90430-W0001	ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01	05/2005 - 02/2007	1
90430-18008	ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 02/2007	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-0D010	ZZE120,121..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 02/2007	1
33102-10023	ZZE120..UKP TOYOTA:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 02/2007	1
33102-10023	ZZE120..UKP	11/2001 - 05/2004	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	CDE120,ZZE12#..UKP..MTM	11/2001 - 05/2004	1
90341-18006	NDE120,ZZE120..UKP..5F	05/2004 - 08/2005	1
90341-18033	ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01	06/2005 - 02/2007	1
90341-18006	NDE120,ZZE120,121..UKP..5F	07/2006 - 02/2007	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 02/2007	1
90430-18008	CDE120,ZZE12#..UKP..MTM	11/2001 - 05/2004	1
90430-W0001	ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01	05/2005 - 02/2007	1
33111 - CASE, MANUAL TRANSMISSION
33111-16053	ZZE120..UKP	11/2001 - 05/2004	1
33111-0D020	ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 02/2007	1
33111-16053	ZZE120..UKP TOYOTA:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 02/2007	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	CDE120,ZZE12#..UKP..MTM L=23,OD=8	11/2001 - 05/2004	4
90250-08054	CDE120,NDE120,ZZE12#..UKP..MTM L=23,OD=8	05/2004 - 02/2007	4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34028	ZZE120,121..UKP..5F	11/2001 - 05/2004	1
90311-34028	ZZE120,121..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 02/2007	1
90311-W0004	ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01	05/2005 - 02/2007	1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08373	ZZE120..UKP	11/2001 - 05/2004	9
91611-60835	ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 03/2006	9
90119-08373	ZZE120..UKP TOYOTA:REFER TO ILLUSTRATION FIG.33-01	05/2004 - 02/2007	9
90119-08782	ZZE120..UKP TMMP:REFER TO ILLUSTRATION FIG.33-01	03/2006 - 02/2007	9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-10012	ZZE120..UKP	05/2004 - 02/2007	1
33124-10012	ZZE120..UKP	11/2001 - 05/2004	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-10021	ZZE120..UKP	05/2004 - 02/2007	1
33124-10021	ZZE120..UKP	11/2001 - 05/2004	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820	NDE120,ZZE12#..UKP..MTM	05/2004 - 02/2007	1
91611-G0820	ZZE12#..UKP..MTM	11/2001 - 05/2004	1
33124J - BOLT, W/WASHER
91611-G0820	ZZE12#..UKP..MTM	11/2001 - 05/2004	1
91611-G0820	NDE120,ZZE12#..UKP..MTM	05/2004 - 02/2007	1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230	ZZE12#..UKP..MTM	11/2001 - 05/2004	1
33403-35230	NDE120,ZZE12#..UKP..MTM	05/2004 - 12/2999	1
33403L - RING, O
96711-24030	NDE120,ZZE12#..UKP..MTM	05/2004 - 12/2999	1
96711-24030	ZZE12#..UKP..MTM	11/2001 - 05/2004	1
Common parts
90119-W0029
91611-B0825
Linked diagrams
3307
4301
8401

ZZE120L-DGMDKW (2001)

(0111- )NDE120,ZZE120..UKP..5F
