ZZE120L-DGMDKW (2001)
Toyota Corolla Hb (Ukp)

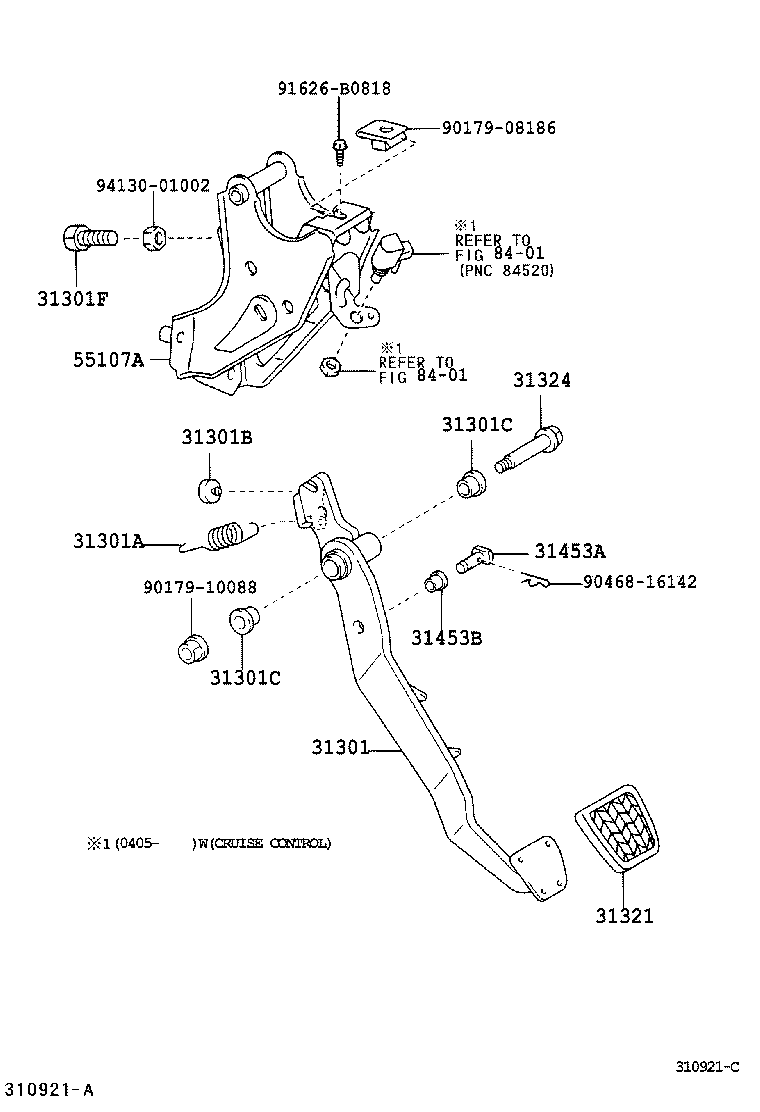

ILLUST NO. 1 OF 2(0111- )ZZE120,121..UKP..LHD..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-05070 |
ZZE120,121..UKP..LHD..5F |
1 | ||
| 31301-05070 |
ZZE120,121..UKP..LHD..5F |
1 | ||
| 31301-02040 |
ZZE120,121..UKP..LHD..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14047 |
ZZE120,121..UKP..LHD..5F |
1 | ||
| 90507-14047 |
ZZE120,121..UKP..LHD..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NDE120,ZZE12#..UKP..LHD..(5F,6F) |
1 | ||
| 90541-06036 |
CDE120,ZZE12#..UKP..LHD..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
NDE120,ZZE12#..UKP..(5F,6F) |
2 | ||
| 90386-13015 |
CDE120,ZZE12#..UKP..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
NDE120,ZZE12#..UKP..(5F,6F) |
2 | ||
| 90386-13015 |
CDE120,ZZE12#..UKP..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 90101-10369 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 31321-52010 |
NDE120,ZZE120,121..UKP..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90109-10167 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 90109-10167 |
NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08143 |
CDE120,ZZE12#..UKP..MTM L=30 |
1 | ||
| 90249-08143 |
CDE120,NDE120,ZZE12#..UKP..(5F,6F) L=30 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 90386-08002 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-02070 |
ZZE120,121..UKP..LHD..5F |
1 | ||
| 55107-02070 |
ZZE120,121..UKP..LHD..5F |
1 | ||
| Common parts | ||||
| 90179-08186 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 91626-B0818 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 8401 | ||||

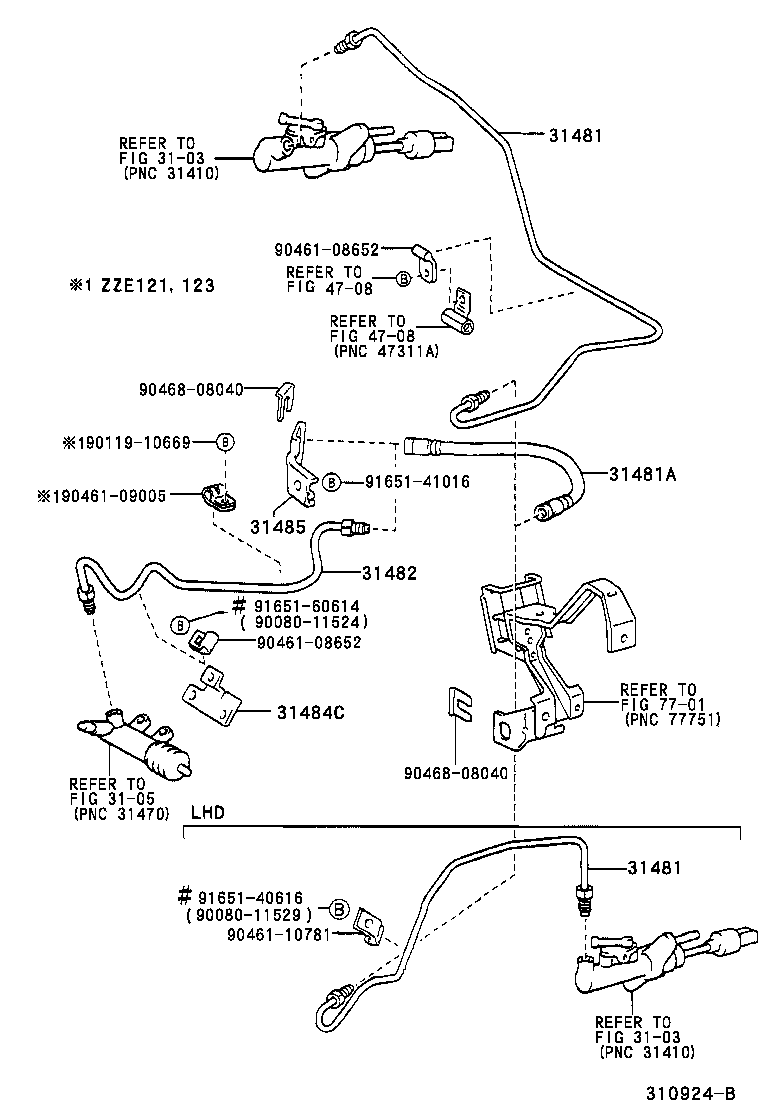

ILLUST NO. 2 OF 2(0111- )ZZE12#..UKP..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02140 |
ZZE12#..UKP..LHD..MTM |
1 | ||
| 31481-02140 |
ZZE12#..UKP..LHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02140 |
ZZE12#..UKP..LHD..MTM |
1 | ||
| 31481-02140 |
ZZE12#..UKP..LHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02D20 |
ZZE12#..UKP..MTM |
1 | ||
| 90947-02D20 |
NDE120,ZZE12#..UKP..(5F,6F) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-02230 |
ZZE120..UKP |
1 | ||
| 31482-02230 |
ZZE120..UKP |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-20460 |
ZZE12#..UKP..MTM |
1 | ||
| 31484-20460 |
ZZE12#..UKP..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-12430 |
ZZE12#..UKP..MTM |
1 | ||
| 31484-12430 |
ZZE12#..UKP..MTM |
1 | ||
| Common parts | ||||
| 90080-11524 | ||||
| 90080-11529 | ||||
| 90119-10669 | ||||
| 90461-08652 | ||||
| 90461-09005 | ||||
| 90461-10781 | ||||
| 90468-08040 | ||||
| 91651-40616 | ||||
| 91651-41016 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
| 7701 | ||||
