NDE120R-DHMDYW (2004)
Toyota Corolla Hb (Ukp)
Production
Aug 2004
-
Feb 2007
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )1NDTV..UKP

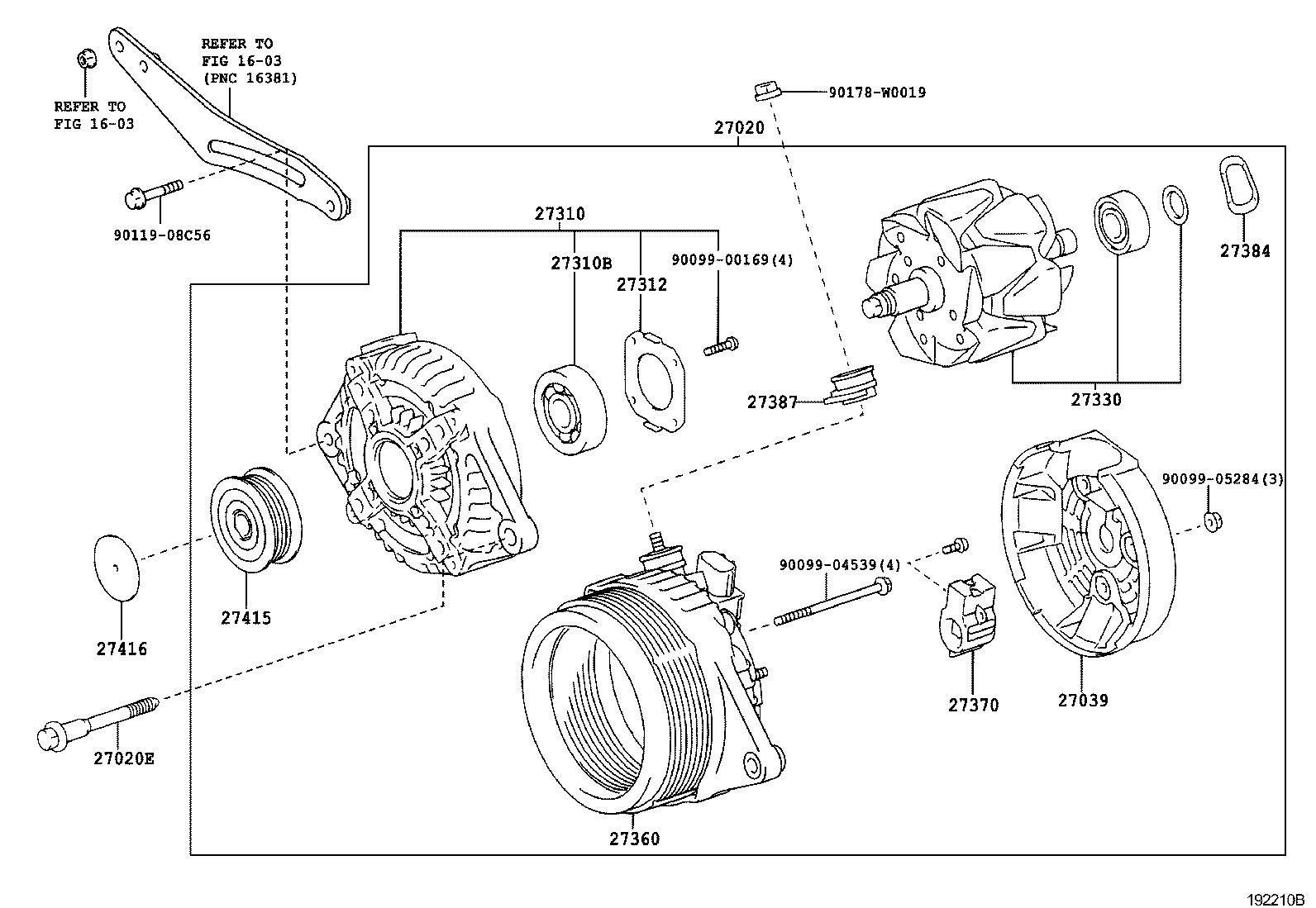

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-33071 |
1NDTV..NDE120..UKP 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10520 |
1NDTV..NDE120..UKP |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-33110 |
1NDTV..NDE120..UKP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1NDTV..NDE120..UKP |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-33110 |
1NDTV..NDE120..UKP |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1NDTV..NDE120..UKP |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-33050 |
1NDTV..NDE120..UKP |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 90119-08C56 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 1603 | ||||
