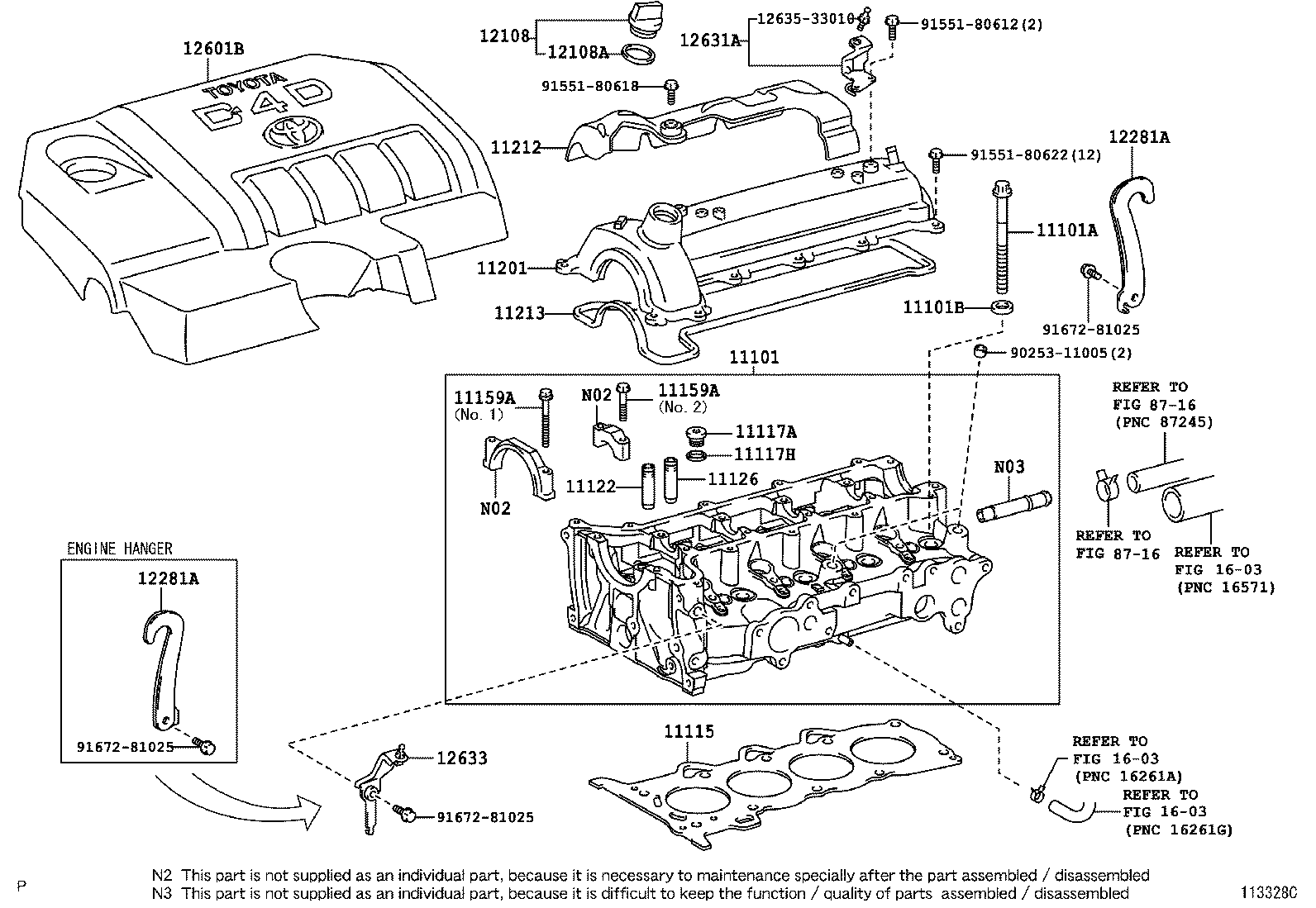

NDE120R-DGMDYW (2004)
Toyota Corolla Hb (Ukp)
(0408- )1NDTV..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-33040 |
1NDTV..NDE120..UKP |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02148 |
1NDTV..NDE120..UKP |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-13021 |
1NDTV..NDE120..UKP |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-33030B0 |
1NDTV..NDE120..UKP MARKB |
1 | ||
| 11115-33030A0 |
1NDTV..NDE120..UKP MARKA |
1 | ||
| 11115-33030E0 |
1NDTV..NDE120..UKP MARKE |
1 | ||
| 11115-33030C0 |
1NDTV..NDE120..UKP MARKC |
1 | ||
| 11115-33030D0 |
1NDTV..NDE120..UKP MARKD |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-14008 |
1NDTV..NDE120..UKP |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-14008 |
1NDTV..NDE120..UKP |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-30020 |
1NDTV..NDE120..UKP STD |
4 | ||
| 11122-30020 |
1NDTV..NDE120..UKP O/S 0.05 |
4 | ||
| 11122-33030 |
1NDTV..NDE120..UKP STD |
4 | ||
| 11123-33030 |
1NDTV..NDE120..UKP O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-30020 |
1NDTV..NDE120..UKP O/S 0.05 |
4 | ||
| 11123-30020 |
1NDTV..NDE120..UKP STD |
4 | ||
| 11123-33030 |
1NDTV..NDE120..UKP O/S 0.05 |
4 | ||
| 11122-33030 |
1NDTV..NDE120..UKP STD |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NDE120..UKP NO.1 |
4 | ||
| 90119-07009 |
1NDTV..NDE120..UKP NO.2 |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NDE120..UKP NO.1 |
4 | ||
| 90119-07009 |
1NDTV..NDE120..UKP NO.2 |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-33031 |
1NDTV..NDE120..UKP |
1 | ||
| 11201-33030 |
1NDTV..NDE120..UKP |
1 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-33020 |
1NDTV..NDE120..UKP |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-33021 |
1NDTV..NDE120..UKP |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-28010 |
1NDTV..NDE120..UKP |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37004 |
1NDTV..NDE120..UKP |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-21010 |
1NDTV..NDE120..UKP |
2 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-21010 |
1NDTV..NDE120..UKP |
2 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12611-0N010 |
1NDTV..NDE120..UKP |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12632-33010 |
1NDTV..NDE120..UKP |
1 | ||
| 12633 - BRACKET, ENGINE COVER, NO.3 | ||||
| 12633-33010 |
1NDTV..NDE120..UKP |
1 | ||
| Common parts | ||||
| 12635-33010 | ||||
| 90253-11005 | ||||
| 91551-80612 | ||||
| 91551-80618 | ||||
| 91551-80622 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8716 | ||||
