NDE120L-DHMDYW (2004)

Toyota Corolla Hb (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1NDTV..UKP

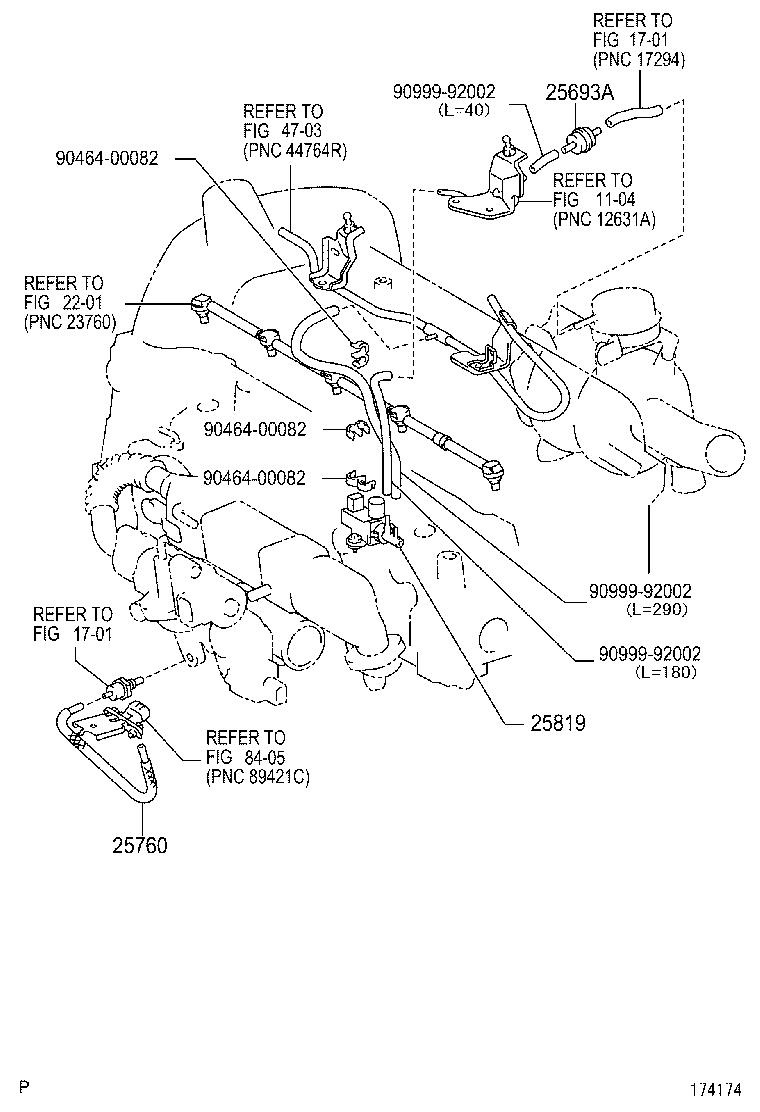

Click highlighted areas on diagram

diagram 1104 1701 1701 2201 25693A 25760 25819 4703 8405 9046400082 9046400082 9046400082 9099992002 9099992002 9099992002
Part # Description Qty Price
25693A - DAMPER, EGR VACUUM MODULATOR
25693-58010

1NDTV..NDE120..UKP

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-33040

1NDTV..NDE120..UKP

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-33030

1NDTV..NDE120..UKP

 1
25819-33010

1NDTV..NDE120..UKP

 1
Common parts
90464-00082
90999-92002
Linked diagrams
1104
1701
2201
4703
8405
