NDE120L-DHGDYW (2004)

Toyota Corolla Hb (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )UKP..LHD..5FS

Click highlighted areas on diagram

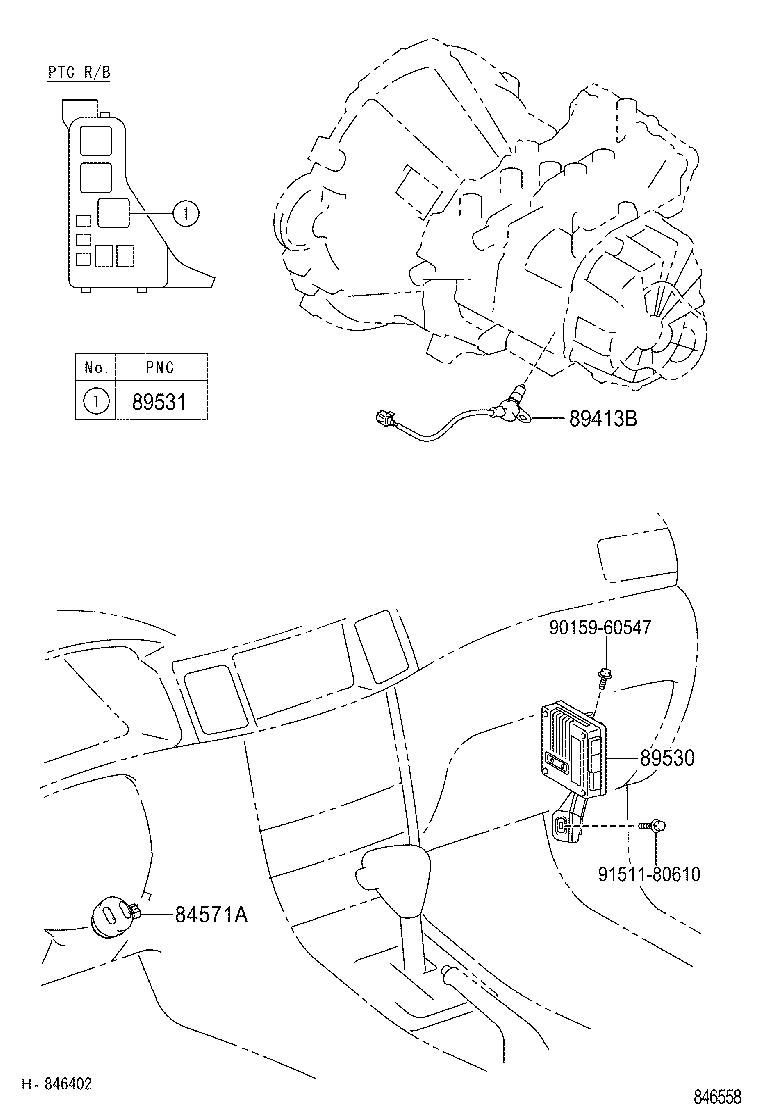

diagram 84571A 89413B 89530 89531 9015960547 9151180610
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-64010

NDE120..UKP..5FS

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-12210

NDE120..UKP..LHD..5FS

W(VSC)

 1
89530-12220

NDE120..UKP..LHD..5FS

 1
89531 - RELAY, TRANSMISSION CONTROL
90080-87030

NDE120..UKP..5FS

 1
Common parts
90159-60547
91511-80610
