NDE120L-DHGDYW (2004)

Toyota Corolla Hb (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )NDE120..UKP..LHD

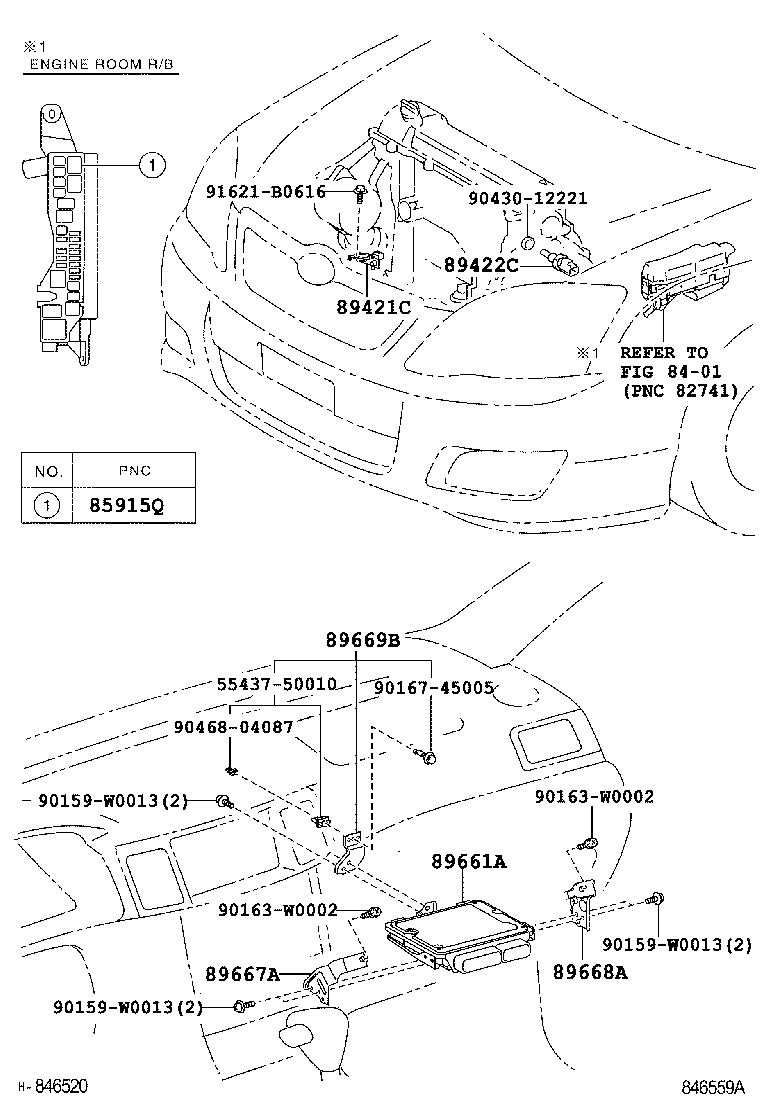

Click highlighted areas on diagram

diagram 5543750010 8401 85915Q 89421C 89422C 89661A 89667A 89668A 89669B 90159W0013 90159W0013 90159W0013 90163W0002 90163W0002 9016745005 9043012221 9046804087 91621B0616
Part # Description Qty Price
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89420-12210

NDE120..UKP

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030

NDE120..UKP

 1
89661A - COMPUTER, ENGINE CONTROL
89601-02020

NDE120..UKP..5F

 1
89601-02010

NDE120..UKP..5FS

 1
Common parts
55437-50010
90159-W0013
90163-W0002
90167-45005
90430-12221
90468-04087
91621-B0616
Linked diagrams
8401
