NDE120L-DHGDYW (2004)

Toyota Corolla Hb (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )NDE120..UKP..5F

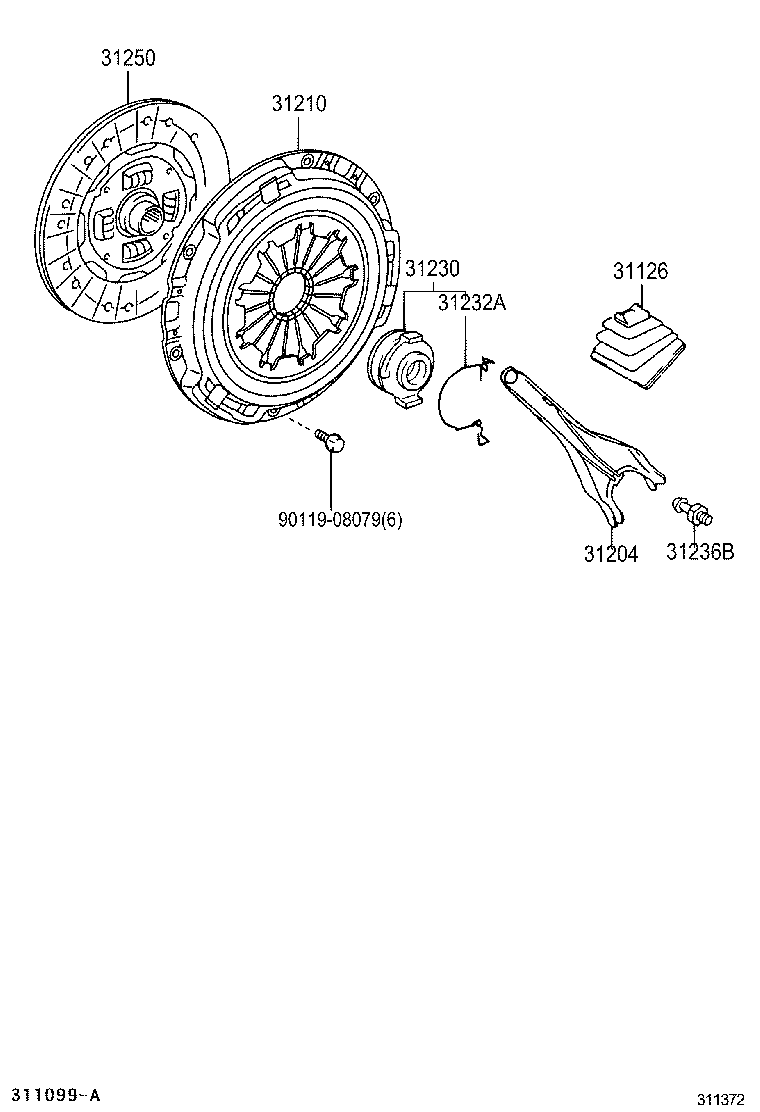

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-64010

NDE120..UKP..5FS

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-52010

NDE120..UKP..5F

 1
31204-64010

NDE120..UKP..5FS

 1
31210 - COVER ASSY, CLUTCH
31210-12251

NDE120,ZZE123..UKP..(5F,6F)

 1
31210-12250

NDE120..UKP..5F

 1
31210-12290

NDE120,ZZE123..UKP..(5F,6F)

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-17010

NDE120..UKP..5FS

 1
31230-12180

NDE120..UKP..5F

 1
31230-17011

NDE120..UKP..5FS

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12080

NDE120..UKP..5F

 1
31232-17010

NDE120..UKP..5FS

 1
31250 - DISC ASSY, CLUTCH
31250-12460

NDE120..UKP..5F

 1
Common parts
90119-08079

(0408- )UKP..5FS

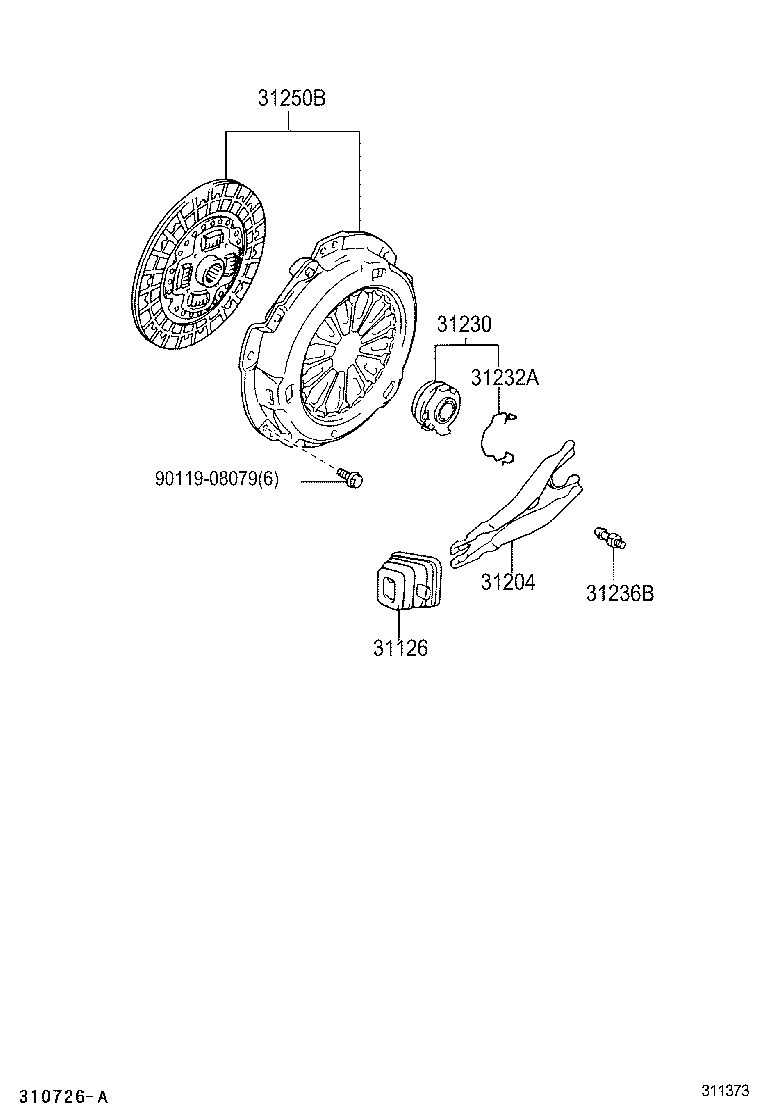

Click highlighted areas on diagram

diagram 31126 31204 31230 31232A 31236B 31250B 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-64010

NDE120..UKP..5FS

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-52010

NDE120..UKP..5F

 1
31204-64010

NDE120..UKP..5FS

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-17010

NDE120..UKP..5FS

 1
31230-12180

NDE120..UKP..5F

 1
31230-17011

NDE120..UKP..5FS

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12080

NDE120..UKP..5F

 1
31232-17010

NDE120..UKP..5FS

 1
31250B - DISC SET, ADJUSTABLE CLUTCH
31250-69056

NDE120..UKP..5FS

 1
31250-19035

NDE120..UKP..5FS

 1
31250-69035

NDE120..UKP..5FS

 1
31250-69055

NDE120..UKP..5FS

 1
Common parts
90119-08079
