NDE120L-DHGDYW (2004)
Toyota Corolla Hb (Ukp)
Production
Aug 2004
-
Feb 2007
Engine
1NDTV
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )1NDTV..UKP

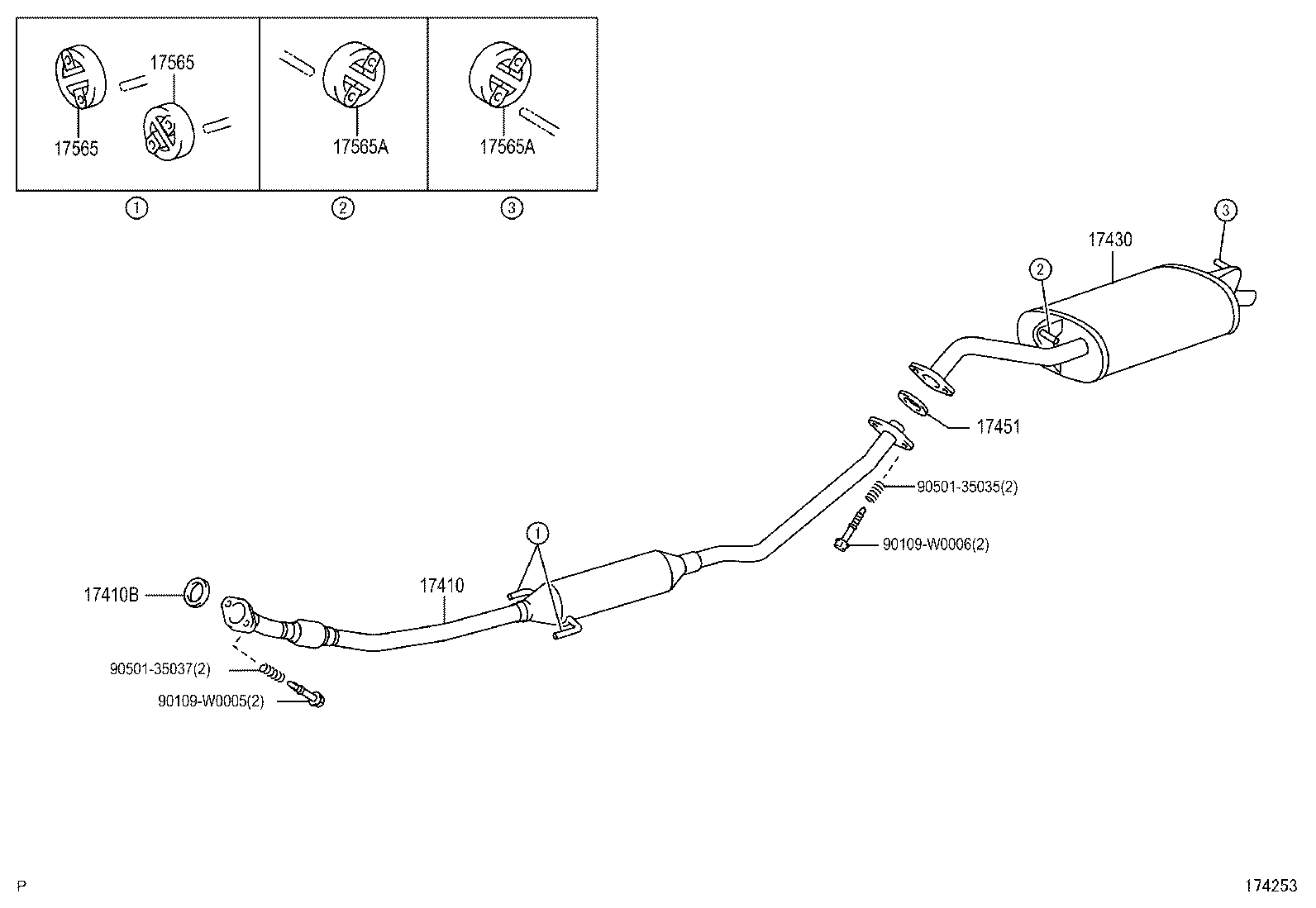

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-0N020 |
1NDTV..NDE120..UKP |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-0G020 |
1NDTV..NDE120..UKP |
1 | ||
| Common parts | ||||
| 90109-W0005 | ||||
| 90109-W0006 | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
