NDE120L-DGMDYW (2004)

Toyota Corolla Hb (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )NDE120..UKP

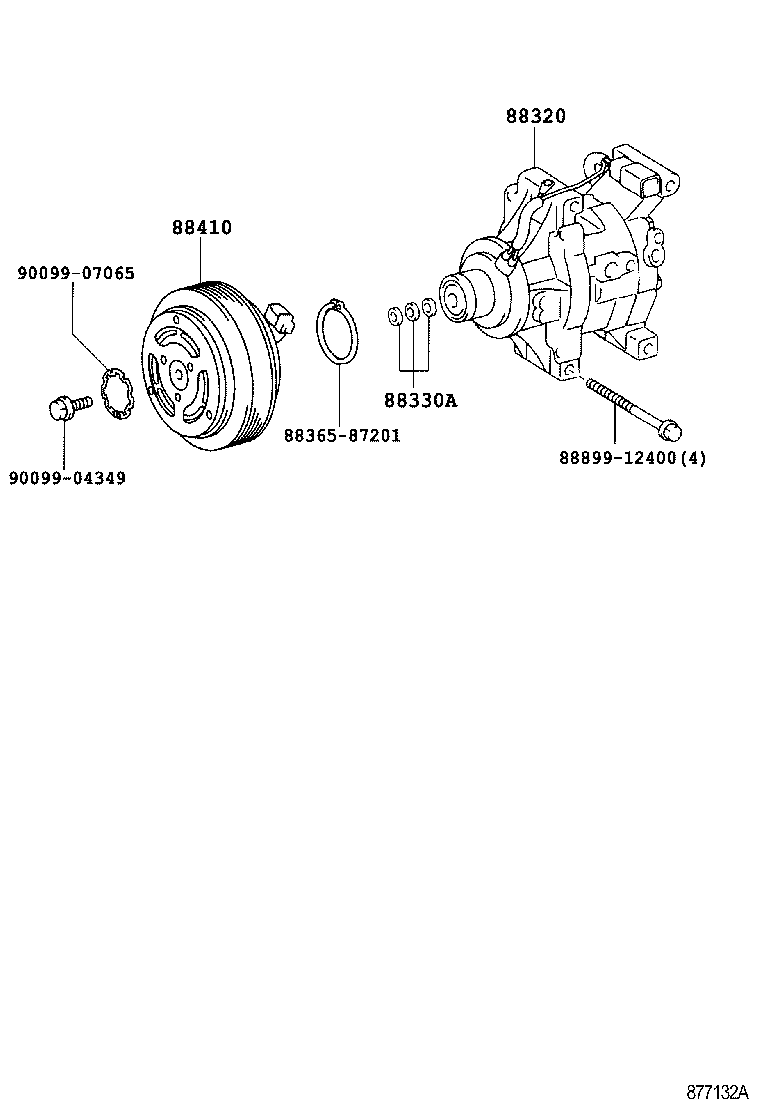

Click highlighted areas on diagram

diagram 88320 88330A 8836587201 88410 8889912400 9009904349 9009907065
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-52420

NDE120..UKP

 1
88410 - CLUTCH ASSY, MAGNET
88410-1A330

NDE120..UKP

 1
Common parts
88365-87201
88899-12400
90099-04349
90099-07065
