NDE120L-DGGNYW (2004)

Toyota Corolla Hb (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )NDE120..UKP

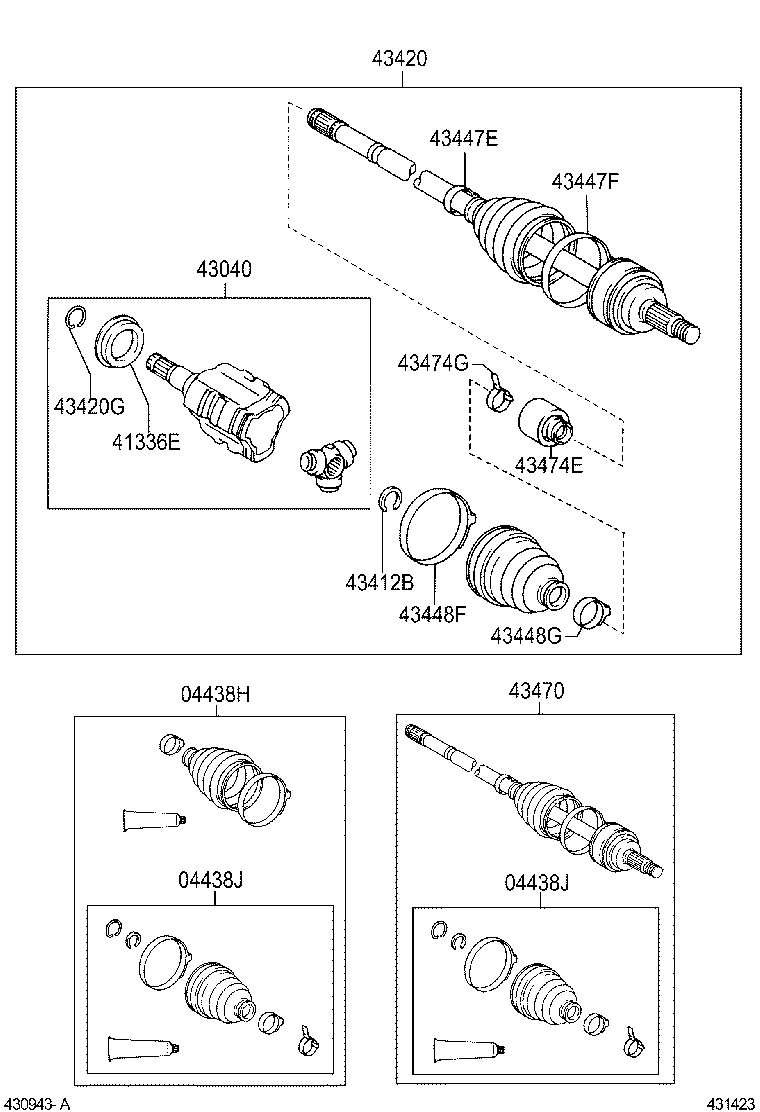

Click highlighted areas on diagram

LH

diagram 04438H 04438J 04438J 41336E 43040 43412B 43420 43420G 43447E 43447F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-02140

NDE120..UKP

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-05140

NDE120..UKP

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-02590

NDE120..UKP

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43460-09G60

NDE120..UKP

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-02110

NDE120..UKP

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-05220

NDE120..UKP

 1

(0408- )NDE120..UKP

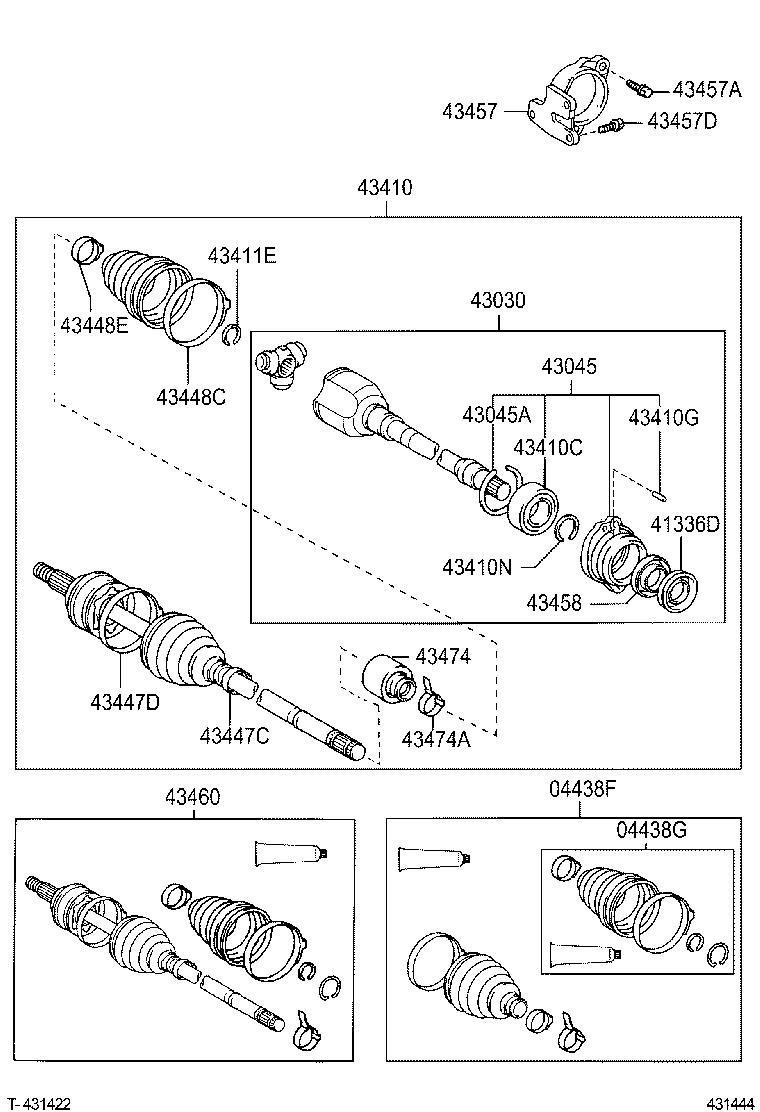

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43045 43045A 43410 43410C 43410G 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457D 43458 43460 43474 43474A
Part # Description Qty Price
43457 - BRACKET, DRIVE SHAFT BEARING
43457-02010

NDE120..UKP

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09G60

NDE120..UKP

 1
