CDE120R-DHMDYW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0111- )UKP

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0111-0405)CDE120..UKP..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8714 8719 88374C 88374D 88375D 88375F 88450 88467 88467 88469D 88469D 88474 88645H 8868802590 8868802640 8868802650 88710C 88711 88712 88716A 88717A 8871802190 8871802200 8871802450 8871802500 8871805200 8871816690 887181A780 8889952050 8889952050 9008010279 9008010279 9008010280 9008010280 9009120619 9009120619 9011906311 9011906311 9151160635 9151160635 91511G0625 91511G0625 9415080641
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88374D - VALVE, SERVICE NO.3
88374-30010

CDE120..UKP..RHD

 1
88374-30010

CDE120..UKP..RHD..DCR

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

CDE120,NDE120,ZZE12#..UKP

 1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290

CDE120..UKP..RHD

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02140

CDE120,ZZE12#..UKP..RHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88474 - DRYER, COOLER
88474-17010

CDE120,ZZE12#..UKP

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

CDE120,ZZE12#..UKP..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02100

CDE120..UKP..LHD..DCRL;CDE120..UKP..(DCR,HDCR)

DEALER OPTION

 1
88703-02100

CDE120..UKP

 1
88703-02180

CDE120..UKP

MAKER OPTION

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02190

CDE120..UKP..RHD..(DCR,HDCR)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-02280

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02370

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD..(DCR,HTWC,TWC)

MAKER OPTION

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-02130

CDE120..UKP..RHD

MAKER OPTION

 1
88717-02170

CDE120..UKP..RHD..(DCR,HDCR)

 1
Common parts
88688-02590
88688-02640
88688-02650
88718-02190
88718-02200
88718-02450
88718-02500
88718-05200
88718-16690
88718-1A780
88899-52050
90080-10279
90080-10280
90091-20619
90119-06311
91511-60635
91511-G0625
94150-80641
Linked diagrams
8714
8719

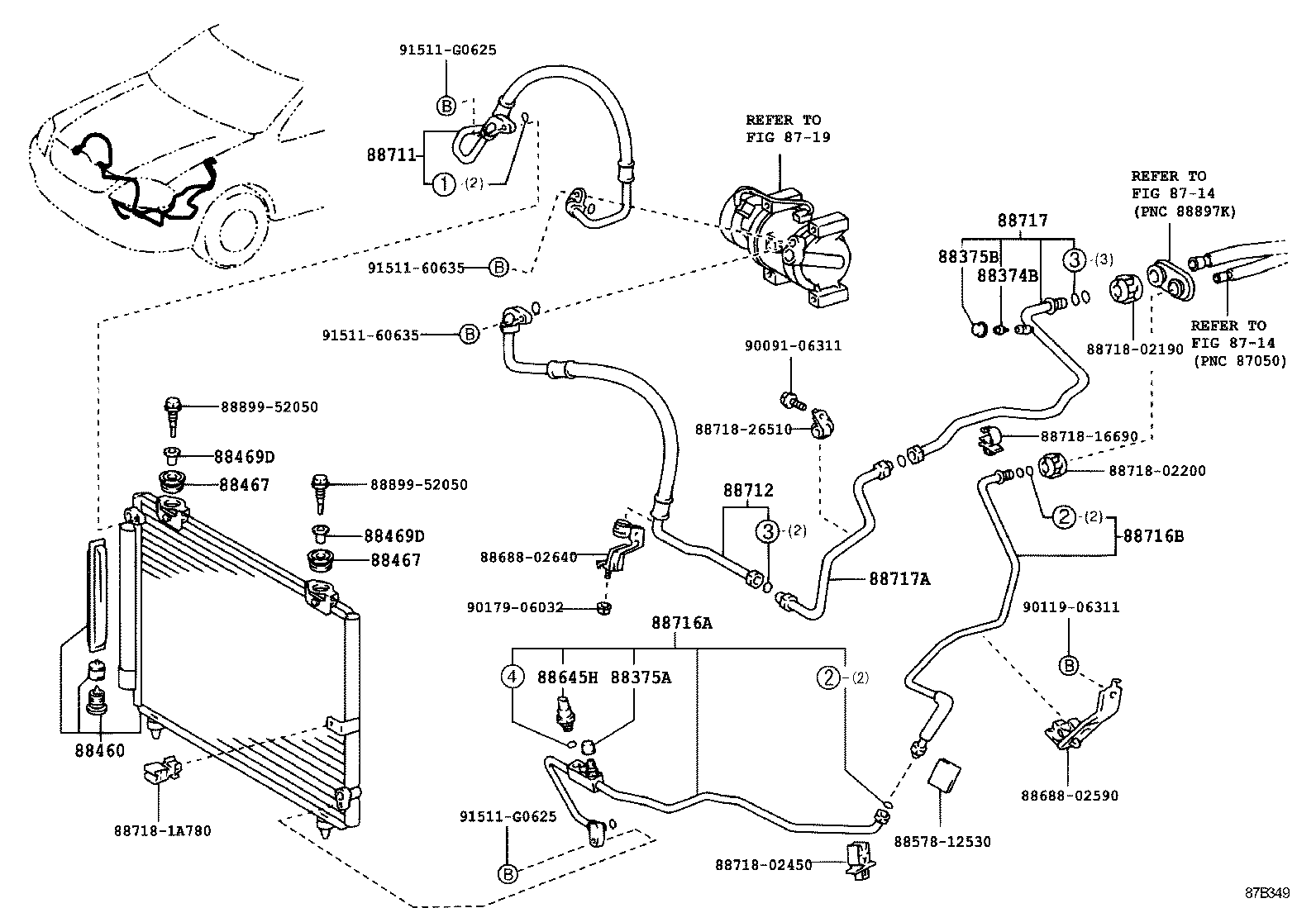

ILLUST NO. 1 OF 2(0111-0301)CDE120..UKP..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8714 8719 88374B 88375A 88375B 88460 88467 88467 88469D 88469D 8857812530 88645H 8868802590 8868802640 88711 88712 88716A 88716B 88717 88717A 8871802190 8871802200 8871802450 8871816690 887181A780 8871826510 8889952050 8889952050 9009106311 9011906311 9017906032 9151160635 9151160635 91511G0625 91511G0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CDE120,ZZE120,121..UKP..(DCR,HDCR,HTWC)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CDE120,NDE120,ZZE12#..UKP

 1
88460 - CONDENSER ASSY, COOLER
88460-02100

CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88645H - SWITCH, PRESSURE NO.1
88645-60030

CDE120,ZZE12#..UKP..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02100

CDE120..UKP..LHD..DCRL;CDE120..UKP..(DCR,HDCR)

DEALER OPTION

 1
88703-02100

CDE120..UKP

 1
88703-02180

CDE120..UKP

MAKER OPTION

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02190

CDE120..UKP..RHD..(DCR,HDCR)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-02280

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02370

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD..(DCR,HTWC,TWC)

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02500

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02500

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88716-02310

CDE120,ZZE120,121..UKP..RHD

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-02140

CDE120..UKP..RHD

 1
88717-02140

CDE120..UKP..RHD..DCR

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-02130

CDE120..UKP..RHD

MAKER OPTION

 1
88717-02170

CDE120..UKP..RHD..(DCR,HDCR)

 1
Common parts
88578-12530
88688-02590
88688-02640
88718-02190
88718-02200
88718-02450
88718-16690
88718-1A780
88718-26510
88899-52050
90091-06311
90119-06311
90179-06032
91511-60635
91511-G0625
Linked diagrams
8714
8719

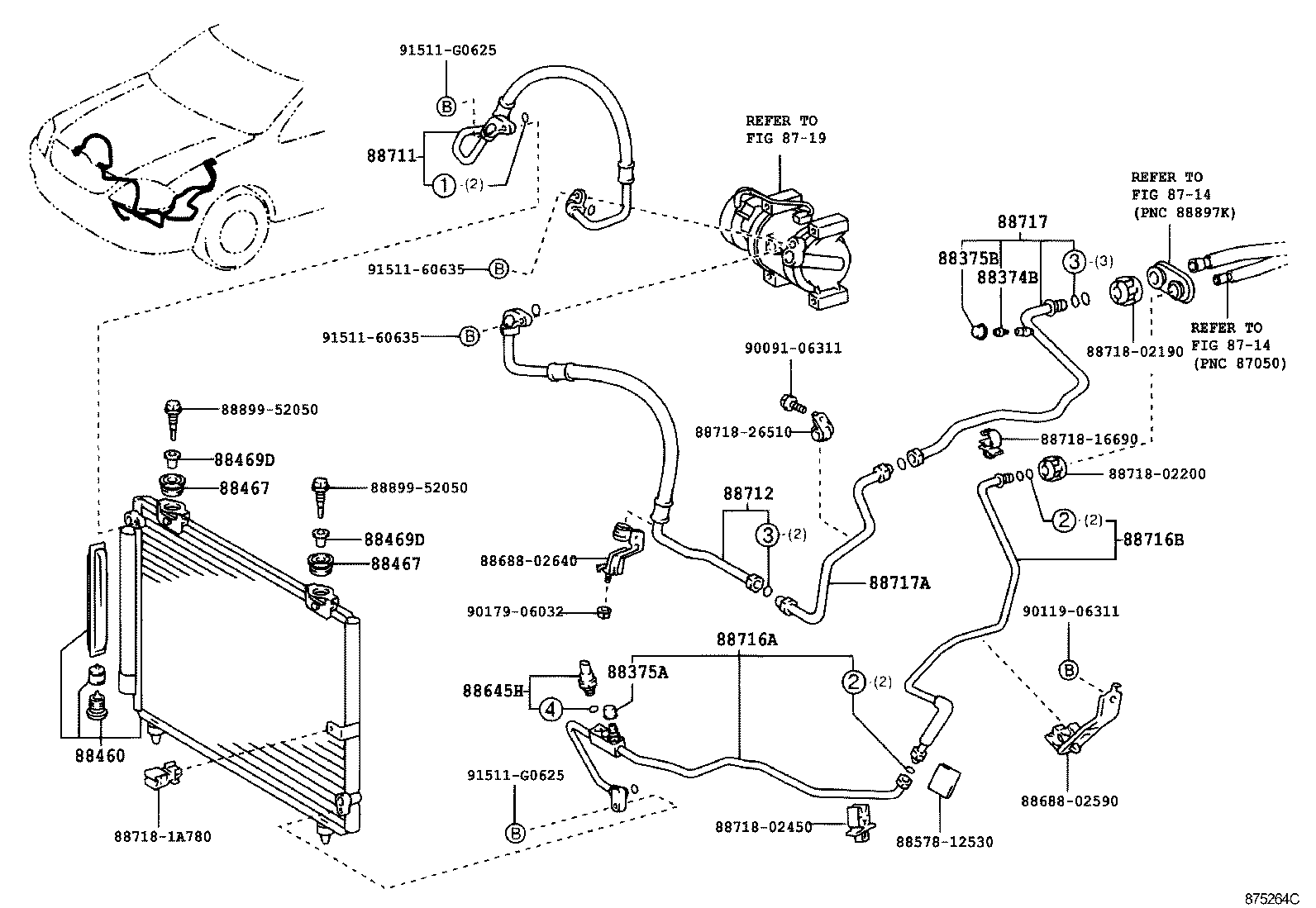

ILLUST NO. 1 OF 2(0301-0405)CDE120..UKP..RHD

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8714 8719 88374B 88375A 88375B 88460 88467 88467 88469D 88469D 8857812530 88645H 8868802590 8868802640 88711 88712 88716A 88716B 88717 88717A 8871802190 8871802200 8871802450 8871816690 887181A780 8871826510 8889952050 8889952050 9009106311 9011906311 9017906032 9151160635 9151160635 91511G0625 91511G0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

CDE120,NDE120,ZZE12#..UKP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CDE120,ZZE120,121..UKP..(DCR,HDCR,HTWC)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CDE120,NDE120,ZZE12#..UKP

 1
88460 - CONDENSER ASSY, COOLER
88460-02100

CDE120,ZZE120,121..UKP..RHD..(DCR,HDCR,HTWC)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

CDE120,ZZE12#..UKP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

CDE120,ZZE12#..UKP

 2
88645H - SWITCH, PRESSURE NO.1
88645-60030

CDE120,ZZE12#..UKP..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02100

CDE120..UKP..LHD..DCRL;CDE120..UKP..(DCR,HDCR)

DEALER OPTION

 1
88703-02100

CDE120..UKP

 1
88703-02180

CDE120..UKP

MAKER OPTION

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02190

CDE120..UKP..RHD..(DCR,HDCR)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-02280

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02370

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88710-02580

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD

MAKER OPTION

 1
88716-02480

CDE120,ZZE12#..UKP..RHD..(DCR,HTWC,TWC)

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02500

CDE120,ZZE120,121..UKP..RHD..(DCR,HTWC)

DEALER OPTION

 1
88716-02500

CDE120,ZZE120,121..UKP..RHD

DEALER OPTION

 1
88716-02310

CDE120,ZZE120,121..UKP..RHD

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-02140

CDE120..UKP..RHD

 1
88717-02140

CDE120..UKP..RHD..DCR

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-02130

CDE120..UKP..RHD

MAKER OPTION

 1
88717-02170

CDE120..UKP..RHD..(DCR,HDCR)

 1
Common parts
88578-12530
88688-02590
88688-02640
88718-02190
88718-02200
88718-02450
88718-16690
88718-1A780
88718-26510
88899-52050
90091-06311
90119-06311
90179-06032
91511-60635
91511-G0625
Linked diagrams
8714
8719
