CDE120R-DHMDXW (2003)
Toyota Corolla Hb (Ukp)

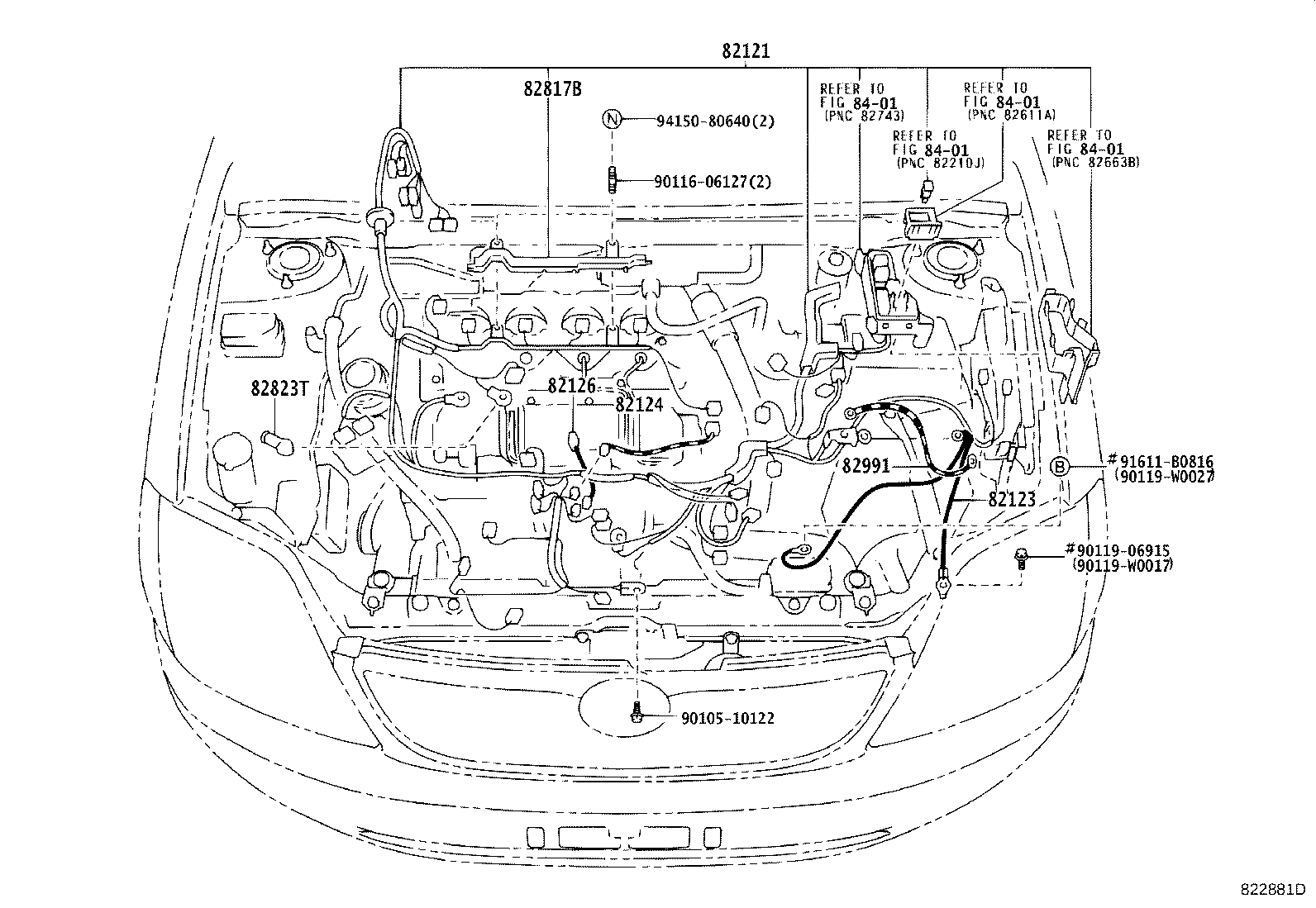

ILLUST NO. 2 OF 7(0111-0405)UKP..DCR,HDCR
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02720 |
CDE120..UKP..RHD |
1 | ||
| 82121-0Z060 |
CDE120..UKP..RHD..DCRL |
1 | ||
| 82121-02D90 |
CDE120..UKP..RHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02210 |
CDE120..UKP..(DCR,HDCR) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-13010 |
CDE120..UKP..(DCR,HDCR) |
1 | ||
| 82124-05020 |
CDE120..UKP |
1 | ||
| 82124-05020 |
CDE120..UKP..DCRL |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-20010 |
CDE120..UKP..DCR |
1 | ||
| 82126-05020 |
CDE120..UKP |
1 | ||
| 82126-05020 |
CDE120..UKP..DCRL |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-13350 |
CDE120..UKP..LHD..HDCR;CDE120..UKP..TERRA..DCRL;CDE120..UKP..SOL..(DCR,DCRL);CDE120..UKP..LHD..TERRA..DCR |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82823-22050 |
CDE120,ZZE12#..UKP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12080 |
CDE120,NDE120..UKP |
1 | ||
| 82991-12080 |
CDE120..UKP |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90116-06127 | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90119-W0027 | ||||
| 91611-B0816 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8401 | ||||

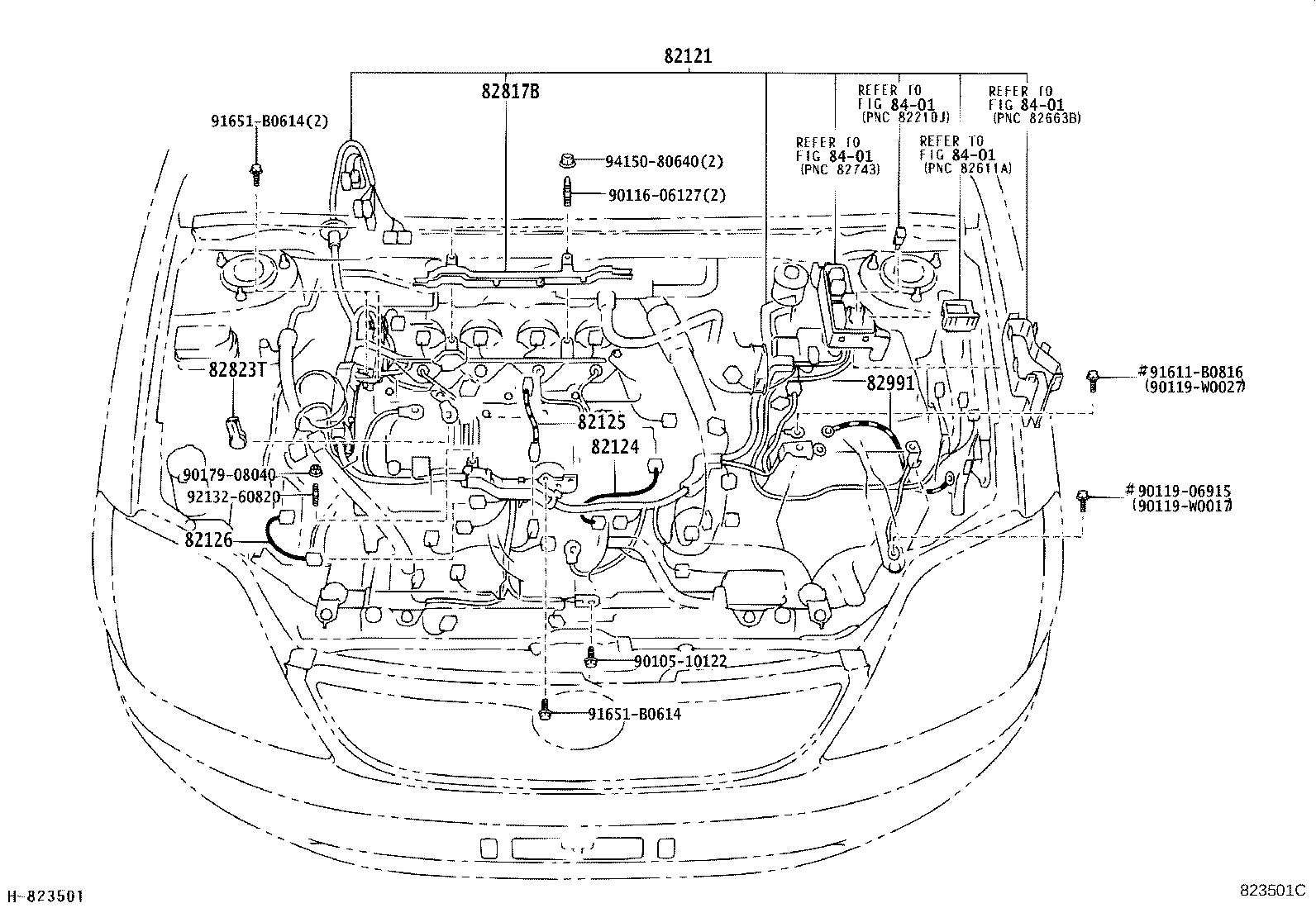

ILLUST NO. 2 OF 7(0304-0405)UKP..DCRL
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02720 |
CDE120..UKP..RHD |
1 | ||
| 82121-0Z060 |
CDE120..UKP..RHD..DCRL |
1 | ||
| 82121-02D90 |
CDE120..UKP..RHD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-13010 |
CDE120..UKP..(DCR,HDCR) |
1 | ||
| 82124-05020 |
CDE120..UKP |
1 | ||
| 82124-05020 |
CDE120..UKP..DCRL |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-20290 |
CDE120..UKP |
1 | ||
| 82125-20290 |
CDE120..UKP..DCRL |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-20010 |
CDE120..UKP..DCR |
1 | ||
| 82126-05020 |
CDE120..UKP |
1 | ||
| 82126-05020 |
CDE120..UKP..DCRL |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-13350 |
CDE120..UKP..LHD..HDCR;CDE120..UKP..TERRA..DCRL;CDE120..UKP..SOL..(DCR,DCRL);CDE120..UKP..LHD..TERRA..DCR |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82823-22050 |
CDE120,ZZE12#..UKP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12080 |
CDE120,NDE120..UKP |
1 | ||
| 82991-12080 |
CDE120..UKP |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90116-06127 | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90119-W0027 | ||||
| 90179-08040 | ||||
| 91611-B0816 | ||||
| 91651-B0614 | ||||
| 92132-60820 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8401 | ||||

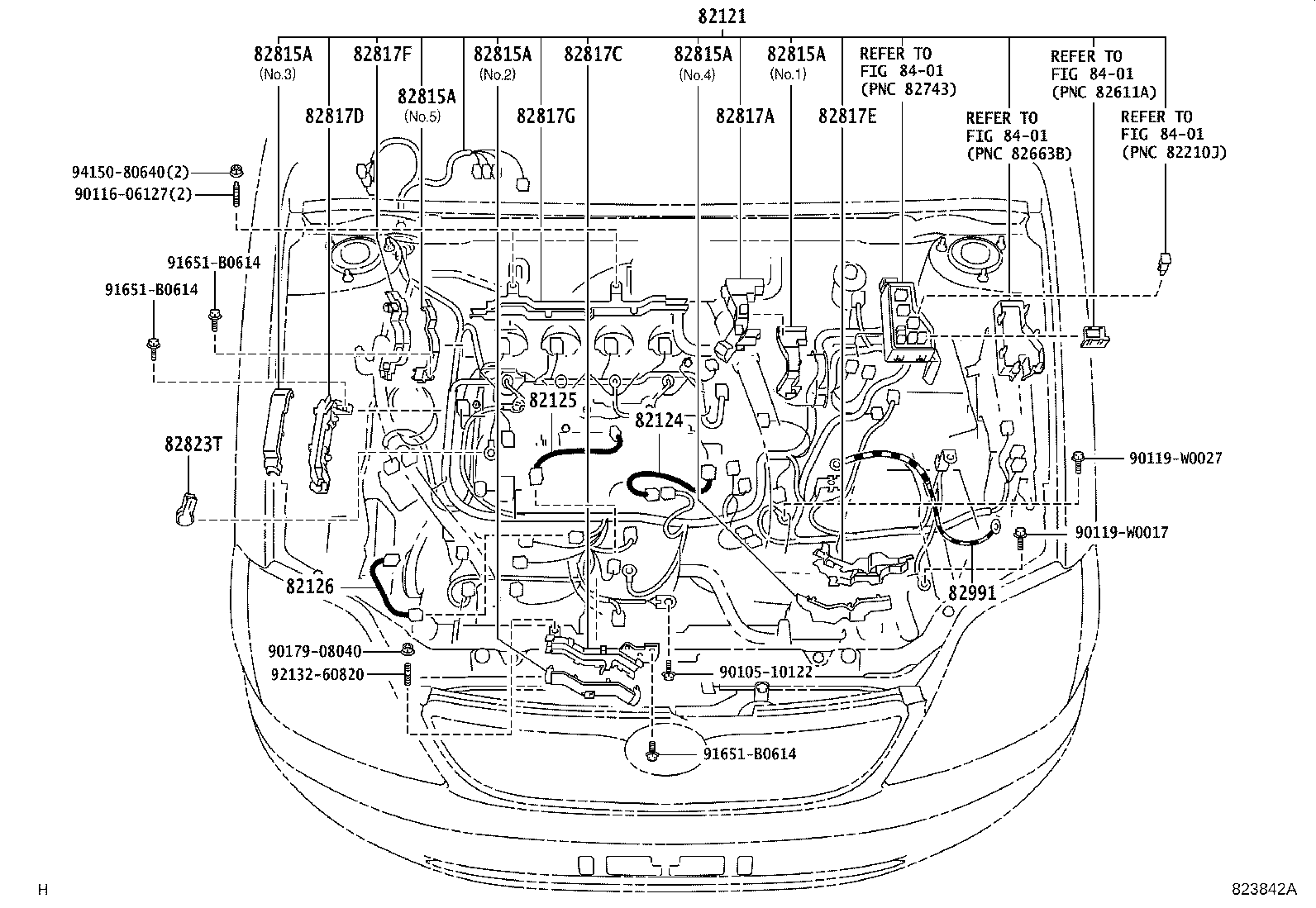

ILLUST NO. 2 OF 7(0405- )CDE120..UKP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02720 |
CDE120..UKP..RHD |
1 | ||
| 82121-0Z060 |
CDE120..UKP..RHD..DCRL |
1 | ||
| 82121-02D90 |
CDE120..UKP..RHD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-13010 |
CDE120..UKP..(DCR,HDCR) |
1 | ||
| 82124-05020 |
CDE120..UKP |
1 | ||
| 82124-05020 |
CDE120..UKP..DCRL |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-20290 |
CDE120..UKP |
1 | ||
| 82125-20290 |
CDE120..UKP..DCRL |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-20010 |
CDE120..UKP..DCR |
1 | ||
| 82126-05020 |
CDE120..UKP |
1 | ||
| 82126-05020 |
CDE120..UKP..DCRL |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-05060 |
CDE120..UKP NO.3 |
1 | ||
| 82815-05120 |
CDE120..UKP NO.5 |
1 | ||
| 82815-05110 |
CDE120,NDE120..UKP NO.4 |
1 | ||
| 82815-05040 |
CDE120..UKP NO.1 |
1 | ||
| 82815-05050 |
CDE120..UKP NO.2 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-05060 |
CDE120..UKP NO.3 |
1 | ||
| 82815-05120 |
CDE120..UKP NO.5 |
1 | ||
| 82815-05110 |
CDE120,NDE120..UKP NO.4 |
1 | ||
| 82815-05040 |
CDE120..UKP NO.1 |
1 | ||
| 82815-05050 |
CDE120..UKP NO.2 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-05060 |
CDE120..UKP NO.3 |
1 | ||
| 82815-05120 |
CDE120..UKP NO.5 |
1 | ||
| 82815-05110 |
CDE120,NDE120..UKP NO.4 |
1 | ||
| 82815-05040 |
CDE120..UKP NO.1 |
1 | ||
| 82815-05050 |
CDE120..UKP NO.2 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-05060 |
CDE120..UKP NO.3 |
1 | ||
| 82815-05120 |
CDE120..UKP NO.5 |
1 | ||
| 82815-05110 |
CDE120,NDE120..UKP NO.4 |
1 | ||
| 82815-05040 |
CDE120..UKP NO.1 |
1 | ||
| 82815-05050 |
CDE120..UKP NO.2 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-05060 |
CDE120..UKP NO.3 |
1 | ||
| 82815-05120 |
CDE120..UKP NO.5 |
1 | ||
| 82815-05110 |
CDE120,NDE120..UKP NO.4 |
1 | ||
| 82815-05040 |
CDE120..UKP NO.1 |
1 | ||
| 82815-05050 |
CDE120..UKP NO.2 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-05200 |
CDE120..UKP |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-05210 |
CDE120..UKP |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-05220 |
CDE120..UKP |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-05280 |
CDE120,NDE120..UKP |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-05290 |
CDE120..UKP |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-13350 |
CDE120..UKP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82823-22050 |
CDE120,ZZE12#..UKP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12080 |
CDE120,NDE120..UKP |
1 | ||
| 82991-12080 |
CDE120..UKP |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90116-06127 | ||||
| 90119-W0017 | ||||
| 90119-W0027 | ||||
| 90179-08040 | ||||
| 91651-B0614 | ||||
| 92132-60820 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8401 | ||||
