CDE120R-DGMNHW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Apr 2003
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )CDE120..UKP

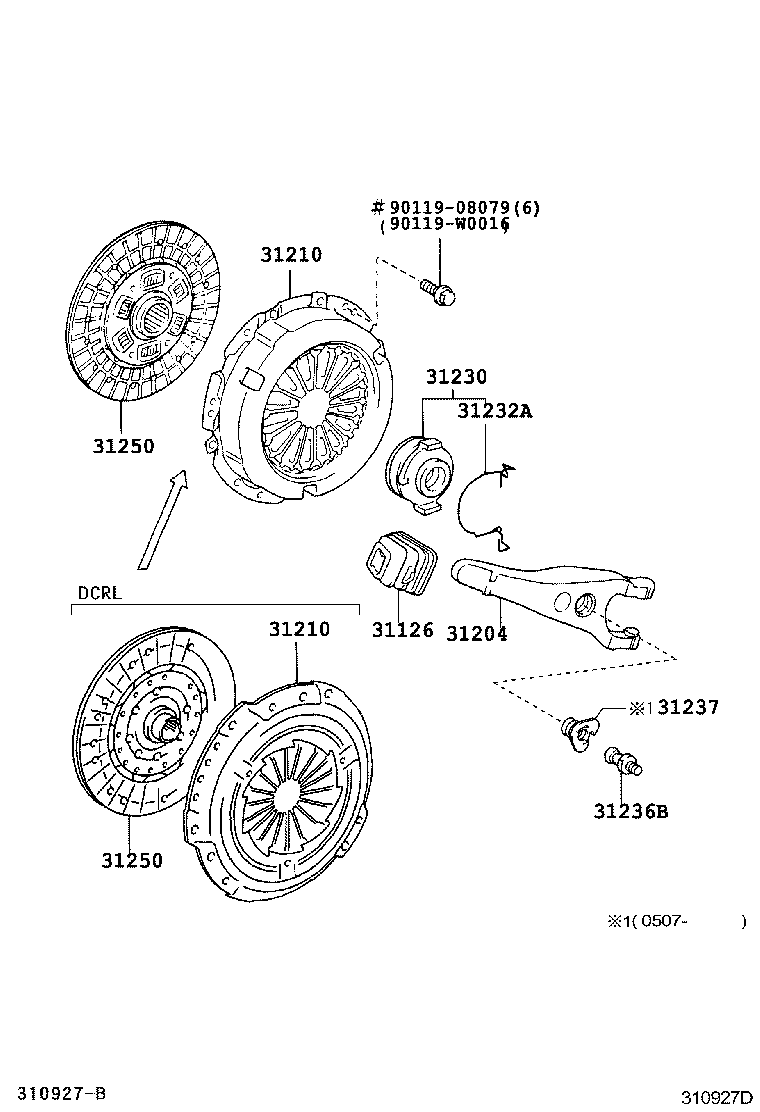

Click highlighted areas on diagram

diagram 31126 31204 31210 31210 31230 31232A 31236B 31237 31250 31250 9011908079 90119W0016
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20080

CDE120..UKP

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20130

CDE120..UKP

 1
31210 - COVER ASSY, CLUTCH
31210-28070

CDE120..UKP..HDCR

 1
31210-12240

CDE120..UKP..DCR

 1
31210 - COVER ASSY, CLUTCH
31210-28070

CDE120..UKP..HDCR

 1
31210-12240

CDE120..UKP..DCR

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-20191

CDE120..UKP

 1
31232A - CLIP, RELEASE BEARING HUB
31232-20031

CDE120..UKP

 1
31236B - SUPPORT, RELEASE FORK
31236-20080

CDE120..UKP

 1
31250 - DISC ASSY, CLUTCH
31250-12410

CDE120..UKP..(DCR,HDCR)

 1
31250 - DISC ASSY, CLUTCH
31250-12410

CDE120..UKP..(DCR,HDCR)

 1
Common parts
90119-08079
90119-W0016
