CDE120R-DGMNHW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Apr 2003

Engine 1CDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

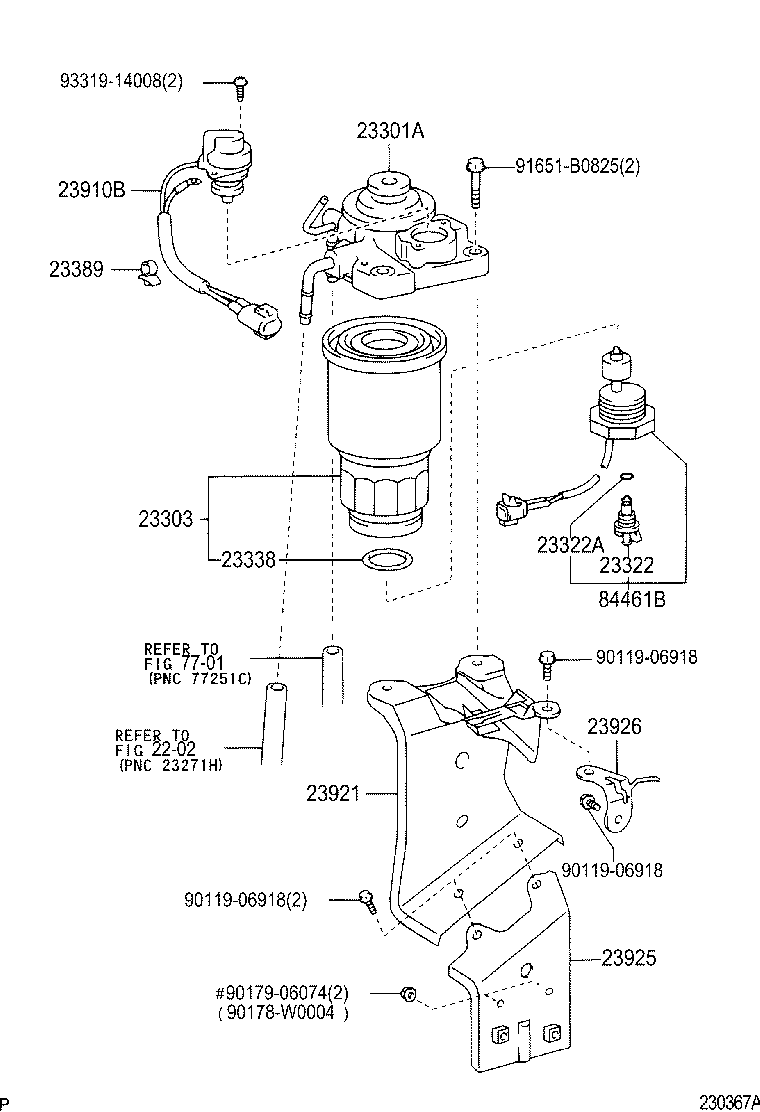

(0111-0207)1CDFTV..UKP

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
23301A - CAP ASSY, FUEL FILTER
23380-27130	1CDFTV..CDE120..UKP	11/2001 - 07/2002	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64450	1CDFTV..CDE120..UKP..(DCR,HDCR)	11/2001 - 05/2004	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23389 - CLAMP, FUEL FILTER
23389-27130	1CDFTV..CDE120..UKP	11/2001 - 07/2002	1
23921 - SUPPORT, FUEL FILTER
23921-27050	1CDFTV..CDE120..UKP..(DCR,HDCR)	11/2001 - 05/2004	1
23925 - STAY, FUEL FILTER SUPPORT
23925-27010	1CDFTV..CDE120..UKP	11/2001 - 01/2003	1
23926 - STAY, FUEL FILTER SUPPORT, NO.2
23926-27010	1CDFTV..CDE120..UKP	11/2001 - 01/2003	1
84461B - SWITCH, LEVEL WARNING
84461-60080	CDE120..UKP..HDCR	11/2001 - 04/2003	1
84461-60080	CDE120..UKP..DCR	11/2001 - 05/2004	1
Common parts
90119-06918
90179-06074
91651-B0825
Linked diagrams
2202
7701

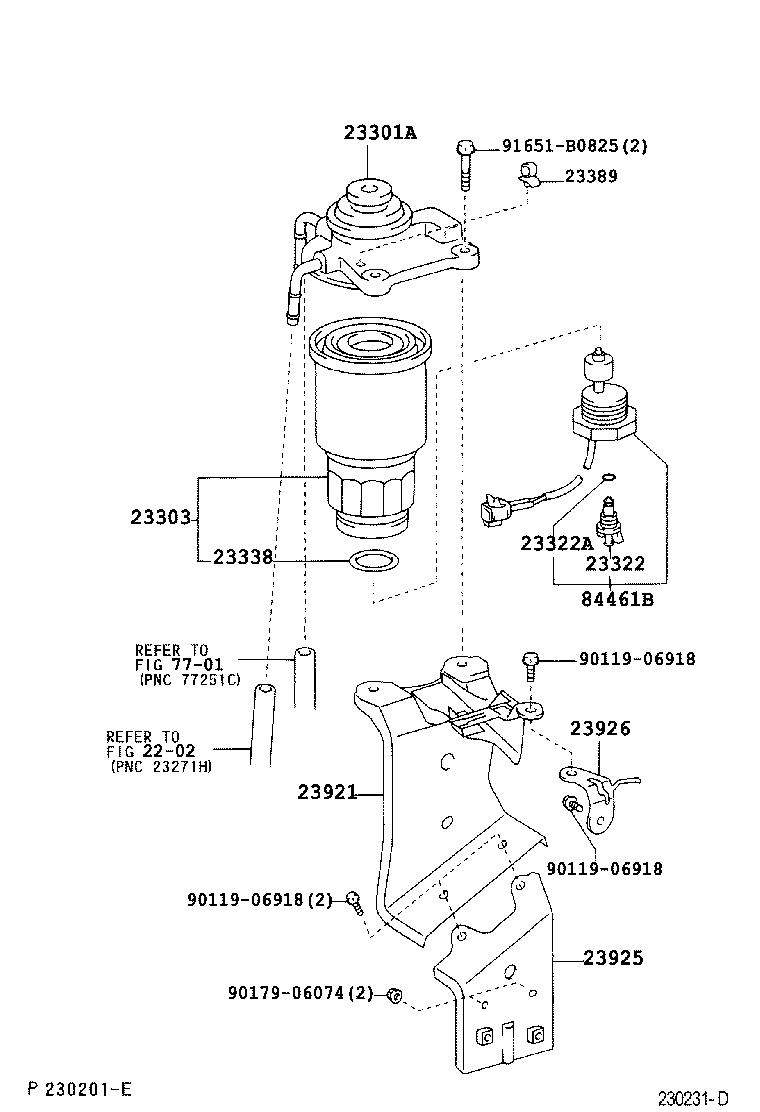

(0207- )1CDFTV..UKP

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
23301A - CAP ASSY, FUEL FILTER
23380-27130	1CDFTV..CDE120..UKP	11/2001 - 07/2002	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64450	1CDFTV..CDE120..UKP..(DCR,HDCR)	11/2001 - 05/2004	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23389 - CLAMP, FUEL FILTER
23389-27130	1CDFTV..CDE120..UKP	11/2001 - 07/2002	1
23921 - SUPPORT, FUEL FILTER
23921-27050	1CDFTV..CDE120..UKP..(DCR,HDCR)	11/2001 - 05/2004	1
23925 - STAY, FUEL FILTER SUPPORT
23925-27010	1CDFTV..CDE120..UKP	11/2001 - 01/2003	1
23926 - STAY, FUEL FILTER SUPPORT, NO.2
23926-27010	1CDFTV..CDE120..UKP	11/2001 - 01/2003	1
84461B - SWITCH, LEVEL WARNING
84461-60080	CDE120..UKP..HDCR	11/2001 - 04/2003	1
84461-60080	CDE120..UKP..DCR	11/2001 - 05/2004	1
Common parts
90119-06918
90178-W0004
90179-06074
91651-B0825
93319-14008
Linked diagrams
2202
7701

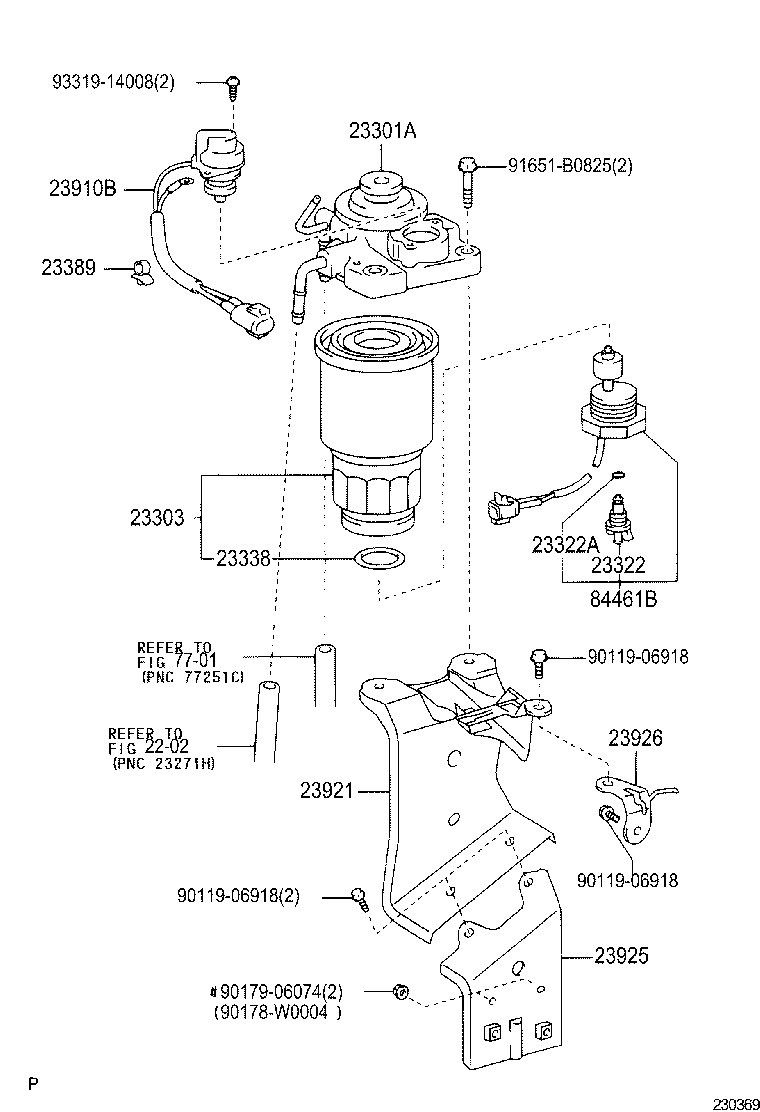

(0111-0207)1CDFTV..UKP

Click highlighted areas on diagram

COLD SPEC

diagram

Part #	Description	Period	Qty	Price
23301A - CAP ASSY, FUEL FILTER
23380-27130	1CDFTV..CDE120..UKP	11/2001 - 07/2002	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64450	1CDFTV..CDE120..UKP..(DCR,HDCR)	11/2001 - 05/2004	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	1CDFTV..CDE120..UKP	11/2001 - 05/2004	1
23389 - CLAMP, FUEL FILTER
23389-27130	1CDFTV..CDE120..UKP	11/2001 - 07/2002	1
23921 - SUPPORT, FUEL FILTER
23921-27050	1CDFTV..CDE120..UKP..(DCR,HDCR)	11/2001 - 05/2004	1
23925 - STAY, FUEL FILTER SUPPORT
23925-27010	1CDFTV..CDE120..UKP	11/2001 - 01/2003	1
23926 - STAY, FUEL FILTER SUPPORT, NO.2
23926-27010	1CDFTV..CDE120..UKP	11/2001 - 01/2003	1
84461B - SWITCH, LEVEL WARNING
84461-60080	CDE120..UKP..HDCR	11/2001 - 04/2003	1
84461-60080	CDE120..UKP..DCR	11/2001 - 05/2004	1
Common parts
90119-06918
90178-W0004
90179-06074
91651-B0825
93319-14008
Linked diagrams
2202
7701
