CDE120R-DGMNHW (2001)
Toyota Corolla Hb (Ukp)

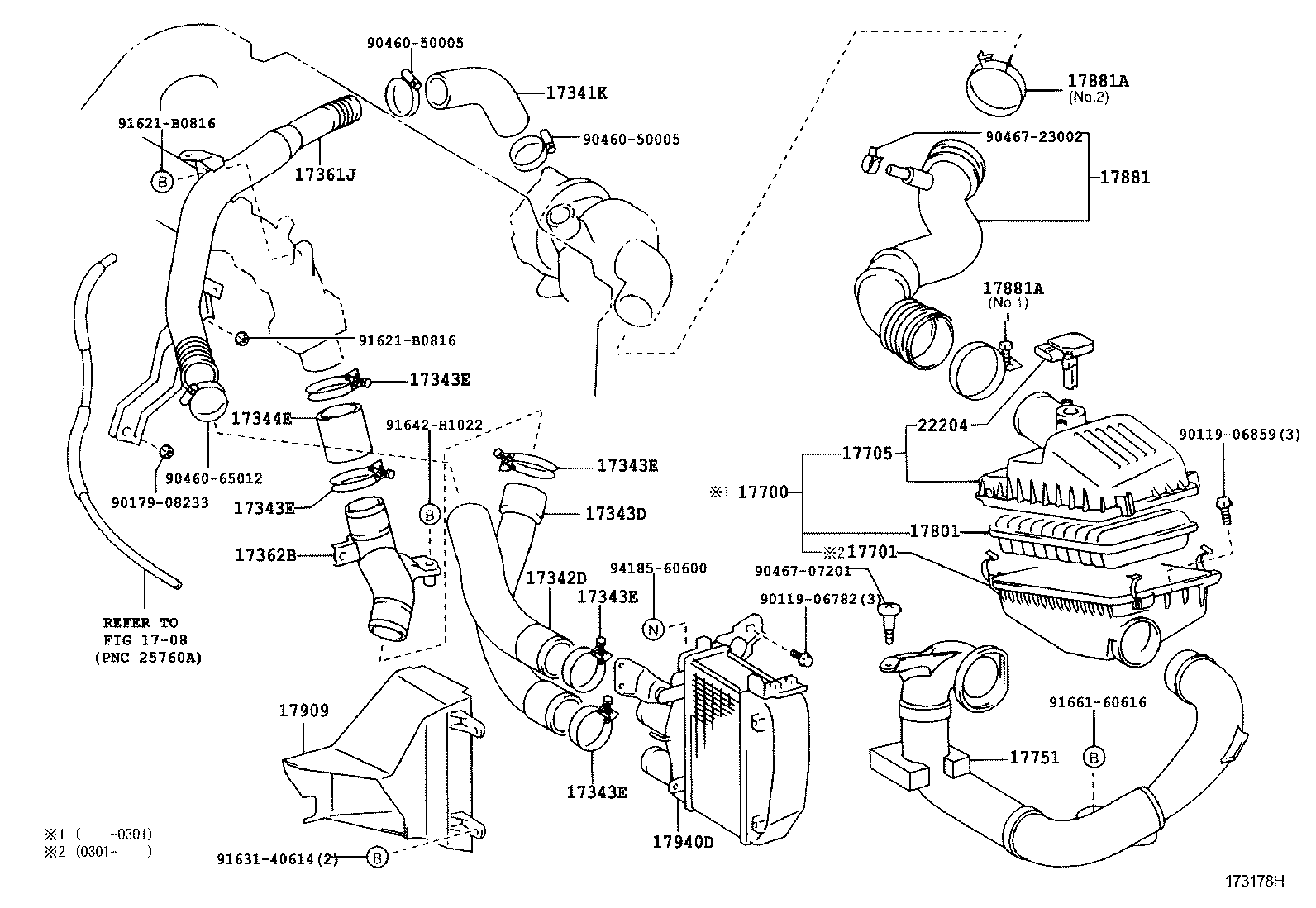

(0111-0405)1CDFTV..UKP..HDCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-27020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17341-27010 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-27020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17342-27050 |
1CDFTV..CDE120..UKP..(DCRL,HDCR) |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-27030 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17343-0G010 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17343-27020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
1CDFTV..CDE120..UKP..HDCR |
5 | ||
| 90460-73011 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
1CDFTV..CDE120..UKP..HDCR |
5 | ||
| 90460-73011 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
1CDFTV..CDE120..UKP..HDCR |
5 | ||
| 90460-73011 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
1CDFTV..CDE120..UKP..HDCR |
5 | ||
| 90460-73011 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
1CDFTV..CDE120..UKP..HDCR |
5 | ||
| 90460-73011 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-27010 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-27060 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17361-27040 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-27040 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17362-27020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-27170 |
1CDFTV..CDE120..UKP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-27040 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0G010 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-27020 |
1CDFTV..CDE120..UKP |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-27040 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90080-46311 |
1CDFTV..CDE120..UKP NO.1 |
1 | ||
| 90466-51003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90080-46311 |
1CDFTV..CDE120..UKP NO.1 |
1 | ||
| 90466-51003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) NO.2 |
1 | ||
| 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR | ||||
| 17909-27030 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17909-27031 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-27030 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| 90119-06859 | ||||
| 90179-08233 | ||||
| 90460-50005 | ||||
| 90460-65012 | ||||
| 90467-07201 | ||||
| 90467-23002 | ||||
| 91621-B0816 | ||||
| 91631-40614 | ||||
| 91642-H1022 | ||||
| 91661-60616 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 1708 | ||||

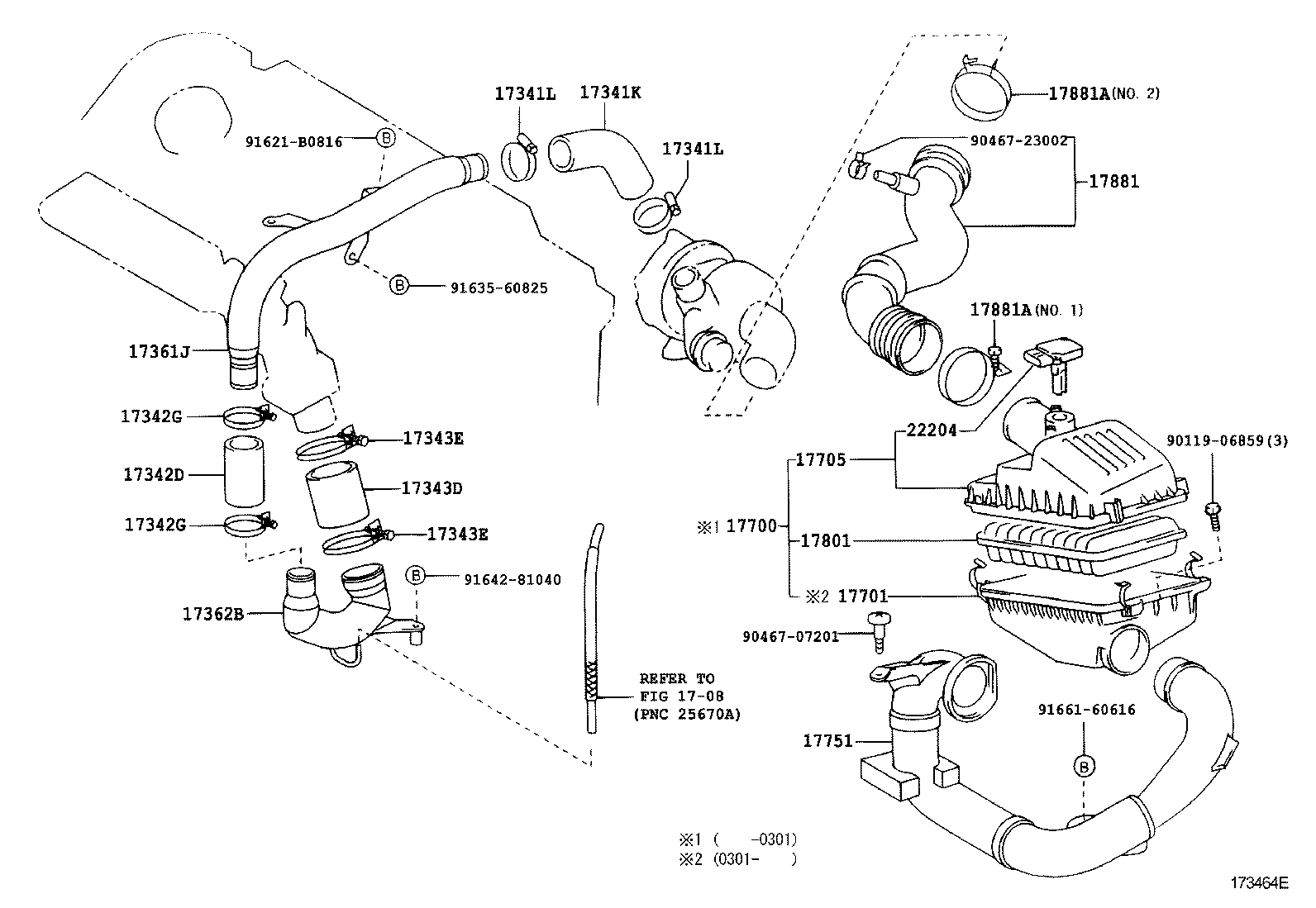

(0111-0405)1CDFTV..UKP..DCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-27020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17341-27010 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-50006 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-50006 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-27020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17342-27050 |
1CDFTV..CDE120..UKP..(DCRL,HDCR) |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-50006 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-50006 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-27030 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17343-0G010 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17343-27020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
1CDFTV..CDE120..UKP..HDCR |
5 | ||
| 90460-73011 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73011 |
1CDFTV..CDE120..UKP..HDCR |
5 | ||
| 90460-73011 |
1CDFTV..CDE120..UKP..DCR |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-27060 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17361-27040 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-27040 |
1CDFTV..CDE120..UKP..HDCR |
1 | ||
| 17362-27020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-27170 |
1CDFTV..CDE120..UKP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-27040 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0G010 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-27020 |
1CDFTV..CDE120..UKP |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-27040 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90080-46311 |
1CDFTV..CDE120..UKP NO.1 |
1 | ||
| 90466-51003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90080-46311 |
1CDFTV..CDE120..UKP NO.1 |
1 | ||
| 90466-51003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) NO.2 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| Common parts | ||||
| 90119-06859 | ||||
| 90467-07201 | ||||
| 90467-23002 | ||||
| 91621-B0816 | ||||
| 91635-60825 | ||||
| 91642-81040 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1708 | ||||
