CDE120R-DGMDYW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )CDE120..UKP

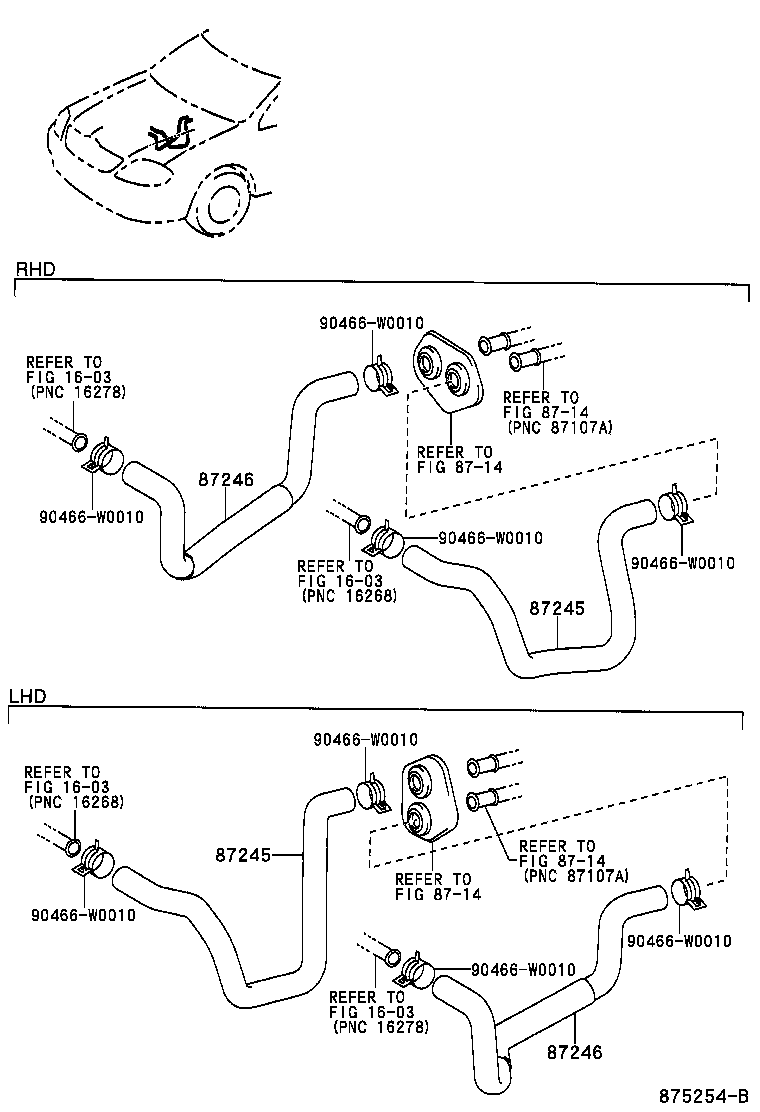

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 8714 8714 8714 8714 87245 87245 87246 87246 90466W0010 90466W0010 90466W0010 90466W0010 90466W0010 90466W0010 90466W0010 90466W0010
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-02410

CDE120..UKP..RHD

 1
87245-05550

CDE120..UKP..RHD

 1
87245 - HOSE, HEATER WATER, INLET
87245-02410

CDE120..UKP..RHD

 1
87245-05550

CDE120..UKP..RHD

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02420

CDE120..UKP..RHD

 1
87245-05560

CDE120..RHD..3D;CDE120..RHD..5D..(DCR,HDCR)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02420

CDE120..UKP..RHD

 1
87245-05560

CDE120..RHD..3D;CDE120..RHD..5D..(DCR,HDCR)

 1
Common parts
90466-W0010
Linked diagrams
1603
8714
