CDE120R-DGMDYW (2001)
Toyota Corolla Hb (Ukp)

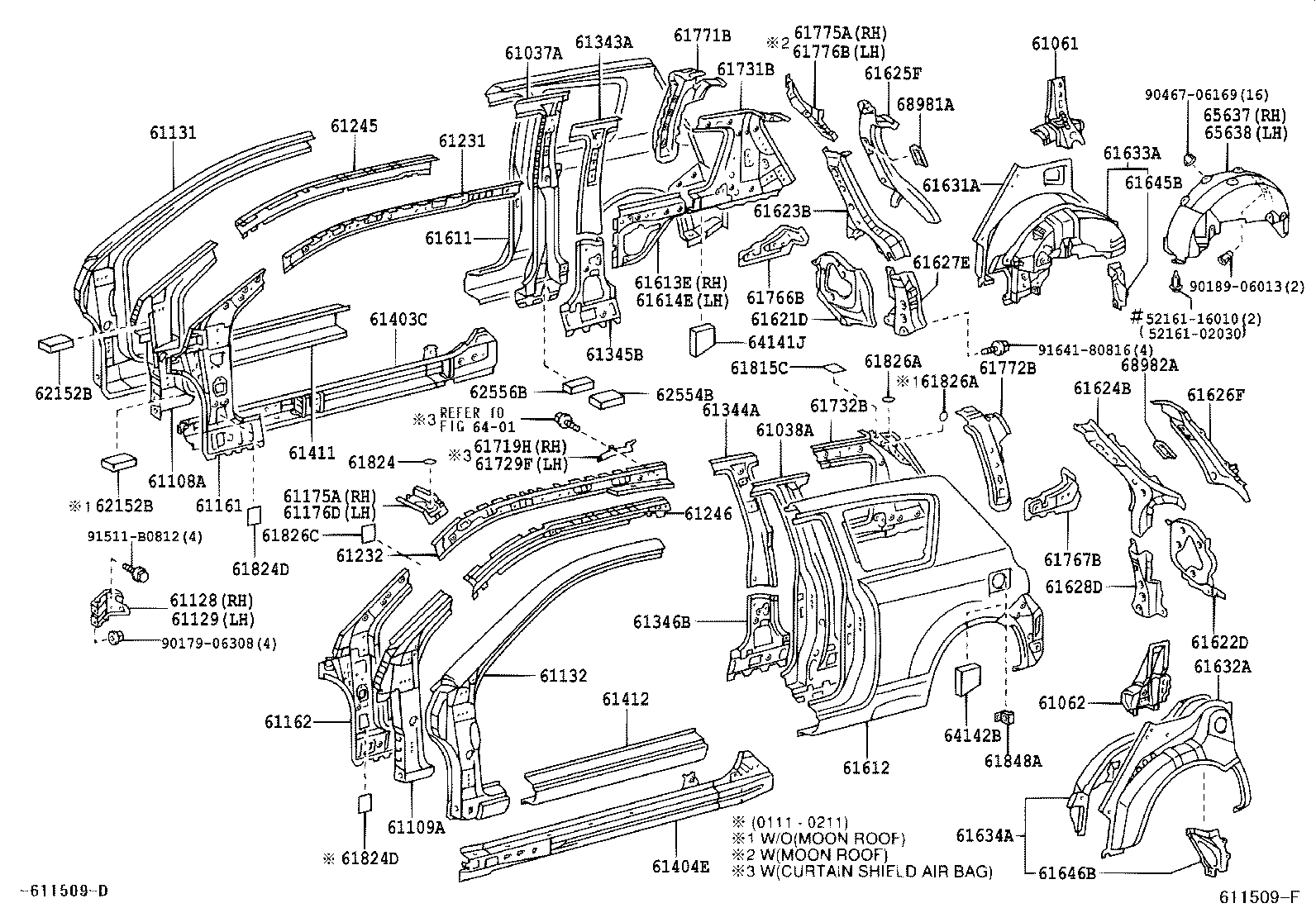

ILLUST NO. 1 OF 2(0111- )UKP..3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-02030 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61037-02070 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-02070 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61038-02030 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61061 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH | ||||
| 61061-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 61062 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH | ||||
| 61062-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-02060 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-02090 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-02121 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 61023-02120 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-02110 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61024-02111 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-02061 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61231-02060 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-02061 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61232-02060 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-02030 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-02030 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-02060 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-02060 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-02020 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61345-02021 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-02021 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61346-02020 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-02010 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-02010 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-02060 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-02060 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-02110 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-02080 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-02010 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-02010 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-02070 |
CDE120,ZZE12#..UKP |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-02070 |
CDE120,ZZE12#..UKP |
1 | ||
| 61623B - TROUGH, BACK DOOR OPENING, REAR RH | ||||
| 61623-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61624B - TROUGH, BACK DOOR OPENING, REAR LH | ||||
| 61624-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-02060 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-02060 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-02925 |
CDE120,ZZE12#..UKP |
1 | ||
| 61607-02918 |
CDE120,ZZE12#..UKP |
1 | ||
| 61607-02918 |
CDE120,ZZE12#..UKP |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-02923 |
CDE120,ZZE12#..UKP |
1 | ||
| 61608-02916 |
CDE120,ZZE12#..UKP |
1 | ||
| 61608-02923 |
CDE120,ZZE12#..UKP |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 61719H - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH | ||||
| 61707-12060 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61729F - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH | ||||
| 61708-12050 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-02071 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61731-02070 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-02070 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61732-02071 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-13080 |
CDE120,ZZE12#..UKP |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-13070 |
CDE120,ZZE12#..UKP |
1 | ||
| 61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH | ||||
| 61771-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH | ||||
| 61772-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61775A - GUIDE, ROOF SIDE DRAIN HOSE, NO.1 RH | ||||
| 61775-13020 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61776B - GUIDE, ROOF SIDE DRAIN HOSE, NO.1 LH | ||||
| 61776-13020 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02030 |
CDE120,ZZE12#..UKP |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02040 |
CDE120,ZZE12#..UKP |
2 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02090 |
CDE120,ZZE12#..UKP |
1 | ||
| 61824-02090 |
CDE120,ZZE12#..UKP |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02090 |
CDE120,ZZE12#..UKP |
1 | ||
| 61824-02090 |
CDE120,ZZE12#..UKP |
1 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-02040 |
CDE120,ZZE12#..UKP W(MOON ROOF) |
2 | ||
| 61824-02040 |
CDE120,ZZE12#..UKP |
4 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-02040 |
CDE120,ZZE12#..UKP W(MOON ROOF) |
2 | ||
| 61824-02040 |
CDE120,ZZE12#..UKP |
4 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-12020 |
CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
2 | ||
| 61826-52020 |
CDE120,ZZE12#..UKP..3D |
2 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-52010 |
CDE120,ZZE12#..UKP |
1 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62554-02050 |
CDE120,ZZE12#..UKP W(MOON ROOF) |
2 | ||
| 62554-02050 |
CDE120,ZZE12#..UKP |
4 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62554-02050 |
CDE120,ZZE12#..UKP W(MOON ROOF) |
2 | ||
| 62554-02050 |
CDE120,ZZE12#..UKP |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-02030 |
CDE120,ZZE12#..UKP |
2 | ||
| 62556B - PAD, PILLAR, NO.6 | ||||
| 62556-02020 |
CDE120,ZZE12#..UKP..3D |
2 | ||
| 64141J - SILENCER, QUATER PANEL, RH | ||||
| 64141-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 64142B - SILENCER, QUATER PANEL, LH | ||||
| 64142-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-13040 |
CDE120,ZZE12#..UKP |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68981-13040 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 52161-02030 | ||||
| 52161-16010 | ||||
| 90179-06308 | ||||
| 90189-06013 | ||||
| 90467-06169 | ||||
| 91511-B0812 | ||||
| 91641-80816 | ||||
| Linked diagrams | ||||
| 6401 | ||||
ILLUST NO. 2 OF 2(0111- )UKP
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58741-02040 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58741-02040 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58742-02040 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58742-02040 |
CDE120,ZZE12#..UKP..3D |
1 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01766 | ||||
| 90950-01821 | ||||
| 90950-01944 | ||||
| 90950-01949 | ||||
| 90950-01959 | ||||
| 90950-01962 | ||||
| 90950-06108 | ||||
