CDE120R-DGMDYW (2001)
Toyota Corolla Hb (Ukp)
Production
Nov 2001
-
May 2004
Engine
1CDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0111- )UKP..RHD..5F,6F

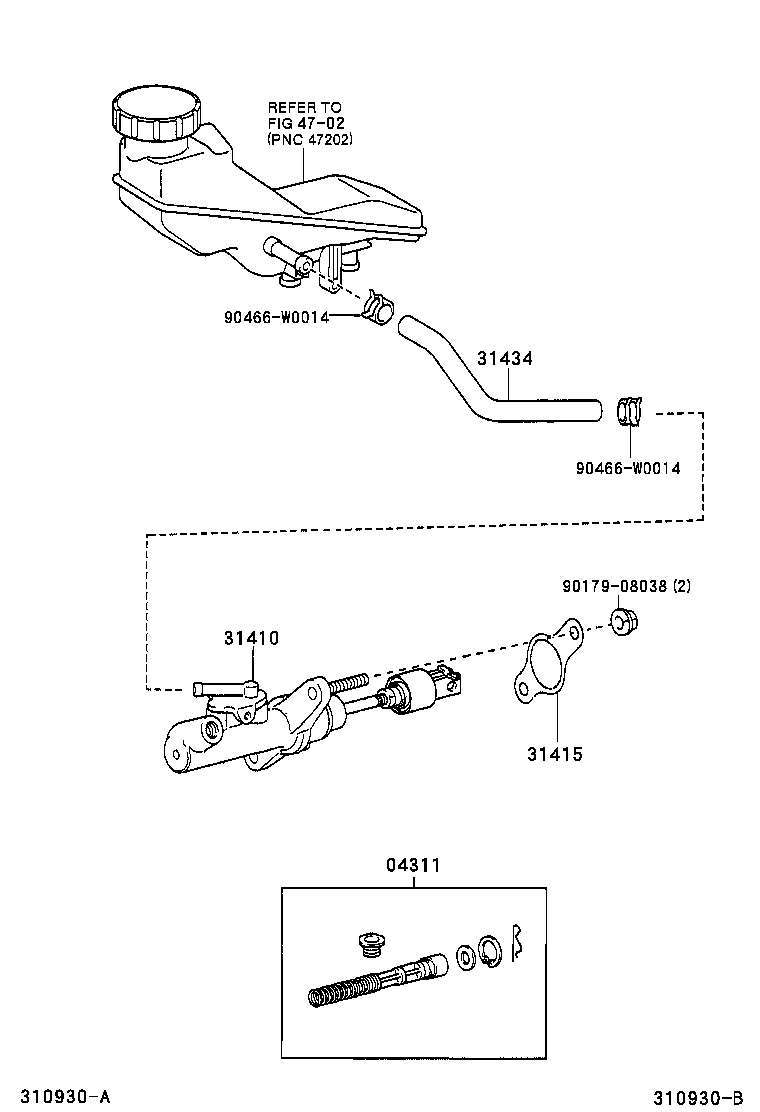

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-12010 |
CDE120,ZZE12#..UKP..RHD..MTM |
1 | ||
| 31420-05010 |
CDE120,ZZE12#..UKP..RHD..MTM |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-10010 |
CDE120,ZZE12#..UKP..MTM |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-12030 |
CDE120,ZZE12#..UKP..RHD..MTM |
1 | ||
| 31434-12070 |
CDE120,ZZE12#..UKP..RHD..MTM |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90466-W0014 | ||||
| Linked diagrams | ||||
| 4702 | ||||
