CDE120L-DHMNHW (2001)
Toyota Corolla Hb (Ukp)

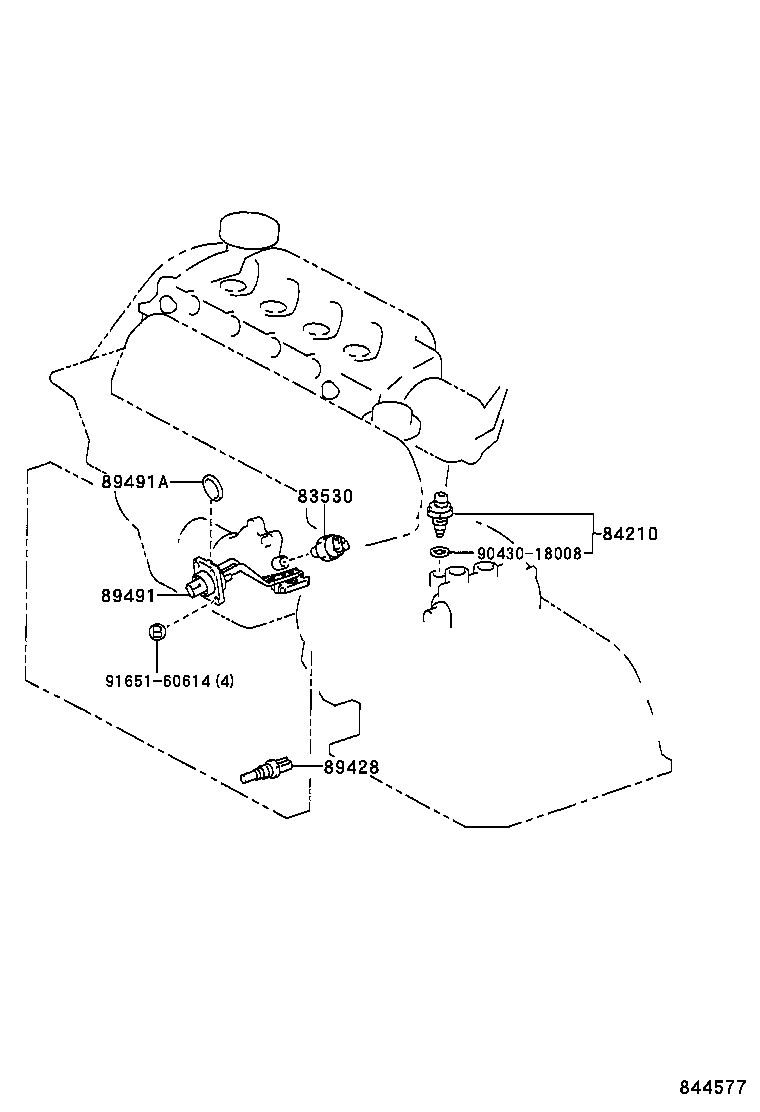

ILLUST NO. 1 OF 6(0111- )CDE120..UKP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
CDE120..UKP |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CDE120..UKP..HDCR |
1 | ||
| 84210-12040 |
CDE120,ZZE12#..UKP..MTM..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20110 |
CDE120..UKP |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-44020 |
CDE120..UKP |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
CDE120..UKP |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 6(0111-0405)UKP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
1CDFTV..CDE120..UKP |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08283 |
CDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08203 |
CDE120..UKP 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
CDE120..UKP..LHD 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08284 |
CDE120..UKP;ZZE12#..UKP..LHD 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
CDE120..UKP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
CDE120..UKP 140A,TERM.:MALE,RBR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-13010 |
CDE120..UKP |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82643 - RELAY, DIM-DIP LAMP | ||||
| 90987-04010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-12040 |
CDE120..UKP |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12100 |
CDE120..UKP |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02060 |
CDE120..UKP |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-12020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02030 |
CDE120..UKP |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12030 |
CDE120..UKP..LHD NO.1 |
1 | ||
| 82663-12030 |
CDE120..UKP NO.1 |
1 | ||
| 82663-12040 |
CDE120..UKP..LHD NO.2 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12030 |
CDE120..UKP..LHD NO.1 |
1 | ||
| 82663-12030 |
CDE120..UKP NO.1 |
1 | ||
| 82663-12040 |
CDE120..UKP..LHD NO.2 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-13020 |
CDE120..UKP |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12030 |
CDE120..UKP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
CDE120..UKP..LHD NO.2 |
1 | ||
| 82741-12040 |
CDE120..UKP..LHD NO.1 |
1 | ||
| 82741-12040 |
CDE120..UKP NO.1 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
CDE120..UKP..LHD NO.2 |
1 | ||
| 82741-12040 |
CDE120..UKP..LHD NO.1 |
1 | ||
| 82741-12040 |
CDE120..UKP NO.1 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82741-13020 |
CDE120..UKP |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12350 |
CDE120..UKP..HDCR |
1 | ||
| 83390-12350 |
CDE120..UKP..(DCR,DCRL) |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 88790-22131 |
CDE120,ZZE120,121..UKP |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-02025 |
CDE120..UKP |
1 | ||
| 85913D - RELAY, HEATER, NO.2 | ||||
| 90987-02025 |
CDE120..UKP |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87013 |
CDE120,ZZE12#..UKP P/N LABEL=9008087013 |
1 | ||
| 90080-87019 |
CDE120,ZZE12#..UKP P/N LABEL=9008087019 |
1 | ||
| 90080-87013 |
CDE120..UKP PART NUMBER LABEL=90080-87013 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87012 |
CDE120,ZZE12#..UKP |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90080-87019 |
CDE120..UKP P/N LABEL=9008087019 |
1 | ||
| 90080-87013 |
CDE120..UKP P/N LABEL=9008087013 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 90987-02028 |
CDE120..UKP..HDCR |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP |
1 | ||
| 89654 - RELAY, POWER STEERING | ||||
| 90987-02025 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90119-W0059 | ||||
| 90179-06214 | ||||
| 90182-W0004 | ||||
| 91621-B0616 | ||||
| 91626-40620 | ||||
| 91631-J0612 | ||||
| 91651-G0618 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
ILLUST NO. 3 OF 6(0111- )UKP..LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90080-87019 |
1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
CDE120,ZZE12#..UKP |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08281 |
CDE120,ZZE12#..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
CDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08281 |
CDE120,ZZE12#..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
CDE120,ZZE12#..UKP 30A,TERM.:FEMALE,PNK |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
CDE120,ZZE12#..UKP..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
CDE120,ZZE12#..UKP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82033 |
CDE120,ZZE12#..UKP..LHD 25A,MINI FUSE,MARK=LF |
1 | ||
| 90080-82020 |
CDE120,ZZE12#..UKP..LHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82021 |
CDE120,ZZE12#..UKP 10A,MINI FUSE,RED,MARK=LF |
1 | ||
| 90080-82024 |
CDE120,ZZE12#..UKP 30A,MINI FUSE,GREEN,MARK=LF |
1 | ||
| 90080-82022 |
CDE120,ZZE12#..UKP 15A,MINI FUSE,BLUE,MARK=LF |
1 | ||
| 82641A - RELAY, INTEGRATION W/DOOR CONTROL | ||||
| 82641-02040 |
CDE120,ZZE12#..UKP W(KEY LESS ENTRY) |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-05010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-02070 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-02080 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-02060 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-20060 |
CDE120..UKP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 84550-33010 |
CDE120..UKP..LHD..HDCR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP..(DCR,HTWC,TWC) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87019 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90080-87019 |
CDE120..UKP..LHD..HDCR;CDE120..UKP..TERRA..DCRL;CDE120..UKP..SOL..(DCR,DCRL);CDE120..UKP..LHD..TERRA..DCR |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02070 |
CDE120..UKP..LHD |
1 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60546 | ||||
| 90159-70003 | ||||
| 90167-W0007 | ||||
| 90170-10017 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
ILLUST NO. 4 OF 6(0111-0405)UKP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90011-11014 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02080 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84332-02090 |
CDE120,ZZE120,121..UKP COLD SPEC |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90011-11023 |
CDE120,ZZE120,121..UKP 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02090B0 |
CDE120..UKP..LHD..HDCR W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02090A0 |
CDE120..UKP..LHD..HDCR W(ELECTRIC REMOTE CONTROL DOOR MIRROR),IVORY,TRIM0# |
1 | ||
| 84656-02090A0 |
CDE120,ZZE120,121..UKP..LHD..SOL..(DCR,DCRL,HTWC) W(ELECTRIC REMOTE CONTROL DOOR MIRROR),IVORY,TRIM0# |
1 | ||
| 84656-02090B0 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-02040 |
CDE120..UKP..HDCR |
1 | ||
| 84660-02040 |
CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-02040 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90011-11024 |
CDE120,ZZE120,121..UKP 14V 0.56W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-05010 |
CDE120,ZZE12#..UKP |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-02010 |
CDE120..UKP..LHD |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8715 | ||||
ILLUST NO. 5 OF 6(0111-0405)UKP
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
CDE120..UKP..HDCR |
1 | ||
| 84052-05020 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02180 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84140-02190 |
CDE120,ZZE12#..UKP..(DCR,HTWC,TWC) W(FRONT FOG LAMP SW) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02060 |
CDE120,ZZE120,121..UKP |
1 | ||
| 84306-02070 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0D010 |
CDE120..UKP..HDCR |
1 | ||
| 84450-0D010 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02290 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90159-W0018 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8601 | ||||
ILLUST NO. 6 OF 6(0111- )UKP
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02040 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
1 | ||
| 83320-02040 |
CDE120..UKP..HDCR |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0D010 |
CDE120,ZZE12#..UKP |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0D010 |
CDE120,ZZE12#..UKP |
2 | ||
| 84231B - SWITCH, COURTESY LAMP | ||||
| 84231-0D010 |
CDE120,ZZE12#..UKP..5D |
2 | ||
| 84231B - SWITCH, COURTESY LAMP | ||||
| 84231-0D010 |
CDE120,ZZE12#..UKP..5D |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02040 |
CDE120,ZZE12#..UKP..5D..(SOL,TSP) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02040 |
CDE120,ZZE12#..UKP..5D..(SOL,TSP) |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02100 |
CDE120,ZZE12#..UKP..LHD..5D..(SOL,TSP) |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-05020B2 |
CDE120,ZZE12#..UKP..(SOL,TSP)..(DCR,DCRL,HTWC,TWC) LT.GRAY,TRIM1# |
1 | ||
| 84860-05020B2 |
CDE120..UKP..HDCR LT.GRAY,TRIM1# |
1 | ||
| 84860-05020A0 |
CDE120,ZZE120,121..UKP..SOL..(DCR,DCRL,HTWC) IVORY,TRIM0# |
1 | ||
| 84860-05020A0 |
CDE120..UKP..HDCR IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90901-48003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
