CDE120L-DHMNHW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - Apr 2003
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0111-0405)UKP

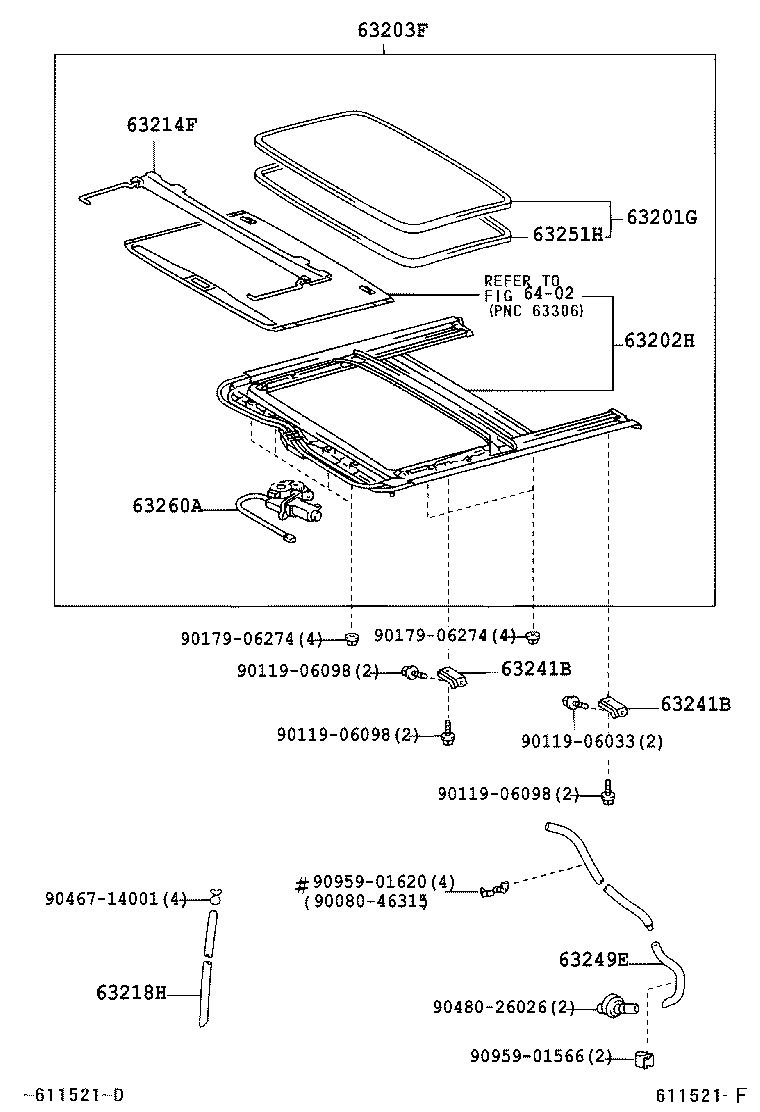

Click highlighted areas on diagram

MOON ROOF

diagram 63201G 63202H 63203F 63214F 63218H 63241B 63241B 63249E 63251H 63260A 6402 9008046315 9011906033 9011906098 9011906098 9011906098 9017906274 9017906274 9046714001 9048026026 9095901566 9095901620
Part # Description Qty Price
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-02040

CDE120,ZZE12#..UKP

 1
63202H - RAIL SUB-ASSY, SLIDE ROOF
63202-02900A0

CDE120,ZZE120,121..UKP..SOL

IVORY,TRIM0#

 1
63202-02900B0

CDE120,ZZE12#..UKP..(SOL,TSP)

LT.GRAY,TRIM1#

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63200-02040A1

CDE120..UKP..HDCR

IVORY,TRIM0#

 1
63200-02040A1

CDE120,ZZE120,121..UKP..SOL..(DCR,DCRL,HTWC)

IVORY,TRIM0#

 1
63200-02040B1

CDE120,ZZE12#..UKP..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)

LT.GRAY,TRIM1#

 1
63200-02040B1

CDE120..UKP..HDCR

LT.GRAY,TRIM1#

 1
63214F - CHANNEL, ROOF DRIP, REAR
63214-02040

CDE120,ZZE12#..UKP

 1
63218H - HOSE, SLIDING ROOF DRAIN
63249-02090

CDE120,ZZE12#..UKP

 2
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-02040

CDE120,ZZE12#..UKP

 4
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-02040

CDE120,ZZE12#..UKP

 4
63249E - HOSE, SLIDING ROOF DRAIN
63249-02100

CDE120,ZZE12#..UKP

 2
63251H - WEATHERSTRIP, SLIDING ROOF
63251-02040

CDE120,ZZE12#..UKP

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-02020

CDE120,ZZE12#..UKP

 1
Common parts
90080-46315
90119-06033
90119-06098
90179-06274
90467-14001
90480-26026
90959-01566
90959-01620
Linked diagrams
6402

ILLUST NO. 1 OF 2(0111- )UKP

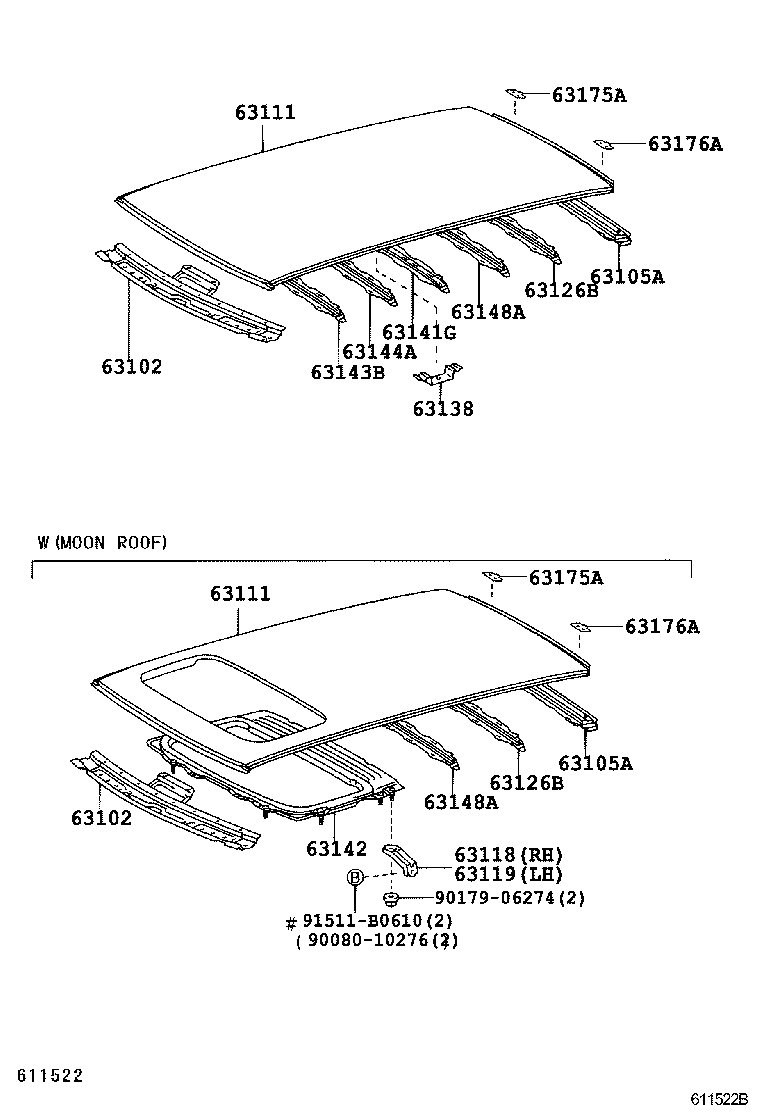

Click highlighted areas on diagram

diagram 63102 63102 63105A 63105A 63111 63111 63118 63119 63126B 63126B 63138 63141G 63142 63143B 63144A 63148A 63148A 63175A 63175A 63176A 63176A 9008010276 9017906274 91511B0610
Part # Description Qty Price
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-13090

CDE120..UKP..HDCR

W(MOON ROOF)

 1
63102-12150

CDE120..UKP..HDCR

 1
63102-13090

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

W(MOON ROOF)

 1
63102-12150

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-13090

CDE120..UKP..HDCR

W(MOON ROOF)

 1
63102-12150

CDE120..UKP..HDCR

 1
63102-13090

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

W(MOON ROOF)

 1
63102-12150

CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-13200

CDE120,ZZE12#..UKP

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-13200

CDE120,ZZE12#..UKP

 1
63111 - PANEL, ROOF
63111-02130

CDE120,ZZE12#..UKP

W(MOON ROOF)

 1
63111-02120

CDE120,ZZE12#..UKP

 1
63111 - PANEL, ROOF
63111-02130

CDE120,ZZE12#..UKP

W(MOON ROOF)

 1
63111-02120

CDE120,ZZE12#..UKP

 1
63118 - SUPPORT, ROOF PANEL, RH
63118-12100

CDE120,ZZE12#..UKP

 1
63119 - SUPPORT, ROOF PANEL, LH
63118-12100

CDE120,ZZE12#..UKP

 1
63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2
63126-13010

CDE120,ZZE12#..UKP

(J)

 1
63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2
63126-13010

CDE120,ZZE12#..UKP

(J)

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-12011

CDE120,ZZE12#..UKP

 2
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-13080

CDE120,ZZE12#..UKP

(J)

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63103-02010

CDE120,ZZE12#..UKP

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100

CDE120,ZZE12#..UKP

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-13030

CDE120,ZZE12#..UKP

(J)

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-13030

CDE120,ZZE12#..UKP

(J)

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-13030

CDE120,ZZE12#..UKP

(J)

 1
63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63175-52020

CDE120,ZZE12#..UKP

 1
63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63175-52020

CDE120,ZZE12#..UKP

 1
63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH
63176-52020

CDE120,ZZE12#..UKP

 1
63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH
63176-52020

CDE120,ZZE12#..UKP

 1
Common parts
90080-10276
90179-06274
91511-B0610
