CDE120L-DHMDYW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )1CDFTV..UKP

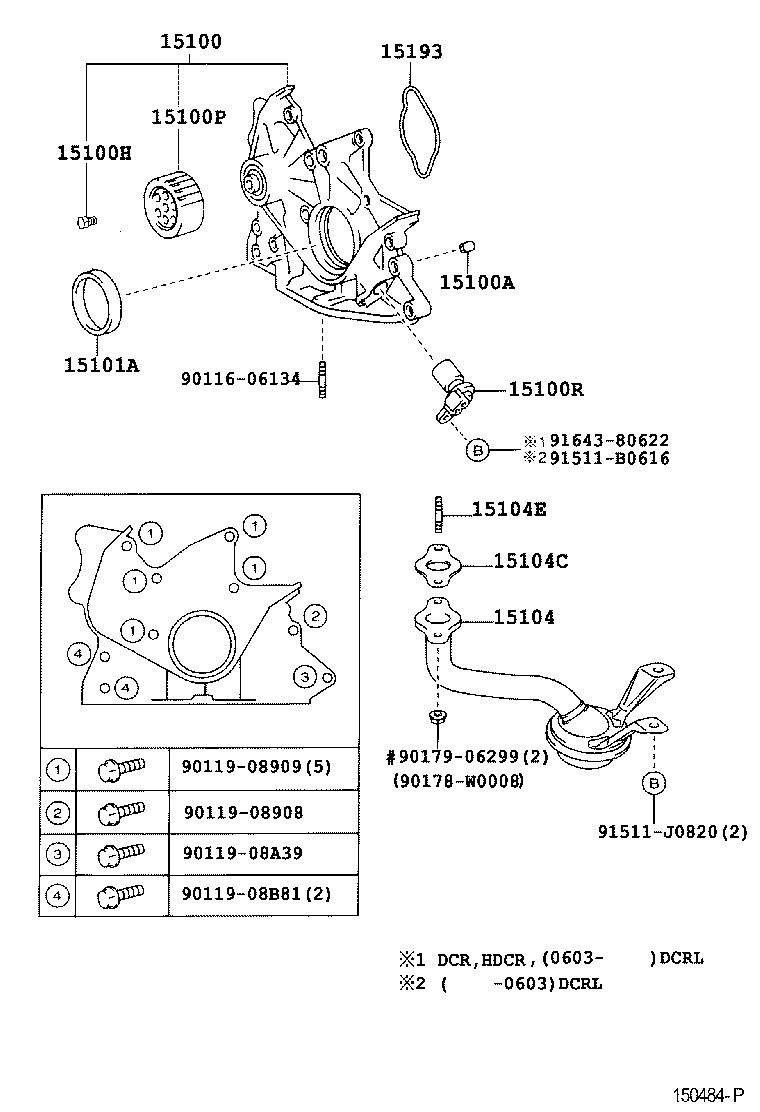

Click highlighted areas on diagram

diagram 15100 15100A 15100H 15100P 15100R 15101A 15104 15104C 15104E 15193 9011606134 9011908908 9011908909 9011908A39 9011908B81 90178W0008 9017906299 91511B0616 91511J0820 9164380622
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-27030

1CDFTV..CDE120..UKP

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

1CDFTV..CDE120..UKP

 2
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-64020

1CDFTV..CDE120..UKP

 1
15100R - SENSOR, CRANK POSITION
90919-05042

1CDFTV..CDE120..UKP

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-45017

1CDFTV..CDE120..UKP

 1
15104 - STRAINER SUB-ASSY, OIL
15104-27060

1CDFTV..CDE120..UKP

 1
15104C - GASKET(FOR OIL STRAINER)
15149-27010

1CDFTV..CDE120..UKP

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90116-06132

1CDFTV..CDE120..UKP

 2
15193 - GASKET, OIL PUMP
15193-27010

1CDFTV..CDE120..UKP

 1
Common parts
90116-06134
90119-08908
90119-08909
90119-08A39
90119-08B81
90178-W0008
90179-06299
91511-B0616
91511-J0820
91643-80622
