CDE120L-DHMDXW (2003)
Toyota Corolla Hb (Ukp)

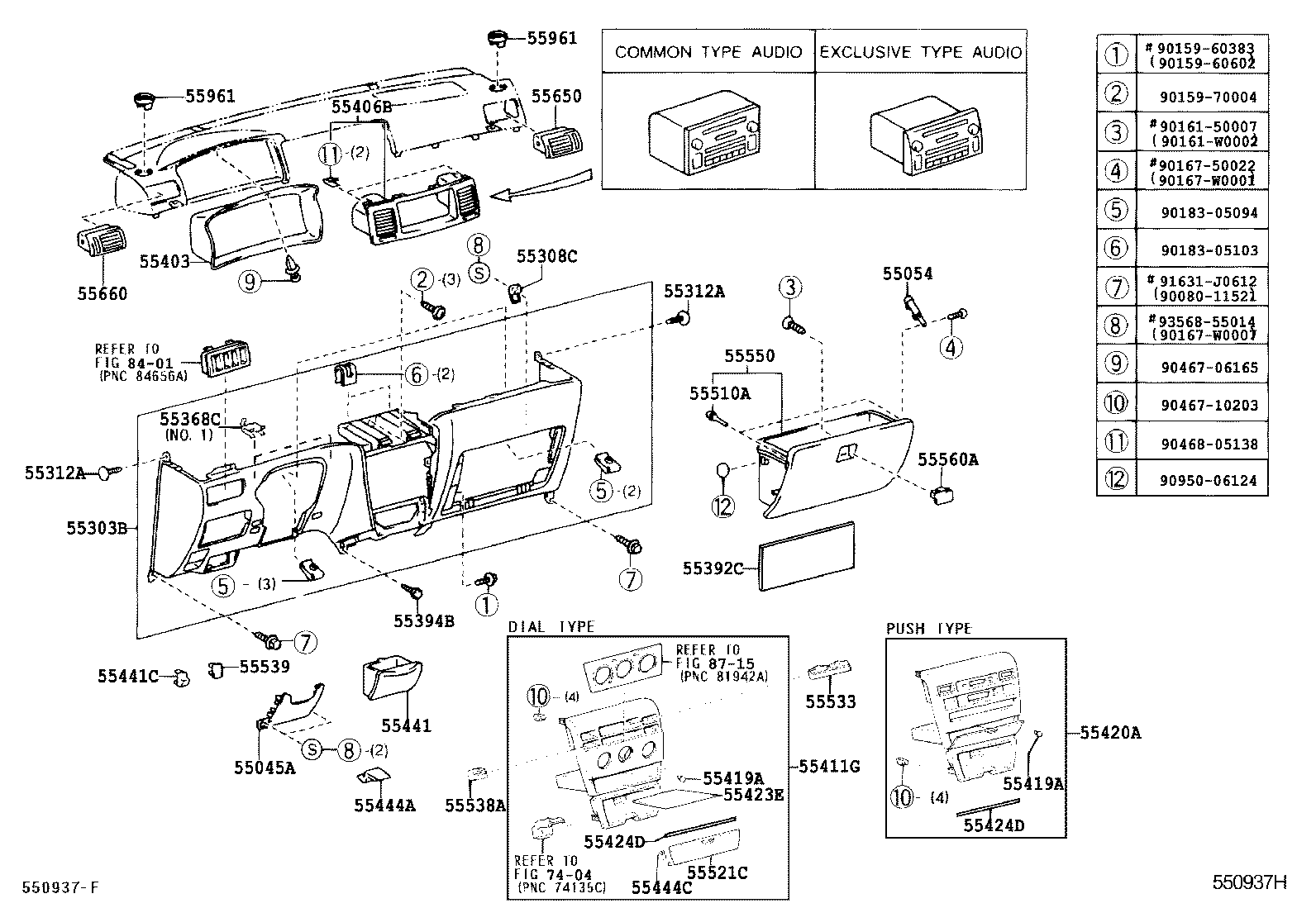

ILLUST NO. 2 OF 2(0111-0405)UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-02100J0 |
CDE120,ZZE120,121..UKP..LHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55045-02120B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55045-02100B0 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55054-12010 |
CDE120,ZZE12#..UKP |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02100B0 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55303-02100J0 |
CDE120,ZZE120,121..UKP..LHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55303-02121B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55303-02120B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12300 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55308-12310 |
CDE120,ZZE12#..UKP |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 90467-W0001B0 |
CDE120,ZZE12#..UKP DK.GRAY,(L) |
2 | ||
| 90467-W0001B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY |
2 | ||
| 90467-05161B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#,(J) |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 90467-W0001B0 |
CDE120,ZZE12#..UKP DK.GRAY,(L) |
2 | ||
| 90467-W0001B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY |
2 | ||
| 90467-05161B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#,(J) |
2 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
CDE120,ZZE12#..UKP NO.1 |
2 | ||
| 55368-12090 |
CDE120,ZZE12#..UKP NO.2 |
1 | ||
| 55368-12090 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55392-02010 |
CDE120,NDE120..UKP |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12020 |
CDE120,ZZE12#..UKP |
1 | ||
| 55394-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-02060 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 55403-02060 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02060B0 |
CDE120,ZZE120,121..UKP..TERRA REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1#,8# |
1 | ||
| 55406-02070B0 |
CDE120,ZZE121..UKP..TERRA REFER TO ILLUSTRATION : COMMON TYPE AUDIO,DK.GRAY,TRIM1#,8# |
1 | ||
| 55406-02060B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-02250B1 |
CDE120,NDE120,ZZE120,121..UKP..TERRA TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 55420-02240B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA TRIM = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 55420-02120B1 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02120 |
CDE120,ZZE120,121..UKP DIAL TYPE PANEL |
3 | ||
| 55419-02120 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
3 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02120 |
CDE120,ZZE120,121..UKP DIAL TYPE PANEL |
3 | ||
| 55419-02120 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
3 | ||
| 55423E - CUSHION, CENTER CLUSTER, NO.1 | ||||
| 55423-02010 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55423-02010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-02010 |
CDE120,ZZE120,121..UKP DIAL TYPE |
1 | ||
| 55424-02010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-02010 |
CDE120,ZZE120,121..UKP DIAL TYPE |
1 | ||
| 55424-02010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-02040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55441-02040B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55441-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-02050J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55441-02050B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55441-02050B0 |
CDE120,NDE120,ZZE120,121..UKP DK.GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-13040 |
CDE120,ZZE12#..UKP |
1 | ||
| 55444-13040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02050 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55445-02050 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
CDE120,ZZE12#..UKP |
2 | ||
| 90541-04002 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-02060B0 |
CDE120,ZZE120,121..UKP..TERRA DARK GRAY,TRIM1#,8# |
1 | ||
| 55520-02070B2 |
CDE120,NDE120,ZZE120,121..UKP..TERRA TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 55520-02060B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA TRIM = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-02040 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55533-02040 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-02020 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55538-02020 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02080B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55539-02080J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55539-02080B0 |
CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02070B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55550-02070J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55550-02070B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-33030B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55506-33030B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55506-33030J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02020B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55650-02020B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02040B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55660-02040B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 55961-02040B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 55961-02040B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90080-11521 | ||||
| 90159-60383 | ||||
| 90159-60602 | ||||
| 90159-70004 | ||||
| 90161-50007 | ||||
| 90161-W0002 | ||||
| 90167-50022 | ||||
| 90167-W0001 | ||||
| 90167-W0007 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-06165 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 90950-06124 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
| 8715 | ||||

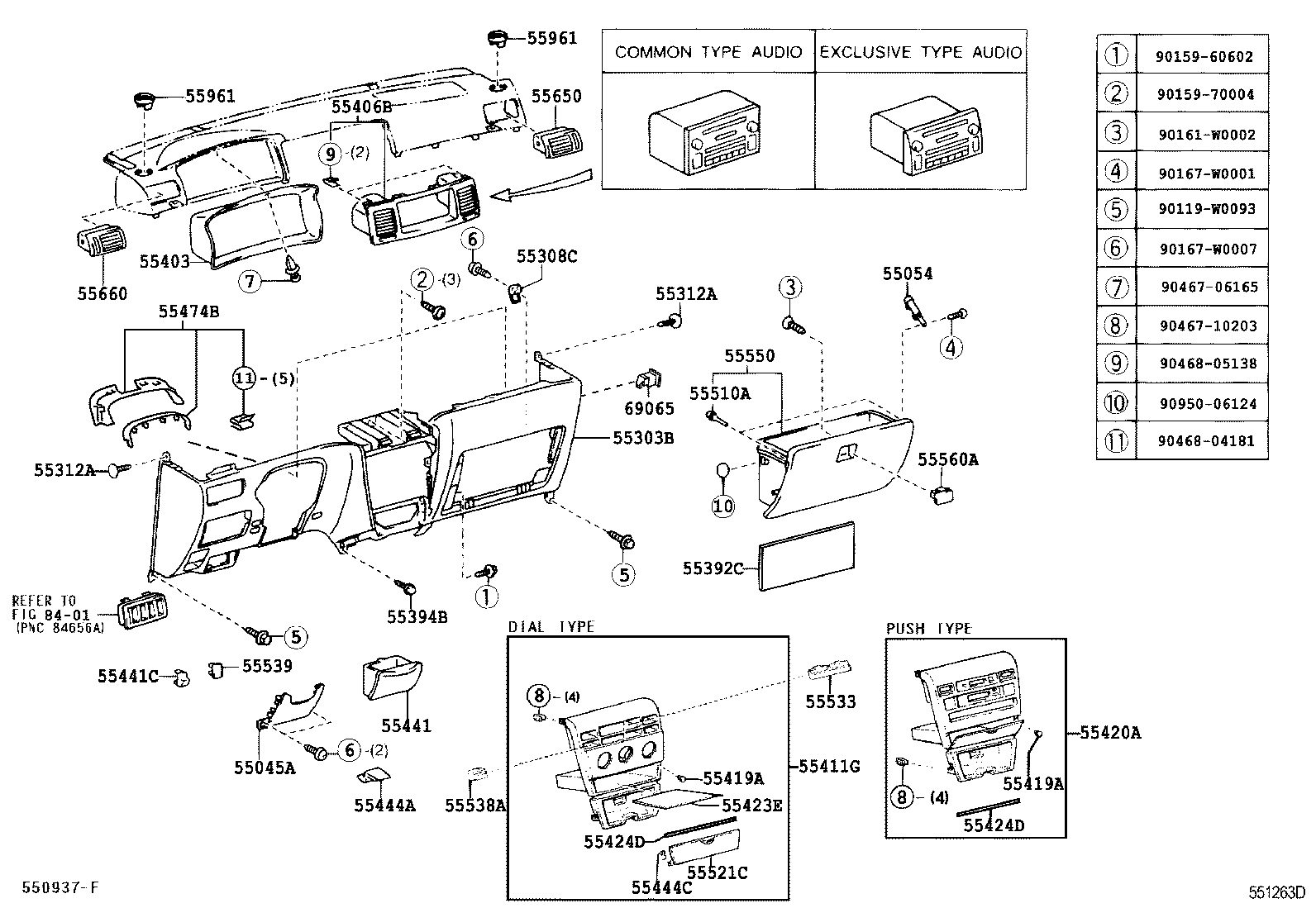

ILLUST NO. 2 OF 2(0405- )UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-02100J0 |
CDE120,ZZE120,121..UKP..LHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55045-02120B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55045-02100B0 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55054-12010 |
CDE120,ZZE12#..UKP |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02100B0 |
CDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55303-02100J0 |
CDE120,ZZE120,121..UKP..LHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55303-02121B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55303-02120B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12300 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55308-12310 |
CDE120,ZZE12#..UKP |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 90467-W0001B0 |
CDE120,ZZE12#..UKP DK.GRAY,(L) |
2 | ||
| 90467-W0001B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY |
2 | ||
| 90467-05161B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#,(J) |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 90467-W0001B0 |
CDE120,ZZE12#..UKP DK.GRAY,(L) |
2 | ||
| 90467-W0001B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY |
2 | ||
| 90467-05161B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#,(J) |
2 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55392-02010 |
CDE120,NDE120..UKP |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12020 |
CDE120,ZZE12#..UKP |
1 | ||
| 55394-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-02060 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 55403-02060 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02060B0 |
CDE120,ZZE120,121..UKP..TERRA REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1#,8# |
1 | ||
| 55406-02070B0 |
CDE120,ZZE121..UKP..TERRA REFER TO ILLUSTRATION : COMMON TYPE AUDIO,DK.GRAY,TRIM1#,8# |
1 | ||
| 55406-02060B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-02250B1 |
CDE120,NDE120,ZZE120,121..UKP..TERRA TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 55420-02240B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA TRIM = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 55420-02120B1 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02120 |
CDE120,ZZE120,121..UKP DIAL TYPE PANEL |
3 | ||
| 55419-02120 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
3 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02120 |
CDE120,ZZE120,121..UKP DIAL TYPE PANEL |
3 | ||
| 55419-02120 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
3 | ||
| 55423E - CUSHION, CENTER CLUSTER, NO.1 | ||||
| 55423-02010 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55423-02010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-02010 |
CDE120,ZZE120,121..UKP DIAL TYPE |
1 | ||
| 55424-02010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-02010 |
CDE120,ZZE120,121..UKP DIAL TYPE |
1 | ||
| 55424-02010 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-02040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55441-02040B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55441-02040J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-02050J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55441-02050B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55441-02050B0 |
CDE120,NDE120,ZZE120,121..UKP DK.GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-13040 |
CDE120,ZZE12#..UKP |
1 | ||
| 55444-13040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02050 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55445-02050 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 90541-04002 |
CDE120,ZZE12#..UKP |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-02060B0 |
CDE120,ZZE120,121..UKP..TERRA DARK GRAY,TRIM1#,8# |
1 | ||
| 55520-02070B2 |
CDE120,NDE120,ZZE120,121..UKP..TERRA TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1# |
1 | ||
| 55520-02060B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA TRIM = TYPE A-*104,DARK GRAY,TRIM1# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-02040 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55533-02040 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-02020 |
CDE120,ZZE120,121..UKP |
1 | ||
| 55538-02020 |
CDE120,NDE120,ZZE120,121..UKP..TERRA |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02080B0 |
CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55539-02080J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55539-02080B0 |
CDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02070B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55550-02070J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55550-02070B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-33030B0 |
CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
1 | ||
| 55506-33030B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55506-33030J0 |
CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02020B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55650-02020B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02040B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55660-02040B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 55961-02040B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8# |
2 | ||
| 55961-02040B0 |
ZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-12370 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-W0093 | ||||
| 90159-60602 | ||||
| 90159-70004 | ||||
| 90161-W0002 | ||||
| 90167-W0001 | ||||
| 90167-W0007 | ||||
| 90467-06165 | ||||
| 90467-10203 | ||||
| 90468-04181 | ||||
| 90468-05138 | ||||
| 90950-06124 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
