CDE120L-DGMNXW (2003)

Toyota Corolla Hb (Ukp)

Production Apr 2003 - Feb 2007

Engine 1CDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0111-0405)CDE120..UKP..LHD

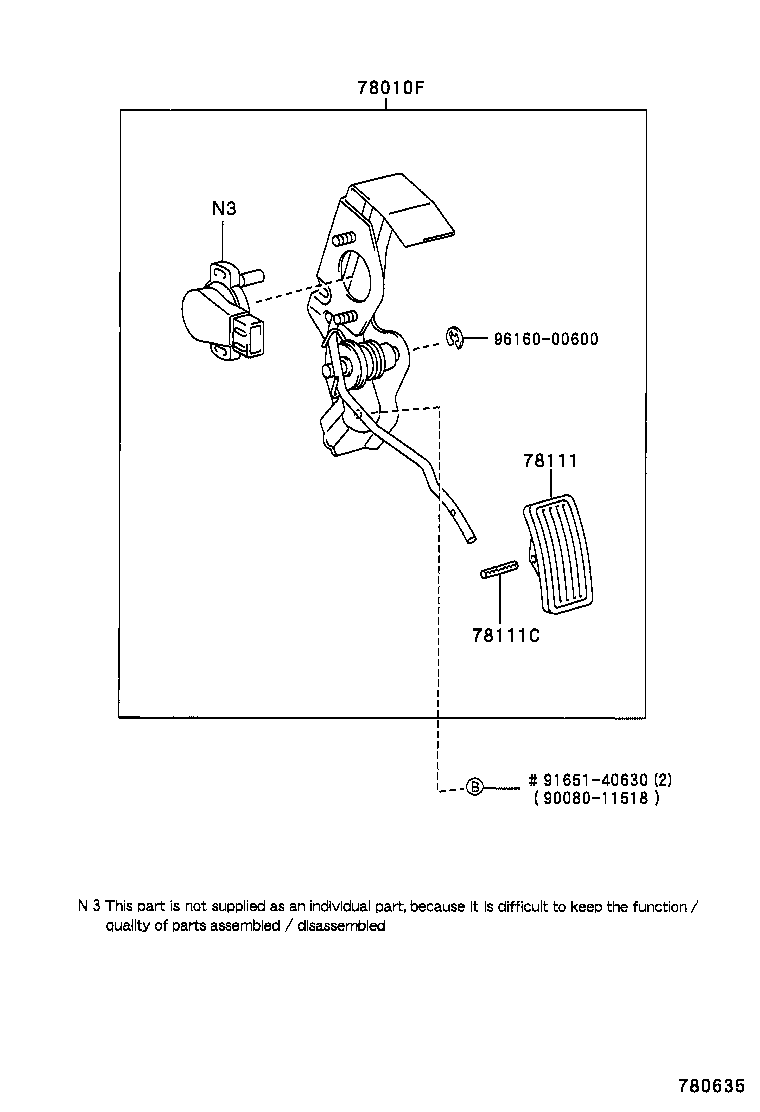

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
78010F - PEDAL ASSY, ACCELERATOR
78010-13010	CDE120..UKP..LHD	11/2001 - 11/2003	1
78010-13011	CDE120..UKP..LHD	11/2003 - 05/2004	1
78010-13011	CDE120,NDE120,ZZE121..UKP..LHD..5F	05/2004 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-35030	CDE120..UKP..LHD	11/2001 - 05/2004	2
78111-35030	CDE120,NDE120,ZZE121..UKP..LHD	05/2004 - 12/2999	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
90254-04019	CDE120..UKP	11/2001 - 05/2004	2
Common parts
90080-11518
91651-40630
96160-00600

(0405- )CDE120,NDE120,ZZE121..UKP..LHD

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
78010F - PEDAL ASSY, ACCELERATOR
78010-13010	CDE120..UKP..LHD	11/2001 - 11/2003	1
78010-13011	CDE120..UKP..LHD	11/2003 - 05/2004	1
78010-13011	CDE120,NDE120,ZZE121..UKP..LHD..5F	05/2004 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-35030	CDE120..UKP..LHD	11/2001 - 05/2004	2
78111-35030	CDE120,NDE120,ZZE121..UKP..LHD	05/2004 - 12/2999	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	CDE120,NDE120,ZZE12#..UKP	05/2004 - 02/2007	1
90254-04019	CDE120..UKP	11/2001 - 05/2004	2
Common parts
90080-11518
