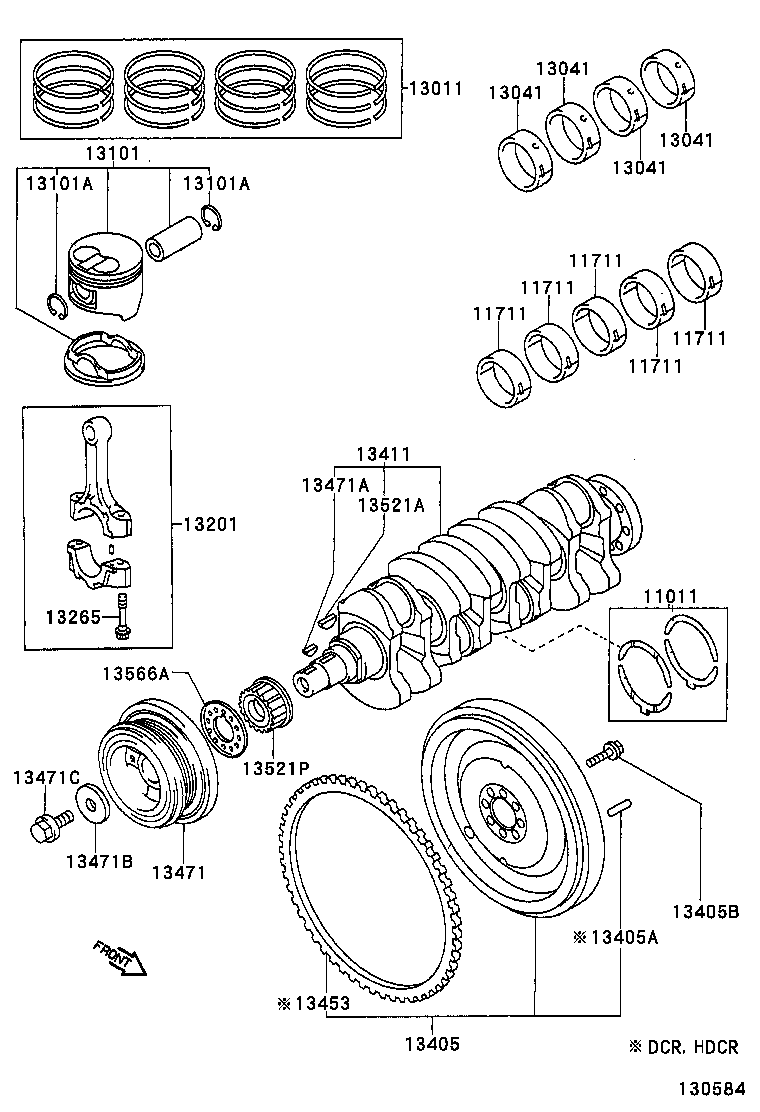

CDE120L-DGMNHW (2001)
Toyota Corolla Hb (Ukp)
(0111- )1CDFTV..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-64010 |
1CDFTV..CDE120..UKP O/S 0.125 |
1 | ||
| 11011-64010 |
1CDFTV..CDE120..UKP..(DCR,HDCR) STD |
1 | ||
| 11013-64010 |
1CDFTV..CDE120..UKP O/S 0.250 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2702003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2702001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2702004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2702005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-2702002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2702003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2702001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2702004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2702005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-2702002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2702003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2702001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2702004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2702005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-2702002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2702003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2702001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2702004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2702005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-2702002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2702003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-2702001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-2702004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-2702005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-2702002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-27030 |
1CDFTV..CDE120..UKP..(DCR,HDCR) STD,ENGINE NO.=0XXXXXX-9XXXXXX |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2701003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041-2701004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-2701005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-2701002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-2701001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2701003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041-2701004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-2701005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-2701002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-2701001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2701003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041-2701004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-2701005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-2701002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-2701001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2701003 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041-2701004 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
4 | ||
| 13041-2701005 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
4 | ||
| 13041-2701002 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-2701001 |
1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-27051A0 |
1CDFTV..CDE120..UKP..(DCR,HDCR) STD,MARK A,REFER REPAIR MANUAL |
4 | ||
| 13101-27051B0 |
1CDFTV..CDE120..UKP..(DCR,HDCR) STD,MARK B,REFER REPAIR MANUAL |
4 | ||
| 13101-27051C0 |
1CDFTV..CDE120..UKP..(DCR,HDCR) STD,MARK C,REFER REPAIR MANUAL |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-32013 |
1CDFTV..CDE120..UKP |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-32013 |
1CDFTV..CDE120..UKP |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-27011A0 |
1CDFTV..CDE120..UKP MARK A,REFER REPAIR MANUAL |
4 | ||
| 13201-27011C0 |
1CDFTV..CDE120..UKP MARK C,REFER REPAIR MANUAL |
4 | ||
| 13201-27011B0 |
1CDFTV..CDE120..UKP MARK B,REFER REPAIR MANUAL |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-46020 |
1CDFTV..CDE120..UKP |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-27010 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
1CDFTV..CDE120..UKP..(DCR,HDCR) L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10071 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-27011 |
1CDFTV..CDE120..UKP |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-64050 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-27010 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05007 |
1CDFTV..CDE120..UKP |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90560-16026 |
1CDFTV..CDE120..UKP |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16065 |
1CDFTV..CDE120..UKP |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-06001 |
1CDFTV..CDE120..UKP |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-64011 |
1CDFTV..CDE120..UKP |
1 | ||
