CDE120L-DGMDYW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )UKP..3D

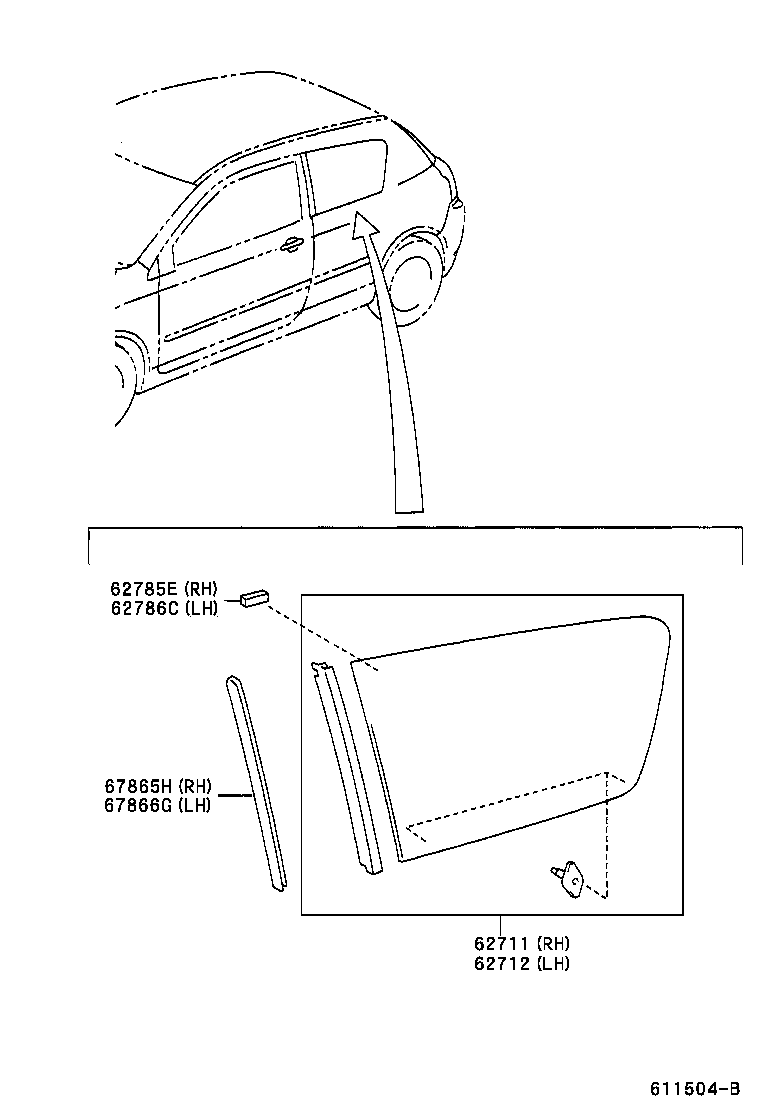

Click highlighted areas on diagram

diagram 62711 62712 62785E 62786C 67865H 67866G
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62710-02030

CDE120,ZZE12#..UKP..3D

*TEM,T=3.1,GREEN

 1
62712 - GLASS, QUARTER WINDOW, LH
62720-02030

CDE120,ZZE12#..UKP..3D

*TEM,T=3.1,GREEN

 1
62785E - SPACER, QUARTER WINDOW GLASS, RH
62785-16030

CDE120,ZZE12#..UKP..3D

 2
62786C - SPACER, QUARTER WINDOW GLASS LH
62785-16030

CDE120,ZZE12#..UKP..3D

 2
67865H - WEATHERSTRIP, CENTER PILLAR UPPER END, RH
67865-02010

CDE120,ZZE12#..UKP..3D

 1
67866G - WEATHERSTRIP, CENTER PILLAR UPPER END, LH
67866-02010

CDE120,ZZE12#..UKP..3D

 1
