CDE120L-DGMDYW (2001)

Toyota Corolla Hb (Ukp)

Production Nov 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

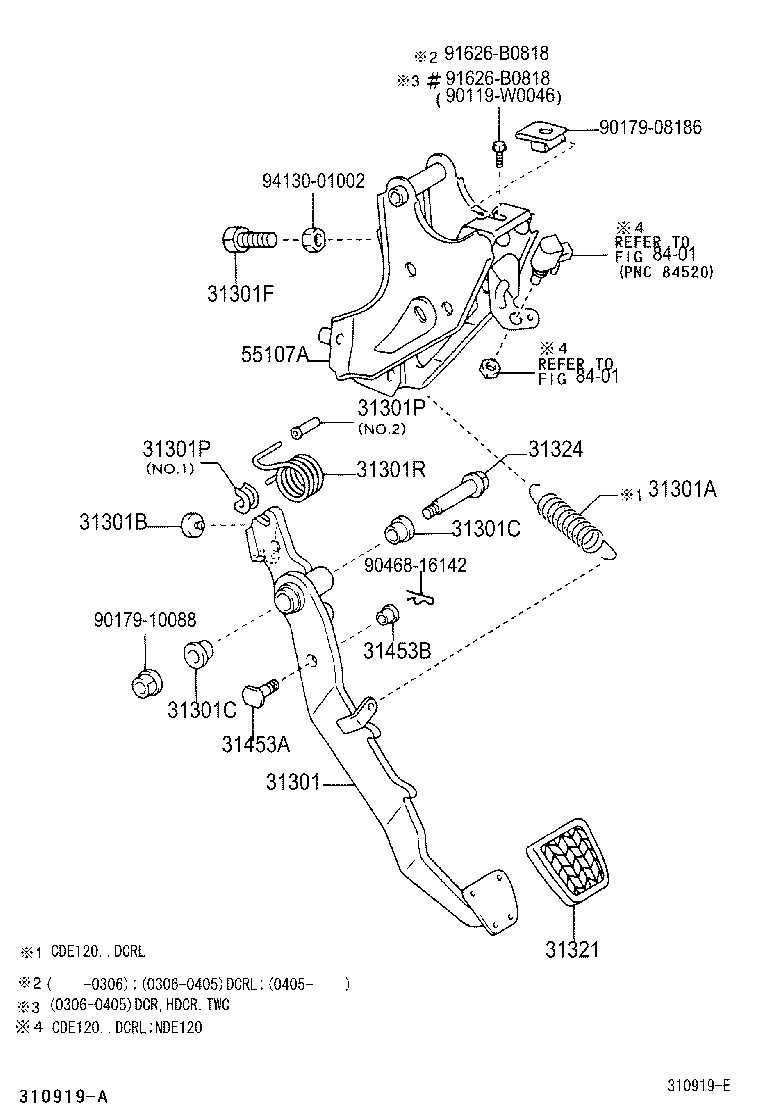

ILLUST NO. 1 OF 2(0111- )CDE120,NDE120,ZZE123..UKP..LHD..5F,6F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301P 31301P 31301R 31321 31324 31453A 31453B 55107A 8401 8401 90119W0046 9017908186 9017910088 9046816142 91626B0818 91626B0818 9413001002
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-02040

CDE120,ZZE123..UKP..LHD..(DCR,HDCR,TWC)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

CDE120,ZZE12#..UKP..LHD..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

CDE120,ZZE12#..UKP..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

CDE120,ZZE12#..UKP..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

CDE120,ZZE12#..UKP..MTM

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

CDE120,ZZE123..UKP

NO.1

 1
90389-05019

CDE120,ZZE123..UKP

NO.2

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

CDE120,ZZE123..UKP

NO.1

 1
90389-05019

CDE120,ZZE123..UKP

NO.2

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03100

CDE120,ZZE123..UKP..(DCR,HDCR,TWC)

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

CDE120,ZZE12#..UKP..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10167

CDE120,ZZE12#..UKP..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

CDE120,ZZE12#..UKP..MTM

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

CDE120,ZZE12#..UKP..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02080

CDE120,ZZE123..UKP..LHD..(DCR,TWC)

 1
Common parts
90119-W0046
90179-08186
90179-10088
90468-16142
91626-B0818
94130-01002
Linked diagrams
8401

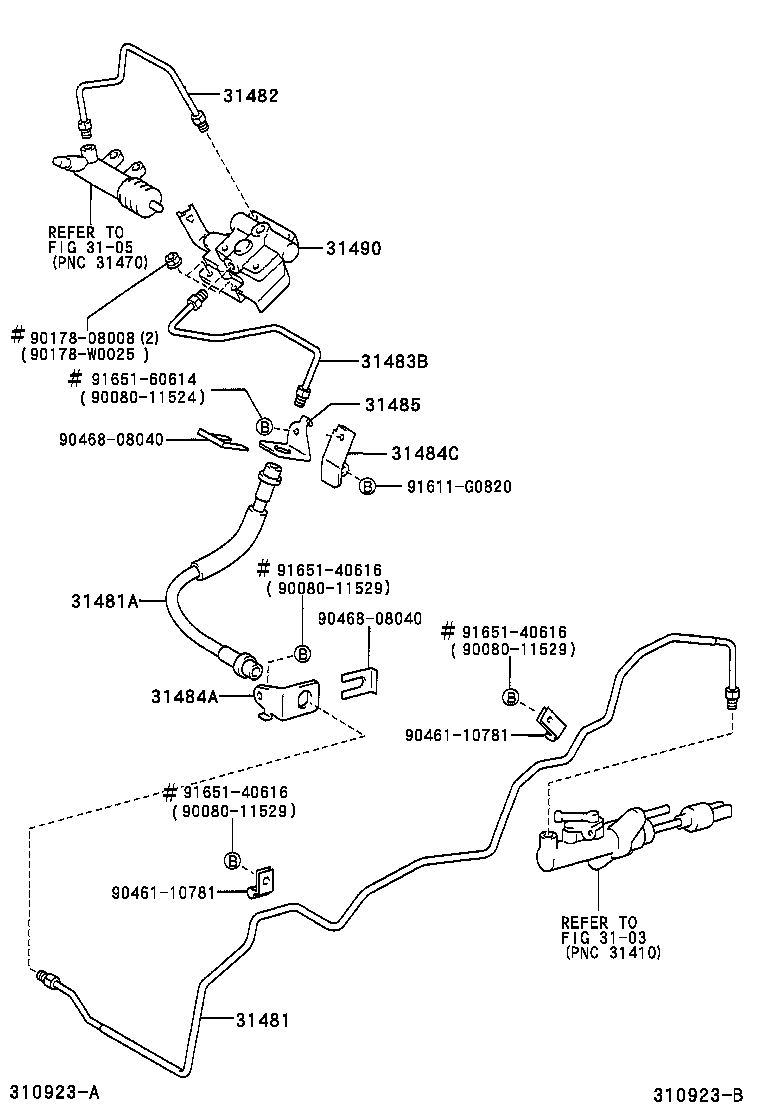

ILLUST NO. 2 OF 2(0111-0405)UKP..LHD..DCR,HDCR

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482 31483B 31484A 31484C 31485 31490 9008011524 9008011529 9008011529 9008011529 9017808008 90178W0025 9046110781 9046110781 9046808040 9046808040 91611G0820 9165140616 9165140616 9165140616 9165160614
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-02130

CDE120..UKP..LHD..(DCR,HDCR)

COLD SPEC

 1
31481-02190

CDE120..UKP..LHD

 1
31481A - HOSE, CLUTCH, NO.1
90080-94130

CDE120..UKP

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02200

CDE120..UKP

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-02030

CDE120..UKP..LHD..HDCR;CDE120..UKP..TERRA..DCRL;CDE120..UKP..SOL..(DCR,DCRL);CDE120..UKP..LHD..TERRA..DCR

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12380

CDE120..UKP..LHD..HDCR;CDE120..UKP..TERRA..DCRL;CDE120..UKP..SOL..(DCR,DCRL);CDE120..UKP..LHD..TERRA..DCR

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320

CDE120..UKP

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12400

CDE120..UKP..LHD..HDCR;CDE120..UKP..TERRA..DCRL;CDE120..UKP..SOL..(DCR,DCRL);CDE120..UKP..LHD..TERRA..DCR

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-12060

CDE120..UKP..(DCR,HDCR)

 1
Common parts
90080-11524
90080-11529
90178-08008
90178-W0025
90461-10781
90468-08040
91611-G0820
91651-40616
91651-60614
Linked diagrams
3103
3105
