CDE120L-DGMDXW (2003)
Toyota Corolla Hb (Ukp)

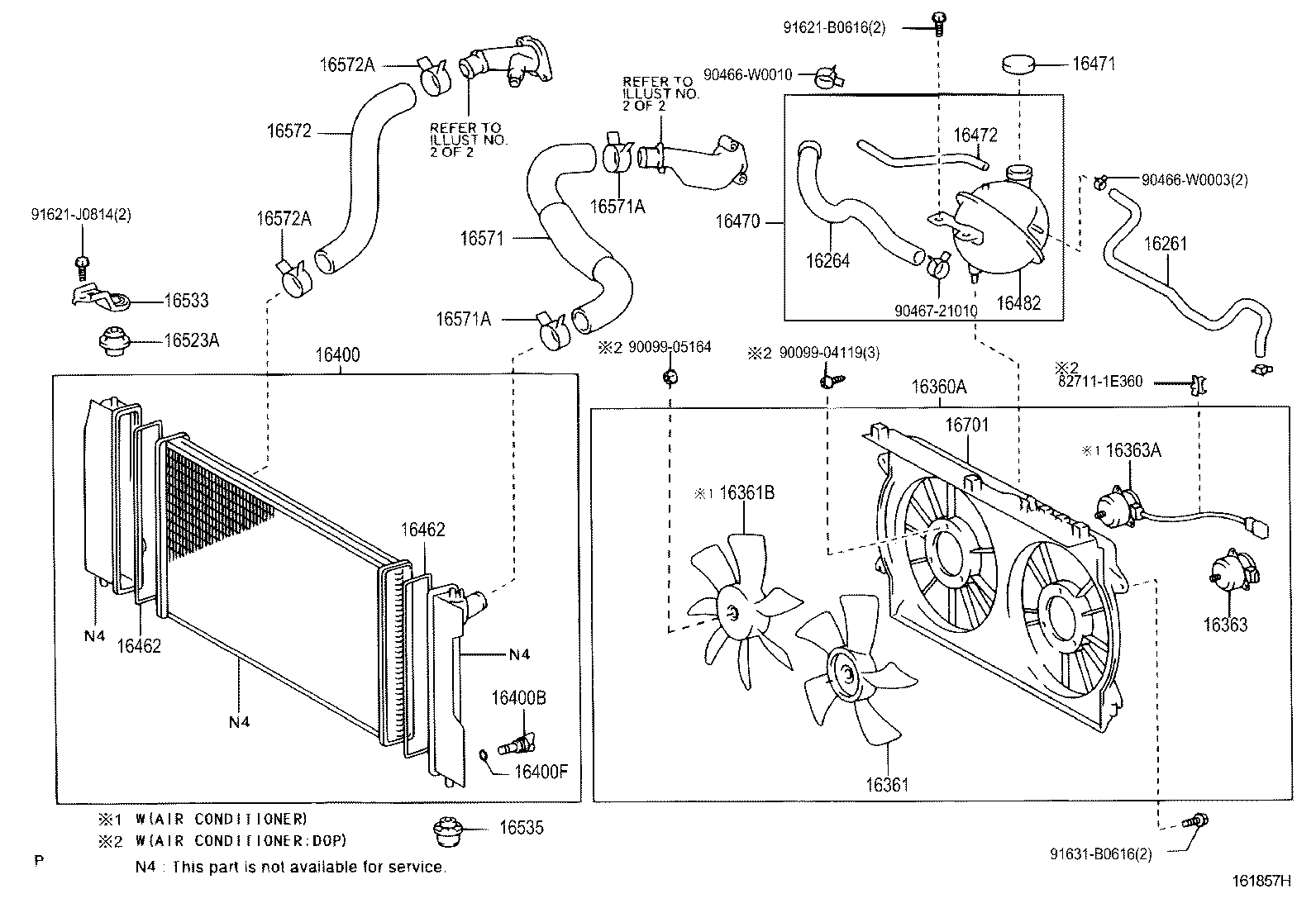

ILLUST NO. 1 OF 2(0304- )1CDFTV..UKP..DCRL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-27050 |
1CDFTV..CDE120..UKP |
1 | ||
| 16261-0G020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-27040 |
1CDFTV..CDE120..UKP |
1 | ||
| 16264-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-0G030 |
1CDFTV..CDE120..UKP..TERRA |
1 | ||
| 16360-0G030 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16360-0G040 |
1CDFTV..CDE120..UKP W(AIR CONDITIONER) |
1 | ||
| 16360-0G040 |
1CDFTV..CDE120..UKP..DCRL W(AIR CONDITIONER) |
1 | ||
| 16361 - FAN | ||||
| 16361-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16361-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16361-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0G020 |
1CDFTV..CDE120..UKP..(DCR,DCRL) |
1 | ||
| 16361-0G020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-23030 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 16363-0G050 |
1CDFTV..CDE120..UKP |
1 | ||
| 16363-0G050 |
1CDFTV..CDE120..UKP |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0G020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 16363-0G060 |
1CDFTV..CDE120..UKP |
1 | ||
| 16363-0G020 |
1CDFTV..CDE120..UKP..DCRL W(AIR CONDITIONER,DEALER OPTION) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0G030 |
1CDFTV..CDE120..UKP..(DCRL,HDCR) |
1 | ||
| 16400-0G030 |
1CDFTV..CDE120..UKP |
1 | ||
| 16400-0G020 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 16400-0G031 |
1CDFTV..CDE120..UKP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34010 |
1CDFTV..CDE120..UKP |
1 | ||
| 90080-34010 |
1CDFTV..CDE120..UKP |
1 | ||
| 90080-34010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1CDFTV..CDE120..UKP |
1 | ||
| 16492-21050 |
1CDFTV..CDE120..UKP |
1 | ||
| 16492-21050 |
1CDFTV..CDE120..UKP |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-6A300 |
1CDFTV..CDE120..UKP |
2 | ||
| 16462-6A300 |
1CDFTV..CDE120..UKP |
2 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-6A300 |
1CDFTV..CDE120..UKP |
2 | ||
| 16462-6A300 |
1CDFTV..CDE120..UKP |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-27040 |
1CDFTV..CDE120..UKP |
1 | ||
| 16480-0G020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-53010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16401-53010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-0G020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16482-0G020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D020 |
1CDFTV..CDE120..UKP |
2 | ||
| 16523-0D020 |
1CDFTV..CDE120..UKP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21020 |
1CDFTV..CDE120..UKP |
2 | ||
| 16533-21020 |
1CDFTV..CDE120..UKP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-27010 |
1CDFTV..CDE120..UKP |
2 | ||
| 16535-27010 |
1CDFTV..CDE120..UKP |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0G010 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16571-27050 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 16571-0G011 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16571-0G011 |
1CDFTV..CDE120..UKP |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41008 |
1CDFTV..CDE120..UKP |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41008 |
1CDFTV..CDE120..UKP |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-27040 |
1CDFTV..CDE120..UKP |
1 | ||
| 16572-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
1CDFTV..CDE120..UKP |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41008 |
1CDFTV..CDE120..UKP |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-0G020 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16711-0G050 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16711-0G050 |
1CDFTV..CDE120..UKP..TERRA |
1 | ||
| 16711-0G010 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 16711-0G020 |
1CDFTV..CDE120..UKP W(AIR CONDITI0NER) |
1 | ||
| 16711-0G040 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90466-W0003 | ||||
| 90466-W0010 | ||||
| 90467-21010 | ||||
| 91621-B0616 | ||||
| 91621-J0814 | ||||
| 91631-B0616 | ||||

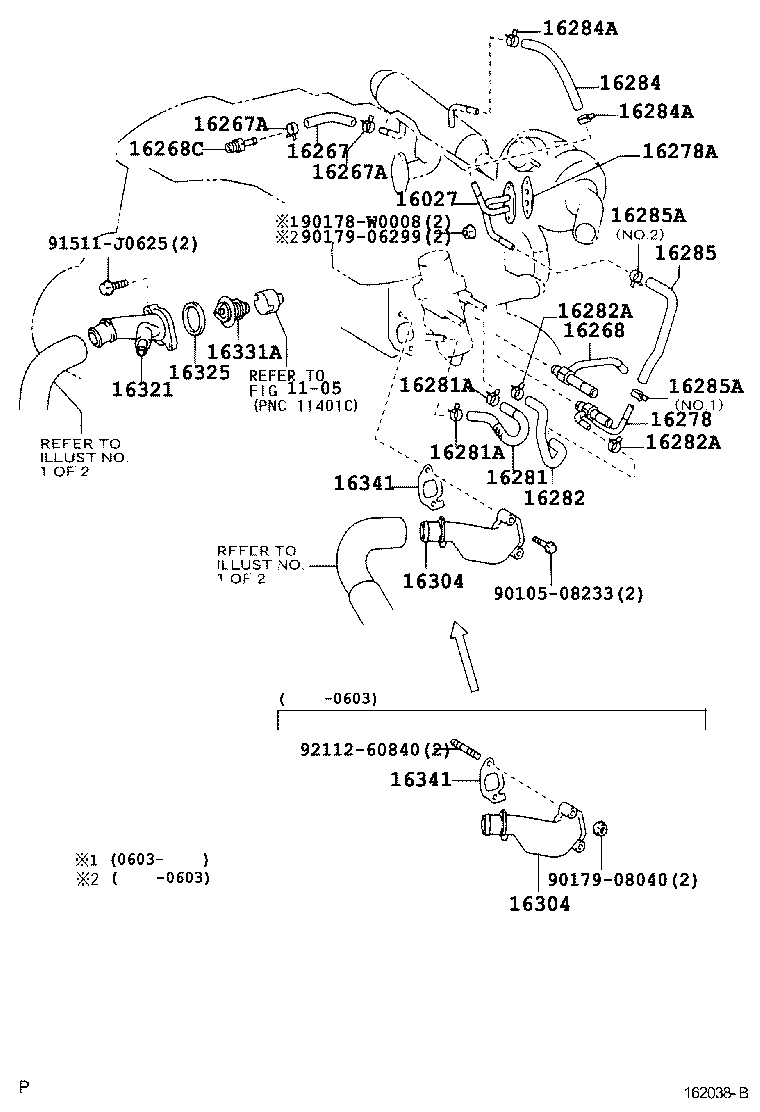

ILLUST NO. 2 OF 2(0304- )1CDFTV..UKP..DCRL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-27020 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16027-27020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0G020 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16267-0G020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1CDFTV..CDE120..UKP..DCRL |
2 | ||
| 90467-15022 |
1CDFTV..CDE120..UKP |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1CDFTV..CDE120..UKP..DCRL |
2 | ||
| 90467-15022 |
1CDFTV..CDE120..UKP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-27060 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16268-27040 |
1CDFTV..CDE120..UKP..DCR TYPE A |
1 | ||
| 16268-27060 |
1CDFTV..CDE120..UKP |
1 | ||
| 16268C - UNION, WATER BY-PASS PIPE | ||||
| 90404-53055 |
1CDFTV..CDE120..UKP |
1 | ||
| 90404-53055 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-27040 |
1CDFTV..CDE120..UKP..DCR |
1 | ||
| 16278-27060 |
1CDFTV..CDE120..UKP |
1 | ||
| 16278-27060 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16347-0G010 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16347-27020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-27020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16281-0G010 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16281-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13073 |
1CDFTV..CDE120..UKP..DCRL |
2 | ||
| 90467-13073 |
1CDFTV..CDE120..UKP |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13073 |
1CDFTV..CDE120..UKP..DCRL |
2 | ||
| 90467-13073 |
1CDFTV..CDE120..UKP |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-27020 |
1CDFTV..CDE120..UKP |
1 | ||
| 16282-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16282-0G010 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13073 |
1CDFTV..CDE120..UKP..DCRL |
2 | ||
| 90467-13073 |
1CDFTV..CDE120..UKP |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13073 |
1CDFTV..CDE120..UKP..DCRL |
2 | ||
| 90467-13073 |
1CDFTV..CDE120..UKP |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-27040 |
1CDFTV..CDE120..UKP |
1 | ||
| 16284-27040 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
1CDFTV..CDE120..UKP |
2 | ||
| 90467-15022 |
1CDFTV..CDE120..UKP..DCRL |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
1CDFTV..CDE120..UKP |
2 | ||
| 90467-15022 |
1CDFTV..CDE120..UKP..DCRL |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-0G010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16285-27040 |
1CDFTV..CDE120..UKP |
1 | ||
| 16285-0G010 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13073 |
1CDFTV..CDE120..UKP..DCRL NO.1 |
1 | ||
| 90467-15022 |
1CDFTV..CDE120..UKP NO.2 |
1 | ||
| 90467-13073 |
1CDFTV..CDE120..UKP NO.1 |
1 | ||
| 90467-15022 |
1CDFTV..CDE120..UKP..DCRL NO.2 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13073 |
1CDFTV..CDE120..UKP..DCRL NO.1 |
1 | ||
| 90467-15022 |
1CDFTV..CDE120..UKP NO.2 |
1 | ||
| 90467-13073 |
1CDFTV..CDE120..UKP NO.1 |
1 | ||
| 90467-15022 |
1CDFTV..CDE120..UKP..DCRL NO.2 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-27030 |
1CDFTV..CDE120..UKP |
1 | ||
| 16304-27030 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-27030 |
1CDFTV..CDE120..UKP |
1 | ||
| 16304-27030 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16321 - INLET, WATER | ||||
| 16031-27020 |
1CDFTV..CDE120..UKP..(DCR,HDCR) |
1 | ||
| 16321-27040 |
1CDFTV..CDE120..UKP..DCRL |
1 | ||
| 16321-27040 |
1CDFTV..CDE120..UKP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16325-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03123 |
1CDFTV..CDE120..UKP |
1 | ||
| 90916-03123 |
1CDFTV..CDE120..UKP |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16341-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| 16341-27010 |
1CDFTV..CDE120..UKP |
1 | ||
| Common parts | ||||
| 90105-08233 | ||||
| 90178-W0008 | ||||
| 90179-06299 | ||||
| 90179-08040 | ||||
| 91511-J0625 | ||||
| 92112-60840 | ||||
| Linked diagrams | ||||
| 1105 | ||||
