ZZE121R-AHPNKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0209- )JPP..RHD..4FC

Click highlighted areas on diagram

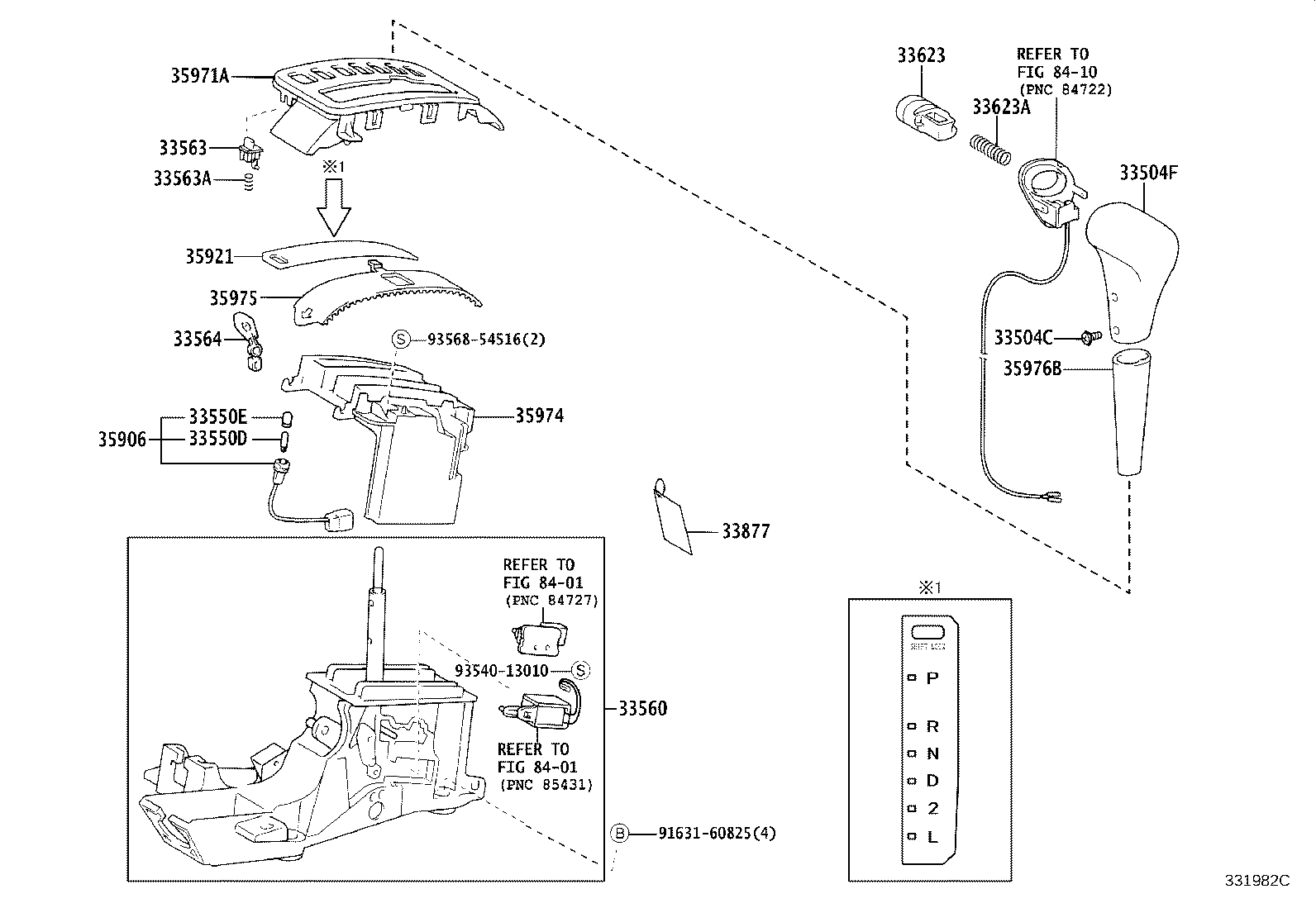

diagram 33504C 33504F 33550D 33550E 33560 33563 33563A 33564 33623 33623A 33877 35906 35921 35971A 35974 35975 35976B 8401 8401 8410 9163160825 9354013010 9356854516
Part # Description Qty Price
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40221

ZZE121..JPP..4FC

 2
90159-40221

ZZE121..JPP..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12330B0

ZZE121..JPP..RHD..4FC..SOL

DK.GRAY,TRIM0#,1#

 1
33542-12330B0

ZZE121..JPP..RHD..4FC..SOL

LEATHER,DK.GRAY,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
35955-74010

ZZE121..JPP..4FC

12V 1.4W

 1
35955-74010

ZZE121..JPP..4FC

12V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-52030

ZZE121..JPP..4FC

 1
35956-52030

ZZE121..JPP..4FC

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12050

ZZE121..JPP..RHD..4FC

 1
33560-12051

ZZE121..JPP..RHD..4FC

 1
33560-12051

ZZE121..JPP..RHD..4FC

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-12190

ZZE121..JPP..RHD..4FC

 1
33563-12190

ZZE121..JPP..RHD..4FC

 1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
90501-05055

ZZE121..JPP..4FC

 1
90501-05055

ZZE121..JPP..4FC

 1
33564 - LINK, SHIFT LOCK RELEASE, NO.1
33564-12130

ZZE121..JPP..RHD..4FC

 1
33564-12130

ZZE121..JPP..RHD..4FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-12190

ZZE121..JPP..RHD..4FC

 1
33623-12190

ZZE121..JPP..RHD..4FC

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-06082

ZZE121..JPP..4FC

 1
90501-06082

ZZE121..JPP..4FC

 1
33877 - LABEL, SHIFT LOCK INFORMATION, NO.1
33877-50030

ZZE121..JPP..4FC

 1
33877-50030

ZZE121..JPP..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12200

ZZE121..JPP..RHD..4FC

 1
35906-12200

ZZE121..JPP..RHD..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12480

ZZE121..JPP..RHD..4FC

 1
35921-12480

ZZE121..JPP..RHD..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-12410

ZZE121..JPP..RHD..4FC

 1
35971-12410

ZZE121..JPP..RHD..4FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12240

ZZE121..JPP..RHD..4FC

 1
35974-12240

ZZE121..JPP..RHD..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12290

ZZE121..JPP..RHD..4FC

 1
35975-12290

ZZE121..JPP..RHD..4FC

 1
35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
35976-12110

ZZE121..JPP..RHD..4FC

 1
35976-12110

ZZE121..JPP..RHD..4FC

 1
Common parts
91631-60825
93540-13010
93568-54516
Linked diagrams
8401
8410

ILLUST NO. 2 OF 2(0209- )JPP..4FC

Click highlighted areas on diagram

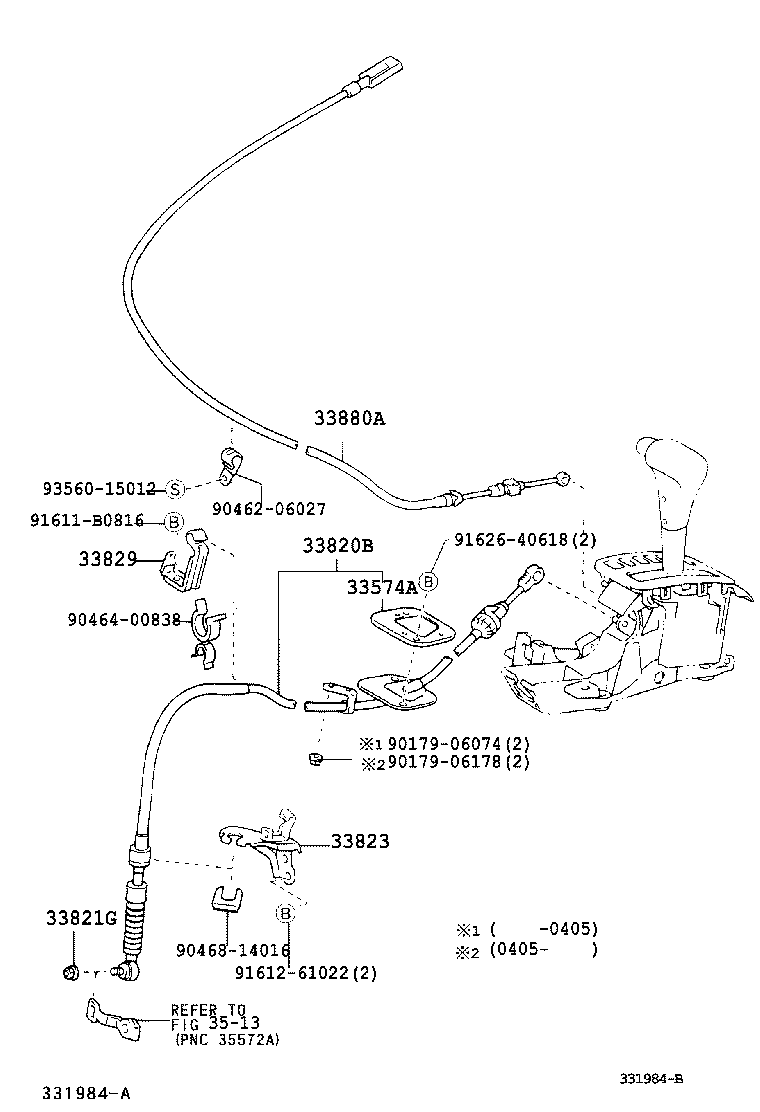

diagram 33574A 33820B 33821G 33823 33829 33880A 3513 9017906074 9017906178 9046206027 9046400838 9046814016 91611B0816 9161261022 9162640618 9356015012
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-12100

ZZE121..JPP..4FC

 1
33574-12100

ZZE121..JPP..4FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12A00

ZZE121..JPP..4FC

 1
33820-12890

ZZE121..JPP..4FC

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08061

ZZE121..JPP..4FC

 1
90179-08061

ZZE121..JPP..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12210

ZZE121..JPP..4FC

 1
33823-12240

ZZE121..JPP..4FC

 1
33823-12210

ZZE121..JPP..4FC

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-12040

ZZE121..JPP..4FC

 1
33829-12040

ZZE121..JPP..4FC

 1
33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT)
33880-12080

ZZE121..JPP..RHD..4FC

 1
33880-12110

ZZE121..JPP..RHD..4FC

 1
Common parts
90179-06074
90179-06178
90462-06027
90464-00838
90468-14016
91611-B0816
91612-61022
91626-40618
93560-15012
Linked diagrams
3513
