ZZE121R-AHPDKW (2002)
Toyota Corolla Hb (Jpp)
ILLUST NO. 6 OF 7(0209- )ZZE12#..JPP

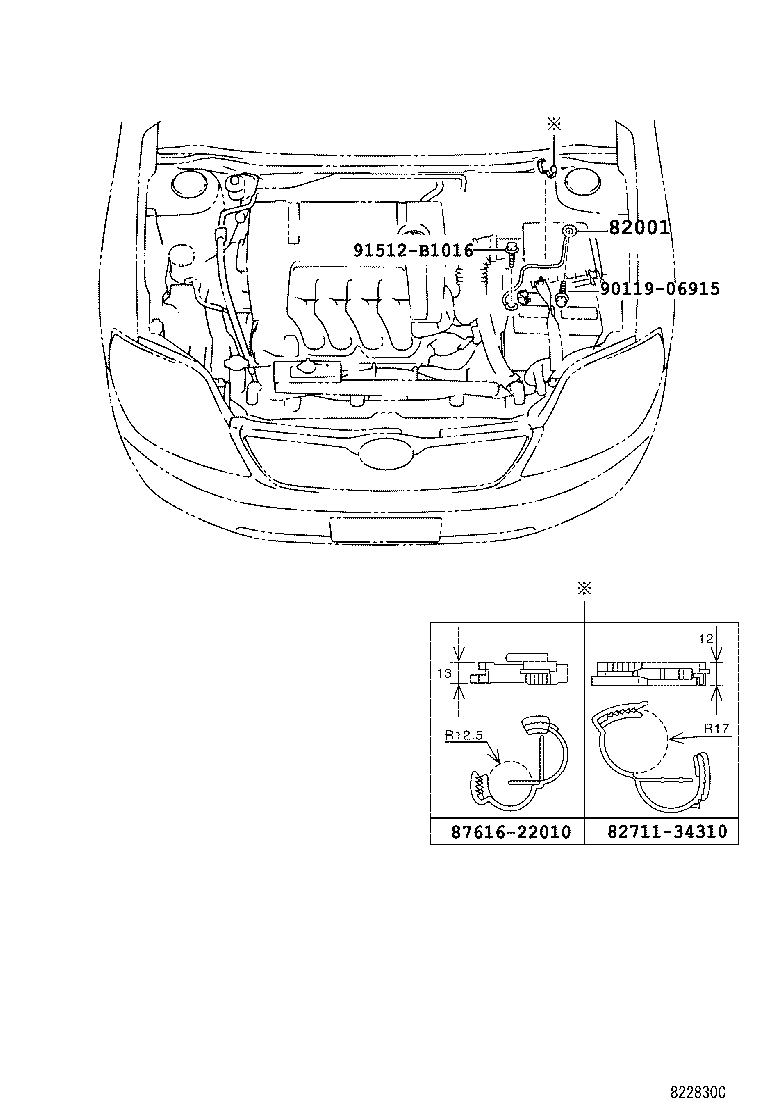

CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07407 |
ZZE12#..JPP |
1 | ||
| 90980-07407 |
ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 82711-34310 | ||||
| 87616-22010 | ||||
| 90119-06915 | ||||
| 91512-B1016 | ||||

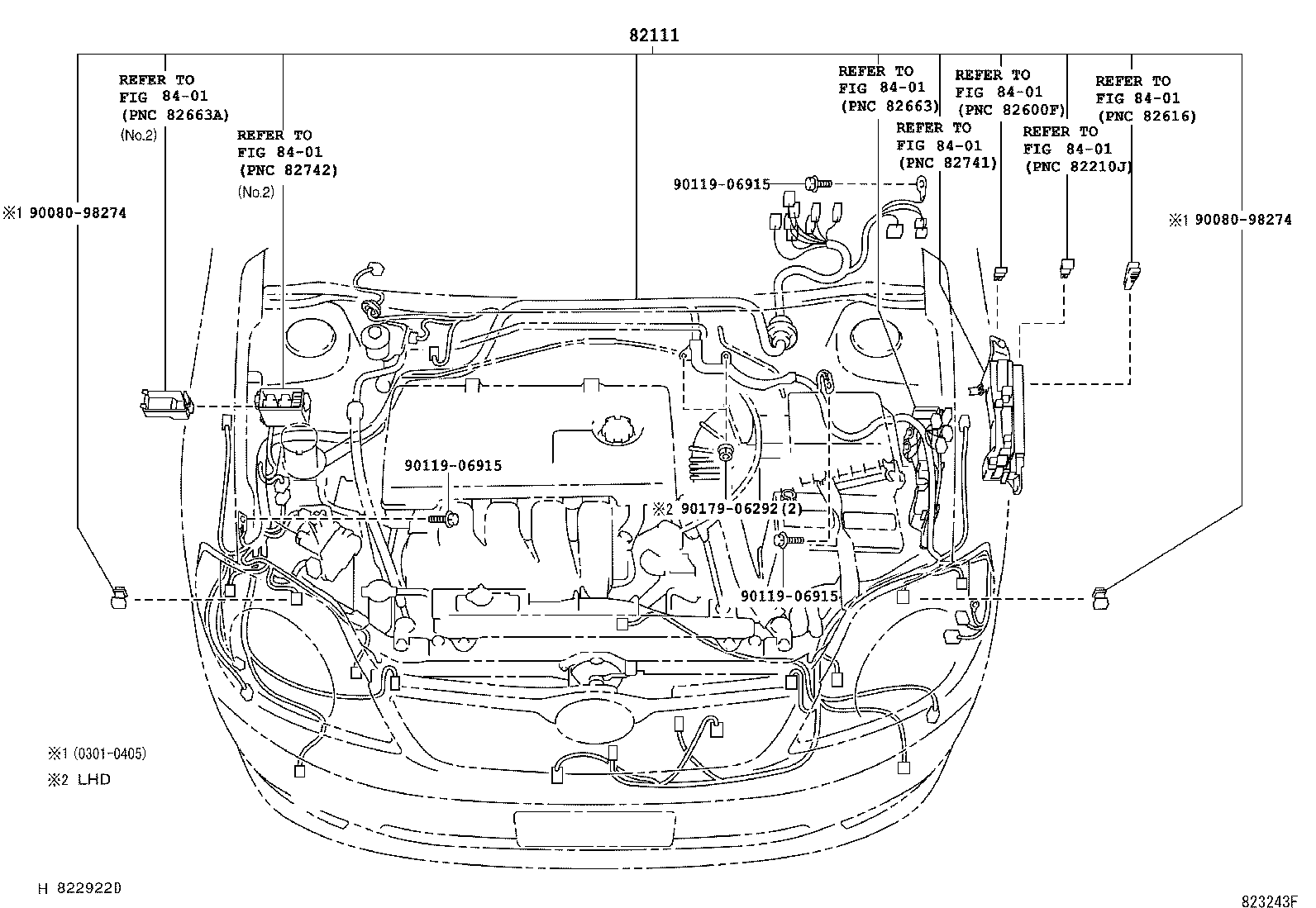

ILLUST NO. 1 OF 7(0209- )ZZE12#..JPP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1L190 |
ZZE12#..JPP..RHD |
1 | ||
| 82111-1L200 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 82111-12B80 |
ZZE12#..JPP..RHD |
1 | ||
| Common parts | ||||
| 90080-98274 | ||||
| 90119-06915 | ||||
| 90179-06292 | ||||
| Linked diagrams | ||||
| 8401 | ||||

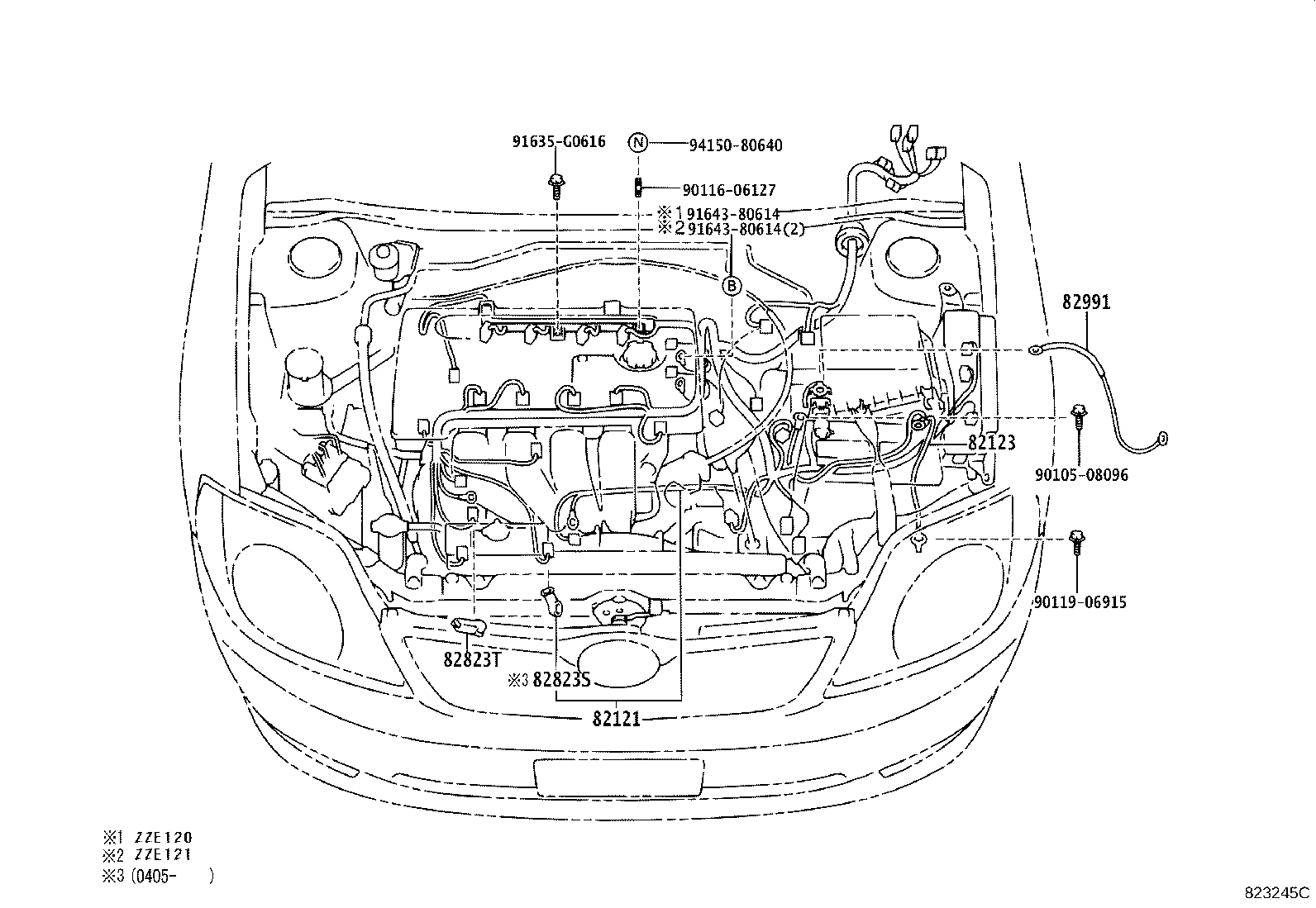

ILLUST NO. 2 OF 7(0209- )ZZE12#..JPP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1X120 |
ZZE121..JPP..RHD..4FC |
1 | ||
| 82121-12A40 |
ZZE121..JPP..RHD..4FC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-13040 |
ZZE12#..JPP |
1 | ||
| 82123-13040 |
ZZE12#..JPP |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
ZZE12#..JPP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NDE120,ZZE12#..JPP |
1 | ||
| 82823-22050 |
CDE120,ZZE12#..JPP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12070 |
ZZE12#..JPP |
1 | ||
| 82991-12070 |
ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90116-06127 | ||||
| 90119-06915 | ||||
| 91635-G0616 | ||||
| 91643-80614 | ||||
| 94150-80640 | ||||

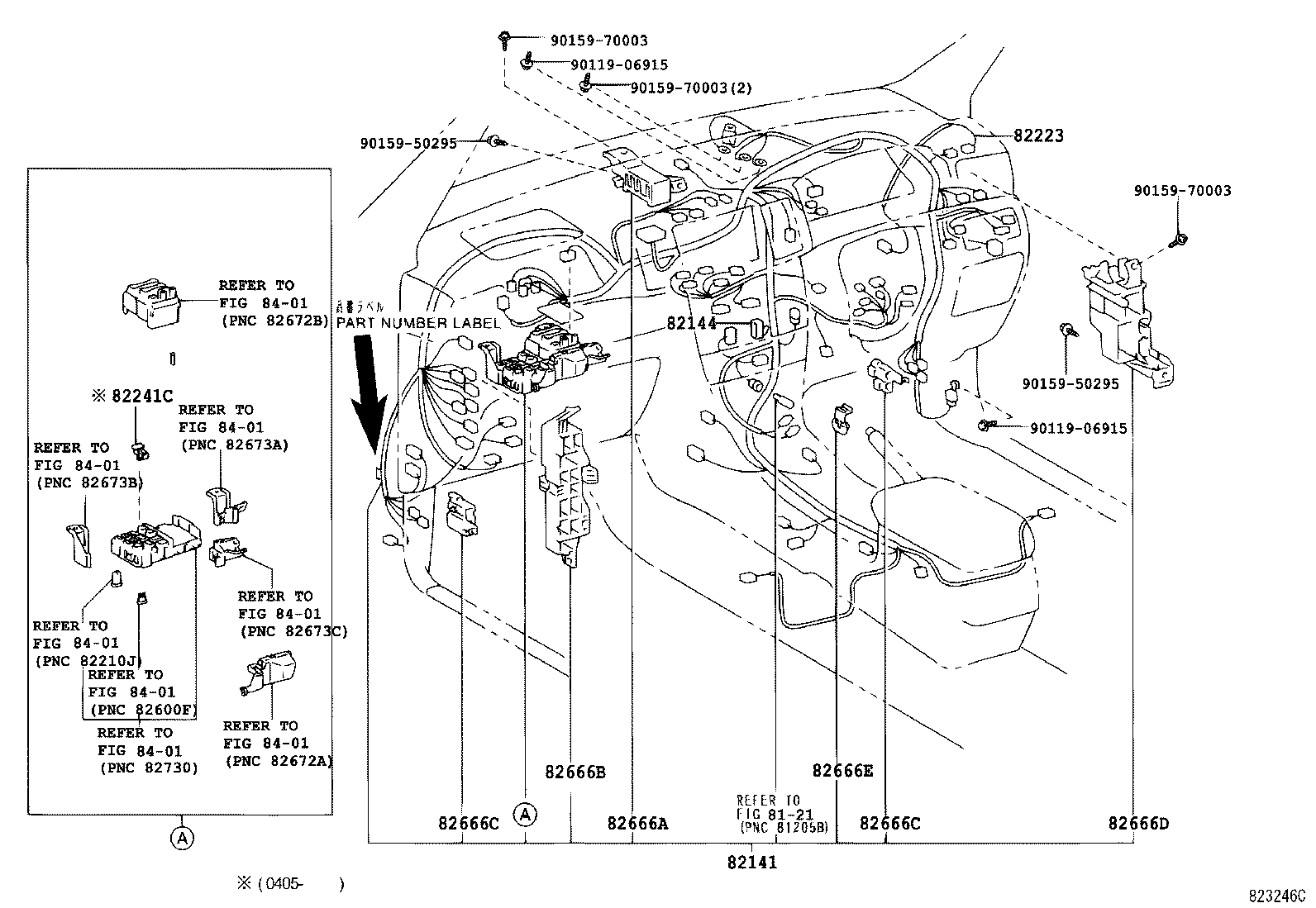

ILLUST NO. 3 OF 7(0209- )JPP..RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1X090 |
ZZE121..JPP..RHD..4FC |
1 | ||
| 82141-1X100 |
ZZE121..JPP..RHD..4FC W(NAVIGATION SYSTEM) |
1 | ||
| 82141-1X120 |
ZZE121..JPP..RHD..4FC W(NAVIGATION SYSTEM & VSC) |
1 | ||
| 82141-1X110 |
ZZE121..JPP..RHD..4FC W(VSC) |
1 | ||
| 82141-1X101 |
ZZE121..JPP..RHD..4FC W(NAVIGATION SYSTEM) |
1 | ||
| 82141-1X091 |
ZZE121..JPP..RHD..4FC |
1 | ||
| 82141-1X111 |
ZZE121..JPP..RHD..4FC W(VSC) |
1 | ||
| 82141-1X121 |
ZZE121..JPP..RHD..4FC W(NAVIGATION SYSTEM & VSC) |
1 | ||
| 82141-12A10 |
ZZE121..JPP..RHD..4FC..TERRA PART NUMBER LABEL=82141-12A10 |
1 | ||
| 82141-1Y570 |
ZZE121..JPP..RHD..4FC..TERRA PART NUMBER LABEL=82141-1Y570 |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-12060 |
CDE120,ZZE12#..JPP |
1 | ||
| 82144-12060 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-12660 |
ZZE12#..JPP..RHD |
1 | ||
| 82223-12660 |
ZZE12#..JPP..RHD |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12240 |
ZZE12#..JPP..RHD |
2 | ||
| 82666-12240 |
ZZE12#..JPP..RHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12250 |
ZZE12#..JPP..RHD |
2 | ||
| 82666-12340 |
ZZE12#..JPP..RHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
ZZE12#..JPP..RHD |
4 | ||
| 82666-12260 |
NDE120,ZZE12#..JPP |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
ZZE12#..JPP..RHD |
4 | ||
| 82666-12260 |
NDE120,ZZE12#..JPP |
2 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12290 |
ZZE12#..JPP..RHD |
2 | ||
| 82666-12290 |
ZZE12#..JPP..RHD |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02110 |
CDE120,ZZE12#..JPP |
2 | ||
| 82666-12310 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50295 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

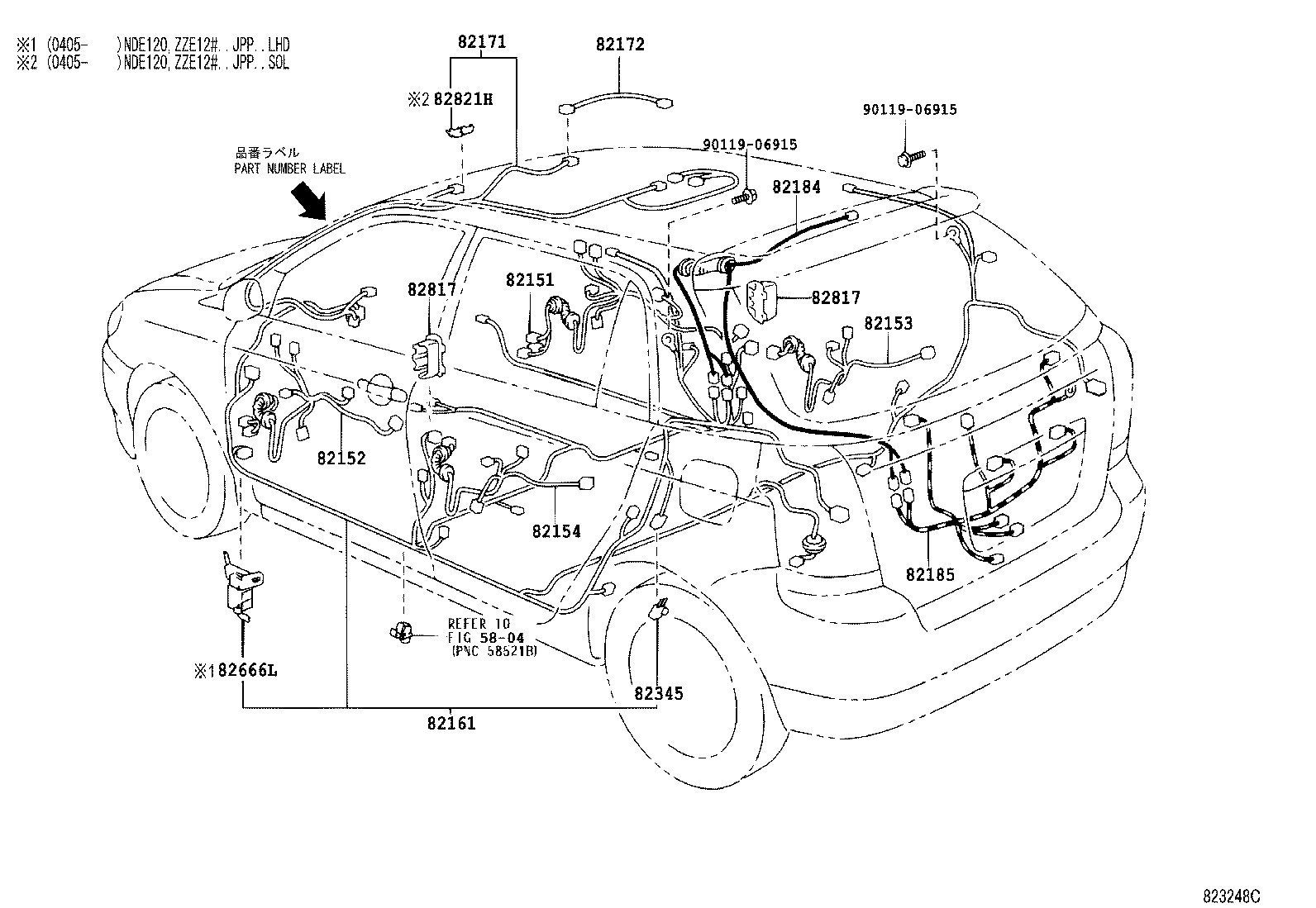

ILLUST NO. 4 OF 7(0209- )JPP
DOOR,FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1E480 |
CDE120,ZZE12#..JPP..TERRA |
1 | ||
| 82151-1E490 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82151-1E500 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82151-1E520 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82151-1E521 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82151-1E481 |
CDE120,ZZE12#..JPP..TERRA |
1 | ||
| 82151-1E501 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82151-1E510 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82151-1E491 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82151-1E530 |
ZZE12#..JPP..RHD W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82151-1E430 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82151-1E511 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82151-1E140 |
ZZE12#..JPP..RHD..TERRA |
1 | ||
| 82151-1E540 |
ZZE12#..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-1E070 |
CDE120,ZZE12#..JPP..TERRA |
1 | ||
| 82152-1E110 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152-1E080 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82152-1E100 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82152-1E090 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152-1E081 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82152-1E071 |
CDE120,ZZE12#..JPP..TERRA |
1 | ||
| 82152-1E120 |
ZZE12#..JPP..RHD W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82152-1E091 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152-1E130 |
ZZE12#..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82152-1E111 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152-1E101 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82152-12A00 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152-1E050 |
ZZE12#..JPP..RHD..TERRA |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12460 |
CDE120,ZZE12#..JPP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82153-12450 |
CDE120,ZZE12#..JPP..TERRA |
1 | ||
| 82153-12470 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-12460 |
ZZE12#..JPP..TERRA W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 82153-12490 |
ZZE12#..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-12480 |
ZZE12#..JPP W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-12470 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-12450 |
CDE120,ZZE12#..JPP..TERRA |
1 | ||
| 82153-12460 |
CDE120,ZZE12#..JPP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82153-12490 |
ZZE12#..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-12470 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-12460 |
ZZE12#..JPP..TERRA W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 82153-12480 |
ZZE12#..JPP W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-12470 |
ZZE12#..JPP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1N450 |
ZZE12#..JPP..RHD |
1 | ||
| 82161-1N460 |
ZZE12#..JPP..RHD W(*80,SIDE) |
1 | ||
| 82161-1N470 |
ZZE12#..JPP..RHD W(*80,CURTAIN SHIELD & SIDE) |
1 | ||
| 82161-12A50 |
ZZE12#..JPP..RHD W(*80,CURTAIN SHIELD) |
1 | ||
| 82161-12A40 |
ZZE12#..JPP..RHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-1A230 |
ZZE12#..JPP..RHD..TERRA PART NUMBER LABEL=82171-1A230 |
1 | ||
| 82171-1A240 |
ZZE12#..JPP..RHD PART NUMBER LABEL=82171-1A240 |
1 | ||
| 82171-12860 |
ZZE12#..JPP..RHD..TERRA PART NUMBER LABEL=82171-12860 |
1 | ||
| 82171-12890 |
ZZE12#..JPP..RHD PART NUMBER LABEL=82171-12890 |
1 | ||
| 82171-1A231 |
ZZE12#..JPP..RHD..TERRA PART NUMBER LABEL=82171-1A231 |
1 | ||
| 82171-1A241 |
ZZE12#..JPP..RHD PART NUMBER LABEL=82171-1A241 |
1 | ||
| 82171-12B50 |
ZZE12#..JPP..RHD..TERRA PART NUMBER LABEL=82171-12B50 |
1 | ||
| 82171-12B70 |
ZZE12#..JPP..RHD..TERRA PART NUMBER LABEL=82171-12B70 |
1 | ||
| 82171-12B60 |
ZZE12#..JPP..RHD..TERRA PART NUMBER LABEL=82171-12B60 |
1 | ||
| 82171-12B40 |
ZZE12#..JPP..RHD..TERRA PART NUMBER LABEL=82171-12B40 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 82172-12011 |
ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 82172-12011 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12530 |
ZZE12#..JPP..RHD |
1 | ||
| 82184-12530 |
ZZE12#..JPP..RHD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12630 |
CDE120,ZZE12#..JPP |
1 | ||
| 82185-12700 |
ZZE12#..JPP W(POWER WINDOW) |
1 | ||
| 82185-12650 |
ZZE12#..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZZE12#..JPP |
1 | ||
| 82345-12050 |
CDE120,ZZE12#..JPP |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-12330 |
ZZE12#..JPP |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A761 |
ZZE12#..JPP RH |
1 | ||
| 82817-1A761 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 82817-1A830 |
ZZE12#..JPP LH |
1 | ||
| 82817-1A830 |
CDE120,ZZE12#..JPP LH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A761 |
ZZE12#..JPP RH |
1 | ||
| 82817-1A761 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 82817-1A830 |
ZZE12#..JPP LH |
1 | ||
| 82817-1A830 |
CDE120,ZZE12#..JPP LH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5804 | ||||

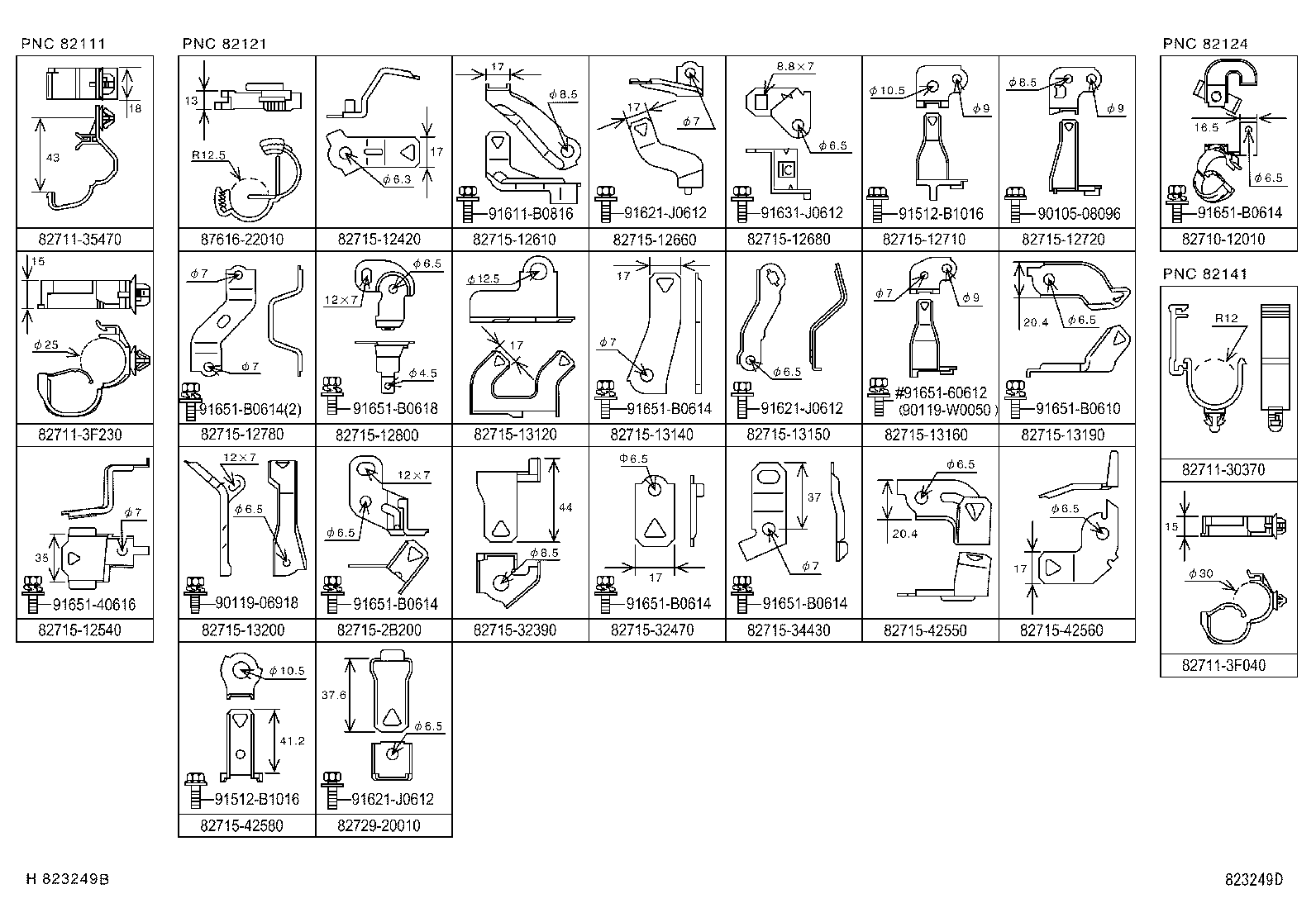

ILLUST NO. 5 OF 7(0209- )JPP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-12010 | ||||
| 82711-30370 | ||||
| 82711-35470 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82715-12420 | ||||
| 82715-12540 | ||||
| 82715-12610 | ||||
| 82715-12660 | ||||
| 82715-12680 | ||||
| 82715-12710 | ||||
| 82715-12720 | ||||
| 82715-12780 | ||||
| 82715-12800 | ||||
| 82715-13120 | ||||
| 82715-13140 | ||||
| 82715-13150 | ||||
| 82715-13160 | ||||
| 82715-13190 | ||||
| 82715-13200 | ||||
| 82715-2B200 | ||||
| 82715-32390 | ||||
| 82715-32470 | ||||
| 82715-34430 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82715-42580 | ||||
| 82729-20010 | ||||
| 87616-22010 | ||||
| 90105-08096 | ||||
| 90119-06918 | ||||
| 90119-W0050 | ||||
| 91512-B1016 | ||||
| 91611-B0816 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 91651-40616 | ||||
| 91651-60612 | ||||
| 91651-B0610 | ||||
| 91651-B0614 | ||||
| 91651-B0618 | ||||
ILLUST NO. 5 OF 7(0209- )JPP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35470 | ||||
| 82711-3F230 | ||||
| 82715-02290 | ||||
| 82715-02300 | ||||
| 82715-02310 | ||||
| 82715-02340 | ||||
| 82715-02390 | ||||
| 82715-02400 | ||||
| 82715-12540 | ||||
| 82715-12680 | ||||
| 82715-13100 | ||||
| 82729-20140 | ||||
| 82729-20150 | ||||
| 82729-20230 | ||||
| 90179-06156 | ||||
| 90179-06161 | ||||
| 91512-B1016 | ||||
| 91551-80816 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 91641-80610 | ||||
| 91651-40616 | ||||
| 91651-B0610 | ||||
| 91671-80610 | ||||
| 91671-80614 | ||||

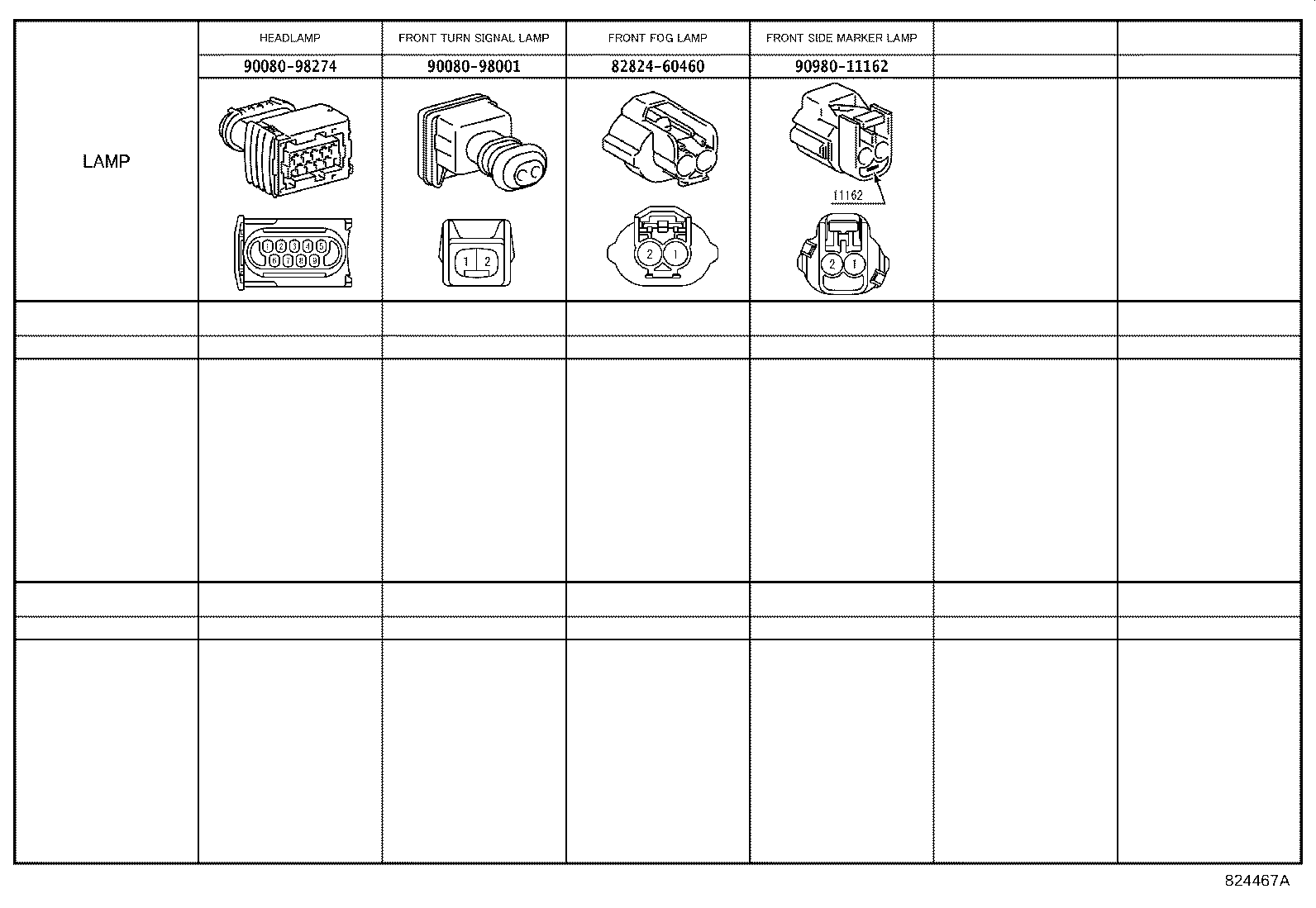

ILLUST NO. 7 OF 7(0405- )JPP
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98001 | ||||
| 90080-98274 | ||||
| 90980-11162 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
