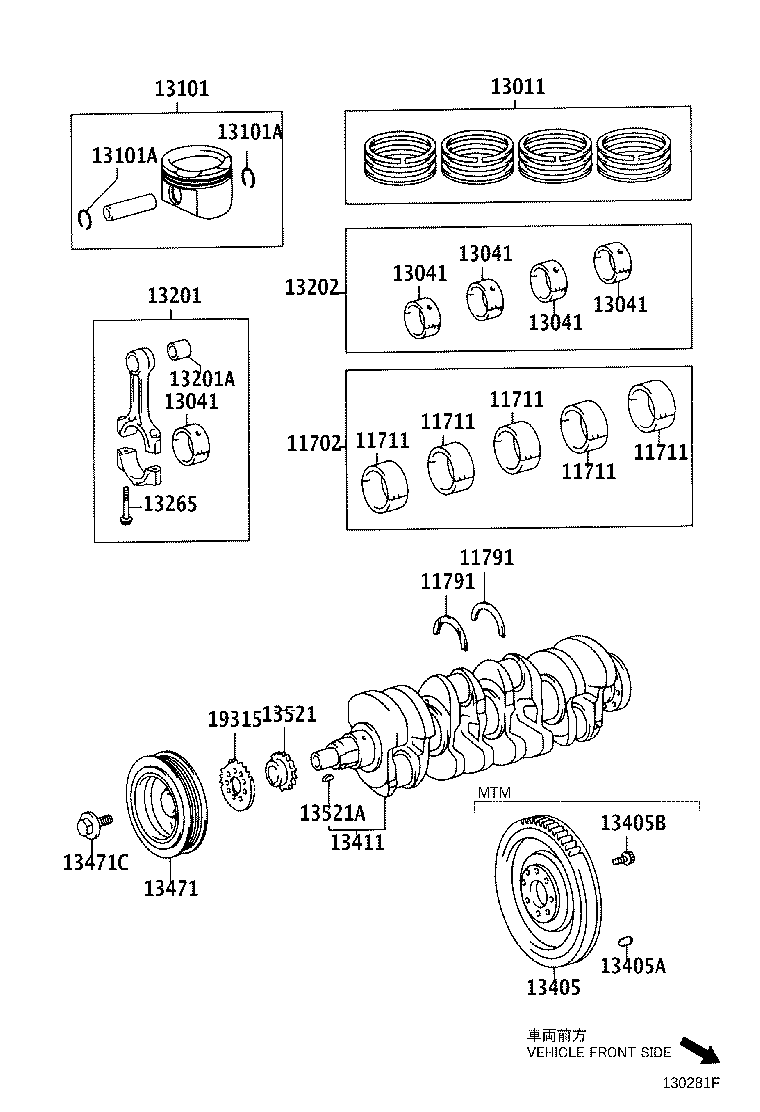

Toyota Corolla hb (jpp) ZZE121 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11702 - BEARING SET, CRANKSHAFT
11704-22030	3ZZFE,4ZZFE..ZZE12#..JPP U/S 0.25	09/2002 - 05/2004	1
11704-22011	3ZZFE,4ZZFE..ZZE12#..JPP U/S 0.25	05/2004 - 12/2999	1
11711 - BEARING, CRANKSHAFT
11701-2201004	3ZZFE,4ZZFE..ZZE12#..JPP MARK 4,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201003	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201001	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201102	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201101	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201104	3ZZFE,4ZZFE..ZZE12#..JPP MARK4,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-22010	3ZZFE,4ZZFE..ZZE12#..JPP REFER REPAIR MANUAL	05/2004 - 07/2004	5
11701-2201002	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201103	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11711 - BEARING, CRANKSHAFT
11701-2201004	3ZZFE,4ZZFE..ZZE12#..JPP MARK 4,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201003	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201001	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201102	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201101	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201104	3ZZFE,4ZZFE..ZZE12#..JPP MARK4,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-22010	3ZZFE,4ZZFE..ZZE12#..JPP REFER REPAIR MANUAL	05/2004 - 07/2004	5
11701-2201002	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201103	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11711 - BEARING, CRANKSHAFT
11701-2201004	3ZZFE,4ZZFE..ZZE12#..JPP MARK 4,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201003	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201001	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201102	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201101	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201104	3ZZFE,4ZZFE..ZZE12#..JPP MARK4,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-22010	3ZZFE,4ZZFE..ZZE12#..JPP REFER REPAIR MANUAL	05/2004 - 07/2004	5
11701-2201002	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201103	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11711 - BEARING, CRANKSHAFT
11701-2201004	3ZZFE,4ZZFE..ZZE12#..JPP MARK 4,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201003	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201001	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201102	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201101	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201104	3ZZFE,4ZZFE..ZZE12#..JPP MARK4,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-22010	3ZZFE,4ZZFE..ZZE12#..JPP REFER REPAIR MANUAL	05/2004 - 07/2004	5
11701-2201002	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201103	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11711 - BEARING, CRANKSHAFT
11701-2201004	3ZZFE,4ZZFE..ZZE12#..JPP MARK 4,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201003	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201001	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201102	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201101	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-2201104	3ZZFE,4ZZFE..ZZE12#..JPP MARK4,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11701-22010	3ZZFE,4ZZFE..ZZE12#..JPP REFER REPAIR MANUAL	05/2004 - 07/2004	5
11701-2201002	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	5
11701-2201103	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	07/2004 - 12/2999	5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020	3ZZFE,4ZZFE..ZZE12#..JPP STD	09/2002 - 05/2004	2
11791-22020	3ZZFE,4ZZFE..ZZE12#..JPP STD	05/2004 - 12/2999	2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020	3ZZFE,4ZZFE..ZZE12#..JPP STD	09/2002 - 05/2004	2
11791-22020	3ZZFE,4ZZFE..ZZE12#..JPP STD	05/2004 - 12/2999	2
13011 - RING SET, PISTON
13011-22200	3ZZFE,4ZZFE..ZZE12#..JPP STD	09/2002 - 05/2004	1
13011-22200	3ZZFE,4ZZFE..ZZE12#..JPP STD	05/2004 - 10/2004	1
13011-22220	3ZZFE,4ZZFE..ZZE12#..JPP STD	10/2004 - 12/2999	1
13041 - BEARING, CONNECTING ROD
13041-2202303	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202301	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202403	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202402	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202401	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202302	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041 - BEARING, CONNECTING ROD
13041-2202303	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202301	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202403	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202402	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202401	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202302	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041 - BEARING, CONNECTING ROD
13041-2202303	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202301	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202403	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202402	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202401	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202302	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041 - BEARING, CONNECTING ROD
13041-2202303	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202301	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202403	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202402	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202401	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202302	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041 - BEARING, CONNECTING ROD
13041-2202303	3ZZFE,4ZZFE..ZZE12#..JPP MARK 3,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202301	3ZZFE,4ZZFE..ZZE12#..JPP MARK 1,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13041-2202403	3ZZFE,4ZZFE..ZZE12#..JPP MARK3,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202402	3ZZFE,4ZZFE..ZZE12#..JPP MARK2,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202401	3ZZFE,4ZZFE..ZZE12#..JPP MARK1,REFER REPAIR MANUAL	05/2004 - 12/2999	4
13041-2202302	3ZZFE,4ZZFE..ZZE12#..JPP MARK 2,REFER REPAIR MANUAL	09/2002 - 05/2004	4
13101 - PISTON SUB-ASSY, W/PIN
13101-0D110	3ZZFE..ZZE121..JPP STD	09/2002 - 05/2004	4
13101-0D110	3ZZFE..ZZE121..JPP STD	05/2004 - 03/2005	4
13101-0D111	3ZZFE..ZZE121..JPP STD	03/2005 - 12/2999	4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	8
90520-20064	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	8
90520-20064	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	8
13201 - ROD SUB-ASSY, CONNECTING
13201-09140	3ZZFE..ZZE121..JPP (L)	09/2002 - 05/2004	4
13201-09140	3ZZFE..ZZE121..JPP (L)	05/2004 - 12/2999	4
13201-29645	3ZZFE..ZZE121..JPP (J)	05/2004 - 12/2999	4
13201-29145	3ZZFE..ZZE121..JPP (J)	09/2002 - 05/2004	4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73140	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	4
90999-73140	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	4
13202 - BEARING SET, CONNECTING ROD
13204-22023	3ZZFE,4ZZFE..ZZE12#..JPP U/S 0.25	09/2002 - 05/2004	1
13204-22024	3ZZFE,4ZZFE..ZZE12#..JPP U/S 0.25	05/2004 - 12/2999	1
13265 - BOLT, CONNECTING ROD
13265-22020	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	8
13265-22020	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	8
13411 - CRANKSHAFT
13401-22030	3ZZFE..ZZE121..JPP	05/2004 - 12/2999	1
13401-22030	3ZZFE..ZZE121..JPP	09/2002 - 05/2004	1
13471 - PULLEY, CRANKSHAFT
13470-22041	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
13470-22041	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-12127	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
90119-12127	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-22020	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
13521-22020	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-30416	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
95161-30416	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-22020	3ZZFE..ZZE121..JPP	09/2002 - 05/2004	1
19315-22020	3ZZFE..ZZE121..JPP	05/2004 - 12/2999	1

ZZE121R-AHPDKW (2002)

(0209- )3ZZFE,4ZZFE..JPP
