Toyota Corolla hb (jpp) ZZE121 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
EU
COROLLA HB (JPP)
ZZE121R-AHMDKW (2002)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

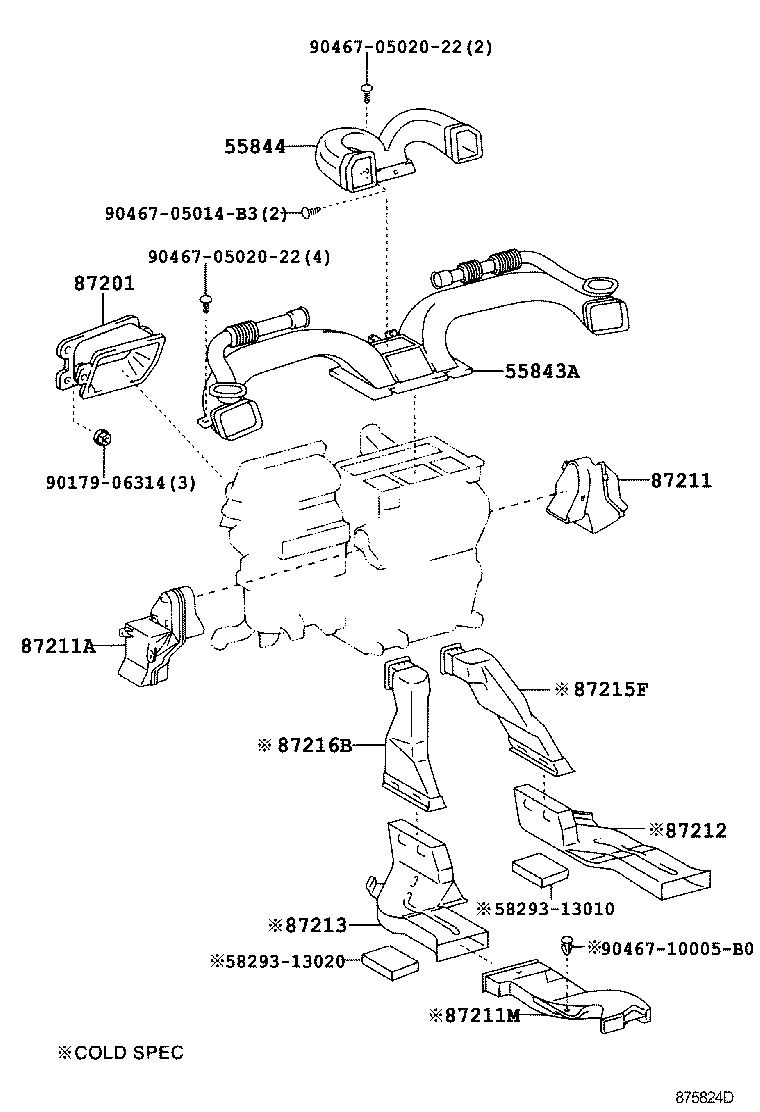

ILLUST NO. 2 OF 3(0209-0405)JPP

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12280	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
55843-12280	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12460	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
55844-12460	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-02140	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
87201-02140	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
87211 - DUCT, AIR, NO.1
87211-02110	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
87211-02110	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
87211A - DUCT, AIR, NO.2
87211-02180	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
87211-02120	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
Common parts
58293-13010
58293-13020
90179-06314
90467-05014B3
90467-0502022
90467-10005B0

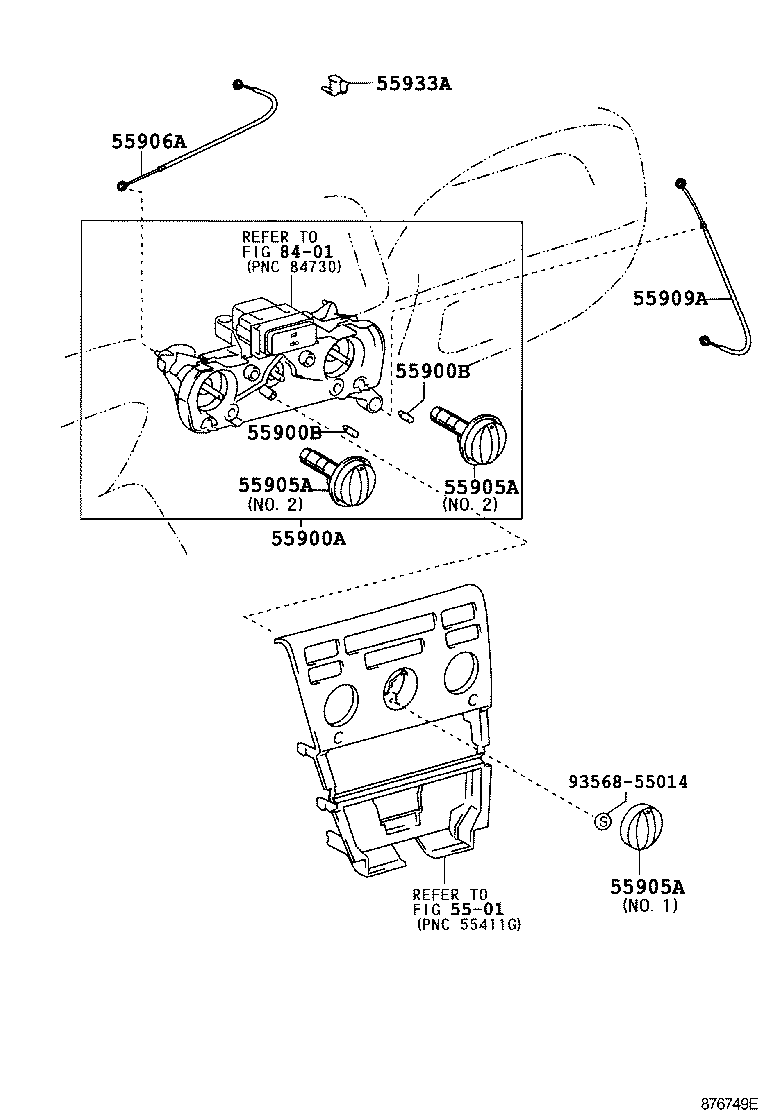

ILLUST NO. 1 OF 3(0405- )JPP..TERRA

Click highlighted areas on diagram

CONTROL PANEL

Part #	Description	Period	Qty
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-02140	ZZE12#..JPP..TERRA	05/2004 - 08/2004	1
55900-02141	NDE120,ZZE12#..JPP..TERRA	09/2004 - 12/2999	1
55900-02180	ZZE12#..JPP	09/2002 - 05/2004	1
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	NDE120,ZZE12#..JPP..TERRA	05/2004 - 09/2004	2
90069-98005	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90981-WB011	NDE120,ZZE12#..JPP..TERRA	09/2004 - 12/2999	2
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	NDE120,ZZE12#..JPP..TERRA	05/2004 - 09/2004	2
90069-98005	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90981-WB011	NDE120,ZZE12#..JPP..TERRA	09/2004 - 12/2999	2
55905A - KNOB, HEATER CONTROL
55905-02270	NDE120,ZZE12#..JPP..TERRA NO.2	05/2004 - 12/2999	2
55905-02270	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	2
55905-0F030	NDE120,ZZE12#..JPP..TERRA NO.1	05/2004 - 12/2999	1
55905-02160	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
55905A - KNOB, HEATER CONTROL
55905-02270	NDE120,ZZE12#..JPP..TERRA NO.2	05/2004 - 12/2999	2
55905-02270	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	2
55905-0F030	NDE120,ZZE12#..JPP..TERRA NO.1	05/2004 - 12/2999	1
55905-02160	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
55905A - KNOB, HEATER CONTROL
55905-02270	NDE120,ZZE12#..JPP..TERRA NO.2	05/2004 - 12/2999	2
55905-02270	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	2
55905-0F030	NDE120,ZZE12#..JPP..TERRA NO.1	05/2004 - 12/2999	1
55905-02160	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12410	ZZE12#..JPP..RHD..TERRA	05/2004 - 12/2999	1
55906-12430	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12330	ZZE12#..JPP	09/2002 - 05/2004	1
55909-12320	NDE120,ZZE12#..JPP..TERRA	05/2004 - 12/2999	1
55933A - CLAMP, HEATER CONTROL CABLE
55933-52010	NDE120,ZZE12#..JPP..TERRA	05/2004 - 12/2999	1
55933-52010	ZZE12#..JPP	09/2002 - 05/2004	1
Common parts
93568-55014
Linked diagrams
5501
8401

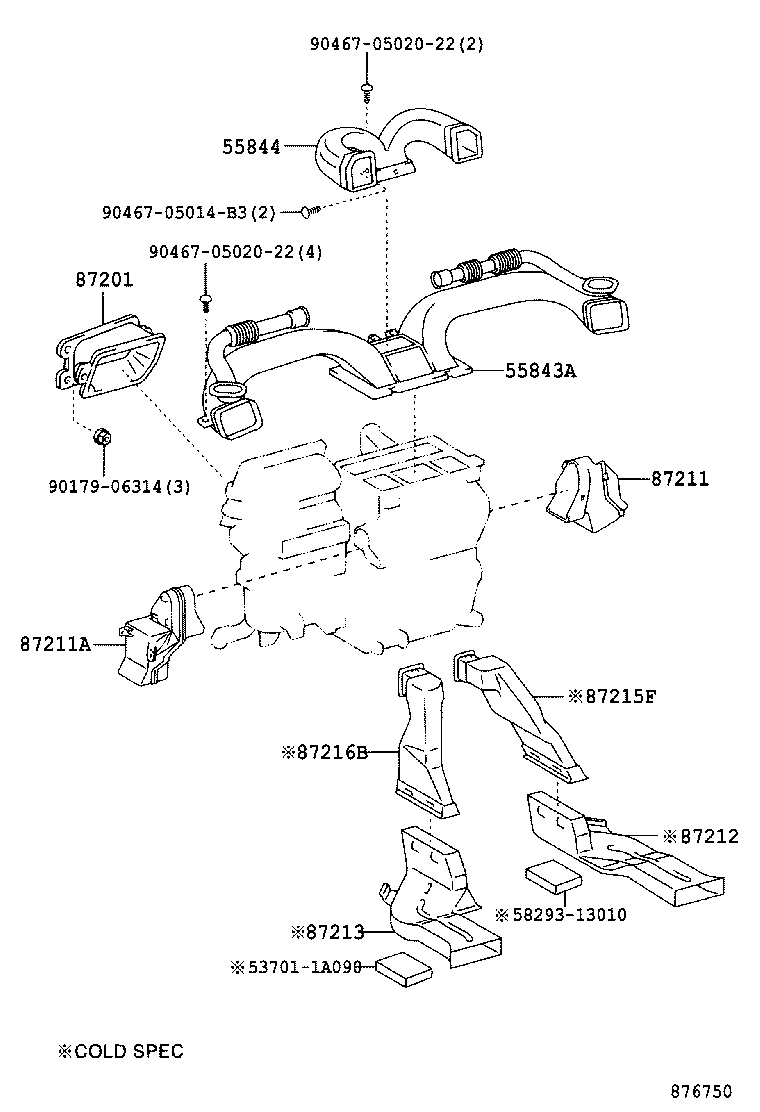

ILLUST NO. 2 OF 3(0405- )JPP

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12280	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
55843-12280	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12460	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
55844-12460	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-02140	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
87201-02140	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
87211 - DUCT, AIR, NO.1
87211-02110	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
87211-02110	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
87211A - DUCT, AIR, NO.2
87211-02180	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
87211-02120	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
Common parts
53701-1A090
58293-13010
90179-06314
90467-05014B3
90467-0502022

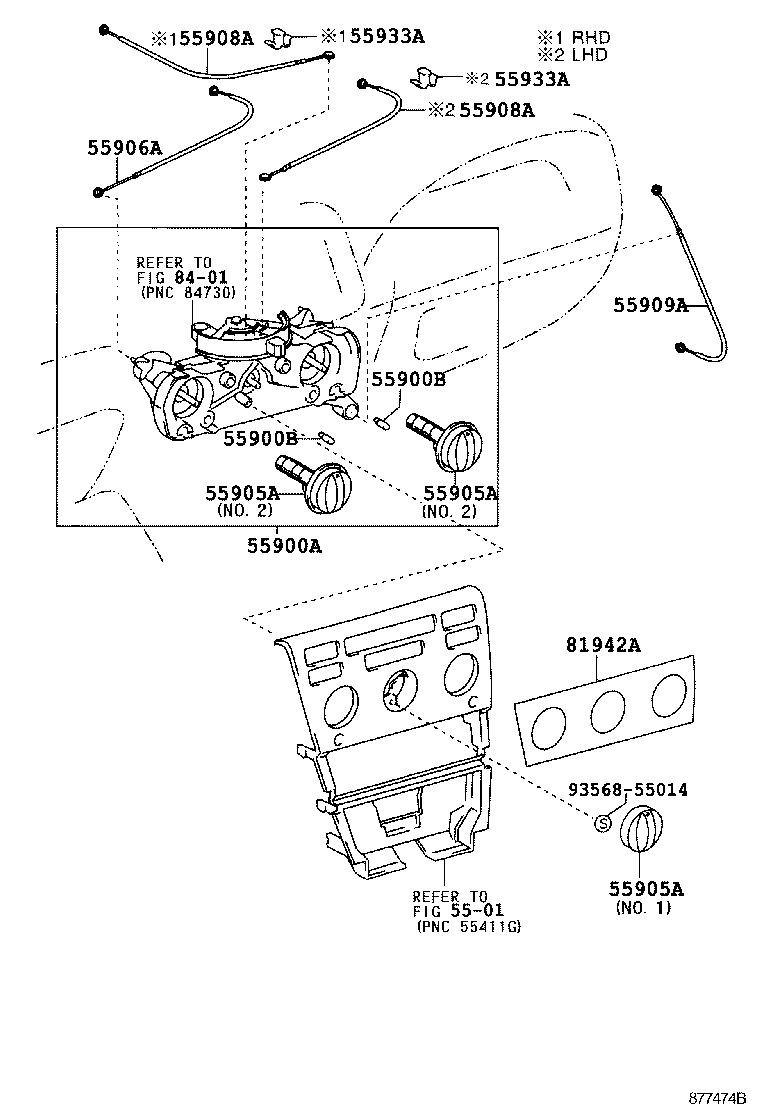

ILLUST NO. 1 OF 3(0209-0405)JPP

Click highlighted areas on diagram

CONTROL PANEL

Part #	Description	Period	Qty
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-02140	ZZE12#..JPP..TERRA	05/2004 - 08/2004	1
55900-02141	NDE120,ZZE12#..JPP..TERRA	09/2004 - 12/2999	1
55900-02180	ZZE12#..JPP	09/2002 - 05/2004	1
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	NDE120,ZZE12#..JPP..TERRA	05/2004 - 09/2004	2
90069-98005	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90981-WB011	NDE120,ZZE12#..JPP..TERRA	09/2004 - 12/2999	2
55900B - BULB, AIR CONDITIONER CONTROL
90069-98005	NDE120,ZZE12#..JPP..TERRA	05/2004 - 09/2004	2
90069-98005	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90981-WB011	NDE120,ZZE12#..JPP..TERRA	09/2004 - 12/2999	2
55905A - KNOB, HEATER CONTROL
55905-02270	NDE120,ZZE12#..JPP..TERRA NO.2	05/2004 - 12/2999	2
55905-02270	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	2
55905-0F030	NDE120,ZZE12#..JPP..TERRA NO.1	05/2004 - 12/2999	1
55905-02160	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
55905A - KNOB, HEATER CONTROL
55905-02270	NDE120,ZZE12#..JPP..TERRA NO.2	05/2004 - 12/2999	2
55905-02270	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	2
55905-0F030	NDE120,ZZE12#..JPP..TERRA NO.1	05/2004 - 12/2999	1
55905-02160	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
55905A - KNOB, HEATER CONTROL
55905-02270	NDE120,ZZE12#..JPP..TERRA NO.2	05/2004 - 12/2999	2
55905-02270	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	2
55905-0F030	NDE120,ZZE12#..JPP..TERRA NO.1	05/2004 - 12/2999	1
55905-02160	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12410	ZZE12#..JPP..RHD..TERRA	05/2004 - 12/2999	1
55906-12430	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12350	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12350	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12330	ZZE12#..JPP	09/2002 - 05/2004	1
55909-12320	NDE120,ZZE12#..JPP..TERRA	05/2004 - 12/2999	1
55933A - CLAMP, HEATER CONTROL CABLE
55933-52010	ZZE12#..JPP	09/2002 - 05/2004	1
55933-52010	NDE120,ZZE12#..JPP..TERRA	05/2004 - 12/2999	1
55933A - CLAMP, HEATER CONTROL CABLE
55933-52010	NDE120,ZZE12#..JPP..TERRA	05/2004 - 12/2999	1
55933-52010	ZZE12#..JPP	09/2002 - 05/2004	1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-02190	ZZE12#..JPP	09/2002 - 05/2004	1
Common parts
93568-55014
Linked diagrams
5501
8401
