ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)
ILLUST NO. 2 OF 2(0209- )JPP
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

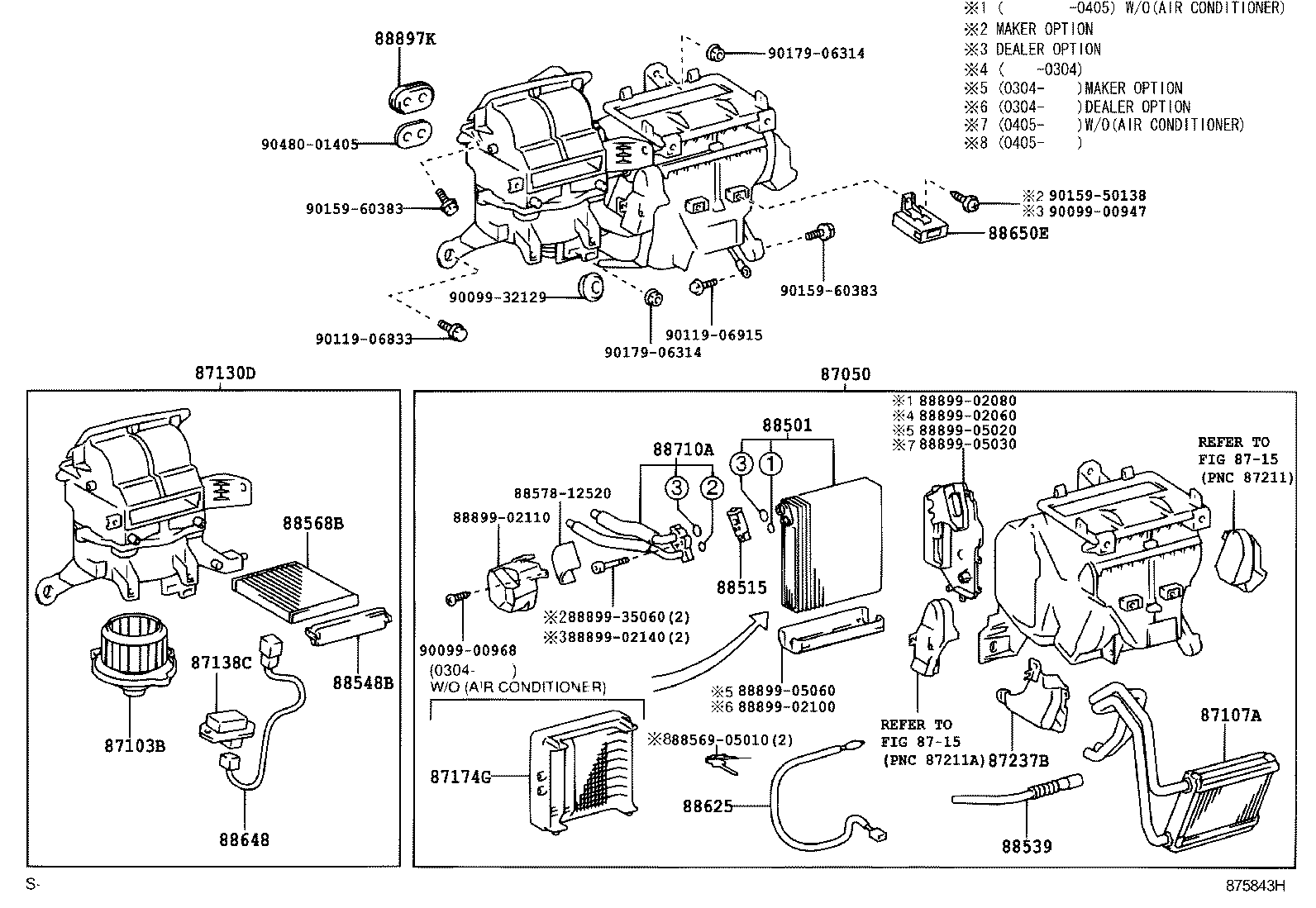

ILLUST NO. 1 OF 2(0209- )JPP..RHD
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02030 |
ZZE12#..JPP..RHD |
1 | ||
| 87050-0W010 |
ZZE12#..JPP..RHD..TERRA W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-02230 |
ZZE12#..JPP..RHD |
1 | ||
| 87050-02210 |
ZZE12#..JPP..RHD..TERRA W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-02540 |
ZZE12#..JPP..RHD..TERRA W/O(AIR CONDITIONER) |
1 | ||
| 87050-02520 |
ZZE12#..JPP..RHD..TERRA W(MANUAL AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02070 |
ZZE12#..JPP..RHD |
1 | ||
| 87103-02070 |
ZZE12#..JPP..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02110 |
ZZE12#..JPP..RHD |
1 | ||
| 87107-05090 |
ZZE12#..JPP..RHD |
1 | ||
| 87107-05090 |
ZZE12#..JPP..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02070 |
ZZE12#..JPP..RHD |
1 | ||
| 87130-02190 |
ZZE12#..JPP..RHD..TERRA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-02040 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 87138-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 87174G - GUIDE, AIR HEATER | ||||
| 87174-02020 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 87174-02020 |
ZZE12#..JPP..RHD |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-05050 |
ZZE12#..JPP..RHD |
1 | ||
| 87237-02020 |
ZZE12#..JPP..RHD |
1 | ||
| 87237-05050 |
ZZE12#..JPP..RHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-05070 |
ZZE12#..JPP..RHD MAKER OPTION |
1 | ||
| 88501-02050 |
ZZE12#..JPP..RHD |
1 | ||
| 88501-05070 |
ZZE12#..JPP..RHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02091 |
CDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88515-02090 |
CDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88515-02070 |
CDE120,ZZE12#..JPP |
1 | ||
| 88515-02091 |
NDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-02070 |
CDE120,ZZE12#..JPP |
1 | ||
| 88539-02070 |
NDE120,ZZE12#..JPP |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 88548-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-02030 |
CDE120,ZZE12#..JPP |
1 | ||
| 88568-02030 |
NDE120,ZZE12#..JPP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02060 |
CDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88625-52090 |
ZZE12#..JPP..TERRA |
1 | ||
| 88625-60140 |
CDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88625-02060 |
NDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-02260 |
ZZE12#..JPP..RHD..TERRA |
1 | ||
| 88648-02150 |
CDE120,ZZE12#..JPP |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-02350 |
CDE120,ZZE12#..JPP DEALER OPTION |
1 | ||
| 88650-1E630 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 88650-02351 |
NDE120,ZZE12#..JPP..TERRA DEALER OPTION |
1 | ||
| 88650-1E410 |
CDE120,ZZE12#..JPP..TERRA MAKER OPTION |
1 | ||
| 88650-1E630 |
CDE120,ZZE12#..JPP..TERRA MAKER OPTION |
1 | ||
| 88650-02351 |
CDE120,ZZE12#..JPP DEALER OPTION |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05360 |
ZZE12#..JPP..RHD |
1 | ||
| 88710-05360 |
ZZE12#..JPP..RHD MAKER OPTION |
1 | ||
| 88710-02500 |
ZZE12#..JPP..RHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
CDE120,ZZE12#..JPP |
1 | ||
| 90480-01434 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 88569-05010 | ||||
| 88578-12520 | ||||
| 88899-02060 | ||||
| 88899-02080 | ||||
| 88899-02100 | ||||
| 88899-02110 | ||||
| 88899-02140 | ||||
| 88899-05020 | ||||
| 88899-05030 | ||||
| 88899-05060 | ||||
| 88899-35060 | ||||
| 90099-00947 | ||||
| 90099-00968 | ||||
| 90099-32129 | ||||
| 90119-06833 | ||||
| 90119-06915 | ||||
| 90159-50138 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
| Linked diagrams | ||||
| 8715 | ||||

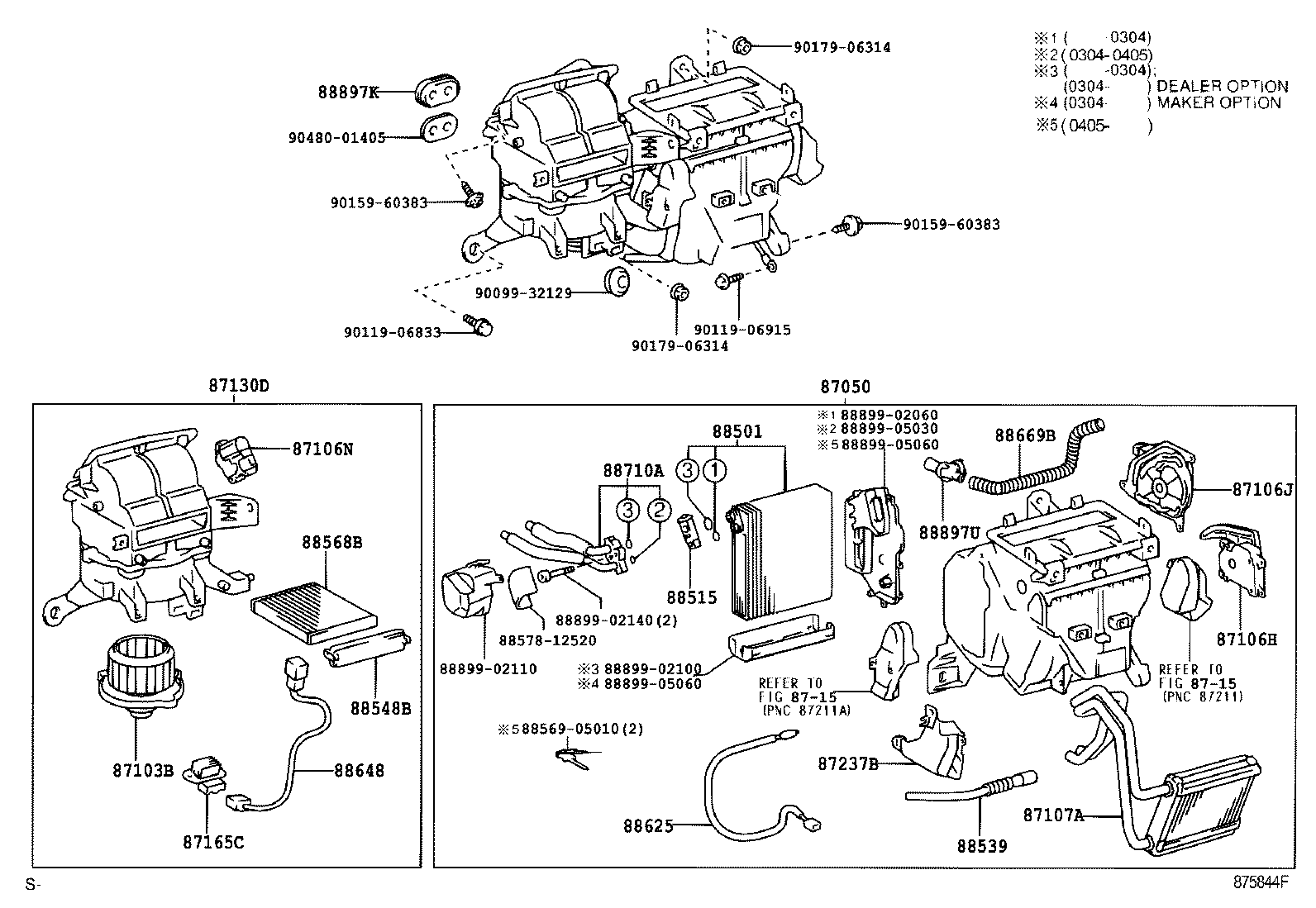

ILLUST NO. 1 OF 2(0209- )JPP..RHD
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02030 |
ZZE12#..JPP..RHD |
1 | ||
| 87050-0W010 |
ZZE12#..JPP..RHD..TERRA W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-02230 |
ZZE12#..JPP..RHD |
1 | ||
| 87050-02210 |
ZZE12#..JPP..RHD..TERRA W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-02540 |
ZZE12#..JPP..RHD..TERRA W/O(AIR CONDITIONER) |
1 | ||
| 87050-02520 |
ZZE12#..JPP..RHD..TERRA W(MANUAL AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02070 |
ZZE12#..JPP..RHD |
1 | ||
| 87103-02070 |
ZZE12#..JPP..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02110 |
ZZE12#..JPP..RHD |
1 | ||
| 87107-05090 |
ZZE12#..JPP..RHD |
1 | ||
| 87107-05090 |
ZZE12#..JPP..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02070 |
ZZE12#..JPP..RHD |
1 | ||
| 87130-02190 |
ZZE12#..JPP..RHD..TERRA |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-05050 |
ZZE12#..JPP..RHD |
1 | ||
| 87237-02020 |
ZZE12#..JPP..RHD |
1 | ||
| 87237-05050 |
ZZE12#..JPP..RHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-05070 |
ZZE12#..JPP..RHD MAKER OPTION |
1 | ||
| 88501-02050 |
ZZE12#..JPP..RHD |
1 | ||
| 88501-05070 |
ZZE12#..JPP..RHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02091 |
CDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88515-02090 |
CDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88515-02070 |
CDE120,ZZE12#..JPP |
1 | ||
| 88515-02091 |
NDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-02070 |
CDE120,ZZE12#..JPP |
1 | ||
| 88539-02070 |
NDE120,ZZE12#..JPP |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 88548-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-02030 |
CDE120,ZZE12#..JPP |
1 | ||
| 88568-02030 |
NDE120,ZZE12#..JPP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02060 |
CDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88625-52090 |
ZZE12#..JPP..TERRA |
1 | ||
| 88625-60140 |
CDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88625-02060 |
NDE120,ZZE12#..JPP MAKER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-02260 |
ZZE12#..JPP..RHD..TERRA |
1 | ||
| 88648-02150 |
CDE120,ZZE12#..JPP |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05360 |
ZZE12#..JPP..RHD |
1 | ||
| 88710-05360 |
ZZE12#..JPP..RHD MAKER OPTION |
1 | ||
| 88710-02500 |
ZZE12#..JPP..RHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 90480-01434 |
CDE120,ZZE12#..JPP |
1 | ||
| 90480-01434 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 88569-05010 | ||||
| 88578-12520 | ||||
| 88899-02060 | ||||
| 88899-02100 | ||||
| 88899-02110 | ||||
| 88899-02140 | ||||
| 88899-05030 | ||||
| 88899-05060 | ||||
| 90099-32129 | ||||
| 90119-06833 | ||||
| 90119-06915 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
| Linked diagrams | ||||
| 8715 | ||||
