ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0209- )JPP

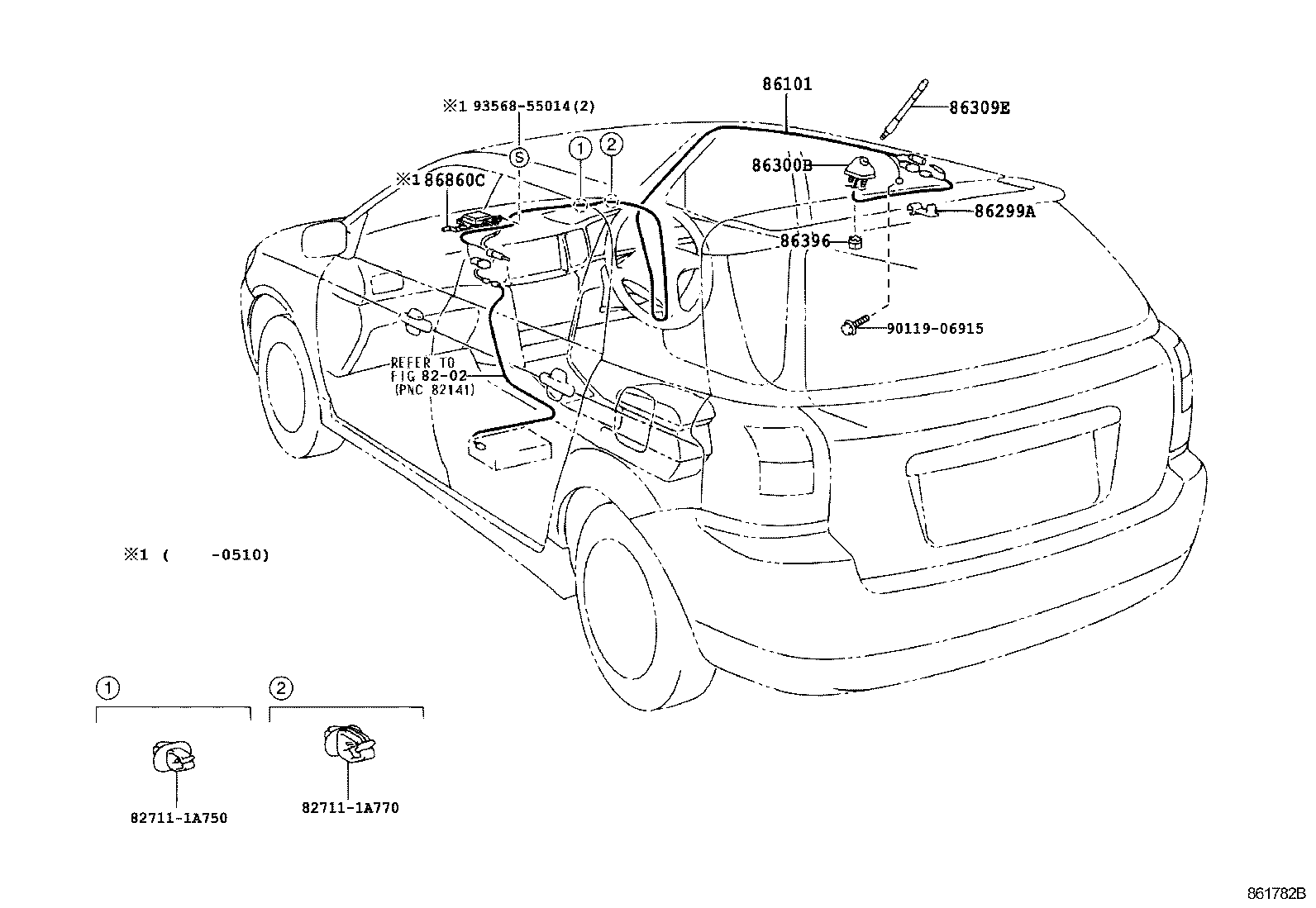

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12301	ZZE12#..JPP	10/2002 - 05/2004	1
86101-12300	CDE120,ZZE12#..JPP	09/2002 - 10/2002	1
86101-12301	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
86299A - CLIP, RADIO TO ANTENNA WIRE
86299-12010	ZZE12#..JPP	09/2002 - 05/2004	1
86299-12010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-12750	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
86300-12750	ZZE12#..JPP	09/2002 - 05/2004	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
86309-13010	ZZE12#..JPP	09/2002 - 05/2004	1
86396 - NUT, ANTENNA
86396-12030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
86396-12030	ZZE12#..JPP	09/2002 - 05/2004	1
86860C - ANTENNA ASSY, NAVIGATION
86860-13030	ZZE121..JPP	09/2002 - 05/2004	1
Common parts
82711-1A750
82711-1A770
90119-06915
93568-55014
Linked diagrams
8202
