8603 - NAVIGATION & FRONT MONITOR DISPLAY

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0209-0405)CDE120,ZZE121..JPP ; (0405-0510)JPP..SOL

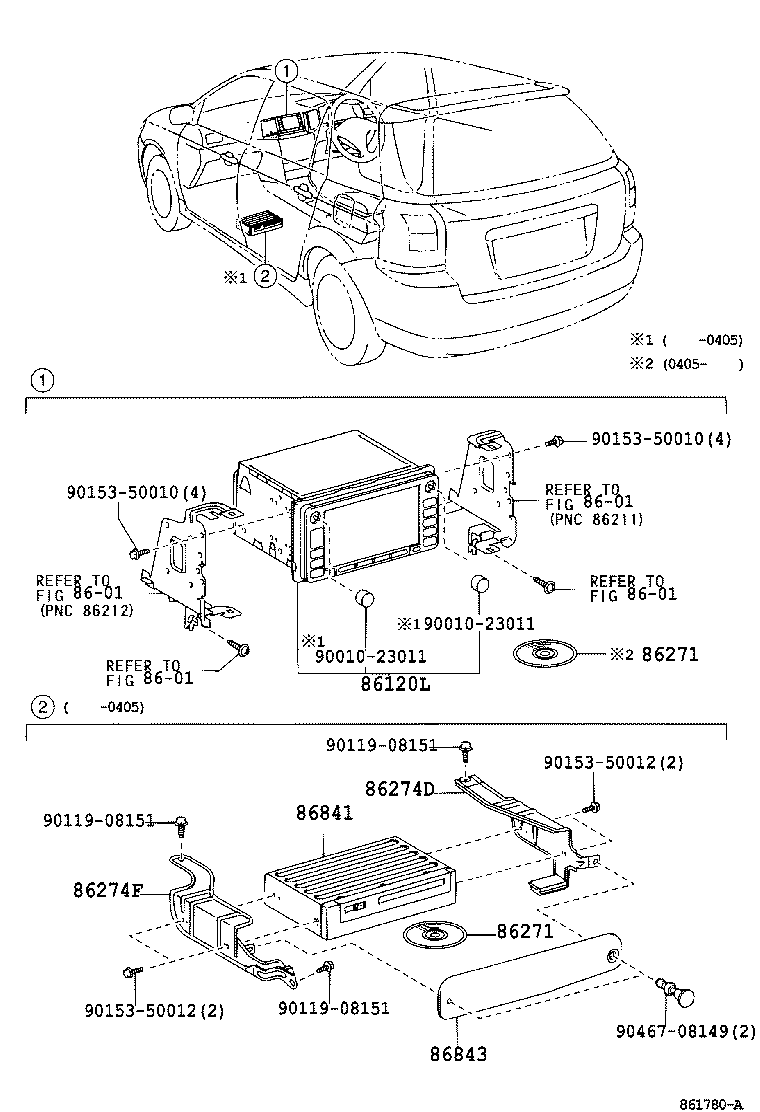

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86120L - RECEIVER ASSY, NAVIGATION
86120-33420	CDE120,ZZE121..JPP FUJITSU TEN,ID=19001	09/2002 - 01/2003	1
86120-33421	CDE120,ZZE121..JPP FUJITSU TEN,ID=19003	01/2003 - 05/2004	1
86271 - DISC, DISC PLAYER
86271-24120	CDE120,ZZE121..JPP	09/2002 - 10/2002	1
86271-24122	CDE120,ZZE121..JPP	10/2003 - 11/2003	1
86271-24123	CDE120,ZZE121..JPP	11/2003 - 05/2004	1
86271-24121	CDE120,ZZE121..JPP	10/2002 - 10/2003	1
86271 - DISC, DISC PLAYER
86271-24120	CDE120,ZZE121..JPP	09/2002 - 10/2002	1
86271-24122	CDE120,ZZE121..JPP	10/2003 - 11/2003	1
86271-24123	CDE120,ZZE121..JPP	11/2003 - 05/2004	1
86271-24121	CDE120,ZZE121..JPP	10/2002 - 10/2003	1
86274D - BRACKET, DISC PLAYER
86274-13050	CDE120,ZZE121..JPP	09/2002 - 05/2004	1
86274F - BRACKET, DISC PLAYER, NO.2
86274-13070	CDE120,ZZE121..JPP	09/2002 - 05/2004	1
86841 - COMPUTER, NAVIGATION
86841-13020	CDE120,ZZE121..JPP	09/2002 - 05/2004	1
86843 - COVER, NAVIGATION COMPUTER
86843-32010	CDE120,ZZE121..JPP	09/2002 - 05/2004	1
Common parts
90010-23011
90119-08151
90153-50010
90153-50012
90467-08149
Linked diagrams
8601
