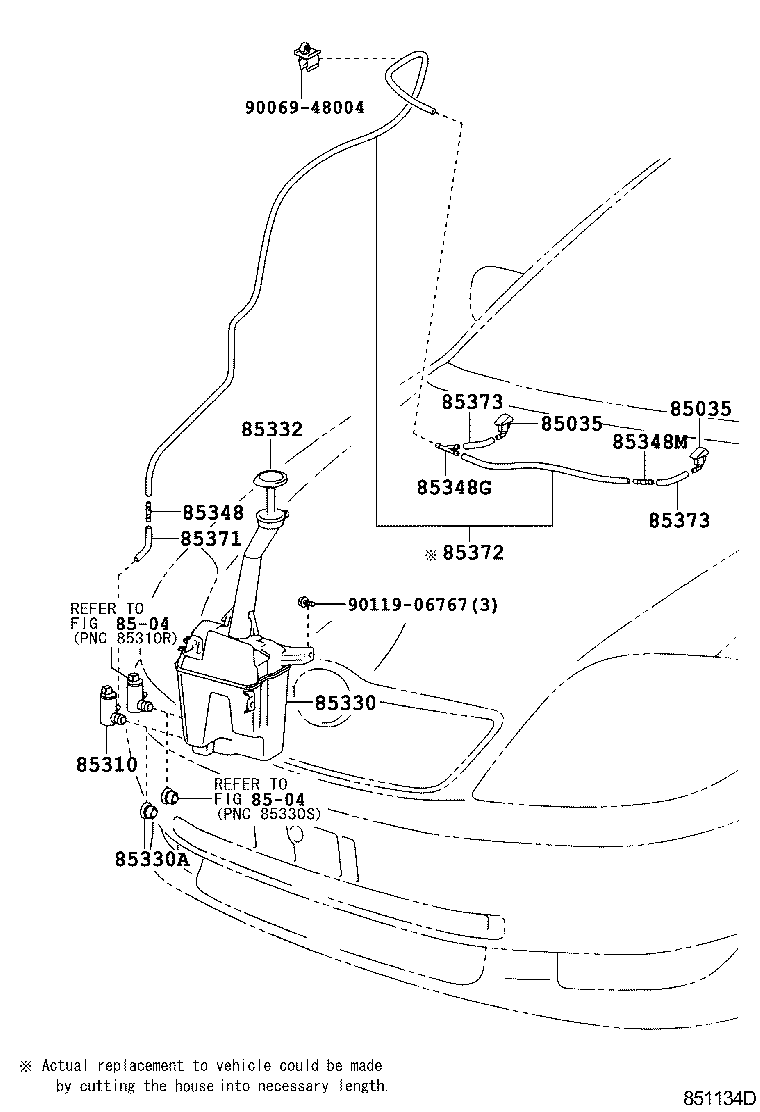

Toyota Corolla hb (jpp) ZZE121 WINDSHIELD WASHER

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-02080	ZZE12#..JPP..RHD	09/2002 - 05/2004	2
85381-02080	ZZE12#..JPP..RHD	05/2004 - 04/2005	2
85381-02081	ZZE12#..JPP..RHD	05/2005 - 12/2999	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-02080	ZZE12#..JPP..RHD	09/2002 - 05/2004	2
85381-02080	ZZE12#..JPP..RHD	05/2004 - 04/2005	2
85381-02081	ZZE12#..JPP..RHD	05/2005 - 12/2999	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-05030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
85330-05030	NDE120,ZZE12#..JPP	05/2004 - 04/2005	1
85330-05031	NDE120,ZZE12#..JPP	05/2005 - 12/2999	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-02090	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
85315-02090	NDE120,ZZE12#..JPP	05/2004 - 04/2005	1
85315-02090	NDE120,ZZE12#..JPP	05/2005 - 12/2999	1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-05070	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
85336-05070	NDE120,ZZE12#..JPP	05/2004 - 05/2005	1
90069-20005	NDE120,ZZE12#..JPP	05/2005 - 12/2999	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-02090	NDE120,ZZE12#..JPP	05/2004 - 04/2005	1
85316-02090	NDE120,ZZE12#..JPP	05/2005 - 12/2999	1
85316-02090	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-05050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
85375-05050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85378-05030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
85378-05030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-05050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
85375-05050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90069-46011	NDE120,ZZE12#..JPP *H,L=50	05/2004 - 04/2005	1
90069-46011	CDE120,ZZE12#..JPP *H,L=50	09/2002 - 05/2004	1
90069-46011	NDE120,ZZE12#..JPP *H,L=50	05/2005 - 12/2999	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90069-46012	CDE120,ZZE12#..JPP L=3910	09/2002 - 05/2004	1
90069-46012	ZZE12#..JPP..RHD L=3910	05/2004 - 10/2006	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009	NDE120,ZZE12#..JPP	05/2004 - 10/2006	2
90069-16009	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009	NDE120,ZZE12#..JPP	05/2004 - 10/2006	2
90069-16009	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
Common parts
90069-48004
90119-06767
