Toyota Corolla hb (jpp) ZZE121 AIR BAG

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

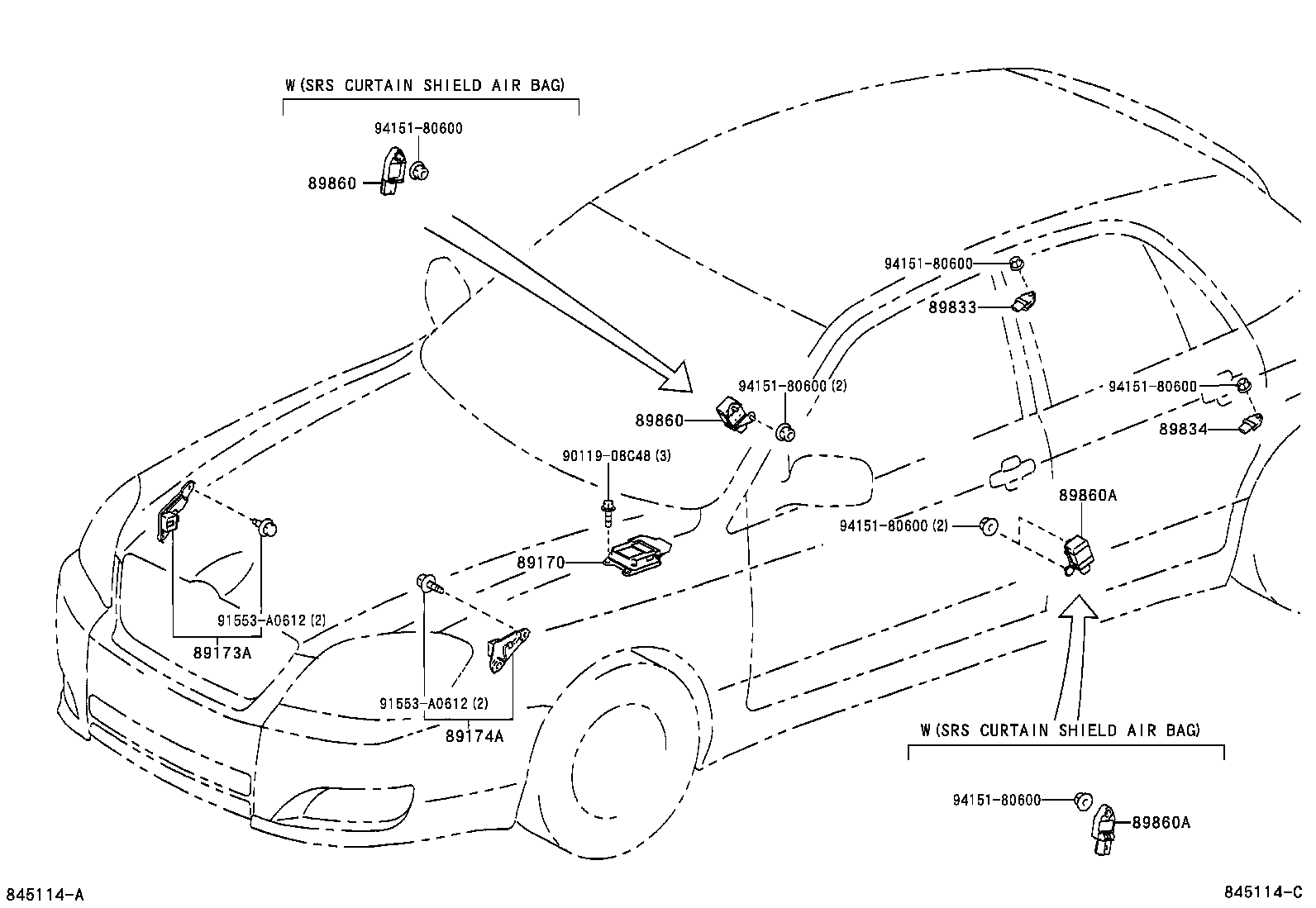

(0209-0405)JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-13080	ZZE12#..JPP	09/2002 - 05/2004	1
89170-13040	ZZE12#..JPP W(SRS SIDE AIR BAG)	09/2002 - 05/2004	1
89170-02290	ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)	09/2002 - 05/2004	1
89170-02490	ZZE12#..JPP..RHD	05/2004 - 04/2006	1
89170-02510	ZZE12#..JPP..RHD W(SRS CURTAIN SHIELD AIR BAG)	05/2004 - 04/2006	1
89170-02491	ZZE12#..JPP..RHD	05/2006 - 12/2999	1
89170-02511	ZZE12#..JPP..RHD W(SRS CURTAIN SHIELD AIR BAG)	05/2006 - 12/2999	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-69125	CDE120,ZZE12#..JPP	09/2002 - 12/2002	1
89173-69126	ZZE12#..JPP	12/2002 - 05/2004	1
89173-09150	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-69125	CDE120,ZZE12#..JPP	09/2002 - 12/2002	1
89173-09160	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89174-69126	ZZE12#..JPP	12/2002 - 05/2004	1
89833 - SENSOR, AIR BAG, REAR RH
89831-02010	ZZE12#..JPP	09/2002 - 05/2004	1
89831-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89834 - SENSOR, AIR BAG, REAR LH
89831-02010	ZZE12#..JPP	09/2002 - 05/2004	1
89831-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-05010	ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG)	09/2002 - 05/2004	1
89860-13020	ZZE12#..JPP	09/2002 - 05/2004	1
89831-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-05010	ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG)	09/2002 - 05/2004	1
89860-13020	ZZE12#..JPP	09/2002 - 05/2004	1
89831-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89830-13020	ZZE12#..JPP	09/2002 - 05/2004	1
89831-05010	ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG)	09/2002 - 05/2004	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89830-13020	ZZE12#..JPP	09/2002 - 05/2004	1
89831-05010	ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG)	09/2002 - 05/2004	1
Common parts
90119-08C48
91553-A0612
94151-80600

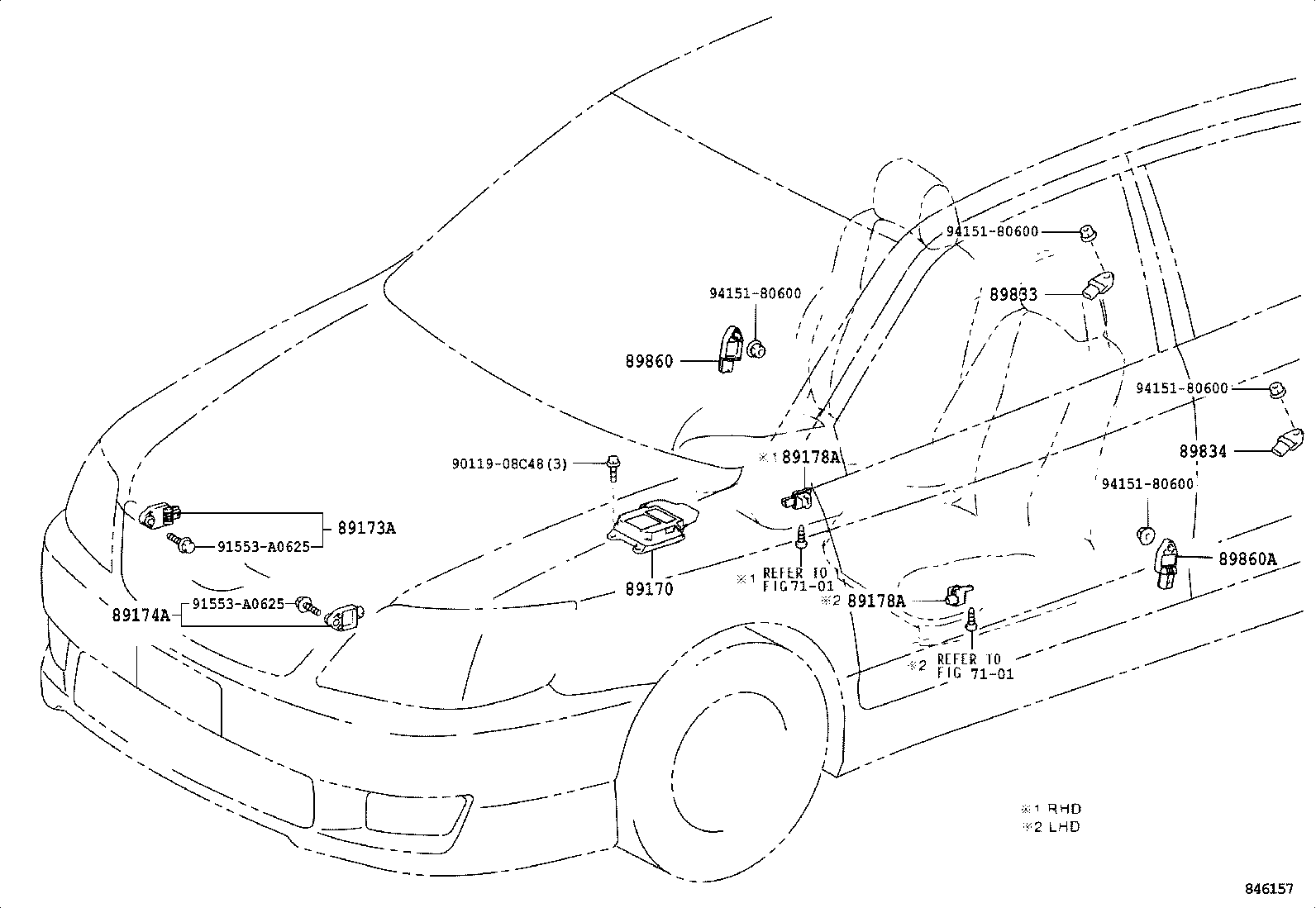

(0405- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-13080	ZZE12#..JPP	09/2002 - 05/2004	1
89170-13040	ZZE12#..JPP W(SRS SIDE AIR BAG)	09/2002 - 05/2004	1
89170-02290	ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)	09/2002 - 05/2004	1
89170-02490	ZZE12#..JPP..RHD	05/2004 - 04/2006	1
89170-02510	ZZE12#..JPP..RHD W(SRS CURTAIN SHIELD AIR BAG)	05/2004 - 04/2006	1
89170-02491	ZZE12#..JPP..RHD	05/2006 - 12/2999	1
89170-02511	ZZE12#..JPP..RHD W(SRS CURTAIN SHIELD AIR BAG)	05/2006 - 12/2999	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-69125	CDE120,ZZE12#..JPP	09/2002 - 12/2002	1
89173-69126	ZZE12#..JPP	12/2002 - 05/2004	1
89173-09150	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-69125	CDE120,ZZE12#..JPP	09/2002 - 12/2002	1
89173-09160	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89174-69126	ZZE12#..JPP	12/2002 - 05/2004	1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-0W010	ZZE12#..JPP..RHD	05/2004 - 10/2006	1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-0W010	ZZE12#..JPP..RHD	05/2004 - 10/2006	1
89833 - SENSOR, AIR BAG, REAR RH
89831-02010	ZZE12#..JPP	09/2002 - 05/2004	1
89831-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89834 - SENSOR, AIR BAG, REAR LH
89831-02010	ZZE12#..JPP	09/2002 - 05/2004	1
89831-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-05010	ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG)	09/2002 - 05/2004	1
89860-13020	ZZE12#..JPP	09/2002 - 05/2004	1
89831-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
89830-13020	ZZE12#..JPP	09/2002 - 05/2004	1
89831-05010	ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG)	09/2002 - 05/2004	1
Common parts
90119-08C48
91553-A0625
94151-80600
Linked diagrams
7101

ZZE121R-AHMDKW (2002)

(0209-0405)JPP

(0405- )JPP
