ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)
Production
Sep 2002
-
Oct 2006
Engine
3ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )JPP

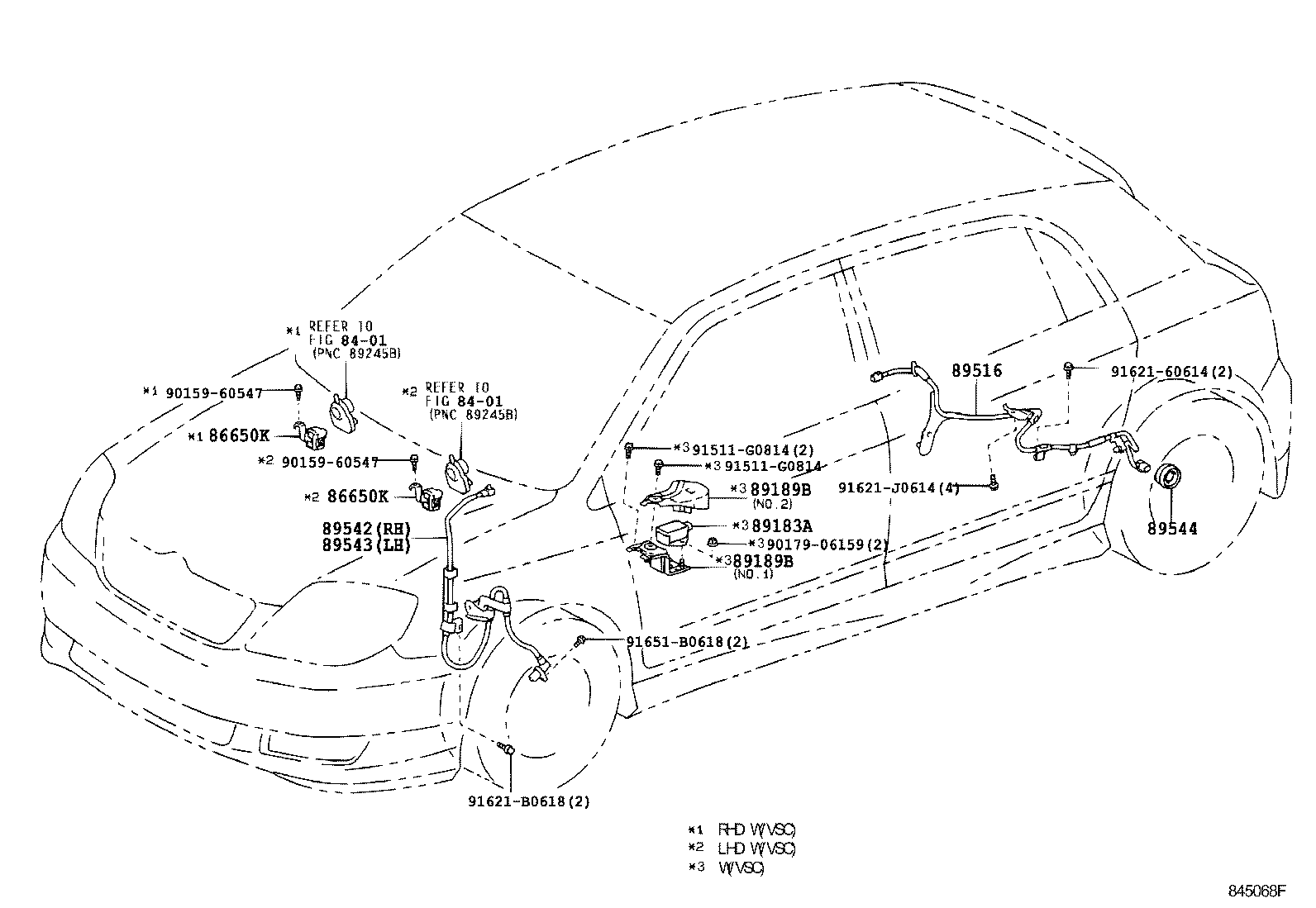

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86650-13010 |
ZZE12#..JPP..RHD |
1 | ||
| 86650-13010 |
ZZE121..JPP |
1 | ||
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86650-13010 |
ZZE12#..JPP..RHD |
1 | ||
| 86650-13010 |
ZZE121..JPP |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-02010 |
ZZE121..JPP |
1 | ||
| 89183-05020 |
ZZE121..JPP |
1 | ||
| 89183-02020 |
ZZE12#..JPP..RHD |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-12040 |
ZZE121..JPP NO.2 |
1 | ||
| 89189-12030 |
ZZE121..JPP NO.1 |
1 | ||
| 89189-12030 |
ZZE12#..JPP..RHD NO.1 |
1 | ||
| 89189-12040 |
ZZE12#..JPP..RHD NO.2 |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-12040 |
ZZE121..JPP NO.2 |
1 | ||
| 89189-12030 |
ZZE121..JPP NO.1 |
1 | ||
| 89189-12030 |
ZZE12#..JPP..RHD NO.1 |
1 | ||
| 89189-12040 |
ZZE12#..JPP..RHD NO.2 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-12020 |
CDE120,ZZE12#..JPP LH |
1 | ||
| 89516-12020 |
NDE120,ZZE12#..JPP LH |
1 | ||
| 89516-12010 |
NDE120,ZZE12#..JPP RH |
1 | ||
| 89516-12010 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-12070 |
NDE120,ZZE12#..JPP |
1 | ||
| 89542-12070 |
CDE120,ZZE12#..JPP |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-12070 |
CDE120,ZZE12#..JPP |
1 | ||
| 89543-12070 |
NDE120,ZZE12#..JPP |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-32040 |
CDE120,ZZE12#..JPP |
2 | ||
| 89544-32040 |
NDE120,ZZE12#..JPP |
2 | ||
| Common parts | ||||
| 90159-60547 | ||||
| 90179-06159 | ||||
| 91511-G0814 | ||||
| 91621-60614 | ||||
| 91621-B0618 | ||||
| 91621-J0614 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 8401 | ||||
