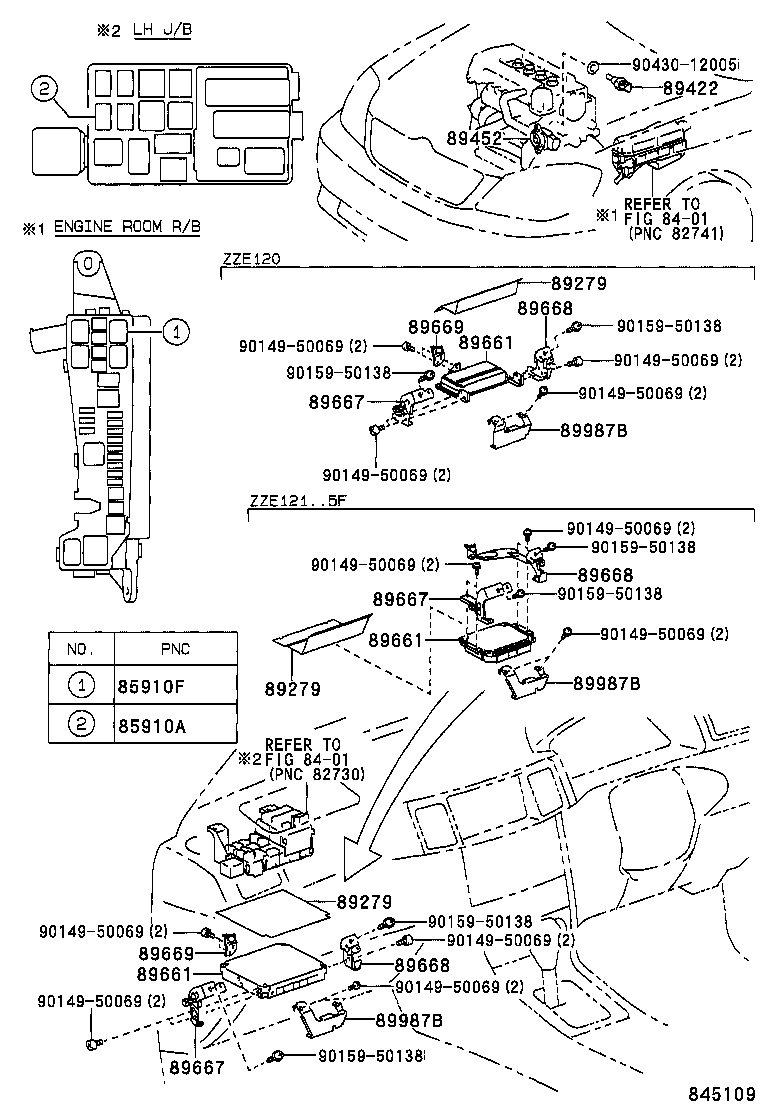

ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)
(0209-0405)JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02020 |
ZZE12#..JPP |
1 | ||
| 90987-02020 |
ZZE12#..JPP |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02020 |
ZZE12#..JPP |
1 | ||
| 90987-02020 |
ZZE12#..JPP |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12150 |
ZZE121..JPP |
1 | ||
| 89279-52050 |
ZZE12#..JPP..5F |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12150 |
ZZE121..JPP |
1 | ||
| 89279-52050 |
ZZE12#..JPP..5F |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12150 |
ZZE121..JPP |
1 | ||
| 89279-52050 |
ZZE12#..JPP..5F |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
ZZE12#..JPP |
1 | ||
| 89422-35010 |
ZZE12#..JPP |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20130 |
ZZE12#..JPP |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-13210 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13210 |
1 | ||
| 89661-13250 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13250 |
1 | ||
| 89661-12A20 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A20 |
1 | ||
| 89661-12A10 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A10 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-13210 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13210 |
1 | ||
| 89661-13250 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13250 |
1 | ||
| 89661-12A20 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A20 |
1 | ||
| 89661-12A10 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A10 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-13210 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13210 |
1 | ||
| 89661-13250 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13250 |
1 | ||
| 89661-12A20 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A20 |
1 | ||
| 89661-12A10 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A10 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-12190 |
ZZE121..JPP |
1 | ||
| 89667-13050 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-12190 |
ZZE121..JPP |
1 | ||
| 89667-13050 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-12190 |
ZZE121..JPP |
1 | ||
| 89667-13050 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-13110 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89668-12100 |
ZZE121..JPP |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-13110 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89668-12100 |
ZZE121..JPP |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-13110 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89668-12100 |
ZZE121..JPP |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-12030 |
ZZE121..JPP |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-12030 |
ZZE121..JPP |
1 | ||
| 89987B - BRACKET, COMPUTER, NO.1 | ||||
| 89987-13010 |
ZZE121..JPP..RHD |
1 | ||
| 89987B - BRACKET, COMPUTER, NO.1 | ||||
| 89987-13010 |
ZZE121..JPP..RHD |
1 | ||
| 89987B - BRACKET, COMPUTER, NO.1 | ||||
| 89987-13010 |
ZZE121..JPP..RHD |
1 | ||
| Common parts | ||||
| 90149-50069 | ||||
| 90159-50138 | ||||
| 90430-12005 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0405- )JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02020 |
ZZE12#..JPP |
1 | ||
| 90987-02020 |
ZZE12#..JPP |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02020 |
ZZE12#..JPP |
1 | ||
| 90987-02020 |
ZZE12#..JPP |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12150 |
ZZE121..JPP |
1 | ||
| 89279-52050 |
ZZE12#..JPP..5F |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12150 |
ZZE121..JPP |
1 | ||
| 89279-52050 |
ZZE12#..JPP..5F |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
ZZE12#..JPP |
1 | ||
| 89422-35010 |
ZZE12#..JPP |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20130 |
ZZE12#..JPP |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-13210 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13210 |
1 | ||
| 89661-13250 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13250 |
1 | ||
| 89661-12A20 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A20 |
1 | ||
| 89661-12A10 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A10 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-13210 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13210 |
1 | ||
| 89661-13250 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-13250 |
1 | ||
| 89661-12A20 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A20 |
1 | ||
| 89661-12A10 |
ZZE121..JPP..5F PART NUMBER LABEL=89661-12A10 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-12190 |
ZZE121..JPP |
1 | ||
| 89667-13050 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-12190 |
ZZE121..JPP |
1 | ||
| 89667-13050 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-13110 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89668-12100 |
ZZE121..JPP |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-13110 |
ZZE121..JPP..RHD..5F |
1 | ||
| 89668-12100 |
ZZE121..JPP |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-12030 |
ZZE121..JPP |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-12030 |
ZZE121..JPP |
1 | ||
| 89987B - BRACKET, COMPUTER, NO.1 | ||||
| 89987-13010 |
ZZE121..JPP..RHD |
1 | ||
| Common parts | ||||
| 90149-50069 | ||||
| 90159-50138 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
