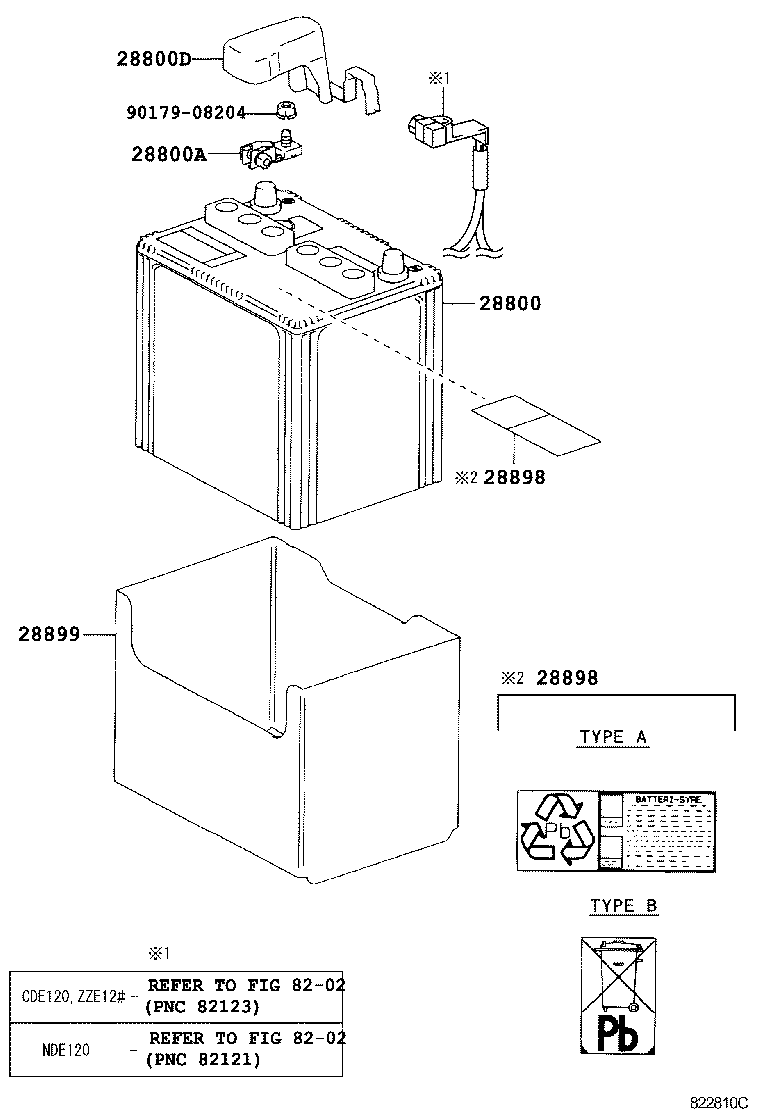

Toyota Corolla hb (jpp) ZZE121 BATTERY & BATTERY CABLE

Part #	Description	Period	Qty
28800 - BATTERY
28800-70101	3ZZFE,4ZZFE..ZZE12#..JPP 50D20L,FURUKAWA	05/2004 - 10/2006	1
28800-16160	3ZZFE,4ZZFE..ZZE12#..JPP 32B24L(S),MATSUSHITA	09/2002 - 05/2004	1
28800-70091	3ZZFE,4ZZFE..ZZE12#..JPP 50D20L,MATSUSHITA	05/2004 - 10/2006	1
28800-70070	3ZZFE,4ZZFE..ZZE12#..JPP 50D20L,YUASA	05/2004 - 10/2006	1
28800-74261	3ZZFE,4ZZFE..ZZE12#..JPP 46B24L(S)	08/2005 - 10/2006	1
28800-70070	3ZZFE,4ZZFE..ZZE12#..JPP 50D20L,YUASA	09/2002 - 05/2004	1
28800-16160	3ZZFE,4ZZFE..ZZE12#..JPP 32B24L(S)	05/2004 - 08/2005	1
28800A - TERMINAL, BATTERY POSITIVE
90982-05056	1NDTV,3ZZFE,4ZZFE..NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
90982-05056	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12500	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
82821-12500	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
28898 - PLATE, BATTERY
28898-16020	3ZZFE,4ZZFE..ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION	09/2002 - 05/2004	1
28898-16020	3ZZFE,4ZZFE..ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION	05/2004 - 12/2999	1
28898 - PLATE, BATTERY
28898-16020	3ZZFE,4ZZFE..ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION	09/2002 - 05/2004	1
28898-16020	3ZZFE,4ZZFE..ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION	05/2004 - 12/2999	1
Common parts
90179-08204
Linked diagrams
8202

ZZE121R-AHMDKW (2002)
